Module Interface IOverlay

Package: oversim.common
File: src/common/IOverlay.ned

Interface for overlay compound modules

Author: Ingmar Baumgart, Bernhard Heep, Stephan Krause

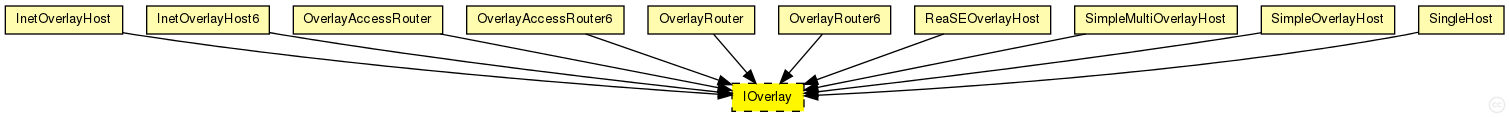

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

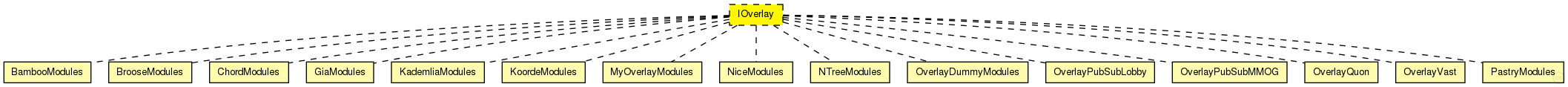

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Used in compound modules:

Name	Type	Description
InetOverlayHost	compound module	Host that participates in the overlay
InetOverlayHost6	compound module	Host that participates in the overlay
OverlayAccessRouter	compound module	Access router that participates in the overlay
OverlayAccessRouter6	compound module	Access router that participates in the overlay
OverlayRouter	compound module	Router in the overlay network
OverlayRouter6	compound module	Router in the overlay network
ReaSEOverlayHost	compound module	Host that participates in the overlay
SimpleMultiOverlayHost	compound module	Host in the simple network that participates in the overlay
SimpleOverlayHost	compound module	Host in the simple network that participates in the overlay
SingleHost	compound module	simulates a single host to connect it to a real network

Properties:

Name	Value	Description
display	i=block/network2

Source code:

//
// Interface for overlay compound modules
//
// @author Ingmar Baumgart, Bernhard Heep, Stephan Krause
//
moduleinterface IOverlay
{
    parameters:
        @display("i=block/network2");

    gates:
        input udpIn;    // gate from the UDP layer
        input appIn;    // gate from the application
        input tcpIn;    // gate from the TCP layer
        output tcpOut;    // gate to the TCP layer
        output udpOut;    // gate to the UDP layer
        output appOut;    // gate to the application
}
