Compound Module BambooModules

Package: oversim.overlay.bamboo
File: src/overlay/bamboo/Bamboo.ned

Implementation of the Bamboo KBR overlay as described in ...

Author: Gerhard Petruschat

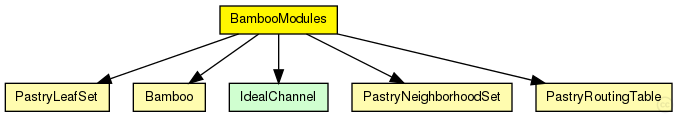

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Gates:

Name	Direction	Description
udpIn	input	gate from the UDP layer
udpOut	output	gate to the UDP layer
tcpIn	input	gate from the TCP layer
tcpOut	output	gate to the TCP layer
appIn	input	gate from the application
appOut	output	gate to the application

Unassigned submodule parameters:

Name	Type	Description
bamboo.rpcUdpTimeout	double	default timeout value for direct RPCs
bamboo.rpcKeyTimeout	double	default timeout value for routed RPCs
bamboo.optimizeTimeouts	bool	calculate timeouts from measured RTTs and network coordinates
bamboo.rpcExponentialBackoff	bool	if true, doubles the timeout for every retransmission
bamboo.localPort	int	UDP port for overlay messages
bamboo.overlayId	int	identifies the overlay this node belongs to (used for multiple overlays)
bamboo.debugOutput	bool	enable debug output
bamboo.keyLength	int	overlay key length in bits
bamboo.nodeId	string	optional nodeId as string in hexadecimal notation
bamboo.useCommonAPIforward	bool	enable CommonAPI forward() calls
bamboo.drawOverlayTopology	bool	draw arrow to successor node?
bamboo.hopCountMax	int	maximum number of overlay hops
bamboo.recNumRedundantNodes	int	numRedundantNodes for recursive routing
bamboo.joinOnApplicationRequest	bool	only join the overlay on application request
bamboo.collectPerHopDelay	bool	delay statistics for single hops
bamboo.routeMsgAcks	bool	use RPCs for route messages
bamboo.lookupRedundantNodes	int	number of next hops in each step
bamboo.lookupParallelPaths	int	number of parallel paths
bamboo.lookupParallelRpcs	int	number of nodes to ask in parallel
bamboo.lookupVerifySiblings	bool	true, if siblings need to be authenticated with a ping
bamboo.lookupMajoritySiblings	bool	true, if sibling candidates are selected by a majority decision if using parallel paths
bamboo.lookupMerge	bool	true, if parallel Rpc results should be merged
bamboo.lookupFailedNodeRpcs	bool	communicate failed nodes
bamboo.lookupStrictParallelRpcs	bool	limited the number of concurrent rpcs to parameter parallelRpcs
bamboo.lookupUseAllParallelResponses	bool	merge all parallel responses from earlier steps
bamboo.lookupNewRpcOnEveryTimeout	bool	send a new RPC immediately after an RPC timeouts
bamboo.lookupNewRpcOnEveryResponse	bool	send a new RPC after every response, even if there was no progress
bamboo.lookupFinishOnFirstUnchanged	bool	finish lookup, if the last pending RPC returned without progress
bamboo.lookupVisitOnlyOnce	bool	if true, the same node is never asked twice during a single lookup
bamboo.lookupAcceptLateSiblings	bool	if true, a FindNodeResponse with sibling flag set is always accepted, even if it is from a previous lookup step
bamboo.routingType	string	default routing mode (iterative, semi-recursive,...)
bamboo.rejoinOnFailure	bool	rejoin after loosing connection to the overlay?
bamboo.sendRpcResponseToLastHop	bool	needed by KBR protocols for NAT support
bamboo.recordRoute	bool	record visited hops on route
bamboo.dropFindNodeAttack	bool	if node is malicious, it tries a findNode attack
bamboo.isSiblingAttack	bool	if node is malicious, it tries a isSibling attack
bamboo.invalidNodesAttack	bool	if node is malicious, it tries a invalidNode attack
bamboo.dropRouteMessageAttack	bool	if node is malicious, it drops all received BaseRouteMessages
bamboo.measureAuthBlock	bool	if true, measure the overhead of signatures in rpc messages
bamboo.restoreContext	bool	if true, a node rejoins with its old nodeId and malicious state
bamboo.enableNewLeafs	bool	enable Pastry API call newLeafs()
bamboo.optimizeLookup	bool	whether to search the closest node in findCloserNode() calls
bamboo.bitsPerDigit	int	bits per Pastry digit
bamboo.numberOfLeaves	int	number of entries in leaf set
bamboo.numberOfNeighbors	int	number of entries in neighborhoot set
bamboo.joinTimeout	double	seconds to wait for STATE message from closest node
bamboo.repairTimeout	double	how long to wait for repair messages
bamboo.useRegularNextHop	bool
bamboo.alwaysSendUpdate	bool	tables delayed (should be very small)
bamboo.readyWait	double	seconds to wait for missing state messages in JOIN phase
bamboo.proximityNeighborSelection	bool	enable PNS ?
bamboo.localTuningInterval	double	interval for periodic routing table maintenance
bamboo.leafsetMaintenanceInterval	double	leafset push/pull interval
bamboo.globalTuningInterval	double	global tuning interval

Source code:

//
// Implementation of the Bamboo KBR overlay as described in
// ...
//
// @author Gerhard Petruschat
//
module BambooModules like IOverlay
{
    gates:
        input udpIn;    // gate from the UDP layer
        output udpOut;    // gate to the UDP layer
        input tcpIn;    // gate from the TCP layer
        output tcpOut;    // gate to the TCP layer
        input appIn;    // gate from the application
        output appOut;    // gate to the application

    submodules:
        bamboo: Bamboo {
            parameters:
                @display("p=60,52;i=block/circle");
        }
        pastryRoutingTable: PastryRoutingTable {
            parameters:
                @display("p=140,68;i=block/table");
        }
        pastryLeafSet: PastryLeafSet {
            parameters:
                @display("p=220,52;i=block/table");
        }
        pastryNeighborhoodSet: PastryNeighborhoodSet {
            parameters:
                @display("p=300,68;i=block/table");

        }
    connections allowunconnected:
        udpIn --> bamboo.udpIn;
        udpOut <-- bamboo.udpOut;
        appIn --> bamboo.appIn;
        appOut <-- bamboo.appOut;
}
