Compound Module BrooseModules

Package: oversim.overlay.broose
File: src/overlay/broose/Broose.ned

Implementation of the Broose overlay as described in "Broose: A Practical Distributed Hashtable based on the De-Bruijn Topology" by A. Gai and L. Viennot, published in "Technical report, INRIA, june 2004"

Author: Jochen Schenk, Ingmar Baumgart

Usage diagram:

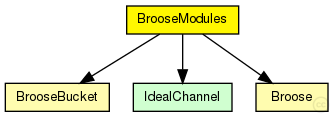

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Parameters:

Name	Type	Default value	Description
brooseShiftingBits	int		number of bits shifted in/out each step

Gates:

Name	Direction	Description
udpIn	input	gate from the UDP layer
udpOut	output	gate to the UDP layer
tcpIn	input	gate from the TCP layer
tcpOut	output	gate to the TCP layer
appIn	input	gate from the application
appOut	output	gate to the application

Unassigned submodule parameters:

Name	Type	Description
broose.rpcUdpTimeout	double	default timeout value for direct RPCs
broose.rpcKeyTimeout	double	default timeout value for routed RPCs
broose.optimizeTimeouts	bool	calculate timeouts from measured RTTs and network coordinates
broose.rpcExponentialBackoff	bool	if true, doubles the timeout for every retransmission
broose.localPort	int	UDP port for overlay messages
broose.overlayId	int	identifies the overlay this node belongs to (used for multiple overlays)
broose.debugOutput	bool	enable debug output
broose.keyLength	int	overlay key length in bits
broose.nodeId	string	optional nodeId as string in hexadecimal notation
broose.useCommonAPIforward	bool	enable CommonAPI forward() calls
broose.drawOverlayTopology	bool	draw arrow to successor node?
broose.hopCountMax	int	maximum number of overlay hops
broose.recNumRedundantNodes	int	numRedundantNodes for recursive routing
broose.joinOnApplicationRequest	bool	only join the overlay on application request
broose.collectPerHopDelay	bool	delay statistics for single hops
broose.routeMsgAcks	bool	use RPCs for route messages
broose.lookupRedundantNodes	int	number of next hops in each step
broose.lookupParallelPaths	int	number of parallel paths
broose.lookupParallelRpcs	int	number of nodes to ask in parallel
broose.lookupVerifySiblings	bool	true, if siblings need to be authenticated with a ping
broose.lookupMajoritySiblings	bool	true, if sibling candidates are selected by a majority decision if using parallel paths
broose.lookupMerge	bool	true, if parallel Rpc results should be merged
broose.lookupFailedNodeRpcs	bool	communicate failed nodes
broose.lookupStrictParallelRpcs	bool	limited the number of concurrent rpcs to parameter parallelRpcs
broose.lookupUseAllParallelResponses	bool	merge all parallel responses from earlier steps
broose.lookupNewRpcOnEveryTimeout	bool	send a new RPC immediately after an RPC timeouts
broose.lookupNewRpcOnEveryResponse	bool	send a new RPC after every response, even if there was no progress
broose.lookupFinishOnFirstUnchanged	bool	finish lookup, if the last pending RPC returned without progress
broose.lookupVisitOnlyOnce	bool	if true, the same node is never asked twice during a single lookup
broose.lookupAcceptLateSiblings	bool	if true, a FindNodeResponse with sibling flag set is always accepted, even if it is from a previous lookup step
broose.routingType	string	default routing mode (iterative, semi-recursive,...)
broose.rejoinOnFailure	bool	rejoin after loosing connection to the overlay?
broose.sendRpcResponseToLastHop	bool	needed by KBR protocols for NAT support
broose.recordRoute	bool	record visited hops on route
broose.dropFindNodeAttack	bool	if node is malicious, it tries a findNode attack
broose.isSiblingAttack	bool	if node is malicious, it tries a isSibling attack
broose.invalidNodesAttack	bool	if node is malicious, it tries a invalidNode attack
broose.dropRouteMessageAttack	bool	if node is malicious, it drops all received BaseRouteMessages
broose.measureAuthBlock	bool	if true, measure the overhead of signatures in rpc messages
broose.restoreContext	bool	if true, a node rejoins with its old nodeId and malicious state
broose.bucketSize	int	number of nodes a bucket contains
broose.rBucketSize	int	number of nodes a right-bucket contains
broose.joinDelay	double	time to wait to join the overlay after simulation start
broose.userDist	int	number of hops that are added to the estimated hop count
broose.refreshTime	double	idle time after which a node is pinged
broose.numberRetries	int	number of retries in case of timeout
broose.stab1	bool
broose.stab2	bool

Source code:

//
// Implementation of the Broose overlay as described in
// "Broose: A Practical Distributed Hashtable based on the
// De-Bruijn Topology" by A. Gai and L. Viennot, published in
// "Technical report, INRIA, june 2004"
//
// @author Jochen Schenk, Ingmar Baumgart
//
module BrooseModules like IOverlay
{
    parameters:
        int brooseShiftingBits; // number of bits shifted in/out each step
    gates:
        input udpIn;    // gate from the UDP layer
        output udpOut;    // gate to the UDP layer
        input tcpIn;    // gate from the TCP layer
        output tcpOut;    // gate to the TCP layer
        input appIn;    // gate from the application
        output appOut;    // gate to the application

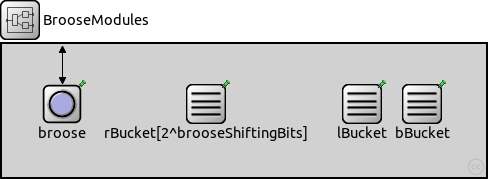

    submodules:
        rBucket[2^brooseShiftingBits]: BrooseBucket {
            parameters:
                @display("i=block/table;p=204,60");
        }
        lBucket: BrooseBucket {
            parameters:
                @display("p=360,60;i=block/table");
        }
        bBucket: BrooseBucket {
            parameters:
                @display("p=420,60;i=block/table");
        }
        broose: Broose {
            parameters:
                brooseShiftingBits = brooseShiftingBits;
                @display("p=60,60;i=block/circle");

        }
    connections allowunconnected:
        udpIn --> broose.udpIn;
        udpOut <-- broose.udpOut;
        appIn --> broose.appIn;
        appOut <-- broose.appOut;

}
