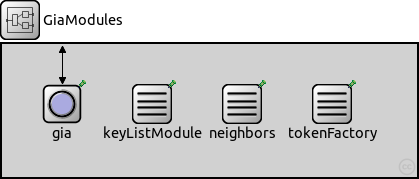

Compound Module GiaModules

Package: oversim.overlay.gia
File: src/overlay/gia/Gia.ned

Implementation of the Gia overlay as described in "Making Gnutella-like P2P Systems Scalable" by Yatin Chawathe, Sylvia Ratnasamy, Lee Breslau, Nick Lanham and Scott Shenker, published in "In Proc. ACM SIGCOMM (Aug. 2003)".

Author: Robert Palmer

Gia GiaKeyListModule GiaNeighbors GiaTokenFactory

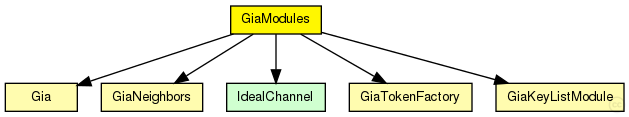

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Gates:

Name Direction Size Description
udpIn input

gate from UDP

udpOut output

gate to UDP

tcpIn input

gate from the TCP layer

tcpOut output

gate to the TCP layer

appIn input

gate from application

appOut output

gate to application

Unassigned submodule parameters:

Name Type Default value Description
gia.rpcUdpTimeout double

default timeout value for direct RPCs

gia.rpcKeyTimeout double

default timeout value for routed RPCs

gia.optimizeTimeouts bool

calculate timeouts from measured RTTs and network coordinates

gia.rpcExponentialBackoff bool

if true, doubles the timeout for every retransmission

gia.localPort int

UDP port for overlay messages

gia.overlayId int

identifies the overlay this node belongs to (used for multiple overlays)

gia.debugOutput bool

enable debug output

gia.keyLength int

overlay key length in bits

gia.nodeId string

optional nodeId as string in hexadecimal notation

gia.useCommonAPIforward bool

enable CommonAPI forward() calls

gia.drawOverlayTopology bool

draw arrow to successor node?

gia.hopCountMax int

maximum number of overlay hops

gia.recNumRedundantNodes int

numRedundantNodes for recursive routing

gia.joinOnApplicationRequest bool

only join the overlay on application request

gia.collectPerHopDelay bool

delay statistics for single hops

gia.routeMsgAcks bool

use RPCs for route messages

gia.lookupRedundantNodes int

number of next hops in each step

gia.lookupParallelPaths int

number of parallel paths

gia.lookupParallelRpcs int

number of nodes to ask in parallel

gia.lookupVerifySiblings bool

true, if siblings need to be authenticated with a ping

gia.lookupMajoritySiblings bool

true, if sibling candidates are selected by a majority decision if using parallel paths

gia.lookupMerge bool

true, if parallel Rpc results should be merged

gia.lookupFailedNodeRpcs bool

communicate failed nodes

gia.lookupStrictParallelRpcs bool

limited the number of concurrent rpcs to parameter parallelRpcs

gia.lookupUseAllParallelResponses bool

merge all parallel responses from earlier steps

gia.lookupNewRpcOnEveryTimeout bool

send a new RPC immediately after an RPC timeouts

gia.lookupNewRpcOnEveryResponse bool

send a new RPC after every response, even if there was no progress

gia.lookupFinishOnFirstUnchanged bool

finish lookup, if the last pending RPC returned without progress

gia.lookupVisitOnlyOnce bool

if true, the same node is never asked twice during a single lookup

gia.lookupAcceptLateSiblings bool

if true, a FindNodeResponse with sibling flag set is always accepted, even if it is from a previous lookup step

gia.routingType string

default routing mode (iterative, semi-recursive,...)

gia.rejoinOnFailure bool

rejoin after loosing connection to the overlay?

gia.sendRpcResponseToLastHop bool

needed by KBR protocols for NAT support

gia.recordRoute bool

record visited hops on route

gia.dropFindNodeAttack bool

if node is malicious, it tries a findNode attack

gia.isSiblingAttack bool

if node is malicious, it tries a isSibling attack

gia.invalidNodesAttack bool

if node is malicious, it tries a invalidNode attack

gia.dropRouteMessageAttack bool

if node is malicious, it drops all received BaseRouteMessages

gia.measureAuthBlock bool

if true, measure the overhead of signatures in rpc messages

gia.restoreContext bool

if true, a node rejoins with its old nodeId and malicious state

gia.maxNeighbors int

maximum number of neighbors

gia.minNeighbors int

minimum number of neighbors

gia.maxTopAdaptionInterval double

maximum topology adaption interval

gia.topAdaptionAggressiveness int

topology adaption aggressiveness

gia.maxLevelOfSatisfaction double

maximum level of satisfaction

gia.maxHopCount int

maximum TTL for sent messages

gia.messageTimeout double

message timeout

gia.neighborTimeout double

neighbor timeout

gia.sendTokenTimeout double

token timeout

gia.tokenWaitTime double

delay when sending new token

gia.keyListDelay double

delay when sending new key list to our neighbors

gia.updateDelay double

delay between two update messages

gia.outputNodeDetails bool

output node details

gia.optimizeReversePath bool

use optimized reverse path?

Source code:

//
// Implementation of the Gia overlay as described in
// "Making Gnutella-like P2P Systems Scalable"
// by Yatin Chawathe, Sylvia Ratnasamy, Lee Breslau, Nick Lanham
// and Scott Shenker, published in "In Proc. ACM SIGCOMM (Aug. 2003)".
// @author Robert Palmer
//
module GiaModules like IOverlay
{
    gates:
        input udpIn;  // gate from UDP
        output udpOut;   // gate to UDP
        input tcpIn;    // gate from the TCP layer
        output tcpOut;    // gate to the TCP layer
        input appIn;  // gate from application
        output appOut;   // gate to application

    submodules:
        gia: Gia {
            parameters:
                @display("p=60,60;i=block/circle");
        }
        keyListModule: GiaKeyListModule {
            parameters:
                @display("p=150,60;i=block/table");
        }
        neighbors: GiaNeighbors {
            parameters:
                @display("p=240,60;i=block/table");
        }
        tokenFactory: GiaTokenFactory {
            parameters:
                @display("p=330,60;i=block/table");
        }
    connections allowunconnected:
        udpIn --> gia.udpIn; // connect udpIn with gia.udpIn
        udpOut <-- gia.udpOut;     // connect to_upd with gia.udpOut
        appIn --> gia.appIn;   // connect appIn with gia.appIn
        appOut <-- gia.appOut;       // connect appOut with gia.appOut

}
