Compound Module PastryModules

Package: oversim.overlay.pastry
File: src/overlay/pastry/Pastry.ned

Implementation of the Pastry KBR overlay as described in "Pastry: Scalable, Decentralized Object Location, and Routing for Large-Scale Peer-to-Peer Systems" by Antony Rowstron and Peter Druschel, published in Lecture Notes in Computer Science, volume 2218.

Author: Felix Palmen

Usage diagram:

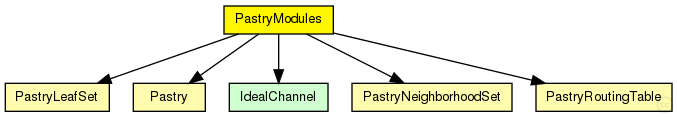

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Gates:

Name	Direction	Description
udpIn	input	gate from the UDP layer
udpOut	output	gate to the UDP layer
tcpIn	input	gate from the TCP layer
tcpOut	output	gate to the TCP layer
appIn	input	gate from the application
appOut	output	gate to the application

Unassigned submodule parameters:

Name	Type	Description
pastry.rpcUdpTimeout	double	default timeout value for direct RPCs
pastry.rpcKeyTimeout	double	default timeout value for routed RPCs
pastry.optimizeTimeouts	bool	calculate timeouts from measured RTTs and network coordinates
pastry.rpcExponentialBackoff	bool	if true, doubles the timeout for every retransmission
pastry.localPort	int	UDP port for overlay messages
pastry.overlayId	int	identifies the overlay this node belongs to (used for multiple overlays)
pastry.debugOutput	bool	enable debug output
pastry.keyLength	int	overlay key length in bits
pastry.nodeId	string	optional nodeId as string in hexadecimal notation
pastry.useCommonAPIforward	bool	enable CommonAPI forward() calls
pastry.drawOverlayTopology	bool	draw arrow to successor node?
pastry.hopCountMax	int	maximum number of overlay hops
pastry.recNumRedundantNodes	int	numRedundantNodes for recursive routing
pastry.joinOnApplicationRequest	bool	only join the overlay on application request
pastry.collectPerHopDelay	bool	delay statistics for single hops
pastry.routeMsgAcks	bool	use RPCs for route messages
pastry.lookupRedundantNodes	int	number of next hops in each step
pastry.lookupParallelPaths	int	number of parallel paths
pastry.lookupParallelRpcs	int	number of nodes to ask in parallel
pastry.lookupVerifySiblings	bool	true, if siblings need to be authenticated with a ping
pastry.lookupMajoritySiblings	bool	true, if sibling candidates are selected by a majority decision if using parallel paths
pastry.lookupMerge	bool	true, if parallel Rpc results should be merged
pastry.lookupFailedNodeRpcs	bool	communicate failed nodes
pastry.lookupStrictParallelRpcs	bool	limited the number of concurrent rpcs to parameter parallelRpcs
pastry.lookupUseAllParallelResponses	bool	merge all parallel responses from earlier steps
pastry.lookupNewRpcOnEveryTimeout	bool	send a new RPC immediately after an RPC timeouts
pastry.lookupNewRpcOnEveryResponse	bool	send a new RPC after every response, even if there was no progress
pastry.lookupFinishOnFirstUnchanged	bool	finish lookup, if the last pending RPC returned without progress
pastry.lookupVisitOnlyOnce	bool	if true, the same node is never asked twice during a single lookup
pastry.lookupAcceptLateSiblings	bool	if true, a FindNodeResponse with sibling flag set is always accepted, even if it is from a previous lookup step
pastry.routingType	string	default routing mode (iterative, semi-recursive,...)
pastry.rejoinOnFailure	bool	rejoin after loosing connection to the overlay?
pastry.sendRpcResponseToLastHop	bool	needed by KBR protocols for NAT support
pastry.recordRoute	bool	record visited hops on route
pastry.dropFindNodeAttack	bool	if node is malicious, it tries a findNode attack
pastry.isSiblingAttack	bool	if node is malicious, it tries a isSibling attack
pastry.invalidNodesAttack	bool	if node is malicious, it tries a invalidNode attack
pastry.dropRouteMessageAttack	bool	if node is malicious, it drops all received BaseRouteMessages
pastry.measureAuthBlock	bool	if true, measure the overhead of signatures in rpc messages
pastry.restoreContext	bool	if true, a node rejoins with its old nodeId and malicious state
pastry.enableNewLeafs	bool	enable Pastry API call newLeafs()
pastry.optimizeLookup	bool	whether to search the closest node in findCloserNode() calls
pastry.bitsPerDigit	int	bits per Pastry digit
pastry.numberOfLeaves	int	number of entries in leaf set
pastry.numberOfNeighbors	int	number of entries in neighborhoot set
pastry.joinTimeout	double	seconds to wait for STATE message from closest node
pastry.repairTimeout	double	how long to wait for repair messages
pastry.useRegularNextHop	bool
pastry.alwaysSendUpdate	bool	tables delayed (should be very small)
pastry.readyWait	double	seconds to wait for missing state messages in JOIN phase
pastry.proximityNeighborSelection	bool	enable PNS ?
pastry.partialJoinPath	bool	allow join even with missing state message along the routing path
pastry.useSecondStage	bool
pastry.secondStageWait	double	how long to wait before starting second stage of init phase
pastry.pingBeforeSecondStage	bool
pastry.useDiscovery	bool	join at nearest node, otherwise use bootstrapnode
pastry.minimalJoinState	bool	use smaller join state msgs (as described in the 2nd Pastry paper)
pastry.sendStateAtLeafsetRepair	bool	use state messages for leafset repair, otherwise use leafset messages
pastry.discoveryTimeoutAmount	double	how long to wait for leafset pings in discovery stage
pastry.useRoutingTableMaintenance	bool
pastry.routingTableMaintenanceInterval	double	interval for periodic routing table maintenance
pastry.overrideOldPastry	bool	pastry configuration according to the original paper
pastry.overrideNewPastry	bool	optimized pastry configuration

Source code:

//
// Implementation of the Pastry KBR overlay as described in
// "Pastry: Scalable, Decentralized Object Location, and
// Routing for Large-Scale Peer-to-Peer Systems"
// by Antony Rowstron and Peter Druschel, published in
// Lecture Notes in Computer Science, volume 2218.
//
// @author Felix Palmen
//
module PastryModules like IOverlay
{
    gates:
        input udpIn;   // gate from the UDP layer
        output udpOut;    // gate to the UDP layer
        input tcpIn;    // gate from the TCP layer
        output tcpOut;    // gate to the TCP layer
        input appIn;   // gate from the application
        output appOut;    // gate to the application

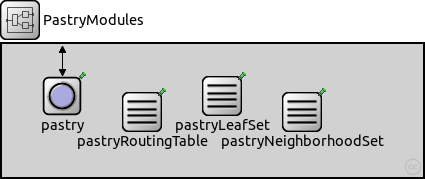

    submodules:
        pastry: Pastry {
            parameters:
                @display("p=60,52;i=block/circle");
        }
        pastryRoutingTable: PastryRoutingTable {
            parameters:
                @display("p=140,68;i=block/table");
        }
        pastryLeafSet: PastryLeafSet {
            parameters:
                @display("p=220,52;i=block/table");
        }
        pastryNeighborhoodSet: PastryNeighborhoodSet {
            parameters:
                @display("p=300,68;i=block/table");

        }
    connections allowunconnected:
        udpIn --> pastry.udpIn;
        udpOut <-- pastry.udpOut;
        appIn --> pastry.appIn;
        appOut <-- pastry.appOut;

}
