Simple Module AccessNet

Package: oversim.underlay.inetunderlay
File: src/underlay/inetunderlay/AccessNet.ned

Access net connects participating hosts over an access router with the backbone

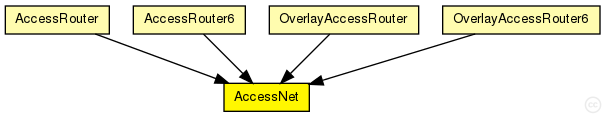

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Used in compound modules:

Name	Type	Description
AccessRouter	compound module	Access router connects the access nets to the network backbone
AccessRouter6	compound module	Access router connects the access nets to the network backbone
OverlayAccessRouter	compound module	Access router that participates in the overlay
OverlayAccessRouter6	compound module	Access router that participates in the overlay

Parameters:

Name	Type	Default value	Description
channelTypes	string		list of (tx) channel types (from common/channels.ned)
channelTypesRx	string		list of (rx) channel types (from common/channels.ned)
useIPv6Addresses	bool	false

Properties:

Name	Value	Description
display	i=block/cogwheel

Source code:

//
// Access net connects participating hosts over an access router with the backbone
//
simple AccessNet
{
    parameters:
        @display("i=block/cogwheel");
        string channelTypes;   // list of (tx) channel types (from common/channels.ned)
        string channelTypesRx; // list of (rx) channel types (from common/channels.ned)
        bool useIPv6Addresses = default(false);
}
