#include <BaseTcpSupport.h>

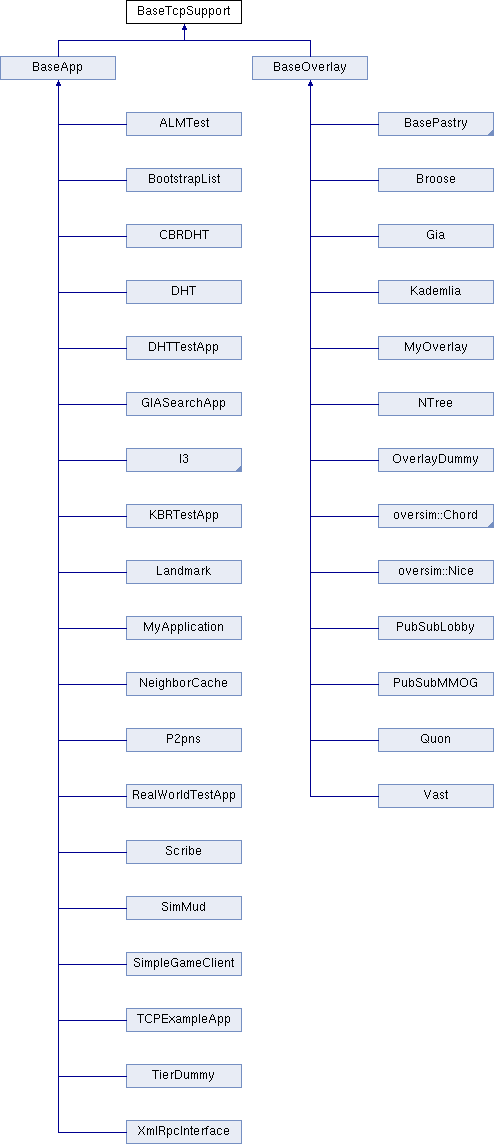

Inheritance diagram for BaseTcpSupport:

Public Types
enum	EvCode { NO_EST_CONNECTION, PEER_CLOSED, PEER_TIMEDOUT, PEER_REFUSED, CONNECTION_RESET, CONNECTION_SUCC_ClOSED }

Public Member Functions
virtual void	socketDataArrived (int connId, void yourPtr, cPacket msg, bool urgent)
virtual void	socketEstablished (int connId, void *yourPtr)
virtual void	socketPeerClosed (int connId, void *yourPtr)
virtual void	socketFailure (int connId, void *yourPtr, int code)
virtual void	socketStatusArrived (int connId, void yourPtr, TCPStatusInfo status)

Protected Member Functions
void	handleTCPMessage (cMessage *msg)
	Member function to handle incoming TCP messages.
void	bindAndListenTcp (int port)
	Member function to bind service to the specified port and listen afterwards.
bool	isAlreadyConnected (TransportAddress address)
	Member function to check if the service is already connected.
void	establishTcpConnection (TransportAddress address)
	Member function to establish a connection to the specified node.
void	sendTcpData (cPacket *msg, TransportAddress address)
	Member function to send TCP data to the specified node.
virtual void	handleConnectionEvent (EvCode code, TransportAddress address)
	Member function to handle passive connection events.
virtual void	handleDataReceived (TransportAddress address, cPacket *msg, bool urgent)
	Member function to handle incoming data.
virtual void	handleIncomingConnection (TransportAddress address)
	Member function to handle newly opened connections.
void	closeTcpConnection (TransportAddress address)
	Member function to close an established connection.
void	setTcpOut (cGate *gate)
	Member function to set local gate towards the TCP module during init phase.
cGate *	getTcpOut ()
	Member function to get local gate towards the TCP module.

Private Types
typedef std::vector< cMessage * >	msgQueue
typedef std::map < TransportAddress, msgQueue * >	transQueue

Private Attributes
ExtTCPSocketMap	sockets
	Socket map with extended functionality to find sockets.
transQueue	queuedTx
	msg queue partitioned by destination
cGate *	tcpOut
	local gate towards the TCP module

Detailed Description

Definition at line 33 of file BaseTcpSupport.h.

Member Typedef Documentation

typedef std::vector<cMessage*> BaseTcpSupport::msgQueue

private

Definition at line 132 of file BaseTcpSupport.h.

typedef std::map<TransportAddress, msgQueue*> BaseTcpSupport::transQueue

private

Definition at line 133 of file BaseTcpSupport.h.

Member Enumeration Documentation

enum BaseTcpSupport::EvCode

Enumerator:

NO_EST_CONNECTION
PEER_CLOSED
PEER_TIMEDOUT
PEER_REFUSED
CONNECTION_RESET
CONNECTION_SUCC_ClOSED

Definition at line 38 of file BaseTcpSupport.h.

{NO_EST_CONNECTION, PEER_CLOSED, PEER_TIMEDOUT, PEER_REFUSED, CONNECTION_RESET, CONNECTION_SUCC_ClOSED};

Member Function Documentation

void BaseTcpSupport::bindAndListenTcp ( int port )

protected

Member function to bind service to the specified port and listen afterwards.

Parameters

port	local portnumber to bind on

Definition at line 50 of file BaseTcpSupport.cc.

{
    if (sockets.size() != 0) {
        return;
    }
    TCPSocket* newSocket = new TCPSocket();
    newSocket->bind(port);
    newSocket->setOutputGate(getTcpOut());
    newSocket->setCallbackObject(this);
    newSocket->listen();
    sockets.addSocket(newSocket);
}

void BaseTcpSupport::closeTcpConnection ( TransportAddress address )

protected

Member function to close an established connection.

Parameters

address transport address of the remote host

Definition at line 196 of file BaseTcpSupport.cc.

{
    if (!isAlreadyConnected(address)) {
        return;
    }
    TCPSocket* oldSocket = sockets.findSocketFor(address.getIp(),
                                                 address.getPort());
    oldSocket->close();
}

void BaseTcpSupport::establishTcpConnection ( TransportAddress address )

protected

Member function to establish a connection to the specified node.

Parameters

address transport address of the remote host

Definition at line 75 of file BaseTcpSupport.cc.

Referenced by handleConnectionEvent().

{
    if (isAlreadyConnected(address)) {
        return;
    }
    TCPSocket* newSocket = new TCPSocket();
    newSocket->setOutputGate(getTcpOut());
    newSocket->setCallbackObject(this);
    newSocket->connect(address.getIp(), address.getPort());
    sockets.addSocket(newSocket);
}

cGate* BaseTcpSupport::getTcpOut ( )

inlineprotected

Member function to get local gate towards the TCP module.

Returns: The local gate towards the TCP module

Definition at line 127 of file BaseTcpSupport.h.

Referenced by bindAndListenTcp(), establishTcpConnection(), and handleTCPMessage().

{return tcpOut;}

void BaseTcpSupport::handleConnectionEvent	(	EvCode	code,
		TransportAddress	address
	)

protectedvirtual

Member function to handle passive connection events.

Parameters

code	event code of the current event
address	transport address of the remote host

Definition at line 114 of file BaseTcpSupport.cc.

Referenced by TCPExampleApp::handleConnectionEvent(), sendTcpData(), socketFailure(), and socketPeerClosed().

{
    if (code == NO_EST_CONNECTION) {
        establishTcpConnection(address);
    }
}

void BaseTcpSupport::handleDataReceived	(	TransportAddress	address,
		cPacket *	msg,
		bool	urgent
	)

protectedvirtual

Member function to handle incoming data.

Parameters

address	transport address of the remote host
msg	incoming data message
urgent	message urgency

Definition at line 121 of file BaseTcpSupport.cc.

Referenced by socketDataArrived().

{

}

void BaseTcpSupport::handleIncomingConnection ( TransportAddress address )

protectedvirtual

Member function to handle newly opened connections.

Parameters

address transport address of the remote host

Definition at line 126 of file BaseTcpSupport.cc.

Referenced by handleTCPMessage().

{

}

void BaseTcpSupport::handleTCPMessage ( cMessage * msg )

protected

Member function to handle incoming TCP messages.

Definition at line 30 of file BaseTcpSupport.cc.

{
    TCPSocket* socket = sockets.findSocketFor(msg);
    if (socket == NULL) {
        socket = new TCPSocket(msg);
        socket->setCallbackObject(this);
        socket->setOutputGate(getTcpOut());
        sockets.addSocket(socket);
        TransportAddress newAddress =
                TransportAddress(socket->getRemoteAddress(),
                                 socket->getRemotePort());
        socket->processMessage(msg);
        handleIncomingConnection(newAddress);
    } else {
        socket->processMessage(msg);
    }
}

bool BaseTcpSupport::isAlreadyConnected ( TransportAddress address )

protected

Member function to check if the service is already connected.

Parameters

address transport address of the remote host

Definition at line 64 of file BaseTcpSupport.cc.

Referenced by closeTcpConnection(), establishTcpConnection(), and sendTcpData().

{
    TCPSocket* newSocket = sockets.findSocketFor(address.getIp(),
                                                 address.getPort());
    if (newSocket == NULL) {
        return false;
    } else if (newSocket->getState() >= TCPSocket::PEER_CLOSED) {
        return false;
    } else return true;
}

void BaseTcpSupport::sendTcpData	(	cPacket *	msg,
		TransportAddress	address
	)

protected

Member function to send TCP data to the specified node.

Parameters

msg	data message
address	transport address of the remote host

Definition at line 89 of file BaseTcpSupport.cc.

{
    if (!isAlreadyConnected(address)) {
        handleConnectionEvent(NO_EST_CONNECTION, address);
        return;
    }
    TCPSocket* socket = sockets.findSocketFor(address.getIp(),
                                              address.getPort());
    if (socket->getState() == TCPSocket::CONNECTED) {
        socket->send(msg);
    }
    transQueue::iterator tx = queuedTx.find(address);
    if (tx != queuedTx.end()) {
        tx->second->push_back(msg);
    } else {
        msgQueue* newQueue = new msgQueue();
        newQueue->push_back(msg);
        queuedTx[address] = newQueue;
    }
}

void BaseTcpSupport::setTcpOut ( cGate * gate )

inlineprotected

Member function to set local gate towards the TCP module during init phase.

Parameters

gate	local gate towards the TCP module

Definition at line 120 of file BaseTcpSupport.h.

{tcpOut = gate;}

void BaseTcpSupport::socketDataArrived	(	int	connId,
		void *	yourPtr,
		cPacket *	msg,
		bool	urgent
	)

virtual

Definition at line 130 of file BaseTcpSupport.cc.

{
    TCPSocket* socket = sockets.findSocketFor(connId);
    TransportAddress remoteAddress(socket->getRemoteAddress(),
                                   socket->getRemotePort());
    handleDataReceived(remoteAddress, msg, urgent);
}

void BaseTcpSupport::socketEstablished	(	int	connId,
		void *	yourPtr
	)

virtual

Definition at line 140 of file BaseTcpSupport.cc.

{
    TCPSocket* socket = sockets.findSocketFor(connId);
    if (socket == NULL) {
        return;
    }
    TransportAddress remoteAddress(socket->getRemoteAddress(),
                                   socket->getRemotePort());
    transQueue::iterator tx = queuedTx.find(remoteAddress);
    if (tx != queuedTx.end()) {
        for (uint32 i = 0 ; i < tx->second->size(); i++) {
            socket->send(tx->second->at(i));
        }
        tx->second->clear();
        delete tx->second;
        queuedTx.erase(remoteAddress);
    }
}

void BaseTcpSupport::socketFailure	(	int	connId,
		void *	yourPtr,
		int	code
	)

virtual

Definition at line 179 of file BaseTcpSupport.cc.

{
    TCPSocket* socket = sockets.findSocketFor(connId);
    TransportAddress remoteAddress(socket->getRemoteAddress(),
                                   socket->getRemotePort());
    if (code == TCP_I_CONNECTION_REFUSED) {
        handleConnectionEvent(PEER_REFUSED, remoteAddress);
    } else if (code == TCP_I_TIMED_OUT) {
        handleConnectionEvent(PEER_TIMEDOUT, remoteAddress);
    } else if (code == TCP_I_CONNECTION_RESET) {
        handleConnectionEvent(CONNECTION_RESET, remoteAddress);
    } else {
        throw new cRuntimeError("Invalid error code on socketFailure.");
    }
}

void BaseTcpSupport::socketPeerClosed	(	int	connId,
		void *	yourPtr
	)

virtual

Definition at line 164 of file BaseTcpSupport.cc.

{
    TCPSocket* socket = sockets.findSocketFor(connId);
    TransportAddress remoteAddress(socket->getRemoteAddress(),
                                   socket->getRemotePort());
    if (socket->getState() == TCPSocket::PEER_CLOSED) {
        socket->close();
        handleConnectionEvent(PEER_CLOSED, remoteAddress);
    }  else if (socket->getState() == TCPSocket::CLOSED) {
        sockets.removeSocket(socket);
        handleConnectionEvent(CONNECTION_SUCC_ClOSED, remoteAddress);
    }
}

virtual void BaseTcpSupport::socketStatusArrived	(	int	connId,
		void *	yourPtr,
		TCPStatusInfo *	status
	)

inlinevirtual

Definition at line 46 of file BaseTcpSupport.h.

{delete status;}

Member Data Documentation

transQueue BaseTcpSupport::queuedTx

private

msg queue partitioned by destination

Definition at line 134 of file BaseTcpSupport.h.

Referenced by sendTcpData(), and socketEstablished().

ExtTCPSocketMap BaseTcpSupport::sockets

private

Socket map with extended functionality to find sockets.

Definition at line 131 of file BaseTcpSupport.h.

Referenced by bindAndListenTcp(), closeTcpConnection(), establishTcpConnection(), handleTCPMessage(), isAlreadyConnected(), sendTcpData(), socketDataArrived(), socketEstablished(), socketFailure(), and socketPeerClosed().

cGate* BaseTcpSupport::tcpOut

private

local gate towards the TCP module

Definition at line 136 of file BaseTcpSupport.h.

Referenced by getTcpOut(), and setTcpOut().

The documentation for this class was generated from the following files:
