#include <StrategySendAll.h>

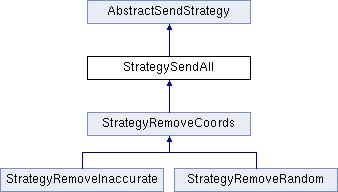

Inheritance diagram for StrategySendAll:

Public Member Functions
	StrategySendAll ()
	.cc
virtual	~StrategySendAll ()
virtual void	setMyCoordinates (const AbstractNcsNodeInfo &ncsInfo)
virtual GlobalViewBuilderCall *	getCoordinateMessage ()
virtual void	handleCoordinateRpcCall (GlobalViewBuilderCall *globalViewBuilderCall)
virtual std::string	getStrategyDataStatus ()
	return a short status of the running send strategy
virtual std::vector < std::vector< double > >	getGlobalViewData ()
	return the decodes global View Data
virtual void	cleanUpCoordData (const treeNodeMap &currentTreeChildNodes)
	cleanup the coordinate map and remove data of nodes which are not longer in the branch
virtual std::string	getStrategyCombinedParams ()
	return a string of the currently used strategy params
Public Member Functions inherited from AbstractSendStrategy
	AbstractSendStrategy ()
	.cc
virtual	~AbstractSendStrategy ()
virtual void	initialize (GlobalViewBuilder *globalViewBuilder)
	set a pointer to the neighborCache to access the optional parameters for the strategies
virtual void	initializeStrategy ()
	stub method to initialize the concrete strategy
virtual void	setThisNode (const NodeHandle thisNode)
	Set the Nodehandle of the own node to identify the own coordinates.

Protected Types
typedef std::vector < std::vector< double > >	coordinatesVector
	The coordinatesVector is a vector of coordinates, where a coordinate itself is a vector of doubles (=Dimensions)
typedef std::pair < TransportAddress, coordinatesVector >	nodeCoordData
typedef UNORDERED_MAP < TransportAddress, coordinatesVector, TransportAddress::hashFcn >	coordDataMap

Protected Member Functions
void	setBranchCoordinates (const NodeHandle &node, coordinatesVector coordsVector)
	Set the CoordinatesVector to the map, identified by the sender node.
const std::vector< std::vector < double > >	getCombinedCoordsVector ()
	Combine the coordinates of coordData map Structure to a single Vector of coordinates.
virtual int	getSizeOfCoordVector (const coordinatesVector &combinedCoordsVector)
	calculate and return the size of the used coordinate data structure return int size
virtual int	getSizeOfSingleCoordinate (const coordinatesVector &combinedCoordsVector)

Protected Attributes
coordDataMap	coordData
Protected Attributes inherited from AbstractSendStrategy
NodeHandle	thisNode
GlobalViewBuilder *	globalViewBuilder
int	lastSendCount
	the quantity of coordinates sent by last message

Detailed Description

Definition at line 36 of file StrategySendAll.h.

Member Typedef Documentation

typedef UNORDERED_MAP<TransportAddress, coordinatesVector, TransportAddress::hashFcn> StrategySendAll::coordDataMap

protected

Definition at line 59 of file StrategySendAll.h.

typedef std::vector<std::vector<double> > StrategySendAll::coordinatesVector

protected

The coordinatesVector is a vector of coordinates, where a coordinate itself is a vector of doubles (=Dimensions)

Definition at line 57 of file StrategySendAll.h.

typedef std::pair<TransportAddress, coordinatesVector > StrategySendAll::nodeCoordData

protected

Definition at line 58 of file StrategySendAll.h.

Constructor & Destructor Documentation

StrategySendAll::StrategySendAll ( )

.cc

Author: Daniel Lienert

Definition at line 29 of file StrategySendAll.cc.

{
    lastSendCount = 0;
}

StrategySendAll::~StrategySendAll ( )

virtual

Definition at line 35 of file StrategySendAll.cc.

{
    // TODO Auto-generated destructor stub
}

Member Function Documentation

void StrategySendAll::cleanUpCoordData ( const treeNodeMap & currentTreeChildNodes )

virtual

cleanup the coordinate map and remove data of nodes which are not longer in the branch

Reimplemented from AbstractSendStrategy.

Definition at line 108 of file StrategySendAll.cc.

{
    coordDataMap::const_iterator coordDataMapIterator = coordData.begin();
    while(coordDataMapIterator != coordData.end()) {
        if(currentTreeChildNodes.find(coordDataMapIterator->first) ==
           currentTreeChildNodes.end() && coordDataMapIterator->first != thisNode) {
            coordDataMapIterator = coordData.erase(coordDataMapIterator);
        } else ++coordDataMapIterator;
    }
}

const std::vector< std::vector< double > > StrategySendAll::getCombinedCoordsVector ( )

protected

Combine the coordinates of coordData map Structure to a single Vector of coordinates.

Returns: single vector of coordinate vectors

Definition at line 86 of file StrategySendAll.cc.

Referenced by StrategyRemoveCoords::getCoordinateMessage(), getCoordinateMessage(), and getGlobalViewData().

{
    coordinatesVector combinedCoordsVector;
    coordinatesVector branchCoordsVector;
    coordDataMap::const_iterator coordDataMapIterator = coordData.begin();
    while(coordDataMapIterator != coordData.end()) {
        branchCoordsVector = coordDataMapIterator->second;
        coordinatesVector::iterator vIterator;
        for(vIterator=branchCoordsVector.begin(); vIterator < branchCoordsVector.end(); vIterator++) {
            combinedCoordsVector.push_back(*vIterator);
        }
        ++coordDataMapIterator;
    }
    return combinedCoordsVector;
}

GlobalViewBuilderCall * StrategySendAll::getCoordinateMessage ( )

virtual

Reimplemented from AbstractSendStrategy.

Reimplemented in StrategyRemoveCoords.

Definition at line 63 of file StrategySendAll.cc.

{
    SendAllStrategyCall* msg = new SendAllStrategyCall("SendAllStrategyCall");
    CoordDataContainer tmpCoordContainer;
    tmpCoordContainer.coordinatesVector = getCombinedCoordsVector();
    lastSendCount = tmpCoordContainer.coordinatesVector.size();
    msg->setCoordData(tmpCoordContainer);
    msg->setBitLength(SENDALLSTRATEGYCALL_L(msg));
    return msg;
}

std::vector< std::vector< double > > StrategySendAll::getGlobalViewData ( )

virtual

return the decodes global View Data

Implements AbstractSendStrategy.

Definition at line 166 of file StrategySendAll.cc.

{
    return getCombinedCoordsVector();
}

int StrategySendAll::getSizeOfCoordVector ( const coordinatesVector & combinedCoordsVector )

protectedvirtual

calculate and return the size of the used coordinate data structure return int size

Definition at line 138 of file StrategySendAll.cc.

{
    int size = 0;
    coordinatesVector::const_iterator vNodeIterator = combinedCoordsVector.begin();
    std::vector<double>::const_iterator vCoordsIterator;
    while(vNodeIterator != combinedCoordsVector.end()) {
        size += sizeof((*vNodeIterator));
        vCoordsIterator = (*vNodeIterator).begin();
        while(vCoordsIterator != (*vNodeIterator).end()) {
            size += sizeof((*vCoordsIterator));
            vCoordsIterator++;
        }
        vNodeIterator++;
    }
    return size;
}

int StrategySendAll::getSizeOfSingleCoordinate ( const coordinatesVector & combinedCoordsVector )

protectedvirtual

Definition at line 161 of file StrategySendAll.cc.

Referenced by StrategyRemoveCoords::removeCoordinatesByTrafficLimit().

{
    return sizeof((*(*combinedCoordsVector.begin()).begin()));
}

std::string StrategySendAll::getStrategyCombinedParams ( )

virtual

return a string of the currently used strategy params

Implements AbstractSendStrategy.

Reimplemented in StrategyRemoveCoords.

Definition at line 129 of file StrategySendAll.cc.

{
    std::stringstream tempStr;
    tempStr << "sendAll";
    return tempStr.str();
}

std::string StrategySendAll::getStrategyDataStatus ( )

virtual

return a short status of the running send strategy

Reimplemented from AbstractSendStrategy.

Definition at line 121 of file StrategySendAll.cc.

{
    std::stringstream tempStr;
    tempStr << "CoordCount: "  << lastSendCount;
    return tempStr.str();
}

void StrategySendAll::handleCoordinateRpcCall ( GlobalViewBuilderCall * globalViewBuilderCall )

virtual

Reimplemented from AbstractSendStrategy.

Definition at line 79 of file StrategySendAll.cc.

{
    SendAllStrategyCall* sendAllStrategyCall = dynamic_cast<SendAllStrategyCall*>(globalViewBuilderCall);
    setBranchCoordinates(sendAllStrategyCall->getSrcNode(), sendAllStrategyCall->getCoordData().coordinatesVector);
}

void StrategySendAll::setBranchCoordinates	(	const NodeHandle &	node,
		coordinatesVector	coordsVector
	)

protected

Set the CoordinatesVector to the map, identified by the sender node.

Parameters

node	NodeHandle to identify the sending node
coordsVector	coordinatesVector with the coordinates of all nodes in this branch

Definition at line 52 of file StrategySendAll.cc.

Referenced by handleCoordinateRpcCall(), StrategyRemoveInaccurate::setMyCoordinates(), and setMyCoordinates().

{
    if(coordData.find(node) != coordData.end()) {
        coordData.find(node)->second = coordsVector;
    } else {
        coordData.insert(nodeCoordData(node, coordsVector));
    }
}

void StrategySendAll::setMyCoordinates ( const AbstractNcsNodeInfo & ncsInfo )

virtual

Reimplemented from AbstractSendStrategy.

Reimplemented in StrategyRemoveInaccurate.

Definition at line 41 of file StrategySendAll.cc.

{
    std::vector<double> tmpDimVector = ncsInfo.getCoords();
    coordinatesVector tmpCoordsVector;
    tmpCoordsVector.push_back(tmpDimVector);
    // i am my own branch here ...
    setBranchCoordinates(thisNode, tmpCoordsVector);
}

Member Data Documentation

coordDataMap StrategySendAll::coordData

protected

Definition at line 62 of file StrategySendAll.h.

Referenced by cleanUpCoordData(), getCombinedCoordsVector(), and setBranchCoordinates().

The documentation for this class was generated from the following files:
