Packet VastMessage

File: src/overlay/vast/Vast.msg

Base message for all messages used by Vast JOIN_REQUEST, ENCLOSING_NEIGHBORS_REQUEST, PING, PONG

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

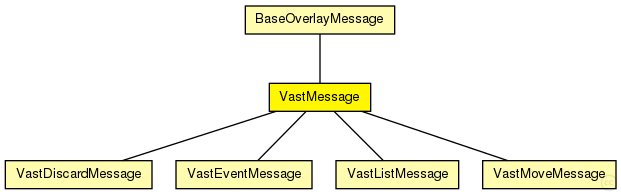

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Extends:

Name	Type	Description
BaseOverlayMessage	packet	Base class for all messages handled by overlay modules

Known subclasses:

Name	Type	Description
VastDiscardMessage	packet	DISCARD_NODE
VastEventMessage	packet	FIXME: Length definition
VastListMessage	packet	JOIN_ACKNOWLEDGE, NEW_NEIGHBORS, NODE_LEAVE, BACKUP_NEIGHBORS
VastMoveMessage	packet	NODE_MOVE

Fields:

Name	Type	Description
command	int
sourceNode	NodeHandle
destKey	OverlayKey
pos	Vector2D
neighborCount	int
type	int	message type
statType	int	message type for stats

Source code:

//
// Base message for all messages used by Vast
// JOIN_REQUEST, ENCLOSING_NEIGHBORS_REQUEST, PING, PONG
//
packet VastMessage extends BaseOverlayMessage
{
    int command @enum(VASTCommand);
    NodeHandle sourceNode;
    OverlayKey destKey;
    Vector2D pos;
    int neighborCount;
}
