Compound Module OverlayI3

Package: oversim.applications.i3
File: src/applications/i3/OverlayI3.ned

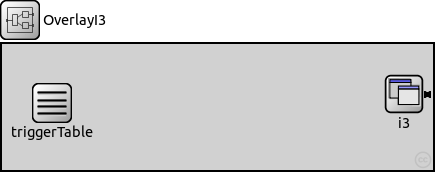

Container for I3 module and trigger table

Author: Antonio Zea

Usage diagram:

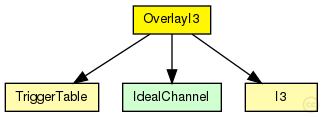

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Parameters:

Name	Type	Default value	Description
debugOutput	bool

Gates:

Name	Direction	Description
udpIn	input	gate from the UDP layer
from_lowerTier	input	gate from the lower tier
from_upperTier	input	gate from the upper tier
tcpIn	input	gate from the TCP layer
tcpOut	output	gate to the TCP layer
udpOut	output	gate to the UDP layer
to_lowerTier	output	gate to the lower tier
to_upperTier	output	gate to the upper tier

Unassigned submodule parameters:

Name	Type	Description
i3.rpcUdpTimeout	double	default timeout value for direct RPCs
i3.rpcKeyTimeout	double	default timeout value for routed RPCs
i3.optimizeTimeouts	bool	calculate timeouts from measured RTTs and network coordinates
i3.rpcExponentialBackoff	bool	if true, doubles the timeout for every retransmission
i3.debugOutput	bool	enable debug output
i3.triggerTimeToLive	int	expiration time for triggers
i3.serverPort	int	server port

Source code:

// Container for I3 module and trigger table
// @author Antonio Zea
module OverlayI3 like ITier
{
    parameters:
        bool debugOutput;

    gates:
        input udpIn;    // gate from the UDP layer
        input from_lowerTier;    // gate from the lower tier
        input from_upperTier;    // gate from the upper tier
        input tcpIn;    // gate from the TCP layer
        output tcpOut;    // gate to the TCP layer
        output udpOut;    // gate to the UDP layer
        output to_lowerTier;    // gate to the lower tier
        output to_upperTier;    // gate to the upper tier

    submodules:
        i3: I3;
        triggerTable: TriggerTable;
    connections allowunconnected:
        udpIn --> i3.udpIn;
        udpOut <-- i3.udpOut;
        from_lowerTier --> i3.from_lowerTier;
        to_lowerTier <-- i3.to_lowerTier;
        from_upperTier --> i3.from_upperTier;
        to_upperTier <-- i3.to_upperTier;
}
