Compound Module KoordeModules

Package: oversim.overlay.koorde
File: src/overlay/koorde/Koorde.ned

Implementation of the Koorde DHT overlay as described in "Koorde: A simple degree-optimal distributed hash table" by M. Frans Kaashoek and David R. Karger,. published in Proceedings of the 2nd International Workshop on Peer-to-Peer Systems (IPTPS '03).

Author: Jochen Schenk, Ingmar Baumgart

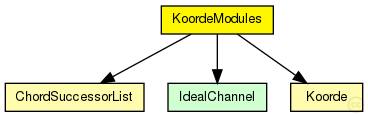

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Gates:

Name	Direction	Description
udpIn	input	gate from the UDP layer
udpOut	output	gate to the UDP layer
tcpIn	input	gate from the TCP layer
tcpOut	output	gate to the TCP layer
appIn	input	gate from the application
appOut	output	gate to the application

Unassigned submodule parameters:

Name	Type	Description
koorde.rpcUdpTimeout	double	default timeout value for direct RPCs
koorde.rpcKeyTimeout	double	default timeout value for routed RPCs
koorde.optimizeTimeouts	bool	calculate timeouts from measured RTTs and network coordinates
koorde.rpcExponentialBackoff	bool	if true, doubles the timeout for every retransmission
koorde.localPort	int	UDP port for overlay messages
koorde.overlayId	int	identifies the overlay this node belongs to (used for multiple overlays)
koorde.debugOutput	bool	enable debug output
koorde.keyLength	int	overlay key length in bits
koorde.nodeId	string	optional nodeId as string in hexadecimal notation
koorde.useCommonAPIforward	bool	enable CommonAPI forward() calls
koorde.drawOverlayTopology	bool	draw arrow to successor node?
koorde.hopCountMax	int	maximum number of overlay hops
koorde.recNumRedundantNodes	int	numRedundantNodes for recursive routing
koorde.joinOnApplicationRequest	bool	only join the overlay on application request
koorde.collectPerHopDelay	bool	delay statistics for single hops
koorde.routeMsgAcks	bool	use RPCs for route messages
koorde.lookupRedundantNodes	int	number of next hops in each step
koorde.lookupParallelPaths	int	number of parallel paths
koorde.lookupParallelRpcs	int	number of nodes to ask in parallel
koorde.lookupVerifySiblings	bool	true, if siblings need to be authenticated with a ping
koorde.lookupMajoritySiblings	bool	true, if sibling candidates are selected by a majority decision if using parallel paths
koorde.lookupMerge	bool	true, if parallel Rpc results should be merged
koorde.lookupFailedNodeRpcs	bool	communicate failed nodes
koorde.lookupStrictParallelRpcs	bool	limited the number of concurrent rpcs to parameter parallelRpcs
koorde.lookupUseAllParallelResponses	bool	merge all parallel responses from earlier steps
koorde.lookupNewRpcOnEveryTimeout	bool	send a new RPC immediately after an RPC timeouts
koorde.lookupNewRpcOnEveryResponse	bool	send a new RPC after every response, even if there was no progress
koorde.lookupFinishOnFirstUnchanged	bool	finish lookup, if the last pending RPC returned without progress
koorde.lookupVisitOnlyOnce	bool	if true, the same node is never asked twice during a single lookup
koorde.lookupAcceptLateSiblings	bool	if true, a FindNodeResponse with sibling flag set is always accepted, even if it is from a previous lookup step
koorde.routingType	string	default routing mode (iterative, semi-recursive,...)
koorde.rejoinOnFailure	bool	rejoin after loosing connection to the overlay?
koorde.sendRpcResponseToLastHop	bool	needed by KBR protocols for NAT support
koorde.recordRoute	bool	record visited hops on route
koorde.dropFindNodeAttack	bool	if node is malicious, it tries a findNode attack
koorde.isSiblingAttack	bool	if node is malicious, it tries a isSibling attack
koorde.invalidNodesAttack	bool	if node is malicious, it tries a invalidNode attack
koorde.dropRouteMessageAttack	bool	if node is malicious, it drops all received BaseRouteMessages
koorde.measureAuthBlock	bool	if true, measure the overhead of signatures in rpc messages
koorde.restoreContext	bool	if true, a node rejoins with its old nodeId and malicious state
koorde.stabilizeDelay	double	number of seconds between two stabilize algo calls
koorde.stabilizeRetry	int	retries before neighbor considered failed
koorde.joinRetry	int	number of join retries
koorde.joinDelay	double	time interval between two join tries
koorde.successorListSize	int	maximal number of nodes in successor list
koorde.deBruijnListSize	int	maximal number of nodes in de Bruijn list
koorde.shiftingBits	int	number of bits concurrently shifted
koorde.deBruijnDelay	double	number of seconds between two de Bruijn algo calls
koorde.fixfingersDelay	double	relic from Chord
koorde.checkPredecessorDelay	double	checkPredecessor interval (sec)
koorde.aggressiveJoinMode	bool	use modified (faster) JOIN protocol
koorde.extendedFingerTable	bool	use the extended finger table?
koorde.numFingerCandidates	int	relic from Chord
koorde.proximityRouting	bool	use proximity routing
koorde.useOtherLookup	bool	flag which is indicating that the optimization other lookup is enabled
koorde.useSucList	bool	flag which is indicating that the optimization using the successorlist is enabled
koorde.setupDeBruijnBeforeJoin	bool	if true, first setup the de bruijn node using the bootstrap node and than join the ring
koorde.setupDeBruijnAtJoin	bool	if true, join the ring and setup the de bruijn node using the bootstrap node in parallel
koorde.mergeOptimizationL1	bool	enable merge optimization OPL1
koorde.mergeOptimizationL2	bool	activate merge optimization OPL2
koorde.mergeOptimizationL3	bool	activate merge optimization OPL3
koorde.mergeOptimizationL4	bool	activate merge optimization OPL4
koorde.memorizeFailedSuccessor	bool

Source code:

//
// Implementation of the Koorde DHT overlay as described in
// "Koorde: A simple degree-optimal distributed hash table"
// by M. Frans Kaashoek and David R. Karger,. published in
// Proceedings of the 2nd International Workshop on
// Peer-to-Peer Systems (IPTPS '03).
//
// @author Jochen Schenk, Ingmar Baumgart
//
module KoordeModules like IOverlay
{
    gates:
        input udpIn; // gate from the UDP layer
        output udpOut; // gate to the UDP layer
        input tcpIn;    // gate from the TCP layer
        output tcpOut;    // gate to the TCP layer
        input appIn; // gate from the application
        output appOut; // gate to the application

    submodules:
        koorde: Koorde {
            parameters:
                @display("p=60,60;i=block/circle");
        }
        successorList: ChordSuccessorList {
            parameters:
                @display("p=136,60;i=block/table");
        }
    connections allowunconnected:
        udpIn --> koorde.udpIn;
        udpOut <-- koorde.udpOut;
        appIn --> koorde.appIn;
        appOut <-- koorde.appOut;

}
