Compound Module SAS2

Package: oversim.underlay.reaseunderlay.topologies.topology_tiny_oversim
File: src/underlay/reaseunderlay/topologies/topology_tiny_oversim/topology_tiny_oversim.ned

(no description)

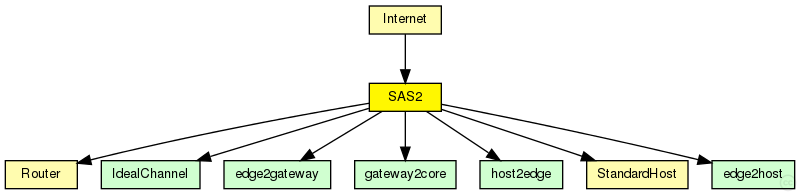

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Used in compound modules:

Name	Type	Description
Internet	compound module	(no description)

Gates:

Name	Direction	Size	Description
pppg [ ]	inout

Unassigned submodule parameters:

Name	Type	Default value	Description
core0.networkLayer.ip.procDelay	double	0s
core0.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
core0.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
core0.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
core0.ppp.ppp.mtu	int	4470
core0.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
core0.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
core0.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
core0.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
core0.eth.mac.mtu	int	1500
gw1.networkLayer.ip.procDelay	double	0s
gw1.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
gw1.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
gw1.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
gw1.ppp.ppp.mtu	int	4470
gw1.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
gw1.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
gw1.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
gw1.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
gw1.eth.mac.mtu	int	1500
edge2.networkLayer.ip.procDelay	double	0s
edge2.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
edge2.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
edge2.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
edge2.ppp.ppp.mtu	int	4470
edge2.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
edge2.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
edge2.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
edge2.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
edge2.eth.mac.mtu	int	1500
edge3.networkLayer.ip.procDelay	double	0s
edge3.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
edge3.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
edge3.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
edge3.ppp.ppp.mtu	int	4470
edge3.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
edge3.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
edge3.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
edge3.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
edge3.eth.mac.mtu	int	1500
edge4.networkLayer.ip.procDelay	double	0s
edge4.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
edge4.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
edge4.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
edge4.ppp.ppp.mtu	int	4470
edge4.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
edge4.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
edge4.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
edge4.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
edge4.eth.mac.mtu	int	1500
edge5.networkLayer.ip.procDelay	double	0s
edge5.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
edge5.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
edge5.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
edge5.ppp.ppp.mtu	int	4470
edge5.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
edge5.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
edge5.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
edge5.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
edge5.eth.mac.mtu	int	1500
edge6.networkLayer.ip.procDelay	double	0s
edge6.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
edge6.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
edge6.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
edge6.ppp.ppp.mtu	int	4470
edge6.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
edge6.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
edge6.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
edge6.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
edge6.eth.mac.mtu	int	1500
host7.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host7.sctp.rtoInitial	double	3s
host7.sctp.rtoMin	double	1s
host7.sctp.rtoMax	double	60s
host7.sctp.rtoAlpha	double	0.125
host7.sctp.rtoBeta	double	0.250
host7.sctp.maxBurst	int	4
host7.sctp.assocMaxRetrans	int	10
host7.sctp.pathMaxRetrans	int	5
host7.sctp.maxInitRetrans	int	8
host7.sctp.sackPeriod	double	200ms
host7.sctp.sackFrequency	int	2
host7.sctp.reactivatePrimaryPath	bool	false
host7.sctp.sendQueueLimit	int	0
host7.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host7.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host7.sctp.hbInterval	double	30s
host7.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host7.sctp.naglePoint	int	1468
host7.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host7.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host7.sctp.ccModule	int	0	RFC4960=0
host7.sctp.ssModule	int	0	ROUND_ROBIN=0
host7.sctp.arwnd	int	65535
host7.sctp.swsLimit	int	3000	Limit for SWS
host7.sctp.udpEncapsEnabled	bool	false
host7.pingApp.destAddr	string	""	destination IP or IPv6 address
host7.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host7.pingApp.packetSize	double	56B	of ping payload, in bytes
host7.pingApp.interval	double	1s	time to wait between pings (can be random)
host7.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host7.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host7.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host7.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host7.pingApp.printPing	bool	true	dump on stdout
host7.networkLayer.ip.procDelay	double	0s
host7.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host7.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host7.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host7.ppp.ppp.mtu	int	4470
host7.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host7.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host7.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host7.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host7.eth.mac.mtu	int	1500
host7.ext.filterString	string
host7.ext.device	string
host7.ext.mtu	int	1500
host7.tcpdump.dumpFile	string	""
host7.tcpdump.threadEnable	bool	false
host7.tcpdump.snaplen	int	65535
host7.tcpdump.verbosity	int	0
host8.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host8.sctp.rtoInitial	double	3s
host8.sctp.rtoMin	double	1s
host8.sctp.rtoMax	double	60s
host8.sctp.rtoAlpha	double	0.125
host8.sctp.rtoBeta	double	0.250
host8.sctp.maxBurst	int	4
host8.sctp.assocMaxRetrans	int	10
host8.sctp.pathMaxRetrans	int	5
host8.sctp.maxInitRetrans	int	8
host8.sctp.sackPeriod	double	200ms
host8.sctp.sackFrequency	int	2
host8.sctp.reactivatePrimaryPath	bool	false
host8.sctp.sendQueueLimit	int	0
host8.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host8.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host8.sctp.hbInterval	double	30s
host8.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host8.sctp.naglePoint	int	1468
host8.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host8.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host8.sctp.ccModule	int	0	RFC4960=0
host8.sctp.ssModule	int	0	ROUND_ROBIN=0
host8.sctp.arwnd	int	65535
host8.sctp.swsLimit	int	3000	Limit for SWS
host8.sctp.udpEncapsEnabled	bool	false
host8.pingApp.destAddr	string	""	destination IP or IPv6 address
host8.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host8.pingApp.packetSize	double	56B	of ping payload, in bytes
host8.pingApp.interval	double	1s	time to wait between pings (can be random)
host8.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host8.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host8.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host8.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host8.pingApp.printPing	bool	true	dump on stdout
host8.networkLayer.ip.procDelay	double	0s
host8.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host8.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host8.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host8.ppp.ppp.mtu	int	4470
host8.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host8.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host8.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host8.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host8.eth.mac.mtu	int	1500
host8.ext.filterString	string
host8.ext.device	string
host8.ext.mtu	int	1500
host8.tcpdump.dumpFile	string	""
host8.tcpdump.threadEnable	bool	false
host8.tcpdump.snaplen	int	65535
host8.tcpdump.verbosity	int	0
host9.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host9.sctp.rtoInitial	double	3s
host9.sctp.rtoMin	double	1s
host9.sctp.rtoMax	double	60s
host9.sctp.rtoAlpha	double	0.125
host9.sctp.rtoBeta	double	0.250
host9.sctp.maxBurst	int	4
host9.sctp.assocMaxRetrans	int	10
host9.sctp.pathMaxRetrans	int	5
host9.sctp.maxInitRetrans	int	8
host9.sctp.sackPeriod	double	200ms
host9.sctp.sackFrequency	int	2
host9.sctp.reactivatePrimaryPath	bool	false
host9.sctp.sendQueueLimit	int	0
host9.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host9.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host9.sctp.hbInterval	double	30s
host9.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host9.sctp.naglePoint	int	1468
host9.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host9.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host9.sctp.ccModule	int	0	RFC4960=0
host9.sctp.ssModule	int	0	ROUND_ROBIN=0
host9.sctp.arwnd	int	65535
host9.sctp.swsLimit	int	3000	Limit for SWS
host9.sctp.udpEncapsEnabled	bool	false
host9.pingApp.destAddr	string	""	destination IP or IPv6 address
host9.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host9.pingApp.packetSize	double	56B	of ping payload, in bytes
host9.pingApp.interval	double	1s	time to wait between pings (can be random)
host9.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host9.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host9.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host9.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host9.pingApp.printPing	bool	true	dump on stdout
host9.networkLayer.ip.procDelay	double	0s
host9.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host9.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host9.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host9.ppp.ppp.mtu	int	4470
host9.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host9.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host9.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host9.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host9.eth.mac.mtu	int	1500
host9.ext.filterString	string
host9.ext.device	string
host9.ext.mtu	int	1500
host9.tcpdump.dumpFile	string	""
host9.tcpdump.threadEnable	bool	false
host9.tcpdump.snaplen	int	65535
host9.tcpdump.verbosity	int	0
host10.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host10.sctp.rtoInitial	double	3s
host10.sctp.rtoMin	double	1s
host10.sctp.rtoMax	double	60s
host10.sctp.rtoAlpha	double	0.125
host10.sctp.rtoBeta	double	0.250
host10.sctp.maxBurst	int	4
host10.sctp.assocMaxRetrans	int	10
host10.sctp.pathMaxRetrans	int	5
host10.sctp.maxInitRetrans	int	8
host10.sctp.sackPeriod	double	200ms
host10.sctp.sackFrequency	int	2
host10.sctp.reactivatePrimaryPath	bool	false
host10.sctp.sendQueueLimit	int	0
host10.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host10.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host10.sctp.hbInterval	double	30s
host10.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host10.sctp.naglePoint	int	1468
host10.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host10.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host10.sctp.ccModule	int	0	RFC4960=0
host10.sctp.ssModule	int	0	ROUND_ROBIN=0
host10.sctp.arwnd	int	65535
host10.sctp.swsLimit	int	3000	Limit for SWS
host10.sctp.udpEncapsEnabled	bool	false
host10.pingApp.destAddr	string	""	destination IP or IPv6 address
host10.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host10.pingApp.packetSize	double	56B	of ping payload, in bytes
host10.pingApp.interval	double	1s	time to wait between pings (can be random)
host10.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host10.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host10.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host10.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host10.pingApp.printPing	bool	true	dump on stdout
host10.networkLayer.ip.procDelay	double	0s
host10.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host10.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host10.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host10.ppp.ppp.mtu	int	4470
host10.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host10.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host10.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host10.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host10.eth.mac.mtu	int	1500
host10.ext.filterString	string
host10.ext.device	string
host10.ext.mtu	int	1500
host10.tcpdump.dumpFile	string	""
host10.tcpdump.threadEnable	bool	false
host10.tcpdump.snaplen	int	65535
host10.tcpdump.verbosity	int	0
host11.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host11.sctp.rtoInitial	double	3s
host11.sctp.rtoMin	double	1s
host11.sctp.rtoMax	double	60s
host11.sctp.rtoAlpha	double	0.125
host11.sctp.rtoBeta	double	0.250
host11.sctp.maxBurst	int	4
host11.sctp.assocMaxRetrans	int	10
host11.sctp.pathMaxRetrans	int	5
host11.sctp.maxInitRetrans	int	8
host11.sctp.sackPeriod	double	200ms
host11.sctp.sackFrequency	int	2
host11.sctp.reactivatePrimaryPath	bool	false
host11.sctp.sendQueueLimit	int	0
host11.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host11.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host11.sctp.hbInterval	double	30s
host11.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host11.sctp.naglePoint	int	1468
host11.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host11.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host11.sctp.ccModule	int	0	RFC4960=0
host11.sctp.ssModule	int	0	ROUND_ROBIN=0
host11.sctp.arwnd	int	65535
host11.sctp.swsLimit	int	3000	Limit for SWS
host11.sctp.udpEncapsEnabled	bool	false
host11.pingApp.destAddr	string	""	destination IP or IPv6 address
host11.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host11.pingApp.packetSize	double	56B	of ping payload, in bytes
host11.pingApp.interval	double	1s	time to wait between pings (can be random)
host11.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host11.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host11.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host11.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host11.pingApp.printPing	bool	true	dump on stdout
host11.networkLayer.ip.procDelay	double	0s
host11.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host11.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host11.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host11.ppp.ppp.mtu	int	4470
host11.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host11.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host11.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host11.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host11.eth.mac.mtu	int	1500
host11.ext.filterString	string
host11.ext.device	string
host11.ext.mtu	int	1500
host11.tcpdump.dumpFile	string	""
host11.tcpdump.threadEnable	bool	false
host11.tcpdump.snaplen	int	65535
host11.tcpdump.verbosity	int	0
host12.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host12.sctp.rtoInitial	double	3s
host12.sctp.rtoMin	double	1s
host12.sctp.rtoMax	double	60s
host12.sctp.rtoAlpha	double	0.125
host12.sctp.rtoBeta	double	0.250
host12.sctp.maxBurst	int	4
host12.sctp.assocMaxRetrans	int	10
host12.sctp.pathMaxRetrans	int	5
host12.sctp.maxInitRetrans	int	8
host12.sctp.sackPeriod	double	200ms
host12.sctp.sackFrequency	int	2
host12.sctp.reactivatePrimaryPath	bool	false
host12.sctp.sendQueueLimit	int	0
host12.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host12.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host12.sctp.hbInterval	double	30s
host12.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host12.sctp.naglePoint	int	1468
host12.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host12.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host12.sctp.ccModule	int	0	RFC4960=0
host12.sctp.ssModule	int	0	ROUND_ROBIN=0
host12.sctp.arwnd	int	65535
host12.sctp.swsLimit	int	3000	Limit for SWS
host12.sctp.udpEncapsEnabled	bool	false
host12.pingApp.destAddr	string	""	destination IP or IPv6 address
host12.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host12.pingApp.packetSize	double	56B	of ping payload, in bytes
host12.pingApp.interval	double	1s	time to wait between pings (can be random)
host12.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host12.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host12.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host12.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host12.pingApp.printPing	bool	true	dump on stdout
host12.networkLayer.ip.procDelay	double	0s
host12.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host12.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host12.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host12.ppp.ppp.mtu	int	4470
host12.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host12.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host12.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host12.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host12.eth.mac.mtu	int	1500
host12.ext.filterString	string
host12.ext.device	string
host12.ext.mtu	int	1500
host12.tcpdump.dumpFile	string	""
host12.tcpdump.threadEnable	bool	false
host12.tcpdump.snaplen	int	65535
host12.tcpdump.verbosity	int	0
host13.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host13.sctp.rtoInitial	double	3s
host13.sctp.rtoMin	double	1s
host13.sctp.rtoMax	double	60s
host13.sctp.rtoAlpha	double	0.125
host13.sctp.rtoBeta	double	0.250
host13.sctp.maxBurst	int	4
host13.sctp.assocMaxRetrans	int	10
host13.sctp.pathMaxRetrans	int	5
host13.sctp.maxInitRetrans	int	8
host13.sctp.sackPeriod	double	200ms
host13.sctp.sackFrequency	int	2
host13.sctp.reactivatePrimaryPath	bool	false
host13.sctp.sendQueueLimit	int	0
host13.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host13.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host13.sctp.hbInterval	double	30s
host13.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host13.sctp.naglePoint	int	1468
host13.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host13.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host13.sctp.ccModule	int	0	RFC4960=0
host13.sctp.ssModule	int	0	ROUND_ROBIN=0
host13.sctp.arwnd	int	65535
host13.sctp.swsLimit	int	3000	Limit for SWS
host13.sctp.udpEncapsEnabled	bool	false
host13.pingApp.destAddr	string	""	destination IP or IPv6 address
host13.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host13.pingApp.packetSize	double	56B	of ping payload, in bytes
host13.pingApp.interval	double	1s	time to wait between pings (can be random)
host13.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host13.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host13.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host13.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host13.pingApp.printPing	bool	true	dump on stdout
host13.networkLayer.ip.procDelay	double	0s
host13.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host13.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host13.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host13.ppp.ppp.mtu	int	4470
host13.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host13.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host13.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host13.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host13.eth.mac.mtu	int	1500
host13.ext.filterString	string
host13.ext.device	string
host13.ext.mtu	int	1500
host13.tcpdump.dumpFile	string	""
host13.tcpdump.threadEnable	bool	false
host13.tcpdump.snaplen	int	65535
host13.tcpdump.verbosity	int	0
host14.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host14.sctp.rtoInitial	double	3s
host14.sctp.rtoMin	double	1s
host14.sctp.rtoMax	double	60s
host14.sctp.rtoAlpha	double	0.125
host14.sctp.rtoBeta	double	0.250
host14.sctp.maxBurst	int	4
host14.sctp.assocMaxRetrans	int	10
host14.sctp.pathMaxRetrans	int	5
host14.sctp.maxInitRetrans	int	8
host14.sctp.sackPeriod	double	200ms
host14.sctp.sackFrequency	int	2
host14.sctp.reactivatePrimaryPath	bool	false
host14.sctp.sendQueueLimit	int	0
host14.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host14.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host14.sctp.hbInterval	double	30s
host14.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host14.sctp.naglePoint	int	1468
host14.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host14.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host14.sctp.ccModule	int	0	RFC4960=0
host14.sctp.ssModule	int	0	ROUND_ROBIN=0
host14.sctp.arwnd	int	65535
host14.sctp.swsLimit	int	3000	Limit for SWS
host14.sctp.udpEncapsEnabled	bool	false
host14.pingApp.destAddr	string	""	destination IP or IPv6 address
host14.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host14.pingApp.packetSize	double	56B	of ping payload, in bytes
host14.pingApp.interval	double	1s	time to wait between pings (can be random)
host14.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host14.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host14.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host14.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host14.pingApp.printPing	bool	true	dump on stdout
host14.networkLayer.ip.procDelay	double	0s
host14.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host14.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host14.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host14.ppp.ppp.mtu	int	4470
host14.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host14.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host14.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host14.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host14.eth.mac.mtu	int	1500
host14.ext.filterString	string
host14.ext.device	string
host14.ext.mtu	int	1500
host14.tcpdump.dumpFile	string	""
host14.tcpdump.threadEnable	bool	false
host14.tcpdump.snaplen	int	65535
host14.tcpdump.verbosity	int	0
host15.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host15.sctp.rtoInitial	double	3s
host15.sctp.rtoMin	double	1s
host15.sctp.rtoMax	double	60s
host15.sctp.rtoAlpha	double	0.125
host15.sctp.rtoBeta	double	0.250
host15.sctp.maxBurst	int	4
host15.sctp.assocMaxRetrans	int	10
host15.sctp.pathMaxRetrans	int	5
host15.sctp.maxInitRetrans	int	8
host15.sctp.sackPeriod	double	200ms
host15.sctp.sackFrequency	int	2
host15.sctp.reactivatePrimaryPath	bool	false
host15.sctp.sendQueueLimit	int	0
host15.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host15.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host15.sctp.hbInterval	double	30s
host15.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host15.sctp.naglePoint	int	1468
host15.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host15.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host15.sctp.ccModule	int	0	RFC4960=0
host15.sctp.ssModule	int	0	ROUND_ROBIN=0
host15.sctp.arwnd	int	65535
host15.sctp.swsLimit	int	3000	Limit for SWS
host15.sctp.udpEncapsEnabled	bool	false
host15.pingApp.destAddr	string	""	destination IP or IPv6 address
host15.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host15.pingApp.packetSize	double	56B	of ping payload, in bytes
host15.pingApp.interval	double	1s	time to wait between pings (can be random)
host15.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host15.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host15.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host15.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host15.pingApp.printPing	bool	true	dump on stdout
host15.networkLayer.ip.procDelay	double	0s
host15.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host15.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host15.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host15.ppp.ppp.mtu	int	4470
host15.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host15.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host15.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host15.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host15.eth.mac.mtu	int	1500
host15.ext.filterString	string
host15.ext.device	string
host15.ext.mtu	int	1500
host15.tcpdump.dumpFile	string	""
host15.tcpdump.threadEnable	bool	false
host15.tcpdump.snaplen	int	65535
host15.tcpdump.verbosity	int	0
host16.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host16.sctp.rtoInitial	double	3s
host16.sctp.rtoMin	double	1s
host16.sctp.rtoMax	double	60s
host16.sctp.rtoAlpha	double	0.125
host16.sctp.rtoBeta	double	0.250
host16.sctp.maxBurst	int	4
host16.sctp.assocMaxRetrans	int	10
host16.sctp.pathMaxRetrans	int	5
host16.sctp.maxInitRetrans	int	8
host16.sctp.sackPeriod	double	200ms
host16.sctp.sackFrequency	int	2
host16.sctp.reactivatePrimaryPath	bool	false
host16.sctp.sendQueueLimit	int	0
host16.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host16.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host16.sctp.hbInterval	double	30s
host16.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host16.sctp.naglePoint	int	1468
host16.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host16.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host16.sctp.ccModule	int	0	RFC4960=0
host16.sctp.ssModule	int	0	ROUND_ROBIN=0
host16.sctp.arwnd	int	65535
host16.sctp.swsLimit	int	3000	Limit for SWS
host16.sctp.udpEncapsEnabled	bool	false
host16.pingApp.destAddr	string	""	destination IP or IPv6 address
host16.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host16.pingApp.packetSize	double	56B	of ping payload, in bytes
host16.pingApp.interval	double	1s	time to wait between pings (can be random)
host16.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host16.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host16.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host16.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host16.pingApp.printPing	bool	true	dump on stdout
host16.networkLayer.ip.procDelay	double	0s
host16.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host16.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host16.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host16.ppp.ppp.mtu	int	4470
host16.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host16.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host16.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host16.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host16.eth.mac.mtu	int	1500
host16.ext.filterString	string
host16.ext.device	string
host16.ext.mtu	int	1500
host16.tcpdump.dumpFile	string	""
host16.tcpdump.threadEnable	bool	false
host16.tcpdump.snaplen	int	65535
host16.tcpdump.verbosity	int	0
host17.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host17.sctp.rtoInitial	double	3s
host17.sctp.rtoMin	double	1s
host17.sctp.rtoMax	double	60s
host17.sctp.rtoAlpha	double	0.125
host17.sctp.rtoBeta	double	0.250
host17.sctp.maxBurst	int	4
host17.sctp.assocMaxRetrans	int	10
host17.sctp.pathMaxRetrans	int	5
host17.sctp.maxInitRetrans	int	8
host17.sctp.sackPeriod	double	200ms
host17.sctp.sackFrequency	int	2
host17.sctp.reactivatePrimaryPath	bool	false
host17.sctp.sendQueueLimit	int	0
host17.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host17.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host17.sctp.hbInterval	double	30s
host17.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host17.sctp.naglePoint	int	1468
host17.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host17.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host17.sctp.ccModule	int	0	RFC4960=0
host17.sctp.ssModule	int	0	ROUND_ROBIN=0
host17.sctp.arwnd	int	65535
host17.sctp.swsLimit	int	3000	Limit for SWS
host17.sctp.udpEncapsEnabled	bool	false
host17.pingApp.destAddr	string	""	destination IP or IPv6 address
host17.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host17.pingApp.packetSize	double	56B	of ping payload, in bytes
host17.pingApp.interval	double	1s	time to wait between pings (can be random)
host17.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host17.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host17.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host17.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host17.pingApp.printPing	bool	true	dump on stdout
host17.networkLayer.ip.procDelay	double	0s
host17.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host17.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host17.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host17.ppp.ppp.mtu	int	4470
host17.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host17.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host17.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host17.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host17.eth.mac.mtu	int	1500
host17.ext.filterString	string
host17.ext.device	string
host17.ext.mtu	int	1500
host17.tcpdump.dumpFile	string	""
host17.tcpdump.threadEnable	bool	false
host17.tcpdump.snaplen	int	65535
host17.tcpdump.verbosity	int	0
host18.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host18.sctp.rtoInitial	double	3s
host18.sctp.rtoMin	double	1s
host18.sctp.rtoMax	double	60s
host18.sctp.rtoAlpha	double	0.125
host18.sctp.rtoBeta	double	0.250
host18.sctp.maxBurst	int	4
host18.sctp.assocMaxRetrans	int	10
host18.sctp.pathMaxRetrans	int	5
host18.sctp.maxInitRetrans	int	8
host18.sctp.sackPeriod	double	200ms
host18.sctp.sackFrequency	int	2
host18.sctp.reactivatePrimaryPath	bool	false
host18.sctp.sendQueueLimit	int	0
host18.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host18.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host18.sctp.hbInterval	double	30s
host18.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host18.sctp.naglePoint	int	1468
host18.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host18.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host18.sctp.ccModule	int	0	RFC4960=0
host18.sctp.ssModule	int	0	ROUND_ROBIN=0
host18.sctp.arwnd	int	65535
host18.sctp.swsLimit	int	3000	Limit for SWS
host18.sctp.udpEncapsEnabled	bool	false
host18.pingApp.destAddr	string	""	destination IP or IPv6 address
host18.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host18.pingApp.packetSize	double	56B	of ping payload, in bytes
host18.pingApp.interval	double	1s	time to wait between pings (can be random)
host18.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host18.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host18.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host18.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host18.pingApp.printPing	bool	true	dump on stdout
host18.networkLayer.ip.procDelay	double	0s
host18.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host18.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host18.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host18.ppp.ppp.mtu	int	4470
host18.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host18.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host18.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host18.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host18.eth.mac.mtu	int	1500
host18.ext.filterString	string
host18.ext.device	string
host18.ext.mtu	int	1500
host18.tcpdump.dumpFile	string	""
host18.tcpdump.threadEnable	bool	false
host18.tcpdump.snaplen	int	65535
host18.tcpdump.verbosity	int	0
host19.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host19.sctp.rtoInitial	double	3s
host19.sctp.rtoMin	double	1s
host19.sctp.rtoMax	double	60s
host19.sctp.rtoAlpha	double	0.125
host19.sctp.rtoBeta	double	0.250
host19.sctp.maxBurst	int	4
host19.sctp.assocMaxRetrans	int	10
host19.sctp.pathMaxRetrans	int	5
host19.sctp.maxInitRetrans	int	8
host19.sctp.sackPeriod	double	200ms
host19.sctp.sackFrequency	int	2
host19.sctp.reactivatePrimaryPath	bool	false
host19.sctp.sendQueueLimit	int	0
host19.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host19.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host19.sctp.hbInterval	double	30s
host19.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host19.sctp.naglePoint	int	1468
host19.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host19.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host19.sctp.ccModule	int	0	RFC4960=0
host19.sctp.ssModule	int	0	ROUND_ROBIN=0
host19.sctp.arwnd	int	65535
host19.sctp.swsLimit	int	3000	Limit for SWS
host19.sctp.udpEncapsEnabled	bool	false
host19.pingApp.destAddr	string	""	destination IP or IPv6 address
host19.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host19.pingApp.packetSize	double	56B	of ping payload, in bytes
host19.pingApp.interval	double	1s	time to wait between pings (can be random)
host19.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host19.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host19.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host19.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host19.pingApp.printPing	bool	true	dump on stdout
host19.networkLayer.ip.procDelay	double	0s
host19.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host19.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host19.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host19.ppp.ppp.mtu	int	4470
host19.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host19.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host19.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host19.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host19.eth.mac.mtu	int	1500
host19.ext.filterString	string
host19.ext.device	string
host19.ext.mtu	int	1500
host19.tcpdump.dumpFile	string	""
host19.tcpdump.threadEnable	bool	false
host19.tcpdump.snaplen	int	65535
host19.tcpdump.verbosity	int	0
host20.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host20.sctp.rtoInitial	double	3s
host20.sctp.rtoMin	double	1s
host20.sctp.rtoMax	double	60s
host20.sctp.rtoAlpha	double	0.125
host20.sctp.rtoBeta	double	0.250
host20.sctp.maxBurst	int	4
host20.sctp.assocMaxRetrans	int	10
host20.sctp.pathMaxRetrans	int	5
host20.sctp.maxInitRetrans	int	8
host20.sctp.sackPeriod	double	200ms
host20.sctp.sackFrequency	int	2
host20.sctp.reactivatePrimaryPath	bool	false
host20.sctp.sendQueueLimit	int	0
host20.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host20.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host20.sctp.hbInterval	double	30s
host20.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host20.sctp.naglePoint	int	1468
host20.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host20.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host20.sctp.ccModule	int	0	RFC4960=0
host20.sctp.ssModule	int	0	ROUND_ROBIN=0
host20.sctp.arwnd	int	65535
host20.sctp.swsLimit	int	3000	Limit for SWS
host20.sctp.udpEncapsEnabled	bool	false
host20.pingApp.destAddr	string	""	destination IP or IPv6 address
host20.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host20.pingApp.packetSize	double	56B	of ping payload, in bytes
host20.pingApp.interval	double	1s	time to wait between pings (can be random)
host20.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host20.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host20.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host20.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host20.pingApp.printPing	bool	true	dump on stdout
host20.networkLayer.ip.procDelay	double	0s
host20.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host20.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host20.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host20.ppp.ppp.mtu	int	4470
host20.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host20.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host20.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host20.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host20.eth.mac.mtu	int	1500
host20.ext.filterString	string
host20.ext.device	string
host20.ext.mtu	int	1500
host20.tcpdump.dumpFile	string	""
host20.tcpdump.threadEnable	bool	false
host20.tcpdump.snaplen	int	65535
host20.tcpdump.verbosity	int	0
host21.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host21.sctp.rtoInitial	double	3s
host21.sctp.rtoMin	double	1s
host21.sctp.rtoMax	double	60s
host21.sctp.rtoAlpha	double	0.125
host21.sctp.rtoBeta	double	0.250
host21.sctp.maxBurst	int	4
host21.sctp.assocMaxRetrans	int	10
host21.sctp.pathMaxRetrans	int	5
host21.sctp.maxInitRetrans	int	8
host21.sctp.sackPeriod	double	200ms
host21.sctp.sackFrequency	int	2
host21.sctp.reactivatePrimaryPath	bool	false
host21.sctp.sendQueueLimit	int	0
host21.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host21.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host21.sctp.hbInterval	double	30s
host21.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host21.sctp.naglePoint	int	1468
host21.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host21.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host21.sctp.ccModule	int	0	RFC4960=0
host21.sctp.ssModule	int	0	ROUND_ROBIN=0
host21.sctp.arwnd	int	65535
host21.sctp.swsLimit	int	3000	Limit for SWS
host21.sctp.udpEncapsEnabled	bool	false
host21.pingApp.destAddr	string	""	destination IP or IPv6 address
host21.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host21.pingApp.packetSize	double	56B	of ping payload, in bytes
host21.pingApp.interval	double	1s	time to wait between pings (can be random)
host21.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host21.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host21.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host21.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host21.pingApp.printPing	bool	true	dump on stdout
host21.networkLayer.ip.procDelay	double	0s
host21.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host21.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host21.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host21.ppp.ppp.mtu	int	4470
host21.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host21.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host21.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host21.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host21.eth.mac.mtu	int	1500
host21.ext.filterString	string
host21.ext.device	string
host21.ext.mtu	int	1500
host21.tcpdump.dumpFile	string	""
host21.tcpdump.threadEnable	bool	false
host21.tcpdump.snaplen	int	65535
host21.tcpdump.verbosity	int	0
host22.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host22.sctp.rtoInitial	double	3s
host22.sctp.rtoMin	double	1s
host22.sctp.rtoMax	double	60s
host22.sctp.rtoAlpha	double	0.125
host22.sctp.rtoBeta	double	0.250
host22.sctp.maxBurst	int	4
host22.sctp.assocMaxRetrans	int	10
host22.sctp.pathMaxRetrans	int	5
host22.sctp.maxInitRetrans	int	8
host22.sctp.sackPeriod	double	200ms
host22.sctp.sackFrequency	int	2
host22.sctp.reactivatePrimaryPath	bool	false
host22.sctp.sendQueueLimit	int	0
host22.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host22.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host22.sctp.hbInterval	double	30s
host22.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host22.sctp.naglePoint	int	1468
host22.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host22.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host22.sctp.ccModule	int	0	RFC4960=0
host22.sctp.ssModule	int	0	ROUND_ROBIN=0
host22.sctp.arwnd	int	65535
host22.sctp.swsLimit	int	3000	Limit for SWS
host22.sctp.udpEncapsEnabled	bool	false
host22.pingApp.destAddr	string	""	destination IP or IPv6 address
host22.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host22.pingApp.packetSize	double	56B	of ping payload, in bytes
host22.pingApp.interval	double	1s	time to wait between pings (can be random)
host22.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host22.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host22.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host22.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host22.pingApp.printPing	bool	true	dump on stdout
host22.networkLayer.ip.procDelay	double	0s
host22.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host22.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host22.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host22.ppp.ppp.mtu	int	4470
host22.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host22.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host22.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host22.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host22.eth.mac.mtu	int	1500
host22.ext.filterString	string
host22.ext.device	string
host22.ext.mtu	int	1500
host22.tcpdump.dumpFile	string	""
host22.tcpdump.threadEnable	bool	false
host22.tcpdump.snaplen	int	65535
host22.tcpdump.verbosity	int	0
host23.sctp.numGapReports	int	3	====== SCTP Association Parameters =================================
host23.sctp.rtoInitial	double	3s
host23.sctp.rtoMin	double	1s
host23.sctp.rtoMax	double	60s
host23.sctp.rtoAlpha	double	0.125
host23.sctp.rtoBeta	double	0.250
host23.sctp.maxBurst	int	4
host23.sctp.assocMaxRetrans	int	10
host23.sctp.pathMaxRetrans	int	5
host23.sctp.maxInitRetrans	int	8
host23.sctp.sackPeriod	double	200ms
host23.sctp.sackFrequency	int	2
host23.sctp.reactivatePrimaryPath	bool	false
host23.sctp.sendQueueLimit	int	0
host23.sctp.validCookieLifetime	double	10s	====== Testing =====================================================
host23.sctp.enableHeartbeats	bool	true	====== Heartbeats ==================================================
host23.sctp.hbInterval	double	30s
host23.sctp.nagleEnabled	bool	true	====== Nagle Algorithm =============================================
host23.sctp.naglePoint	int	1468
host23.sctp.fastRecoverySupported	bool	true	====== Congestion Control ==========================================
host23.sctp.sctpAlgorithmClass	string	"SCTPAlg"
host23.sctp.ccModule	int	0	RFC4960=0
host23.sctp.ssModule	int	0	ROUND_ROBIN=0
host23.sctp.arwnd	int	65535
host23.sctp.swsLimit	int	3000	Limit for SWS
host23.sctp.udpEncapsEnabled	bool	false
host23.pingApp.destAddr	string	""	destination IP or IPv6 address
host23.pingApp.srcAddr	string	""	source IP or IPv6 address (useful with multi-homing)
host23.pingApp.packetSize	double	56B	of ping payload, in bytes
host23.pingApp.interval	double	1s	time to wait between pings (can be random)
host23.pingApp.hopLimit	double	32	TTL or hopLimit for IP packets
host23.pingApp.count	double	0	stop after count ping requests, 0 means continuously
host23.pingApp.startTime	double	uniform(0s,this.interval)	send first ping at startTime
host23.pingApp.stopTime	double	0s	send no pings after stopTime, 0 means forever
host23.pingApp.printPing	bool	true	dump on stdout
host23.networkLayer.ip.procDelay	double	0s
host23.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
host23.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
host23.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
host23.ppp.ppp.mtu	int	4470
host23.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
host23.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
host23.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
host23.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
host23.eth.mac.mtu	int	1500
host23.ext.filterString	string
host23.ext.device	string
host23.ext.mtu	int	1500
host23.tcpdump.dumpFile	string	""
host23.tcpdump.threadEnable	bool	false
host23.tcpdump.snaplen	int	65535
host23.tcpdump.verbosity	int	0

Source code:

module SAS2
{
    gates:
        inout pppg[];
    submodules:
        core0: Router {
            parameters:
                @RL();
                @CoreRouter();
                @display("i=abstract/switch");
        }
        gw1: Router {
            parameters:
                @RL();
                @GatewayRouter();
                @display("i=abstract/router2");
        }
        edge2: Router {
            parameters:
                @RL();
                @EdgeRouter();
                @display("i=abstract/router");
        }
        edge3: Router {
            parameters:
                @RL();
                @EdgeRouter();
                @display("i=abstract/router");
        }
        edge4: Router {
            parameters:
                @RL();
                @EdgeRouter();
                @display("i=abstract/router");
        }
        edge5: Router {
            parameters:
                @RL();
                @EdgeRouter();
                @display("i=abstract/router");
        }
        edge6: Router {
            parameters:
                @RL();
                @EdgeRouter();
                @display("i=abstract/router");
        }
        host7: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host8: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host9: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host10: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host11: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host12: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host13: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host14: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host15: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host16: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host17: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host18: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host19: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host20: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host21: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host22: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }
        host23: StandardHost {
            parameters:
                @RL();
                @Host();
                @display("i=device/laptop");
        }

    connections:
        pppg++ <--> core0.pppg++;
        pppg++ <--> core0.pppg++;

        core0.pppg++ <--> gateway2core <--> gw1.pppg++;
        gw1.pppg++ <--> edge2gateway <--> edge2.pppg++;
        gw1.pppg++ <--> edge2gateway <--> edge3.pppg++;
        gw1.pppg++ <--> edge2gateway <--> edge4.pppg++;
        gw1.pppg++ <--> edge2gateway <--> edge5.pppg++;
        gw1.pppg++ <--> edge2gateway <--> edge6.pppg++;
        host7.pppg$o++ --> host2edge --> edge2.pppg$i++;
        edge2.pppg$o++ --> edge2host --> host7.pppg$i++;
        host8.pppg$o++ --> host2edge --> edge2.pppg$i++;
        edge2.pppg$o++ --> edge2host --> host8.pppg$i++;
        host9.pppg$o++ --> host2edge --> edge2.pppg$i++;
        edge2.pppg$o++ --> edge2host --> host9.pppg$i++;
        host10.pppg$o++ --> host2edge --> edge2.pppg$i++;
        edge2.pppg$o++ --> edge2host --> host10.pppg$i++;
        host11.pppg$o++ --> host2edge --> edge3.pppg$i++;
        edge3.pppg$o++ --> edge2host --> host11.pppg$i++;
        host12.pppg$o++ --> host2edge --> edge3.pppg$i++;
        edge3.pppg$o++ --> edge2host --> host12.pppg$i++;
        host13.pppg$o++ --> host2edge --> edge3.pppg$i++;
        edge3.pppg$o++ --> edge2host --> host13.pppg$i++;
        host14.pppg$o++ --> host2edge --> edge3.pppg$i++;
        edge3.pppg$o++ --> edge2host --> host14.pppg$i++;
        host15.pppg$o++ --> host2edge --> edge4.pppg$i++;
        edge4.pppg$o++ --> edge2host --> host15.pppg$i++;
        host16.pppg$o++ --> host2edge --> edge4.pppg$i++;
        edge4.pppg$o++ --> edge2host --> host16.pppg$i++;
        host17.pppg$o++ --> host2edge --> edge4.pppg$i++;
        edge4.pppg$o++ --> edge2host --> host17.pppg$i++;
        host18.pppg$o++ --> host2edge --> edge5.pppg$i++;
        edge5.pppg$o++ --> edge2host --> host18.pppg$i++;
        host19.pppg$o++ --> host2edge --> edge5.pppg$i++;
        edge5.pppg$o++ --> edge2host --> host19.pppg$i++;
        host20.pppg$o++ --> host2edge --> edge6.pppg$i++;
        edge6.pppg$o++ --> edge2host --> host20.pppg$i++;
        host21.pppg$o++ --> host2edge --> edge6.pppg$i++;
        edge6.pppg$o++ --> edge2host --> host21.pppg$i++;
        host22.pppg$o++ --> host2edge --> edge6.pppg$i++;
        edge6.pppg$o++ --> edge2host --> host22.pppg$i++;
        host23.pppg$o++ --> host2edge --> edge6.pppg$i++;
        edge6.pppg$o++ --> edge2host --> host23.pppg$i++;
}
