Simple Module SimpleUDP

Package: oversim.underlay.simpleunderlay
File: src/underlay/simpleunderlay/SimpleUDP.ned

UDP protocol implementation, for IPv4 and IPv6.

The UDP protocol header is represented by the class UDPPacket.

Communication with clients (applications)

The module can (should) be connected to several applications. For sending an UDP packet, the application should attach an UDPControlInfo object to the payload, and send it to UDP. UDP will also attach an UDPControlInfo object to any payload message in sends up to the application.

For receiving UDP packets, the connected applications should first "bind" to the given UDP port. This can be done by sending an arbitrary message with message kind UDP_C_BIND and an UDPControlInfo attached with srcPort filled in.

If there is only one app which doesn't bind to any port, it will receive all packets.

Communication with other nodes

The SimpleUDP model sends packets directly to the destination

See also: SimpleUDPPacket, UDPControlInfo, GlobalRoutingHashMap

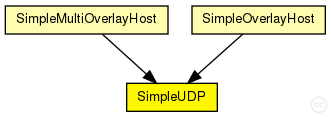

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Extends:

Name	Type	Description
UDP	simple module	UDP protocol implementation, for IPv4 and IPv6.

Used in compound modules:

Name	Type	Description
SimpleMultiOverlayHost	compound module	Host in the simple network that participates in the overlay
SimpleOverlayHost	compound module	Host in the simple network that participates in the overlay

Parameters:

Name	Type	Description
constantDelay	double	constant delay between two peers
useCoordinateBasedDelay	bool	delay should be calculated from euklidean distance between two peers
delayFaultType	string	augment coordinate based delays with a realistic error, according to "Network Coordinates in the Wild", Figure 7 possible values: empty, "live_all", "live_planetlab", "simulation"
jitter	double	average amount of jitter in %
enableAccessRouterTxQueue	bool	model the tx queue of the access router of an destination node

Properties:

Name	Value	Description
display	i=block/transport
class	SimpleUDP

Gates:

Name	Direction	Size	Description
appIn [ ]	input
ipIn	input
ipv6In	input
appOut [ ]	output
ipOut	output
ipv6Out	output

Source code:

//
// UDP protocol implementation, for IPv4 and IPv6.
//
// The \UDP protocol header is represented by the class UDPPacket.
//
// <b>Communication with clients (applications)</b>
//
// The module can (should) be connected to several applications.
// For sending an \UDP packet, the application should attach an UDPControlInfo
// object to the payload, and send it to UDP.
// UDP will also attach an UDPControlInfo object to any payload
// message in sends up to the application.
//
// For receiving \UDP packets, the connected applications should first
// "bind" to the given \UDP port. This can be done by sending an
// arbitrary message with message kind UDP_C_BIND and an UDPControlInfo
// attached with srcPort filled in.
//
// If there is only one app which doesn't bind to any port, it will
// receive all packets.
//
// <b>Communication with other nodes</b>
//
// The SimpleUDP model sends packets directly to the destination
//
// @see SimpleUDPPacket, UDPControlInfo, GlobalRoutingHashMap
//
simple SimpleUDP extends UDP
{
    parameters:
        @class(SimpleUDP);
        double constantDelay @unit(s);  // constant delay between two peers
        bool useCoordinateBasedDelay;   // delay should be calculated from
                                        // euklidean distance between two peers
        string delayFaultType;          // augment coordinate based delays with a realistic error,
                                        // according to "Network Coordinates in the Wild", Figure 7
                                        // possible values: empty, "live_all", "live_planetlab", "simulation"
        double jitter;                  // average amount of jitter in %
        bool enableAccessRouterTxQueue; // model the tx queue of the access router of an destination node
        @display("i=block/transport");
    gates:
}
