Packet BaseRpcMessage

File: src/common/CommonMessages.msg

A basic Remote-Procedure-Call message used for calls and return values

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

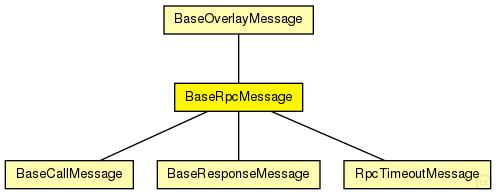

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Extends:

Name	Type	Description
BaseOverlayMessage	packet	Base class for all messages handled by overlay modules

Known subclasses:

Name	Type	Description
BaseCallMessage	packet	A basic Remote-Procedure-Call message
BaseResponseMessage	packet	A basic Remote-Procedure-Response message
RpcTimeoutMessage	packet	The RPC Timeout self-message

Fields:

Name	Type	Description
nonce	unsigned int	nonce to match RPC responses to corresponding calls
srcNode	NodeHandle	source node
authBlock	AuthBlock[]	optional authentication block containing a signature
type	int	message type
statType	int	message type for stats

Source code:

//
// A basic Remote-Procedure-Call message used for calls and return values
//
packet BaseRpcMessage extends BaseOverlayMessage
{
    unsigned int nonce;  // nonce to match RPC responses to corresponding calls
    NodeHandle srcNode;  // source node
    AuthBlock authBlock[] @sizetype(uint8_t); // optional authentication block containing a signature
}
