Message GiaIDMessage

File: src/overlay/gia/GiaMessage.msg

A GiaMessage extended by an unique ID-Field

Author: Robert Palmer

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

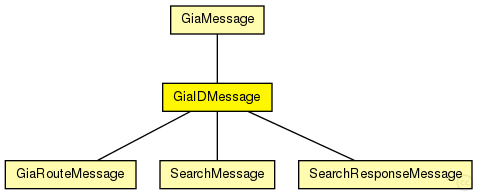

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Extends:

Name	Type	Description
GiaMessage	message	Main GIA-Message definition Author: Robert Palmer

Name

Type

Description

GiaMessage

message

Main GIA-Message definition

Author: Robert Palmer

Known subclasses:

Name	Type	Description
GiaRouteMessage	message	Send a route message to a destination node Author: Robert Palmer
SearchMessage	message	Search message Author: Robert Palmer
SearchResponseMessage	message	Search response message Author: Robert Palmer

Name

Type

Description

GiaRouteMessage

message

Send a route message to a destination node

Author: Robert Palmer

SearchMessage

message

Search message

Author: Robert Palmer

SearchResponseMessage

message

Search response message

Author: Robert Palmer

Fields:

Name	Type	Description
destKey	OverlayKey	destination key, may be undefined
ID	OverlayKey	unique message id
srcNode	NodeHandle	source node
hopCount	int	hop count, increased by BaseOverlay
command	int	COMMAND-Field
srcCapacity	double	capacity of source node
srcDegree	int	neighbor count of source node
type	int	message type
statType	int	message type for stats

Source code:

//
// A GiaMessage extended by an unique ID-Field
// @author Robert Palmer
//
message GiaIDMessage extends GiaMessage
{
    OverlayKey destKey;    // destination key, may be undefined
    OverlayKey ID;    // unique message id
}
