Message GiaMessage

File: src/overlay/gia/GiaMessage.msg

Main GIA-Message definition

Author: Robert Palmer

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

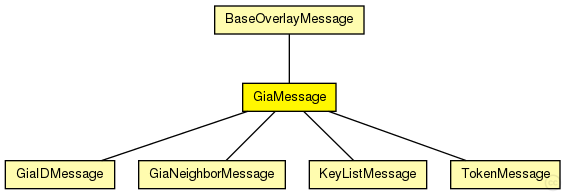

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Extends:

Name	Type	Description
BaseOverlayMessage	packet	Base class for all messages handled by overlay modules

Known subclasses:

Name	Type	Description
GiaIDMessage	message	A GiaMessage extended by an unique ID-Field Author: Robert Palmer
GiaNeighborMessage	message	(no description)
KeyListMessage	message	Send a keylist to a neighbor node Author: Robert Palmer
TokenMessage	message	Used for sending a token to a destination node Author: Robert Palmer

Fields:

Name	Type	Description
srcNode	NodeHandle	source node
hopCount	int	hop count, increased by BaseOverlay
command	int	COMMAND-Field
srcCapacity	double	capacity of source node
srcDegree	int	neighbor count of source node
type	int	message type
statType	int	message type for stats

Source code:

//
// Main GIA-Message definition
// @author Robert Palmer
//
message GiaMessage extends BaseOverlayMessage
{
    NodeHandle srcNode;    // source node
    int hopCount = 0;    // hop count, increased by BaseOverlay
    int command @enum(GIACommand);    // COMMAND-Field
    double srcCapacity;    // capacity of source node
    int srcDegree;    // neighbor count of source node
}
