Simple Module BaseOverlay

Package: oversim.common
File: src/common/BaseOverlay.ned

C++ definition

Base class for overlay implementations

Author: Ingmar Baumgart, Bernhard Heep, Stephan Krause, Sebastian Mies

BaseOverlay

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

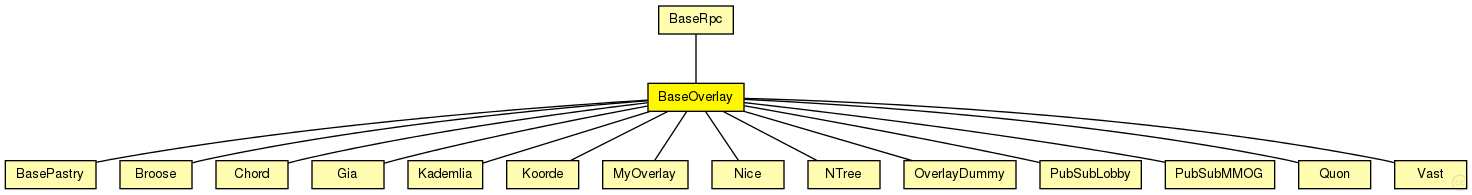

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Extends:

Name Type Description
BaseRpc simple module

Base module for simple RPC communication

Known subclasses:

Name Type Description
BasePastry simple module (no description)
Broose simple module

The main module of the Broose implementation

Chord simple module

The main module of the Chord implementation

Gia simple module

The main module of the GIA implementation

Author: Robert Palmer

Kademlia simple module

The main module of the Kademlia implementation

Koorde simple module

The main module of the Koorde implementation

MyOverlay simple module (no description)
Nice simple module

The main module of the NICE implementation

NTree simple module (no description)
OverlayDummy simple module (no description)
PubSubLobby simple module (no description)
PubSubMMOG simple module (no description)
Quon simple module (no description)
Vast simple module (no description)

Parameters:

Name Type Default value Description
rpcUdpTimeout double

default timeout value for direct RPCs

rpcKeyTimeout double

default timeout value for routed RPCs

optimizeTimeouts bool

calculate timeouts from measured RTTs and network coordinates

rpcExponentialBackoff bool

if true, doubles the timeout for every retransmission

localPort int

UDP port for overlay messages

overlayId int

identifies the overlay this node belongs to (used for multiple overlays)

debugOutput bool

enable debug output

keyLength int

overlay key length in bits

nodeId string

optional nodeId as string in hexadecimal notation

useCommonAPIforward bool

enable CommonAPI forward() calls

drawOverlayTopology bool

draw arrow to successor node?

hopCountMax int

maximum number of overlay hops

recNumRedundantNodes int

numRedundantNodes for recursive routing

joinOnApplicationRequest bool

only join the overlay on application request

collectPerHopDelay bool

delay statistics for single hops

routeMsgAcks bool

use RPCs for route messages

lookupRedundantNodes int

number of next hops in each step

lookupParallelPaths int

number of parallel paths

lookupParallelRpcs int

number of nodes to ask in parallel

lookupVerifySiblings bool

true, if siblings need to be authenticated with a ping

lookupMajoritySiblings bool

true, if sibling candidates are selected by a majority decision if using parallel paths

lookupMerge bool

true, if parallel Rpc results should be merged

lookupFailedNodeRpcs bool

communicate failed nodes

lookupStrictParallelRpcs bool

limited the number of concurrent rpcs to parameter parallelRpcs

lookupUseAllParallelResponses bool

merge all parallel responses from earlier steps

lookupNewRpcOnEveryTimeout bool

send a new RPC immediately after an RPC timeouts

lookupNewRpcOnEveryResponse bool

send a new RPC after every response, even if there was no progress

lookupFinishOnFirstUnchanged bool

finish lookup, if the last pending RPC returned without progress

lookupVisitOnlyOnce bool

if true, the same node is never asked twice during a single lookup

lookupAcceptLateSiblings bool

if true, a FindNodeResponse with sibling flag set is always accepted, even if it is from a previous lookup step

routingType string

default routing mode (iterative, semi-recursive,...)

rejoinOnFailure bool

rejoin after loosing connection to the overlay?

sendRpcResponseToLastHop bool

needed by KBR protocols for NAT support

recordRoute bool

record visited hops on route

dropFindNodeAttack bool

if node is malicious, it tries a findNode attack

isSiblingAttack bool

if node is malicious, it tries a isSibling attack

invalidNodesAttack bool

if node is malicious, it tries a invalidNode attack

dropRouteMessageAttack bool

if node is malicious, it drops all received BaseRouteMessages

measureAuthBlock bool

if true, measure the overhead of signatures in rpc messages

restoreContext bool

if true, a node rejoins with its old nodeId and malicious state

Properties:

Name Value Description
class BaseOverlay
display i=block/circle

Gates:

Name Direction Size Description
udpIn input

gate from the UDP layer

udpOut output

gate to the UDP layer

tcpIn input

gate from the TCP layer

tcpOut output

gate to the TCP layer

appIn input

gate from the application

appOut output

gate to the application

direct_in input

gate for sendDirect

Source code:

//
// Base class for overlay implementations
//
// @author Ingmar Baumgart, Bernhard Heep, Stephan Krause, Sebastian Mies
//
simple BaseOverlay extends BaseRpc
{
    parameters:
        @class(BaseOverlay);
        @display("i=block/circle");
        int localPort; // UDP port for overlay messages
        int overlayId; // identifies the overlay this node belongs to (used for multiple overlays)
        bool debugOutput; // enable debug output
        int keyLength; // overlay key length in bits
        string nodeId; // optional nodeId as string in hexadecimal notation
        bool useCommonAPIforward; // enable CommonAPI forward() calls
        bool drawOverlayTopology; // draw arrow to successor node?
        int hopCountMax; // maximum number of overlay hops
        int recNumRedundantNodes; // numRedundantNodes for recursive routing
        bool joinOnApplicationRequest; // only join the overlay on application request
        bool collectPerHopDelay; // delay statistics for single hops
        bool routeMsgAcks; // use RPCs for route messages
        int lookupRedundantNodes; // number of next hops in each step
        int lookupParallelPaths; // number of parallel paths
        int lookupParallelRpcs; // number of nodes to ask in parallel
        bool lookupVerifySiblings; //true, if siblings need to be authenticated with a ping
        bool lookupMajoritySiblings; // true, if sibling candidates are selected by a majority decision if using parallel paths
        bool lookupMerge; // true, if parallel Rpc results should be merged
        bool lookupFailedNodeRpcs; // communicate failed nodes
        bool lookupStrictParallelRpcs; // limited the number of concurrent rpcs to parameter parallelRpcs
        bool lookupUseAllParallelResponses; // merge all parallel responses from earlier steps
        bool lookupNewRpcOnEveryTimeout; // send a new RPC immediately after an RPC timeouts
        bool lookupNewRpcOnEveryResponse; // send a new RPC after every response, even if there was no progress
        bool lookupFinishOnFirstUnchanged; // finish lookup, if the last pending RPC returned without progress
        bool lookupVisitOnlyOnce; // if true, the same node is never asked twice during a single lookup
        bool lookupAcceptLateSiblings; // if true, a FindNodeResponse with sibling flag set is always accepted, even if it is from a previous lookup step
        string routingType; // default routing mode (iterative, semi-recursive,...)
        bool rejoinOnFailure; // rejoin after loosing connection to the overlay?
        bool sendRpcResponseToLastHop; // needed by KBR protocols for NAT support
        bool recordRoute; // record visited hops on route

        bool dropFindNodeAttack; // if node is malicious, it tries a findNode attack
        bool isSiblingAttack; // if node is malicious, it tries a isSibling attack
        bool invalidNodesAttack; // if node is malicious, it tries a invalidNode attack
        bool dropRouteMessageAttack; // if node is malicious, it drops all received BaseRouteMessages
        bool measureAuthBlock; // if true, measure the overhead of signatures in rpc messages
        bool restoreContext; // if true, a node rejoins with its old nodeId and malicious state

    gates:
        input udpIn; // gate from the UDP layer
        output udpOut; // gate to the UDP layer
        input tcpIn; // gate from the TCP layer
        output tcpOut; // gate to the TCP layer
        input appIn; // gate from the application
        output appOut; // gate to the application
        input direct_in; // gate for sendDirect
}
