Simple Module UnderlayConfigurator

Package: oversim.common
File: src/common/UnderlayConfigurator.ned

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

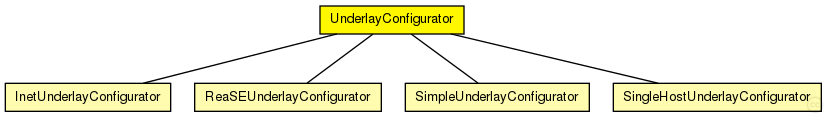

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Known subclasses:

Name	Type	Description
InetUnderlayConfigurator	simple module	Configurator of the IPv4Underlay
ReaSEUnderlayConfigurator	simple module	Configurator of the ReaSEUnderlay
SimpleUnderlayConfigurator	simple module	Configurator of the SimpleUnderlay
SingleHostUnderlayConfigurator	simple module	Configurator of the SingleHostUnderlay

Parameters:

Name	Type	Description
terminalTypes	string	list of terminal types
churnGeneratorTypes	string	a list of churn generators to be used
transitionTime	double	time to wait before measuring after init phase is finished
measurementTime	double	duration of the simulation after init and transition phase
gracefulLeaveDelay	double	time between prekill and removal from overlay
gracefulLeaveProbability	double	probability of gracefull leave

Properties:

Name	Value	Description
display	i=block/cogwheel

Source code:

//
// UnderlayConfigurator base module
//
simple UnderlayConfigurator
{
    parameters:
        string terminalTypes; // list of terminal types
        string churnGeneratorTypes; // a list of churn generators to be used
        double transitionTime @unit(s); // time to wait before measuring after init phase is finished
        double measurementTime @unit(s); // duration of the simulation after init and transition phase
        double gracefulLeaveDelay @unit(s); // time between prekill and removal from overlay
        double gracefulLeaveProbability; // probability of gracefull leave
        @display("i=block/cogwheel");
}
