Simple Module InetUnderlayConfigurator

Package: oversim.underlay.inetunderlay
File: src/underlay/inetunderlay/InetUnderlayConfigurator.ned

Configurator of the IPv4Underlay

Sets up an IPv4Network (backbone and access routers), adds overlay nodes to the network in init phase periodically with the interval set by "initPhaseCreationInterval", adds/removes/migrates overlay nodes after init phase according to the given churn model.

Author: Markus Mauch

Usage diagram:

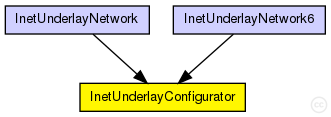

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Extends:

Name	Type	Description
UnderlayConfigurator	simple module	UnderlayConfigurator base module

Networks:

Name	Type	Description
InetUnderlayNetwork	network	The InetUnderlay ned-file See also: InetUnderlayConfigurator
InetUnderlayNetwork6	network	The InetUnderlay ned-file See also: InetUnderlayConfigurator

Name

Type

Description

InetUnderlayNetwork

network

The InetUnderlay ned-file

See also: InetUnderlayConfigurator

InetUnderlayNetwork6

network

The InetUnderlay ned-file

See also: InetUnderlayConfigurator

Parameters:

Name	Type	Default value	Description
terminalTypes	string		list of terminal types
churnGeneratorTypes	string		a list of churn generators to be used
transitionTime	double		time to wait before measuring after init phase is finished
measurementTime	double		duration of the simulation after init and transition phase
gracefulLeaveDelay	double		time between prekill and removal from overlay
gracefulLeaveProbability	double		probability of gracefull leave
startIPv4	string		IP configuration starts with this IP
startIPv6	string
gatewayIP	string		IP of the gateway (if an outRouter is used)
useIPv6Addresses	bool	false

Properties:

Name	Value	Description
display	i=block/cogwheel
class	InetUnderlayConfigurator

Source code:

//
// Configurator of the IPv4Underlay
//
// Sets up an IPv4Network (backbone and access routers), adds overlay nodes to
// the network in init phase periodically with the interval set by
// "initPhaseCreationInterval", adds/removes/migrates overlay nodes after init
// phase according to the given churn model.
//
// @author Markus Mauch
//
simple InetUnderlayConfigurator extends UnderlayConfigurator
{
    parameters:
        @class(InetUnderlayConfigurator);
        string startIPv4; // IP configuration starts with this IP
        string startIPv6;
        string gatewayIP; // IP of the gateway (if an outRouter is used)
        bool useIPv6Addresses = default(false);
}
