Compound Module TunOutRouter

Package: oversim.underlay.inetunderlay
File: src/underlay/inetunderlay/TunOutRouter.ned

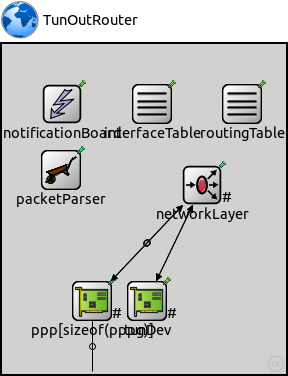

TunOut router.

Usage diagram:

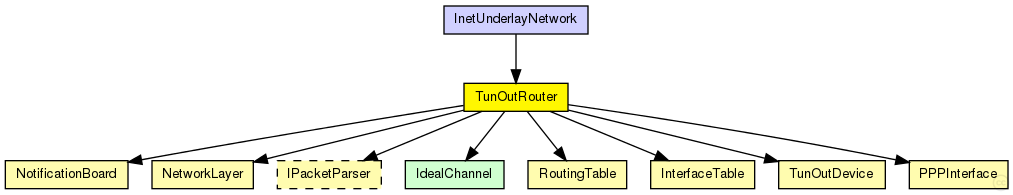

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Networks:

Name	Type	Description
InetUnderlayNetwork	network	The InetUnderlay ned-file See also: InetUnderlayConfigurator

Name

Type

Description

InetUnderlayNetwork

network

The InetUnderlay ned-file

See also: InetUnderlayConfigurator

Parameters:

Name	Type	Default value	Description
parser	string		name of the PacketParser to use
routingFile	string	""

Properties:

Name	Value	Description
node
display	i=misc/globe

Gates:

Name	Direction	Size	Description
pppg [ ]	inout		incoming gates to router

Unassigned submodule parameters:

Name	Type	Default value	Description
networkLayer.ip.procDelay	double	0s
networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
ppp.ppp.mtu	int	4470
tunDev.mtu	int		maximum transmission unit of the underlaying network

Source code:

//
// \TunOut router.
//
module TunOutRouter
{
    parameters:
        @node();
        string parser; // name of the PacketParser to use
        string routingFile = default("");
        @display("i=misc/globe");
    gates:
        inout pppg[]; // incoming gates to router
    submodules:
        notificationBoard: NotificationBoard {
            parameters:
                @display("p=60,60");
        }
        interfaceTable: InterfaceTable {
            parameters:
                @display("p=150,60");
        }
        routingTable: RoutingTable {
            parameters:
                IPForward = true; // true if ip packets should be forwarded
                routerId = "auto"; // id of the router
                routingFile = routingFile; // use predefined routing file if given
                @display("p=240,60");
        }
        packetParser: <parser> like IPacketParser {
            parameters:
                @display("p=59,126");
        }
        networkLayer: NetworkLayer {
            parameters:
                @display("p=200,141;q=queue");
            gates:
                ifIn[sizeof(pppg)+1];
                ifOut[sizeof(pppg)+1];
        }
        ppp[sizeof(pppg)]: PPPInterface {
            parameters:
                @display("p=90,257,row,110;q=l2queue");
        }
        tunDev: TunOutDevice {
            parameters:
                @display("p=145,257,row,110;q=l2queue");
        }
    connections allowunconnected:
        // connections to network outside
        for i=0..sizeof(pppg)-1 {
            pppg[i] <--> ppp[i].phys;
            ppp[i].netwOut --> networkLayer.ifIn[i];
            ppp[i].netwIn <-- networkLayer.ifOut[i];
        }

        tunDev.netwOut --> networkLayer.ifIn[sizeof(pppg)];
        tunDev.netwIn <-- networkLayer.ifOut[sizeof(pppg)];
}
