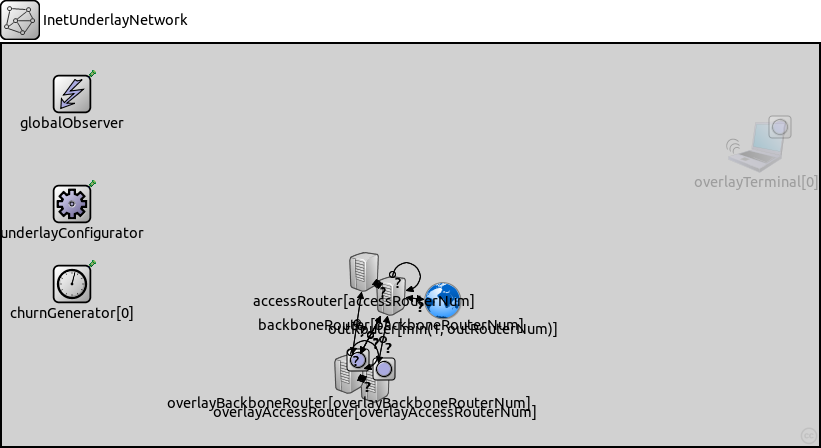

Network InetUnderlayNetwork

Package: oversim.underlay.inetunderlay
File: src/underlay/inetunderlay/InetUnderlay.ned

The InetUnderlay ned-file

Usage diagram:

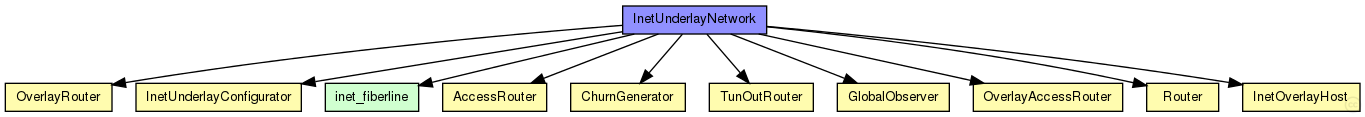

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Parameters:

Name	Type	Description
overlayType	string	the overlay used in the simulation (for overlayBackboneRouters)
tier1Type	string	the application on top of the overlay used in the simulation (for overlayBackboneRouters)
tier2Type	string	the module type on top of tier 1 (for overlayBackboneRouters)
tier3Type	string	the module type on top of tier 2 (for overlayBackboneRouters)
backboneRouterNum	int	number of backbone routers in the network
accessRouterNum	int	number of access routers in the network
overlayBackboneRouterNum	int	number of backbone routers in the network that participate the overlay
overlayAccessRouterNum	int	number of access routers in the network that participate the overlay
outRouterNum	int	set to 1 if you want to use a TunOutRouter as connection to a real network
connectivity	double	degree of connectivity of backbone routers (1 = every backbone router is connected to all the others)

Properties:

Name	Value	Description
isNetwork

Unassigned submodule parameters:

Name	Type	Default value	Description
overlayTerminal.tcp.advertisedWindow	int	14*this.mss	in bytes, corresponds with the maximal receiver buffer capacity (Note: normally, NIC queues should be at least this size)
overlayTerminal.tcp.delayedAcksEnabled	bool	false	delayed ACK algorithm (RFC 1122) enabled/disabled
overlayTerminal.tcp.nagleEnabled	bool	true	Nagle's algorithm (RFC 896) enabled/disabled
overlayTerminal.tcp.limitedTransmitEnabled	bool	false	Limited Transmit algorithm (RFC 3042) enabled/disabled (can be used for TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl)
overlayTerminal.tcp.increasedIWEnabled	bool	false	Increased Initial Window (RFC 3390) enabled/disabled
overlayTerminal.tcp.sackSupport	bool	false	Selective Acknowledgment (RFC 2018, 2883, 3517) support (header option) (SACK will be enabled for a connection if both endpoints support it)
overlayTerminal.tcp.windowScalingSupport	bool	false	Window Scale (RFC 1323) support (header option) (WS will be enabled for a connection if both endpoints support it)
overlayTerminal.tcp.timestampSupport	bool	false	Timestamps (RFC 1323) support (header option) (TS will be enabled for a connection if both endpoints support it)
overlayTerminal.tcp.mss	int	536	Maximum Segment Size (RFC 793) (header option)
overlayTerminal.tcp.tcpAlgorithmClass	string	"TCPReno"	TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl/DumbTCP
overlayTerminal.tcp.sendQueueClass	string	"TCPVirtualDataSendQueue"	TCPVirtualDataSendQueue/TCPMsgBasedSendQueue
overlayTerminal.tcp.receiveQueueClass	string	"TCPVirtualDataRcvQueue"	TCPVirtualDataRcvQueue/TCPMsgBasedRcvQueue
overlayTerminal.tcp.recordStats	bool	true	recording of seqNum etc. into output vectors enabled/disabled
overlayTerminal.networkLayer.ip.procDelay	double	0s
overlayTerminal.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
overlayTerminal.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
overlayTerminal.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
overlayTerminal.ppp.ppp.mtu	int	4470
overlayTerminal.neighborCache.rpcUdpTimeout	double		default timeout value for direct RPCs
overlayTerminal.neighborCache.rpcKeyTimeout	double		default timeout value for routed RPCs
overlayTerminal.neighborCache.optimizeTimeouts	bool		calculate timeouts from measured RTTs and network coordinates
overlayTerminal.neighborCache.rpcExponentialBackoff	bool		if true, doubles the timeout for every retransmission
overlayTerminal.neighborCache.debugOutput	bool		enable debug output
overlayTerminal.neighborCache.enableNeighborCache	bool		use neighbor cache for reducing ping traffic?
overlayTerminal.neighborCache.rttExpirationTime	double		expiration of the validity of the measured rtts
overlayTerminal.neighborCache.maxSize	double		maximum size of the cache
overlayTerminal.neighborCache.rttHistory	int
overlayTerminal.neighborCache.timeoutAccuracyLimit	double
overlayTerminal.neighborCache.defaultQueryType	string
overlayTerminal.neighborCache.defaultQueryTypeI	string
overlayTerminal.neighborCache.defaultQueryTypeQ	string
overlayTerminal.neighborCache.doDiscovery	bool
overlayTerminal.neighborCache.collectClosestNodes	int
overlayTerminal.neighborCache.ncsType	string
overlayTerminal.neighborCache.useNcsForTimeout	bool
overlayTerminal.neighborCache.ncsPiggybackOwnCoords	bool
overlayTerminal.neighborCache.discoveryModeNumCloseNodes	int		discovery mode settings
overlayTerminal.neighborCache.discoveryModeNumSpreadedNodes	int
overlayTerminal.neighborCache.discoveryModeMaxSteps	int
overlayTerminal.neighborCache.discoveryModeSpreadedSteps	int
overlayTerminal.neighborCache.gnpDimensions	int		gnp settings
overlayTerminal.neighborCache.gnpCoordCalcRuns	int
overlayTerminal.neighborCache.gnpLandmarkTimeout	double
overlayTerminal.neighborCache.npsMaxLayer	int		nps settings
overlayTerminal.neighborCache.vivaldiShowPosition	bool		vivaldi settings
overlayTerminal.neighborCache.vivaldiErrorConst	double
overlayTerminal.neighborCache.vivaldiCoordConst	double
overlayTerminal.neighborCache.vivaldiDimConst	double
overlayTerminal.neighborCache.vivaldiEnableHeightVector	bool
overlayTerminal.neighborCache.svivaldiLossConst	double		svivaldi settings
overlayTerminal.neighborCache.svivaldiLossResetLimit	double
overlayTerminal.neighborCache.simpleNcsDelayFaultType	string		simpleNcs settings
overlayTerminal.neighborCache.treeMgmtEnableTreeManagement	bool		Tree Management Settings
overlayTerminal.neighborCache.treeMgmtBuildInterval	double		the interval to check the childNodeMap
overlayTerminal.neighborCache.treeMgmtChildrenTimeOut	double		after this timeout an alive check ping is send
overlayTerminal.neighborCache.gvbEnableGlobalViewBuilder	bool		Global View Builder Settings
overlayTerminal.neighborCache.gvbCoordSendInterval	double		the interval to send the coordinates data
overlayTerminal.neighborCache.gvbOnlyAcceptCompleteCCD	bool
overlayTerminal.neighborCache.gvbSendStrategy	string		the send strategy to use. (sendAll\|simplifyCoords\|removeRandom\|removeInaccurate\|regions\|treeTest)
overlayTerminal.neighborCache.gvbStrategyRemoveCoordsMode	string		strategy mode (percentage\|limitCoords\|limitTraffic)
overlayTerminal.neighborCache.gvbStrategyRemoveCoordsPercentage	int
overlayTerminal.neighborCache.gvbStrategyRemoveCoordsCoordsLimit	int
overlayTerminal.neighborCache.gvbStrategyRemoveCoordsTrafficLimit	int
overlayTerminal.neighborCache.gvbStrategyRegionsSizePerDimension	int
overlayTerminal.neighborCache.gvbStrategyRegionsMaxSpread	int
overlayTerminal.neighborCache.gvbStrategySimplifyCoordsFactor	int
overlayTerminal.neighborCache.gvbC2AParameter	string		parameterstring to append to c2a.rb call
overlayTerminal.neighborCache.gvbDistributeGlobalView	bool		create areas and distribute the globalView to all nodes
overlayTerminal.bootstrapList.rpcUdpTimeout	double		default timeout value for direct RPCs
overlayTerminal.bootstrapList.rpcKeyTimeout	double		default timeout value for routed RPCs
overlayTerminal.bootstrapList.optimizeTimeouts	bool		calculate timeouts from measured RTTs and network coordinates
overlayTerminal.bootstrapList.rpcExponentialBackoff	bool		if true, doubles the timeout for every retransmission
overlayTerminal.bootstrapList.debugOutput	bool		enable debug output
overlayTerminal.bootstrapList.mergeOverlayPartitions	bool		if true, detect and merge overlay partitions
overlayTerminal.bootstrapList.maintainList	bool		maintain a list of bootstrap candidates and check them periodically
overlayTerminal.cryptoModule.keyFile	string		the name of the file containing the public key pair used to sign messages
underlayConfigurator.terminalTypes	string		list of terminal types
underlayConfigurator.churnGeneratorTypes	string		a list of churn generators to be used
underlayConfigurator.transitionTime	double		time to wait before measuring after init phase is finished
underlayConfigurator.measurementTime	double		duration of the simulation after init and transition phase
underlayConfigurator.gracefulLeaveDelay	double		time between prekill and removal from overlay
underlayConfigurator.gracefulLeaveProbability	double		probability of gracefull leave
underlayConfigurator.startIPv4	string		IP configuration starts with this IP
underlayConfigurator.startIPv6	string
underlayConfigurator.gatewayIP	string		IP of the gateway (if an outRouter is used)
underlayConfigurator.useIPv6Addresses	bool	false
backboneRouter.networkLayer.ip.procDelay	double	0s
backboneRouter.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
backboneRouter.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
backboneRouter.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
backboneRouter.ppp.ppp.mtu	int	4470
backboneRouter.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
backboneRouter.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
backboneRouter.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
backboneRouter.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
backboneRouter.eth.mac.mtu	int	1500
outRouter.networkLayer.ip.procDelay	double	0s
outRouter.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
outRouter.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
outRouter.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
outRouter.ppp.ppp.mtu	int	4470
outRouter.tunDev.mtu	int		maximum transmission unit of the underlaying network
accessRouter.accessNet.channelTypes	string		list of (tx) channel types (from common/channels.ned)
accessRouter.accessNet.channelTypesRx	string		list of (rx) channel types (from common/channels.ned)
accessRouter.accessNet.useIPv6Addresses	bool	false
accessRouter.networkLayer.ip.procDelay	double	0s
accessRouter.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
accessRouter.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
accessRouter.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
accessRouter.ppp.ppp.mtu	int	4470
accessRouter.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
accessRouter.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
accessRouter.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
accessRouter.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
accessRouter.eth.mac.mtu	int	1500
overlayAccessRouter.accessNet.channelTypes	string		list of (tx) channel types (from common/channels.ned)
overlayAccessRouter.accessNet.channelTypesRx	string		list of (rx) channel types (from common/channels.ned)
overlayAccessRouter.accessNet.useIPv6Addresses	bool	false
overlayAccessRouter.tcp.advertisedWindow	int	14*this.mss	in bytes, corresponds with the maximal receiver buffer capacity (Note: normally, NIC queues should be at least this size)
overlayAccessRouter.tcp.delayedAcksEnabled	bool	false	delayed ACK algorithm (RFC 1122) enabled/disabled
overlayAccessRouter.tcp.nagleEnabled	bool	true	Nagle's algorithm (RFC 896) enabled/disabled
overlayAccessRouter.tcp.limitedTransmitEnabled	bool	false	Limited Transmit algorithm (RFC 3042) enabled/disabled (can be used for TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl)
overlayAccessRouter.tcp.increasedIWEnabled	bool	false	Increased Initial Window (RFC 3390) enabled/disabled
overlayAccessRouter.tcp.sackSupport	bool	false	Selective Acknowledgment (RFC 2018, 2883, 3517) support (header option) (SACK will be enabled for a connection if both endpoints support it)
overlayAccessRouter.tcp.windowScalingSupport	bool	false	Window Scale (RFC 1323) support (header option) (WS will be enabled for a connection if both endpoints support it)
overlayAccessRouter.tcp.timestampSupport	bool	false	Timestamps (RFC 1323) support (header option) (TS will be enabled for a connection if both endpoints support it)
overlayAccessRouter.tcp.mss	int	536	Maximum Segment Size (RFC 793) (header option)
overlayAccessRouter.tcp.tcpAlgorithmClass	string	"TCPReno"	TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl/DumbTCP
overlayAccessRouter.tcp.sendQueueClass	string	"TCPVirtualDataSendQueue"	TCPVirtualDataSendQueue/TCPMsgBasedSendQueue
overlayAccessRouter.tcp.receiveQueueClass	string	"TCPVirtualDataRcvQueue"	TCPVirtualDataRcvQueue/TCPMsgBasedRcvQueue
overlayAccessRouter.tcp.recordStats	bool	true	recording of seqNum etc. into output vectors enabled/disabled
overlayAccessRouter.networkLayer.ip.procDelay	double	0s
overlayAccessRouter.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
overlayAccessRouter.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
overlayAccessRouter.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
overlayAccessRouter.ppp.ppp.mtu	int	4470
overlayAccessRouter.eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
overlayAccessRouter.eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
overlayAccessRouter.eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
overlayAccessRouter.eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
overlayAccessRouter.eth.mac.mtu	int	1500
overlayAccessRouter.neighborCache.rpcUdpTimeout	double		default timeout value for direct RPCs
overlayAccessRouter.neighborCache.rpcKeyTimeout	double		default timeout value for routed RPCs
overlayAccessRouter.neighborCache.optimizeTimeouts	bool		calculate timeouts from measured RTTs and network coordinates
overlayAccessRouter.neighborCache.rpcExponentialBackoff	bool		if true, doubles the timeout for every retransmission
overlayAccessRouter.neighborCache.debugOutput	bool		enable debug output
overlayAccessRouter.neighborCache.enableNeighborCache	bool		use neighbor cache for reducing ping traffic?
overlayAccessRouter.neighborCache.rttExpirationTime	double		expiration of the validity of the measured rtts
overlayAccessRouter.neighborCache.maxSize	double		maximum size of the cache
overlayAccessRouter.neighborCache.rttHistory	int
overlayAccessRouter.neighborCache.timeoutAccuracyLimit	double
overlayAccessRouter.neighborCache.defaultQueryType	string
overlayAccessRouter.neighborCache.defaultQueryTypeI	string
overlayAccessRouter.neighborCache.defaultQueryTypeQ	string
overlayAccessRouter.neighborCache.doDiscovery	bool
overlayAccessRouter.neighborCache.collectClosestNodes	int
overlayAccessRouter.neighborCache.ncsType	string
overlayAccessRouter.neighborCache.useNcsForTimeout	bool
overlayAccessRouter.neighborCache.ncsPiggybackOwnCoords	bool
overlayAccessRouter.neighborCache.discoveryModeNumCloseNodes	int		discovery mode settings
overlayAccessRouter.neighborCache.discoveryModeNumSpreadedNodes	int
overlayAccessRouter.neighborCache.discoveryModeMaxSteps	int
overlayAccessRouter.neighborCache.discoveryModeSpreadedSteps	int
overlayAccessRouter.neighborCache.gnpDimensions	int		gnp settings
overlayAccessRouter.neighborCache.gnpCoordCalcRuns	int
overlayAccessRouter.neighborCache.gnpLandmarkTimeout	double
overlayAccessRouter.neighborCache.npsMaxLayer	int		nps settings
overlayAccessRouter.neighborCache.vivaldiShowPosition	bool		vivaldi settings
overlayAccessRouter.neighborCache.vivaldiErrorConst	double
overlayAccessRouter.neighborCache.vivaldiCoordConst	double
overlayAccessRouter.neighborCache.vivaldiDimConst	double
overlayAccessRouter.neighborCache.vivaldiEnableHeightVector	bool
overlayAccessRouter.neighborCache.svivaldiLossConst	double		svivaldi settings
overlayAccessRouter.neighborCache.svivaldiLossResetLimit	double
overlayAccessRouter.neighborCache.simpleNcsDelayFaultType	string		simpleNcs settings
overlayAccessRouter.neighborCache.treeMgmtEnableTreeManagement	bool		Tree Management Settings
overlayAccessRouter.neighborCache.treeMgmtBuildInterval	double		the interval to check the childNodeMap
overlayAccessRouter.neighborCache.treeMgmtChildrenTimeOut	double		after this timeout an alive check ping is send
overlayAccessRouter.neighborCache.gvbEnableGlobalViewBuilder	bool		Global View Builder Settings
overlayAccessRouter.neighborCache.gvbCoordSendInterval	double		the interval to send the coordinates data
overlayAccessRouter.neighborCache.gvbOnlyAcceptCompleteCCD	bool
overlayAccessRouter.neighborCache.gvbSendStrategy	string		the send strategy to use. (sendAll\|simplifyCoords\|removeRandom\|removeInaccurate\|regions\|treeTest)
overlayAccessRouter.neighborCache.gvbStrategyRemoveCoordsMode	string		strategy mode (percentage\|limitCoords\|limitTraffic)
overlayAccessRouter.neighborCache.gvbStrategyRemoveCoordsPercentage	int
overlayAccessRouter.neighborCache.gvbStrategyRemoveCoordsCoordsLimit	int
overlayAccessRouter.neighborCache.gvbStrategyRemoveCoordsTrafficLimit	int
overlayAccessRouter.neighborCache.gvbStrategyRegionsSizePerDimension	int
overlayAccessRouter.neighborCache.gvbStrategyRegionsMaxSpread	int
overlayAccessRouter.neighborCache.gvbStrategySimplifyCoordsFactor	int
overlayAccessRouter.neighborCache.gvbC2AParameter	string		parameterstring to append to c2a.rb call
overlayAccessRouter.neighborCache.gvbDistributeGlobalView	bool		create areas and distribute the globalView to all nodes
overlayAccessRouter.bootstrapList.rpcUdpTimeout	double		default timeout value for direct RPCs
overlayAccessRouter.bootstrapList.rpcKeyTimeout	double		default timeout value for routed RPCs
overlayAccessRouter.bootstrapList.optimizeTimeouts	bool		calculate timeouts from measured RTTs and network coordinates
overlayAccessRouter.bootstrapList.rpcExponentialBackoff	bool		if true, doubles the timeout for every retransmission
overlayAccessRouter.bootstrapList.debugOutput	bool		enable debug output
overlayAccessRouter.bootstrapList.mergeOverlayPartitions	bool		if true, detect and merge overlay partitions
overlayAccessRouter.bootstrapList.maintainList	bool		maintain a list of bootstrap candidates and check them periodically
overlayAccessRouter.cryptoModule.keyFile	string		the name of the file containing the public key pair used to sign messages
overlayBackboneRouter.tcp.advertisedWindow	int	14*this.mss	in bytes, corresponds with the maximal receiver buffer capacity (Note: normally, NIC queues should be at least this size)
overlayBackboneRouter.tcp.delayedAcksEnabled	bool	false	delayed ACK algorithm (RFC 1122) enabled/disabled
overlayBackboneRouter.tcp.nagleEnabled	bool	true	Nagle's algorithm (RFC 896) enabled/disabled
overlayBackboneRouter.tcp.limitedTransmitEnabled	bool	false	Limited Transmit algorithm (RFC 3042) enabled/disabled (can be used for TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl)
overlayBackboneRouter.tcp.increasedIWEnabled	bool	false	Increased Initial Window (RFC 3390) enabled/disabled
overlayBackboneRouter.tcp.sackSupport	bool	false	Selective Acknowledgment (RFC 2018, 2883, 3517) support (header option) (SACK will be enabled for a connection if both endpoints support it)
overlayBackboneRouter.tcp.windowScalingSupport	bool	false	Window Scale (RFC 1323) support (header option) (WS will be enabled for a connection if both endpoints support it)
overlayBackboneRouter.tcp.timestampSupport	bool	false	Timestamps (RFC 1323) support (header option) (TS will be enabled for a connection if both endpoints support it)
overlayBackboneRouter.tcp.mss	int	536	Maximum Segment Size (RFC 793) (header option)
overlayBackboneRouter.tcp.tcpAlgorithmClass	string	"TCPReno"	TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl/DumbTCP
overlayBackboneRouter.tcp.sendQueueClass	string	"TCPVirtualDataSendQueue"	TCPVirtualDataSendQueue/TCPMsgBasedSendQueue
overlayBackboneRouter.tcp.receiveQueueClass	string	"TCPVirtualDataRcvQueue"	TCPVirtualDataRcvQueue/TCPMsgBasedRcvQueue
overlayBackboneRouter.tcp.recordStats	bool	true	recording of seqNum etc. into output vectors enabled/disabled
overlayBackboneRouter.networkLayer.ip.procDelay	double	0s
overlayBackboneRouter.networkLayer.arp.retryTimeout	double	1s	number seconds ARP waits between retries to resolve an IP address
overlayBackboneRouter.networkLayer.arp.retryCount	int	3	number of times ARP will attempt to resolve an IP address
overlayBackboneRouter.networkLayer.arp.cacheTimeout	double	120s	number seconds unused entries in the cache will time out
overlayBackboneRouter.ppp.ppp.mtu	int	4470
overlayBackboneRouter.neighborCache.rpcUdpTimeout	double		default timeout value for direct RPCs
overlayBackboneRouter.neighborCache.rpcKeyTimeout	double		default timeout value for routed RPCs
overlayBackboneRouter.neighborCache.optimizeTimeouts	bool		calculate timeouts from measured RTTs and network coordinates
overlayBackboneRouter.neighborCache.rpcExponentialBackoff	bool		if true, doubles the timeout for every retransmission
overlayBackboneRouter.neighborCache.debugOutput	bool		enable debug output
overlayBackboneRouter.neighborCache.enableNeighborCache	bool		use neighbor cache for reducing ping traffic?
overlayBackboneRouter.neighborCache.rttExpirationTime	double		expiration of the validity of the measured rtts
overlayBackboneRouter.neighborCache.maxSize	double		maximum size of the cache
overlayBackboneRouter.neighborCache.rttHistory	int
overlayBackboneRouter.neighborCache.timeoutAccuracyLimit	double
overlayBackboneRouter.neighborCache.defaultQueryType	string
overlayBackboneRouter.neighborCache.defaultQueryTypeI	string
overlayBackboneRouter.neighborCache.defaultQueryTypeQ	string
overlayBackboneRouter.neighborCache.doDiscovery	bool
overlayBackboneRouter.neighborCache.collectClosestNodes	int
overlayBackboneRouter.neighborCache.ncsType	string
overlayBackboneRouter.neighborCache.useNcsForTimeout	bool
overlayBackboneRouter.neighborCache.ncsPiggybackOwnCoords	bool
overlayBackboneRouter.neighborCache.discoveryModeNumCloseNodes	int		discovery mode settings
overlayBackboneRouter.neighborCache.discoveryModeNumSpreadedNodes	int
overlayBackboneRouter.neighborCache.discoveryModeMaxSteps	int
overlayBackboneRouter.neighborCache.discoveryModeSpreadedSteps	int
overlayBackboneRouter.neighborCache.gnpDimensions	int		gnp settings
overlayBackboneRouter.neighborCache.gnpCoordCalcRuns	int
overlayBackboneRouter.neighborCache.gnpLandmarkTimeout	double
overlayBackboneRouter.neighborCache.npsMaxLayer	int		nps settings
overlayBackboneRouter.neighborCache.vivaldiShowPosition	bool		vivaldi settings
overlayBackboneRouter.neighborCache.vivaldiErrorConst	double
overlayBackboneRouter.neighborCache.vivaldiCoordConst	double
overlayBackboneRouter.neighborCache.vivaldiDimConst	double
overlayBackboneRouter.neighborCache.vivaldiEnableHeightVector	bool
overlayBackboneRouter.neighborCache.svivaldiLossConst	double		svivaldi settings
overlayBackboneRouter.neighborCache.svivaldiLossResetLimit	double
overlayBackboneRouter.neighborCache.simpleNcsDelayFaultType	string		simpleNcs settings
overlayBackboneRouter.neighborCache.treeMgmtEnableTreeManagement	bool		Tree Management Settings
overlayBackboneRouter.neighborCache.treeMgmtBuildInterval	double		the interval to check the childNodeMap
overlayBackboneRouter.neighborCache.treeMgmtChildrenTimeOut	double		after this timeout an alive check ping is send
overlayBackboneRouter.neighborCache.gvbEnableGlobalViewBuilder	bool		Global View Builder Settings
overlayBackboneRouter.neighborCache.gvbCoordSendInterval	double		the interval to send the coordinates data
overlayBackboneRouter.neighborCache.gvbOnlyAcceptCompleteCCD	bool
overlayBackboneRouter.neighborCache.gvbSendStrategy	string		the send strategy to use. (sendAll\|simplifyCoords\|removeRandom\|removeInaccurate\|regions\|treeTest)
overlayBackboneRouter.neighborCache.gvbStrategyRemoveCoordsMode	string		strategy mode (percentage\|limitCoords\|limitTraffic)
overlayBackboneRouter.neighborCache.gvbStrategyRemoveCoordsPercentage	int
overlayBackboneRouter.neighborCache.gvbStrategyRemoveCoordsCoordsLimit	int
overlayBackboneRouter.neighborCache.gvbStrategyRemoveCoordsTrafficLimit	int
overlayBackboneRouter.neighborCache.gvbStrategyRegionsSizePerDimension	int
overlayBackboneRouter.neighborCache.gvbStrategyRegionsMaxSpread	int
overlayBackboneRouter.neighborCache.gvbStrategySimplifyCoordsFactor	int
overlayBackboneRouter.neighborCache.gvbC2AParameter	string		parameterstring to append to c2a.rb call
overlayBackboneRouter.neighborCache.gvbDistributeGlobalView	bool		create areas and distribute the globalView to all nodes
overlayBackboneRouter.bootstrapList.rpcUdpTimeout	double		default timeout value for direct RPCs
overlayBackboneRouter.bootstrapList.rpcKeyTimeout	double		default timeout value for routed RPCs
overlayBackboneRouter.bootstrapList.optimizeTimeouts	bool		calculate timeouts from measured RTTs and network coordinates
overlayBackboneRouter.bootstrapList.rpcExponentialBackoff	bool		if true, doubles the timeout for every retransmission
overlayBackboneRouter.bootstrapList.debugOutput	bool		enable debug output
overlayBackboneRouter.bootstrapList.mergeOverlayPartitions	bool		if true, detect and merge overlay partitions
overlayBackboneRouter.bootstrapList.maintainList	bool		maintain a list of bootstrap candidates and check them periodically
overlayBackboneRouter.cryptoModule.keyFile	string		the name of the file containing the public key pair used to sign messages
churnGenerator.targetOverlayTerminalNum	int		number of nodes after init phase
churnGenerator.initPhaseCreationInterval	double		node creation interval in init phase
churnGenerator.noChurnThreshold	double		if the lifetimeMean of a specific churn generator exceeds this, NoChurn is used instead
churnGenerator.channelTypes	string		used (tx) access technologies (from common/channels.ned)
churnGenerator.channelTypesRx	string		used (rx) access technologies (from common/channels.ned)
globalObserver.globalNodeList.maliciousNodeProbability	double		probability for a node to be malicious on creation
globalObserver.globalNodeList.maliciousNodeChange	bool		dynamically change number of malicious nodes
globalObserver.globalNodeList.maliciousNodeChangeStartTime	double		simTime at which nodes begin to become malicious
globalObserver.globalNodeList.maliciousNodeChangeRate	double		number of nodes to change to malicious compared to all nodes
globalObserver.globalNodeList.maliciousNodeChangeInterval	double		time between two node changes to malicious
globalObserver.globalNodeList.maliciousNodeChangeStartValue	double		minimum amount of malicious nodes in the peerSet
globalObserver.globalNodeList.maliciousNodeChangeStopValue	double		maximum amount of malicious nodes in the peerSet
globalObserver.globalNodeList.maxNumberOfKeys	int		maximum number of overlay keys the bootstrap oracle handles
globalObserver.globalNodeList.keyProbability	double		probability of keys to be owned by nodes
globalObserver.globalParameters.rpcUdpTimeout	double		default timeout value for direct RPCs
globalObserver.globalParameters.rpcKeyTimeout	double		default timeout value for routed RPCs
globalObserver.globalParameters.printStateToStdOut	bool		print overlay ready messages to std::cout
globalObserver.globalParameters.topologyAdaptation	bool		turn on topologyAdaptation (for demonstrator)
globalObserver.globalTraceManager.traceFile	string		file name of the trace file
globalObserver.globalStatistics.outputMinMax	bool		enable output of minimum and maximum for scalars
globalObserver.globalStatistics.outputStdDev	bool		enable output of standard deviation for scalars
globalObserver.globalStatistics.measureNetwInitPhase	bool		fetch statistics in init phase?
globalObserver.globalStatistics.globalStatTimerInterval	double		interval length of periodic statistic timer

Source code:

//
// The InetUnderlay ned-file @see InetUnderlayConfigurator
//
network InetUnderlayNetwork
{
    parameters:
        string overlayType;    // the overlay used in the simulation (for overlayBackboneRouters)
        string tier1Type;    // the application on top of the overlay used in the simulation (for overlayBackboneRouters)
        string tier2Type;    // the module type on top of tier 1 (for overlayBackboneRouters)
        string tier3Type;    // the module type on top of tier 2 (for overlayBackboneRouters)
        int backboneRouterNum;    // number of backbone routers in the network
        int accessRouterNum;    // number of access routers in the network
        int overlayBackboneRouterNum;    // number of backbone routers in the network that participate the overlay
        int overlayAccessRouterNum;    // number of access routers in the network that participate the overlay
        int outRouterNum;    // set to 1 if you want to use a TunOutRouter as connection to a real network
        double connectivity;    // degree of connectivity of backbone routers (1 = every backbone router is connected to all the others)
    submodules:
        overlayTerminal[0]: InetOverlayHost {
            @dynamic;
        }
        underlayConfigurator: InetUnderlayConfigurator {
            @display("p=70,160");
        }
        backboneRouter[backboneRouterNum]: Router {
            parameters:
                @display("i=device/server2");
        }
        outRouter[min(1, outRouterNum)]: TunOutRouter;
        accessRouter[accessRouterNum]: AccessRouter {
            parameters:
                @display("i=device/server2,gray,30");
        }
        overlayAccessRouter[overlayAccessRouterNum]: OverlayAccessRouter {
            parameters:
                overlayType = overlayType;    // the overlay used in the simulation
                tier1Type = tier1Type;    // the application on top off the overly used in the simulation
                tier2Type = tier2Type;    // tier 2 module to use
                tier3Type = tier3Type;    // tier 3 module to use
                @display("i=device/server2,gray,30;i2=block/circle_s");
        }
        overlayBackboneRouter[overlayBackboneRouterNum]: OverlayRouter {
            parameters:
                overlayType = overlayType;    // the overlay used in the simulation
                tier1Type = tier1Type;    // the application on top off the overly used in the simulation
                tier2Type = tier2Type;    // tier 2 module to use
                tier3Type = tier3Type;    // tier 3 module to use
                @display("i=device/server2;i2=block/circle_s");
        }
        churnGenerator[0]: ChurnGenerator {
            @display("p=70,240,column");
        }
        globalObserver: GlobalObserver {
            parameters:
                @display("i=block/control;p=70,50");
        }

    connections allowunconnected:

        //
        // BACKBONE ROUTER
        //
        // connect outRouter to a backboneRouter
        backboneRouter[0].pppg$o++ --> inet_fiberline --> outRouter[0].pppg$i++ if outRouterNum>0;
        backboneRouter[0].pppg$i++ <-- inet_fiberline <-- outRouter[0].pppg$o++ if outRouterNum>0;

        // connect backboneRouters with other backboneRouters
        for i=0..backboneRouterNum-1, for j=0..backboneRouterNum-1 {
            backboneRouter[i].pppg$o++ --> inet_fiberline --> backboneRouter[j].pppg$i++ if i<j&&uniform2(0, 1, i, 1)<=connectivity;
            backboneRouter[i].pppg$i++ <-- inet_fiberline <-- backboneRouter[j].pppg$o++ if i<j&&uniform2(0, 1, i, 0)<=connectivity;
        }

        // connect backboneRouters with overlayBackboneRouters
        for i=0..backboneRouterNum-1, for j=0..overlayBackboneRouterNum-1 {
            backboneRouter[i].pppg$o++ --> inet_fiberline --> overlayBackboneRouter[j].pppg$i++ if i<=j&&uniform2(0, 1, i, 0)<=connectivity;
            backboneRouter[i].pppg$i++ <-- inet_fiberline <-- overlayBackboneRouter[j].pppg$o++ if i<=j&&uniform2(0, 1, i, 0)<=connectivity;
        }

        // connect overlayBackboneRouters with backboneRouters
        for i=0..overlayBackboneRouterNum-1, for j=0..backboneRouterNum-1 {
            overlayBackboneRouter[i].pppg$o++ --> inet_fiberline --> backboneRouter[j].pppg$i++ if i<j&&uniform2(0, 1, i, 1)<=connectivity;
            overlayBackboneRouter[i].pppg$i++ <-- inet_fiberline <-- backboneRouter[j].pppg$o++ if i<j&&uniform2(0, 1, i, 0)<=connectivity;
        }

        // connect overlayBackboneRouters with other overlayBackboneRouters
        for i=0..overlayBackboneRouterNum-1, for j=0..overlayBackboneRouterNum-1 {
            overlayBackboneRouter[i].pppg$o++ --> inet_fiberline --> overlayBackboneRouter[j].pppg$i++ if i<j&&uniform2(0, 1, i, 0)<=connectivity;
            overlayBackboneRouter[i].pppg$i++ <-- inet_fiberline <-- overlayBackboneRouter[j].pppg$o++ if i<j&&uniform2(0, 1, i, 0)<=connectivity;
        }

        //
        // ACCESS ROUTER
        //
        // connect accessRouters with backboneRouters
        for i=0..accessRouterNum-1 {
            accessRouter[i].pppg$o++ --> inet_fiberline --> backboneRouter[intuniform2(0, backboneRouterNum-1, 0, 1)].pppg$i++ if uniform2(0, 1, i, 1)>overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
            accessRouter[i].pppg$i++ <-- inet_fiberline <-- backboneRouter[intuniform2(0, backboneRouterNum-1, 0, 0)].pppg$o++ if uniform2(0, 1, i, 0)>overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
        }

        // connect accessRouters with overlayBackboneRouters
        for i=0..accessRouterNum-1 {
            accessRouter[i].pppg$o++ --> inet_fiberline --> overlayBackboneRouter[intuniform2(0, overlayBackboneRouterNum-1, 0, 1)].pppg$i++ if uniform2(0, 1, i, 0)<=overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
            accessRouter[i].pppg$i++ <-- inet_fiberline <-- overlayBackboneRouter[intuniform2(0, overlayBackboneRouterNum-1, 0, 0)].pppg$o++ if uniform2(0, 1, i, 0)<=overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
        }

        // connect overlayAccessRouters with backboneRouters
        for i=0..overlayAccessRouterNum-1 {
            overlayAccessRouter[i].pppg$o++ --> inet_fiberline --> backboneRouter[intuniform2(0, backboneRouterNum-1, 0, 1)].pppg$i++ if uniform2(0, 1, i, 1)>overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
            overlayAccessRouter[i].pppg$i++ <-- inet_fiberline <-- backboneRouter[intuniform2(0, backboneRouterNum-1, 0, 0)].pppg$o++ if uniform2(0, 1, i, 0)>overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
        }

        // connect overlayAccessRouters with overlayBackboneRouters
        for i=0..overlayAccessRouterNum-1 {
            overlayAccessRouter[i].pppg$o++ --> inet_fiberline --> overlayBackboneRouter[intuniform2(0, overlayBackboneRouterNum-1, 0, 1)].pppg$i++ if uniform2(0, 1, i, 0)<=overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
            overlayAccessRouter[i].pppg$i++ <-- inet_fiberline <-- overlayBackboneRouter[intuniform2(0, overlayBackboneRouterNum-1, 0, 0)].pppg$o++ if uniform2(0, 1, i, 0)<=overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
        }

}
