Compound Module Router6

Package: oversim.underlay.inetunderlay.ipv6
File: src/underlay/inetunderlay/ipv6/Router6.ned

IP router.

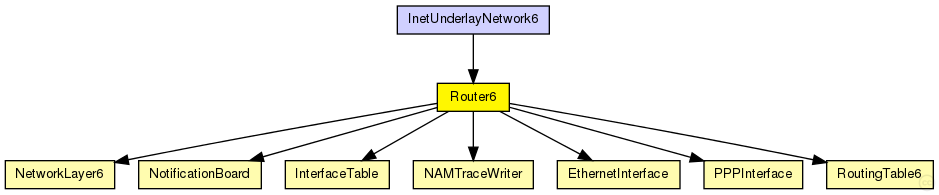

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Networks:

Name	Type	Description
InetUnderlayNetwork6	network	The InetUnderlay ned-file See also: InetUnderlayConfigurator

Name

Type

Description

InetUnderlayNetwork6

network

The InetUnderlay ned-file

See also: InetUnderlayConfigurator

Properties:

Name	Value	Description
node
display	i=abstract/router

Gates:

Name	Direction	Size	Description
pppg [ ]	inout
ethg [ ]	inout

Unassigned submodule parameters:

Name	Type	Default value	Description
routingTable6.routingTableFile	xml
networkLayer.ipv6.procDelay	double	0s
ppp.ppp.mtu	int	4470
eth.mac.promiscuous	bool	false	if true, all packets are received, otherwise only the ones with matching destination MAC address
eth.mac.address	string	"auto"	MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
eth.mac.txrate	double	100Mbps	maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
eth.mac.duplexEnabled	bool	true	whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
eth.mac.mtu	int	1500

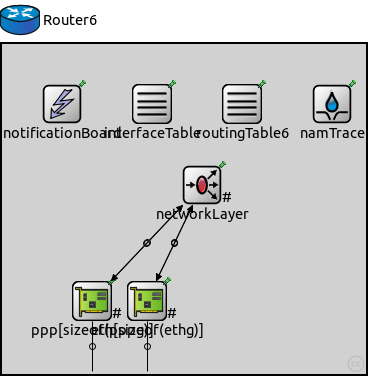

Source code:

//
// \IP router.
//
module Router6
{
    parameters:
        @node();
        @display("i=abstract/router");
    gates:
        inout pppg[];
        inout ethg[];
    submodules:
        namTrace: NAMTraceWriter {
            parameters:
                namid = -1; // auto
                @display("p=330,60");
        }
        notificationBoard: NotificationBoard {
            parameters:
                @display("p=60,60");
        }
        interfaceTable: InterfaceTable {
            parameters:
                @display("p=150,60");
        }
        routingTable6: RoutingTable6 {
            parameters:
                isRouter = true;
                @display("p=240,60");
        }
        networkLayer: NetworkLayer6 {
            parameters:
                @display("p=200,141;q=queue");
            gates:
                ifIn[sizeof(pppg)+sizeof(ethg)];
                ifOut[sizeof(pppg)+sizeof(ethg)];
        }
        ppp[sizeof(pppg)]: PPPInterface {
            parameters:
                @display("p=90,257,row,110;q=l2queue");
        }
        eth[sizeof(ethg)]: EthernetInterface {
            parameters:
                @display("p=145,257,row,110;q=l2queue");
        }
    connections allowunconnected:
        // connections to network outside
        for i=0..sizeof(pppg)-1 {
            pppg[i] <--> ppp[i].phys;
            ppp[i].netwOut --> networkLayer.ifIn[i];
            ppp[i].netwIn <-- networkLayer.ifOut[i];
        }

        for i=0..sizeof(ethg)-1 {
            ethg[i] <--> eth[i].phys;
            eth[i].netwOut --> networkLayer.ifIn[sizeof(pppg)+i];
            eth[i].netwIn <-- networkLayer.ifOut[sizeof(pppg)+i];
        }
}
