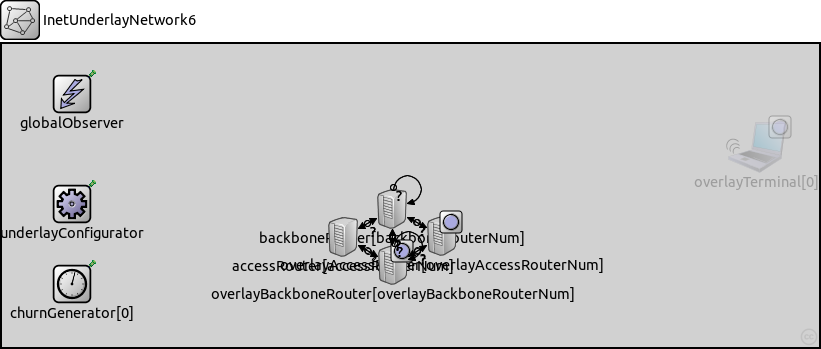

Network InetUnderlayNetwork6

Package: oversim.underlay.inetunderlay
File: src/underlay/inetunderlay/InetUnderlay6.ned

The InetUnderlay ned-file

See also: InetUnderlayConfigurator

InetOverlayHost6 InetUnderlayConfigurator Router6 AccessRouter6 OverlayAccessRouter6 OverlayRouter6 ChurnGenerator GlobalObserver

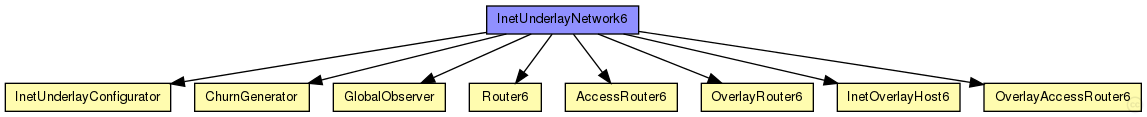

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Parameters:

Name Type Default value Description
overlayType string

the overlay used in the simulation (for overlayBackboneRouters)
tier1Type string

the application on top of the overlay used in the simulation (for overlayBackboneRouters)
tier2Type string

the module type on top of tier 1 (for overlayBackboneRouters)
tier3Type string

the module type on top of tier 2 (for overlayBackboneRouters)
backboneRouterNum int

number of backbone routers in the network
accessRouterNum int

number of access routers in the network
overlayBackboneRouterNum int

number of backbone routers in the network that participate the overlay
overlayAccessRouterNum int

number of access routers in the network that participate the overlay
outRouterNum int

set to 1 if you want to use a TunOutRouter as connection to a real network
connectivity double

degree of connectivity of backbone routers (1 = every backbone router is connected to all the others)

Properties:

Name Value Description
isNetwork

Unassigned submodule parameters:

Name Type Default value Description
overlayTerminal.routingTable6.routingTableFile xml
overlayTerminal.tcp.advertisedWindow int 14*this.mss

in bytes, corresponds with the maximal receiver buffer capacity (Note: normally, NIC queues should be at least this size)
overlayTerminal.tcp.delayedAcksEnabled bool false

delayed ACK algorithm (RFC 1122) enabled/disabled
overlayTerminal.tcp.nagleEnabled bool true

Nagle's algorithm (RFC 896) enabled/disabled
overlayTerminal.tcp.limitedTransmitEnabled bool false

Limited Transmit algorithm (RFC 3042) enabled/disabled (can be used for TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl)
overlayTerminal.tcp.increasedIWEnabled bool false

Increased Initial Window (RFC 3390) enabled/disabled
overlayTerminal.tcp.sackSupport bool false

Selective Acknowledgment (RFC 2018, 2883, 3517) support (header option) (SACK will be enabled for a connection if both endpoints support it)
overlayTerminal.tcp.windowScalingSupport bool false

Window Scale (RFC 1323) support (header option) (WS will be enabled for a connection if both endpoints support it)
overlayTerminal.tcp.timestampSupport bool false

Timestamps (RFC 1323) support (header option) (TS will be enabled for a connection if both endpoints support it)
overlayTerminal.tcp.mss int 536

Maximum Segment Size (RFC 793) (header option)
overlayTerminal.tcp.tcpAlgorithmClass string "TCPReno"

TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl/DumbTCP
overlayTerminal.tcp.sendQueueClass string "TCPVirtualDataSendQueue"

TCPVirtualDataSendQueue/TCPMsgBasedSendQueue
overlayTerminal.tcp.receiveQueueClass string "TCPVirtualDataRcvQueue"

TCPVirtualDataRcvQueue/TCPMsgBasedRcvQueue
overlayTerminal.tcp.recordStats bool true

recording of seqNum etc. into output vectors enabled/disabled
overlayTerminal.networkLayer.ipv6.procDelay double 0s
overlayTerminal.ppp.ppp.mtu int 4470
overlayTerminal.neighborCache.rpcUdpTimeout double

default timeout value for direct RPCs
overlayTerminal.neighborCache.rpcKeyTimeout double

default timeout value for routed RPCs
overlayTerminal.neighborCache.optimizeTimeouts bool

calculate timeouts from measured RTTs and network coordinates
overlayTerminal.neighborCache.rpcExponentialBackoff bool

if true, doubles the timeout for every retransmission
overlayTerminal.neighborCache.debugOutput bool

enable debug output
overlayTerminal.neighborCache.enableNeighborCache bool

use neighbor cache for reducing ping traffic?
overlayTerminal.neighborCache.rttExpirationTime double

expiration of the validity of the measured rtts
overlayTerminal.neighborCache.maxSize double

maximum size of the cache
overlayTerminal.neighborCache.rttHistory int
overlayTerminal.neighborCache.timeoutAccuracyLimit double
overlayTerminal.neighborCache.defaultQueryType string
overlayTerminal.neighborCache.defaultQueryTypeI string
overlayTerminal.neighborCache.defaultQueryTypeQ string
overlayTerminal.neighborCache.doDiscovery bool
overlayTerminal.neighborCache.collectClosestNodes int
overlayTerminal.neighborCache.ncsType string
overlayTerminal.neighborCache.useNcsForTimeout bool
overlayTerminal.neighborCache.ncsPiggybackOwnCoords bool
overlayTerminal.neighborCache.discoveryModeNumCloseNodes int

discovery mode settings
overlayTerminal.neighborCache.discoveryModeNumSpreadedNodes int
overlayTerminal.neighborCache.discoveryModeMaxSteps int
overlayTerminal.neighborCache.discoveryModeSpreadedSteps int
overlayTerminal.neighborCache.gnpDimensions int

gnp settings
overlayTerminal.neighborCache.gnpCoordCalcRuns int
overlayTerminal.neighborCache.gnpLandmarkTimeout double
overlayTerminal.neighborCache.npsMaxLayer int

nps settings
overlayTerminal.neighborCache.vivaldiShowPosition bool

vivaldi settings
overlayTerminal.neighborCache.vivaldiErrorConst double
overlayTerminal.neighborCache.vivaldiCoordConst double
overlayTerminal.neighborCache.vivaldiDimConst double
overlayTerminal.neighborCache.vivaldiEnableHeightVector bool
overlayTerminal.neighborCache.svivaldiLossConst double

svivaldi settings
overlayTerminal.neighborCache.svivaldiLossResetLimit double
overlayTerminal.neighborCache.simpleNcsDelayFaultType string

simpleNcs settings
overlayTerminal.neighborCache.treeMgmtEnableTreeManagement bool

Tree Management Settings
overlayTerminal.neighborCache.treeMgmtBuildInterval double

the interval to check the childNodeMap
overlayTerminal.neighborCache.treeMgmtChildrenTimeOut double

after this timeout an alive check ping is send
overlayTerminal.neighborCache.gvbEnableGlobalViewBuilder bool

Global View Builder Settings
overlayTerminal.neighborCache.gvbCoordSendInterval double

the interval to send the coordinates data
overlayTerminal.neighborCache.gvbOnlyAcceptCompleteCCD bool
overlayTerminal.neighborCache.gvbSendStrategy string

the send strategy to use. (sendAll|simplifyCoords|removeRandom|removeInaccurate|regions|treeTest)
overlayTerminal.neighborCache.gvbStrategyRemoveCoordsMode string

strategy mode (percentage|limitCoords|limitTraffic)
overlayTerminal.neighborCache.gvbStrategyRemoveCoordsPercentage int
overlayTerminal.neighborCache.gvbStrategyRemoveCoordsCoordsLimit int
overlayTerminal.neighborCache.gvbStrategyRemoveCoordsTrafficLimit int
overlayTerminal.neighborCache.gvbStrategyRegionsSizePerDimension int
overlayTerminal.neighborCache.gvbStrategyRegionsMaxSpread int
overlayTerminal.neighborCache.gvbStrategySimplifyCoordsFactor int
overlayTerminal.neighborCache.gvbC2AParameter string

parameterstring to append to c2a.rb call
overlayTerminal.neighborCache.gvbDistributeGlobalView bool

create areas and distribute the globalView to all nodes
overlayTerminal.bootstrapList.rpcUdpTimeout double

default timeout value for direct RPCs
overlayTerminal.bootstrapList.rpcKeyTimeout double

default timeout value for routed RPCs
overlayTerminal.bootstrapList.optimizeTimeouts bool

calculate timeouts from measured RTTs and network coordinates
overlayTerminal.bootstrapList.rpcExponentialBackoff bool

if true, doubles the timeout for every retransmission
overlayTerminal.bootstrapList.debugOutput bool

enable debug output
overlayTerminal.bootstrapList.mergeOverlayPartitions bool

if true, detect and merge overlay partitions
overlayTerminal.bootstrapList.maintainList bool

maintain a list of bootstrap candidates and check them periodically
overlayTerminal.cryptoModule.keyFile string

the name of the file containing the public key pair used to sign messages
underlayConfigurator.terminalTypes string

list of terminal types
underlayConfigurator.churnGeneratorTypes string

a list of churn generators to be used
underlayConfigurator.transitionTime double

time to wait before measuring after init phase is finished
underlayConfigurator.measurementTime double

duration of the simulation after init and transition phase
underlayConfigurator.gracefulLeaveDelay double

time between prekill and removal from overlay
underlayConfigurator.gracefulLeaveProbability double

probability of gracefull leave
underlayConfigurator.startIPv4 string

IP configuration starts with this IP
underlayConfigurator.startIPv6 string
underlayConfigurator.gatewayIP string

IP of the gateway (if an outRouter is used)
backboneRouter.routingTable6.routingTableFile xml
backboneRouter.networkLayer.ipv6.procDelay double 0s
backboneRouter.ppp.ppp.mtu int 4470
backboneRouter.eth.mac.promiscuous bool false

if true, all packets are received, otherwise only the ones with matching destination MAC address
backboneRouter.eth.mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
backboneRouter.eth.mac.txrate double 100Mbps

maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
backboneRouter.eth.mac.duplexEnabled bool true

whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
backboneRouter.eth.mac.mtu int 1500
accessRouter.routingTable6.routingTableFile xml
accessRouter.accessNet.channelTypes string

list of (tx) channel types (from common/channels.ned)
accessRouter.accessNet.channelTypesRx string

list of (rx) channel types (from common/channels.ned)
accessRouter.networkLayer.ipv6.procDelay double 0s
accessRouter.ppp.ppp.mtu int 4470
accessRouter.eth.mac.promiscuous bool false

if true, all packets are received, otherwise only the ones with matching destination MAC address
accessRouter.eth.mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
accessRouter.eth.mac.txrate double 100Mbps

maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
accessRouter.eth.mac.duplexEnabled bool true

whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
accessRouter.eth.mac.mtu int 1500
overlayAccessRouter.routingTable6.routingTableFile xml
overlayAccessRouter.accessNet.channelTypes string

list of (tx) channel types (from common/channels.ned)
overlayAccessRouter.accessNet.channelTypesRx string

list of (rx) channel types (from common/channels.ned)
overlayAccessRouter.tcp.advertisedWindow int 14*this.mss

in bytes, corresponds with the maximal receiver buffer capacity (Note: normally, NIC queues should be at least this size)
overlayAccessRouter.tcp.delayedAcksEnabled bool false

delayed ACK algorithm (RFC 1122) enabled/disabled
overlayAccessRouter.tcp.nagleEnabled bool true

Nagle's algorithm (RFC 896) enabled/disabled
overlayAccessRouter.tcp.limitedTransmitEnabled bool false

Limited Transmit algorithm (RFC 3042) enabled/disabled (can be used for TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl)
overlayAccessRouter.tcp.increasedIWEnabled bool false

Increased Initial Window (RFC 3390) enabled/disabled
overlayAccessRouter.tcp.sackSupport bool false

Selective Acknowledgment (RFC 2018, 2883, 3517) support (header option) (SACK will be enabled for a connection if both endpoints support it)
overlayAccessRouter.tcp.windowScalingSupport bool false

Window Scale (RFC 1323) support (header option) (WS will be enabled for a connection if both endpoints support it)
overlayAccessRouter.tcp.timestampSupport bool false

Timestamps (RFC 1323) support (header option) (TS will be enabled for a connection if both endpoints support it)
overlayAccessRouter.tcp.mss int 536

Maximum Segment Size (RFC 793) (header option)
overlayAccessRouter.tcp.tcpAlgorithmClass string "TCPReno"

TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl/DumbTCP
overlayAccessRouter.tcp.sendQueueClass string "TCPVirtualDataSendQueue"

TCPVirtualDataSendQueue/TCPMsgBasedSendQueue
overlayAccessRouter.tcp.receiveQueueClass string "TCPVirtualDataRcvQueue"

TCPVirtualDataRcvQueue/TCPMsgBasedRcvQueue
overlayAccessRouter.tcp.recordStats bool true

recording of seqNum etc. into output vectors enabled/disabled
overlayAccessRouter.networkLayer.ipv6.procDelay double 0s
overlayAccessRouter.ppp.ppp.mtu int 4470
overlayAccessRouter.eth.mac.promiscuous bool false

if true, all packets are received, otherwise only the ones with matching destination MAC address
overlayAccessRouter.eth.mac.address string "auto"

MAC address as hex string (12 hex digits), or "auto". "auto" values will be replaced by a generated MAC address in init stage 0.
overlayAccessRouter.eth.mac.txrate double 100Mbps

maximum data rate supported by this station (bit/s); actually chosen speed may be lower due to auto- configuration. 0 means fully auto-configured.
overlayAccessRouter.eth.mac.duplexEnabled bool true

whether duplex mode can be enabled or not; whether MAC will actually use duplex mode depends on the result of the auto-configuration process (duplex is only possible with DTE-to-DTE connection).
overlayAccessRouter.eth.mac.mtu int 1500
overlayAccessRouter.neighborCache.rpcUdpTimeout double

default timeout value for direct RPCs
overlayAccessRouter.neighborCache.rpcKeyTimeout double

default timeout value for routed RPCs
overlayAccessRouter.neighborCache.optimizeTimeouts bool

calculate timeouts from measured RTTs and network coordinates
overlayAccessRouter.neighborCache.rpcExponentialBackoff bool

if true, doubles the timeout for every retransmission
overlayAccessRouter.neighborCache.debugOutput bool

enable debug output
overlayAccessRouter.neighborCache.enableNeighborCache bool

use neighbor cache for reducing ping traffic?
overlayAccessRouter.neighborCache.rttExpirationTime double

expiration of the validity of the measured rtts
overlayAccessRouter.neighborCache.maxSize double

maximum size of the cache
overlayAccessRouter.neighborCache.rttHistory int
overlayAccessRouter.neighborCache.timeoutAccuracyLimit double
overlayAccessRouter.neighborCache.defaultQueryType string
overlayAccessRouter.neighborCache.defaultQueryTypeI string
overlayAccessRouter.neighborCache.defaultQueryTypeQ string
overlayAccessRouter.neighborCache.doDiscovery bool
overlayAccessRouter.neighborCache.collectClosestNodes int
overlayAccessRouter.neighborCache.ncsType string
overlayAccessRouter.neighborCache.useNcsForTimeout bool
overlayAccessRouter.neighborCache.ncsPiggybackOwnCoords bool
overlayAccessRouter.neighborCache.discoveryModeNumCloseNodes int

discovery mode settings
overlayAccessRouter.neighborCache.discoveryModeNumSpreadedNodes int
overlayAccessRouter.neighborCache.discoveryModeMaxSteps int
overlayAccessRouter.neighborCache.discoveryModeSpreadedSteps int
overlayAccessRouter.neighborCache.gnpDimensions int

gnp settings
overlayAccessRouter.neighborCache.gnpCoordCalcRuns int
overlayAccessRouter.neighborCache.gnpLandmarkTimeout double
overlayAccessRouter.neighborCache.npsMaxLayer int

nps settings
overlayAccessRouter.neighborCache.vivaldiShowPosition bool

vivaldi settings
overlayAccessRouter.neighborCache.vivaldiErrorConst double
overlayAccessRouter.neighborCache.vivaldiCoordConst double
overlayAccessRouter.neighborCache.vivaldiDimConst double
overlayAccessRouter.neighborCache.vivaldiEnableHeightVector bool
overlayAccessRouter.neighborCache.svivaldiLossConst double

svivaldi settings
overlayAccessRouter.neighborCache.svivaldiLossResetLimit double
overlayAccessRouter.neighborCache.simpleNcsDelayFaultType string

simpleNcs settings
overlayAccessRouter.neighborCache.treeMgmtEnableTreeManagement bool

Tree Management Settings
overlayAccessRouter.neighborCache.treeMgmtBuildInterval double

the interval to check the childNodeMap
overlayAccessRouter.neighborCache.treeMgmtChildrenTimeOut double

after this timeout an alive check ping is send
overlayAccessRouter.neighborCache.gvbEnableGlobalViewBuilder bool

Global View Builder Settings
overlayAccessRouter.neighborCache.gvbCoordSendInterval double

the interval to send the coordinates data
overlayAccessRouter.neighborCache.gvbOnlyAcceptCompleteCCD bool
overlayAccessRouter.neighborCache.gvbSendStrategy string

the send strategy to use. (sendAll|simplifyCoords|removeRandom|removeInaccurate|regions|treeTest)
overlayAccessRouter.neighborCache.gvbStrategyRemoveCoordsMode string

strategy mode (percentage|limitCoords|limitTraffic)
overlayAccessRouter.neighborCache.gvbStrategyRemoveCoordsPercentage int
overlayAccessRouter.neighborCache.gvbStrategyRemoveCoordsCoordsLimit int
overlayAccessRouter.neighborCache.gvbStrategyRemoveCoordsTrafficLimit int
overlayAccessRouter.neighborCache.gvbStrategyRegionsSizePerDimension int
overlayAccessRouter.neighborCache.gvbStrategyRegionsMaxSpread int
overlayAccessRouter.neighborCache.gvbStrategySimplifyCoordsFactor int
overlayAccessRouter.neighborCache.gvbC2AParameter string

parameterstring to append to c2a.rb call
overlayAccessRouter.neighborCache.gvbDistributeGlobalView bool

create areas and distribute the globalView to all nodes
overlayAccessRouter.bootstrapList.rpcUdpTimeout double

default timeout value for direct RPCs
overlayAccessRouter.bootstrapList.rpcKeyTimeout double

default timeout value for routed RPCs
overlayAccessRouter.bootstrapList.optimizeTimeouts bool

calculate timeouts from measured RTTs and network coordinates
overlayAccessRouter.bootstrapList.rpcExponentialBackoff bool

if true, doubles the timeout for every retransmission
overlayAccessRouter.bootstrapList.debugOutput bool

enable debug output
overlayAccessRouter.bootstrapList.mergeOverlayPartitions bool

if true, detect and merge overlay partitions
overlayAccessRouter.bootstrapList.maintainList bool

maintain a list of bootstrap candidates and check them periodically
overlayAccessRouter.cryptoModule.keyFile string

the name of the file containing the public key pair used to sign messages
overlayBackboneRouter.routingTable6.routingTableFile xml
overlayBackboneRouter.tcp.advertisedWindow int 14*this.mss

in bytes, corresponds with the maximal receiver buffer capacity (Note: normally, NIC queues should be at least this size)
overlayBackboneRouter.tcp.delayedAcksEnabled bool false

delayed ACK algorithm (RFC 1122) enabled/disabled
overlayBackboneRouter.tcp.nagleEnabled bool true

Nagle's algorithm (RFC 896) enabled/disabled
overlayBackboneRouter.tcp.limitedTransmitEnabled bool false

Limited Transmit algorithm (RFC 3042) enabled/disabled (can be used for TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl)
overlayBackboneRouter.tcp.increasedIWEnabled bool false

Increased Initial Window (RFC 3390) enabled/disabled
overlayBackboneRouter.tcp.sackSupport bool false

Selective Acknowledgment (RFC 2018, 2883, 3517) support (header option) (SACK will be enabled for a connection if both endpoints support it)
overlayBackboneRouter.tcp.windowScalingSupport bool false

Window Scale (RFC 1323) support (header option) (WS will be enabled for a connection if both endpoints support it)
overlayBackboneRouter.tcp.timestampSupport bool false

Timestamps (RFC 1323) support (header option) (TS will be enabled for a connection if both endpoints support it)
overlayBackboneRouter.tcp.mss int 536

Maximum Segment Size (RFC 793) (header option)
overlayBackboneRouter.tcp.tcpAlgorithmClass string "TCPReno"

TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl/DumbTCP
overlayBackboneRouter.tcp.sendQueueClass string "TCPVirtualDataSendQueue"

TCPVirtualDataSendQueue/TCPMsgBasedSendQueue
overlayBackboneRouter.tcp.receiveQueueClass string "TCPVirtualDataRcvQueue"

TCPVirtualDataRcvQueue/TCPMsgBasedRcvQueue
overlayBackboneRouter.tcp.recordStats bool true

recording of seqNum etc. into output vectors enabled/disabled
overlayBackboneRouter.networkLayer.ipv6.procDelay double 0s
overlayBackboneRouter.ppp.ppp.mtu int 4470
overlayBackboneRouter.neighborCache.rpcUdpTimeout double

default timeout value for direct RPCs
overlayBackboneRouter.neighborCache.rpcKeyTimeout double

default timeout value for routed RPCs
overlayBackboneRouter.neighborCache.optimizeTimeouts bool

calculate timeouts from measured RTTs and network coordinates
overlayBackboneRouter.neighborCache.rpcExponentialBackoff bool

if true, doubles the timeout for every retransmission
overlayBackboneRouter.neighborCache.debugOutput bool

enable debug output
overlayBackboneRouter.neighborCache.enableNeighborCache bool

use neighbor cache for reducing ping traffic?
overlayBackboneRouter.neighborCache.rttExpirationTime double

expiration of the validity of the measured rtts
overlayBackboneRouter.neighborCache.maxSize double

maximum size of the cache
overlayBackboneRouter.neighborCache.rttHistory int
overlayBackboneRouter.neighborCache.timeoutAccuracyLimit double
overlayBackboneRouter.neighborCache.defaultQueryType string
overlayBackboneRouter.neighborCache.defaultQueryTypeI string
overlayBackboneRouter.neighborCache.defaultQueryTypeQ string
overlayBackboneRouter.neighborCache.doDiscovery bool
overlayBackboneRouter.neighborCache.collectClosestNodes int
overlayBackboneRouter.neighborCache.ncsType string
overlayBackboneRouter.neighborCache.useNcsForTimeout bool
overlayBackboneRouter.neighborCache.ncsPiggybackOwnCoords bool
overlayBackboneRouter.neighborCache.discoveryModeNumCloseNodes int

discovery mode settings
overlayBackboneRouter.neighborCache.discoveryModeNumSpreadedNodes int
overlayBackboneRouter.neighborCache.discoveryModeMaxSteps int
overlayBackboneRouter.neighborCache.discoveryModeSpreadedSteps int
overlayBackboneRouter.neighborCache.gnpDimensions int

gnp settings
overlayBackboneRouter.neighborCache.gnpCoordCalcRuns int
overlayBackboneRouter.neighborCache.gnpLandmarkTimeout double
overlayBackboneRouter.neighborCache.npsMaxLayer int

nps settings
overlayBackboneRouter.neighborCache.vivaldiShowPosition bool

vivaldi settings
overlayBackboneRouter.neighborCache.vivaldiErrorConst double
overlayBackboneRouter.neighborCache.vivaldiCoordConst double
overlayBackboneRouter.neighborCache.vivaldiDimConst double
overlayBackboneRouter.neighborCache.vivaldiEnableHeightVector bool
overlayBackboneRouter.neighborCache.svivaldiLossConst double

svivaldi settings
overlayBackboneRouter.neighborCache.svivaldiLossResetLimit double
overlayBackboneRouter.neighborCache.simpleNcsDelayFaultType string

simpleNcs settings
overlayBackboneRouter.neighborCache.treeMgmtEnableTreeManagement bool

Tree Management Settings
overlayBackboneRouter.neighborCache.treeMgmtBuildInterval double

the interval to check the childNodeMap
overlayBackboneRouter.neighborCache.treeMgmtChildrenTimeOut double

after this timeout an alive check ping is send
overlayBackboneRouter.neighborCache.gvbEnableGlobalViewBuilder bool

Global View Builder Settings
overlayBackboneRouter.neighborCache.gvbCoordSendInterval double

the interval to send the coordinates data
overlayBackboneRouter.neighborCache.gvbOnlyAcceptCompleteCCD bool
overlayBackboneRouter.neighborCache.gvbSendStrategy string

the send strategy to use. (sendAll|simplifyCoords|removeRandom|removeInaccurate|regions|treeTest)
overlayBackboneRouter.neighborCache.gvbStrategyRemoveCoordsMode string

strategy mode (percentage|limitCoords|limitTraffic)
overlayBackboneRouter.neighborCache.gvbStrategyRemoveCoordsPercentage int
overlayBackboneRouter.neighborCache.gvbStrategyRemoveCoordsCoordsLimit int
overlayBackboneRouter.neighborCache.gvbStrategyRemoveCoordsTrafficLimit int
overlayBackboneRouter.neighborCache.gvbStrategyRegionsSizePerDimension int
overlayBackboneRouter.neighborCache.gvbStrategyRegionsMaxSpread int
overlayBackboneRouter.neighborCache.gvbStrategySimplifyCoordsFactor int
overlayBackboneRouter.neighborCache.gvbC2AParameter string

parameterstring to append to c2a.rb call
overlayBackboneRouter.neighborCache.gvbDistributeGlobalView bool

create areas and distribute the globalView to all nodes
overlayBackboneRouter.bootstrapList.rpcUdpTimeout double

default timeout value for direct RPCs
overlayBackboneRouter.bootstrapList.rpcKeyTimeout double

default timeout value for routed RPCs
overlayBackboneRouter.bootstrapList.optimizeTimeouts bool

calculate timeouts from measured RTTs and network coordinates
overlayBackboneRouter.bootstrapList.rpcExponentialBackoff bool

if true, doubles the timeout for every retransmission
overlayBackboneRouter.bootstrapList.debugOutput bool

enable debug output
overlayBackboneRouter.bootstrapList.mergeOverlayPartitions bool

if true, detect and merge overlay partitions
overlayBackboneRouter.bootstrapList.maintainList bool

maintain a list of bootstrap candidates and check them periodically
overlayBackboneRouter.cryptoModule.keyFile string

the name of the file containing the public key pair used to sign messages
churnGenerator.targetOverlayTerminalNum int

number of nodes after init phase
churnGenerator.initPhaseCreationInterval double

node creation interval in init phase
churnGenerator.noChurnThreshold double

if the lifetimeMean of a specific churn generator exceeds this, NoChurn is used instead
churnGenerator.channelTypes string

used (tx) access technologies (from common/channels.ned)
churnGenerator.channelTypesRx string

used (rx) access technologies (from common/channels.ned)
globalObserver.globalNodeList.maliciousNodeProbability double

probability for a node to be malicious on creation
globalObserver.globalNodeList.maliciousNodeChange bool

dynamically change number of malicious nodes
globalObserver.globalNodeList.maliciousNodeChangeStartTime double

simTime at which nodes begin to become malicious
globalObserver.globalNodeList.maliciousNodeChangeRate double

number of nodes to change to malicious compared to all nodes
globalObserver.globalNodeList.maliciousNodeChangeInterval double

time between two node changes to malicious
globalObserver.globalNodeList.maliciousNodeChangeStartValue double

minimum amount of malicious nodes in the peerSet
globalObserver.globalNodeList.maliciousNodeChangeStopValue double

maximum amount of malicious nodes in the peerSet
globalObserver.globalNodeList.maxNumberOfKeys int

maximum number of overlay keys the bootstrap oracle handles
globalObserver.globalNodeList.keyProbability double

probability of keys to be owned by nodes
globalObserver.globalParameters.rpcUdpTimeout double

default timeout value for direct RPCs
globalObserver.globalParameters.rpcKeyTimeout double

default timeout value for routed RPCs
globalObserver.globalParameters.printStateToStdOut bool

print overlay ready messages to std::cout
globalObserver.globalParameters.topologyAdaptation bool

turn on topologyAdaptation (for demonstrator)
globalObserver.globalTraceManager.traceFile string

file name of the trace file
globalObserver.globalStatistics.outputMinMax bool

enable output of minimum and maximum for scalars
globalObserver.globalStatistics.outputStdDev bool

enable output of standard deviation for scalars
globalObserver.globalStatistics.measureNetwInitPhase bool

fetch statistics in init phase?
globalObserver.globalStatistics.globalStatTimerInterval double

interval length of periodic statistic timer

Source code:

//
// The InetUnderlay ned-file @see InetUnderlayConfigurator
//
network InetUnderlayNetwork6
{
    parameters:
        string overlayType;    // the overlay used in the simulation (for overlayBackboneRouters)
        string tier1Type;    // the application on top of the overlay used in the simulation (for overlayBackboneRouters)
        string tier2Type;    // the module type on top of tier 1 (for overlayBackboneRouters)
        string tier3Type;    // the module type on top of tier 2 (for overlayBackboneRouters)
        int backboneRouterNum;    // number of backbone routers in the network
        int accessRouterNum;    // number of access routers in the network
        int overlayBackboneRouterNum;    // number of backbone routers in the network that participate the overlay
        int overlayAccessRouterNum;    // number of access routers in the network that participate the overlay
        int outRouterNum;    // set to 1 if you want to use a TunOutRouter as connection to a real network
        double connectivity;    // degree of connectivity of backbone routers (1 = every backbone router is connected to all the others)
    submodules:
        overlayTerminal[0]: InetOverlayHost6 {
            @dynamic;
        }
        underlayConfigurator: InetUnderlayConfigurator {
            useIPv6Addresses = true;
            @display("p=70,160");
        }
        backboneRouter[backboneRouterNum]: Router6 {
            parameters:
                @display("i=device/server2");
        }
        //outRouter[min(1, outRouterNum)]: TunOutRouter6;
        accessRouter[accessRouterNum]: AccessRouter6 {
            parameters:
                @display("i=device/server2,gray,30");
        }
        overlayAccessRouter[overlayAccessRouterNum]: OverlayAccessRouter6 {
            parameters:
                overlayType = overlayType;    // the overlay used in the simulation
                tier1Type = tier1Type;    // the application on top off the overly used in the simulation
                tier2Type = tier2Type;    // tier 2 module to use
                tier3Type = tier3Type;    // tier 3 module to use
                @display("i=device/server2,gray,30;i2=block/circle_s");
        }
        overlayBackboneRouter[overlayBackboneRouterNum]: OverlayRouter6 {
            parameters:
                overlayType = overlayType;    // the overlay used in the simulation
                tier1Type = tier1Type;    // the application on top off the overly used in the simulation
                tier2Type = tier2Type;    // tier 2 module to use
                tier3Type = tier3Type;    // tier 3 module to use
                @display("i=device/server2;i2=block/circle_s");
        }
        churnGenerator[0]: ChurnGenerator {
            @display("p=70,240,column");
        }
        globalObserver: GlobalObserver {
            parameters:
                @display("i=block/control;p=70,50");
        }

    connections allowunconnected:

        //
        // BACKBONE ROUTER
        //
        // connect outRouter to a backboneRouter
//        backboneRouter[0].pppg$o++ --> inet_fiberline --> outRouter[0].pppg$i++ if outRouterNum>0;
//        backboneRouter[0].pppg$i++ <-- inet_fiberline <-- outRouter[0].pppg$o++ if outRouterNum>0;

        // connect backboneRouters with other backboneRouters
        for i=0..backboneRouterNum-1, for j=0..backboneRouterNum-1 {
            backboneRouter[i].pppg$o++ --> inet_fiberline --> backboneRouter[j].pppg$i++ if i<j&&uniform2(0, 1, i, 1)<=connectivity;
            backboneRouter[i].pppg$i++ <-- inet_fiberline <-- backboneRouter[j].pppg$o++ if i<j&&uniform2(0, 1, i, 0)<=connectivity;
        }

        // connect backboneRouters with overlayBackboneRouters
        for i=0..backboneRouterNum-1, for j=0..overlayBackboneRouterNum-1 {
            backboneRouter[i].pppg$o++ --> inet_fiberline --> overlayBackboneRouter[j].pppg$i++ if i<=j&&uniform2(0, 1, i, 0)<=connectivity;
            backboneRouter[i].pppg$i++ <-- inet_fiberline <-- overlayBackboneRouter[j].pppg$o++ if i<=j&&uniform2(0, 1, i, 0)<=connectivity;
        }

        // connect overlayBackboneRouters with backboneRouters
        for i=0..overlayBackboneRouterNum-1, for j=0..backboneRouterNum-1 {
            overlayBackboneRouter[i].pppg$o++ --> inet_fiberline --> backboneRouter[j].pppg$i++ if i<j&&uniform2(0, 1, i, 1)<=connectivity;
            overlayBackboneRouter[i].pppg$i++ <-- inet_fiberline <-- backboneRouter[j].pppg$o++ if i<j&&uniform2(0, 1, i, 0)<=connectivity;
        }

        // connect overlayBackboneRouters with other overlayBackboneRouters
        for i=0..overlayBackboneRouterNum-1, for j=0..overlayBackboneRouterNum-1 {
            overlayBackboneRouter[i].pppg$o++ --> inet_fiberline --> overlayBackboneRouter[j].pppg$i++ if i<j&&uniform2(0, 1, i, 0)<=connectivity;
            overlayBackboneRouter[i].pppg$i++ <-- inet_fiberline <-- overlayBackboneRouter[j].pppg$o++ if i<j&&uniform2(0, 1, i, 0)<=connectivity;
        }

        //
        // ACCESS ROUTER
        //
        // connect accessRouters with backboneRouters
        for i=0..accessRouterNum-1 {
            accessRouter[i].pppg$o++ --> inet_fiberline --> backboneRouter[intuniform2(0, backboneRouterNum-1, 0, 1)].pppg$i++ if uniform2(0, 1, i, 1)>overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
            accessRouter[i].pppg$i++ <-- inet_fiberline <-- backboneRouter[intuniform2(0, backboneRouterNum-1, 0, 0)].pppg$o++ if uniform2(0, 1, i, 0)>overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
        }

        // connect accessRouters with overlayBackboneRouters
        for i=0..accessRouterNum-1 {
            accessRouter[i].pppg$o++ --> inet_fiberline --> overlayBackboneRouter[intuniform2(0, overlayBackboneRouterNum-1, 0, 1)].pppg$i++ if uniform2(0, 1, i, 0)<=overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
            accessRouter[i].pppg$i++ <-- inet_fiberline <-- overlayBackboneRouter[intuniform2(0, overlayBackboneRouterNum-1, 0, 0)].pppg$o++ if uniform2(0, 1, i, 0)<=overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
        }

        // connect overlayAccessRouters with backboneRouters
        for i=0..overlayAccessRouterNum-1 {
            overlayAccessRouter[i].pppg$o++ --> inet_fiberline --> backboneRouter[intuniform2(0, backboneRouterNum-1, 0, 1)].pppg$i++ if uniform2(0, 1, i, 1)>overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
            overlayAccessRouter[i].pppg$i++ <-- inet_fiberline <-- backboneRouter[intuniform2(0, backboneRouterNum-1, 0, 0)].pppg$o++ if uniform2(0, 1, i, 0)>overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
        }

        // connect overlayAccessRouters with overlayBackboneRouters
        for i=0..overlayAccessRouterNum-1 {
            overlayAccessRouter[i].pppg$o++ --> inet_fiberline --> overlayBackboneRouter[intuniform2(0, overlayBackboneRouterNum-1, 0, 1)].pppg$i++ if uniform2(0, 1, i, 0)<=overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
            overlayAccessRouter[i].pppg$i++ <-- inet_fiberline <-- overlayBackboneRouter[intuniform2(0, overlayBackboneRouterNum-1, 0, 0)].pppg$o++ if uniform2(0, 1, i, 0)<=overlayBackboneRouterNum/(overlayBackboneRouterNum+backboneRouterNum);
        }

}

This documentation is released under the Creative Commons license
