Simple Module SimpleTCP

Package: oversim.underlay.simpleunderlay
File: src/underlay/simpleunderlay/SimpleTCP.ned

UDP protocol implementation, for IPv4 and IPv6.

The UDP protocol header is represented by the class UDPPacket.

Communication with clients (applications)

The module can (should) be connected to several applications. For sending an UDP packet, the application should attach an UDPControlInfo object to the payload, and send it to UDP. UDP will also attach an UDPControlInfo object to any payload message in sends up to the application.

For receiving UDP packets, the connected applications should first "bind" to the given UDP port. This can be done by sending an arbitrary message with message kind UDP_C_BIND and an UDPControlInfo attached with srcPort filled in.

If there is only one app which doesn't bind to any port, it will receive all packets.

Communication with other nodes

The SimpleUDP model sends packets directly to the destination

See also: SimpleUDPPacket, UDPControlInfo, GlobalRoutingHashMap

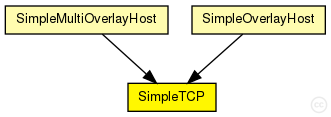

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Extends:

Name	Type	Description
TCP	simple module	TCP protocol implementation. This implementation supports:

Used in compound modules:

Name	Type	Description
SimpleMultiOverlayHost	compound module	Host in the simple network that participates in the overlay
SimpleOverlayHost	compound module	Host in the simple network that participates in the overlay

Parameters:

Name	Type	Default value	Description
advertisedWindow	int	14*this.mss	in bytes, corresponds with the maximal receiver buffer capacity (Note: normally, NIC queues should be at least this size)
delayedAcksEnabled	bool	false	delayed ACK algorithm (RFC 1122) enabled/disabled
nagleEnabled	bool	true	Nagle's algorithm (RFC 896) enabled/disabled
limitedTransmitEnabled	bool	false	Limited Transmit algorithm (RFC 3042) enabled/disabled (can be used for TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl)
increasedIWEnabled	bool	false	Increased Initial Window (RFC 3390) enabled/disabled
sackSupport	bool	false	Selective Acknowledgment (RFC 2018, 2883, 3517) support (header option) (SACK will be enabled for a connection if both endpoints support it)
windowScalingSupport	bool	false	Window Scale (RFC 1323) support (header option) (WS will be enabled for a connection if both endpoints support it)
timestampSupport	bool	false	Timestamps (RFC 1323) support (header option) (TS will be enabled for a connection if both endpoints support it)
mss	int	536	Maximum Segment Size (RFC 793) (header option)
tcpAlgorithmClass	string	"TCPReno"	TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl/DumbTCP
sendQueueClass	string	"TCPVirtualDataSendQueue"	TCPVirtualDataSendQueue/TCPMsgBasedSendQueue
receiveQueueClass	string	"TCPVirtualDataRcvQueue"	TCPVirtualDataRcvQueue/TCPMsgBasedRcvQueue
recordStats	bool	true	recording of seqNum etc. into output vectors enabled/disabled
constantDelay	double		constant delay between two peers
useCoordinateBasedDelay	bool		delay should be calculated from euklidean distance between two peers
delayFaultType	string		augment coordinate based delays with a realistic error, according to "Network Coordinates in the Wild", Figure 7 possible values: empty, "live_all", "live_planetlab", "simulation"
jitter	double		average amount of jitter in %

Properties:

Name	Value	Description
display	i=block/wheelbarrow
class	SimpleTCP

Gates:

Name	Direction	Size	Description
appIn [ ]	input
ipIn	input
ipv6In	input
appOut [ ]	output
ipOut	output
ipv6Out	output

Source code:

//
// UDP protocol implementation, for IPv4 and IPv6.
//
// The \UDP protocol header is represented by the class UDPPacket.
//
// <b>Communication with clients (applications)</b>
//
// The module can (should) be connected to several applications.
// For sending an \UDP packet, the application should attach an UDPControlInfo
// object to the payload, and send it to UDP.
// UDP will also attach an UDPControlInfo object to any payload
// message in sends up to the application.
//
// For receiving \UDP packets, the connected applications should first
// "bind" to the given \UDP port. This can be done by sending an
// arbitrary message with message kind UDP_C_BIND and an UDPControlInfo
// attached with srcPort filled in.
//
// If there is only one app which doesn't bind to any port, it will
// receive all packets.
//
// <b>Communication with other nodes</b>
//
// The SimpleUDP model sends packets directly to the destination
//
// @see SimpleUDPPacket, UDPControlInfo, GlobalRoutingHashMap
//
simple SimpleTCP extends TCP
{
    parameters:
        @class(SimpleTCP);
        double constantDelay @unit(s);  // constant delay between two peers
        bool useCoordinateBasedDelay;   // delay should be calculated from
                                        // euklidean distance between two peers
        string delayFaultType;          // augment coordinate based delays with a realistic error,
                                        // according to "Network Coordinates in the Wild", Figure 7
                                        // possible values: empty, "live_all", "live_planetlab", "simulation"
        double jitter;                  // average amount of jitter in %
        @display("i=block/wheelbarrow");
    gates:
}
