#include <Broose.h>

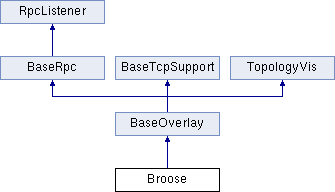

Inheritance diagram for Broose:

Public Member Functions
	Broose ()
	~Broose ()
virtual void	initializeOverlay (int stage)
	Initializes derived-class-attributes.
virtual void	finishOverlay ()
	collects statistical data in derived class
virtual bool	isSiblingFor (const NodeHandle &node, const OverlayKey &key, int numSiblings, bool *err)
	Query if a node is among the siblings for a given key.
virtual void	joinOverlay ()
	Join the overlay with a given nodeID in thisNode.key.
virtual void	recordOverlaySentStats (BaseOverlayMessage *msg)
	Collect overlay specific sent messages statistics.
virtual bool	handleRpcCall (BaseCallMessage *msg)
	Processes Remote-Procedure-Call invocation messages.
virtual void	handleTimerEvent (cMessage *msg)
void	updateTooltip ()
	updates information shown in tk-environment
Public Member Functions inherited from BaseOverlay
	BaseOverlay ()
virtual	~BaseOverlay ()
	Virtual destructor.
States	getState ()
bool	isMalicious ()
	Returns true, if node is malicious.
bool	isInSimpleMultiOverlayHost ()
	Returns true if overlay is one in an array, inside a SimpleMultiOverlayHost.
const simtime_t &	getCreationTime ()
void	join (const OverlayKey &nodeID=OverlayKey::UNSPECIFIED_KEY)
	Join the overlay with a given nodeID.
virtual NodeVector *	local_lookup (const OverlayKey &key, int num, bool safe)
	finds nodes closest to the given OverlayKey
virtual NodeVector *	neighborSet (int num)
void	sendMessageToUDP (const TransportAddress &dest, cPacket *msg, simtime_t delay=SIMTIME_ZERO)
	Sends message to underlay.
void	sendToKey (const OverlayKey &key, BaseOverlayMessage *message, int numSiblings=1, const std::vector< TransportAddress > &sourceRoute=TransportAddress::UNSPECIFIED_NODES, RoutingType routingType=DEFAULT_ROUTING)
	Sends a message to an overlay node, with the generic routing algorithm.
virtual OverlayKey	distance (const OverlayKey &x, const OverlayKey &y, bool useAlternative=false) const
	This method should implement the distance between two keys.
void	registerComp (CompType compType, cModule *module)
cModule *	getCompModule (CompType compType)
cGate *	getCompRpcGate (CompType compType)
void	sendMessageToAllComp (cMessage *msg, CompType srcComp)
bool	providesKbr ()
virtual uint8_t	getBitsPerDigit ()
bool	getMeasureAuthBlock ()
BootstrapList &	getBootstrapList () const
virtual OverlayKey	estimateMeanDistance ()
	returns mean distance between OverlayKeys in the network
virtual uint32_t	estimateOverlaySize ()
	estimates the current number of nodes online
Public Member Functions inherited from BaseRpc
	BaseRpc ()
const NodeHandle &	getThisNode ()
	Returns the NodeHandle of this node.
simtime_t	getUdpTimeout ()
Public Member Functions inherited from RpcListener
virtual	~RpcListener ()
	destructor
Public Member Functions inherited from BaseTcpSupport
virtual void	socketDataArrived (int connId, void yourPtr, cPacket msg, bool urgent)
virtual void	socketEstablished (int connId, void *yourPtr)
virtual void	socketPeerClosed (int connId, void *yourPtr)
virtual void	socketFailure (int connId, void *yourPtr, int code)
virtual void	socketStatusArrived (int connId, void yourPtr, TCPStatusInfo status)
Public Member Functions inherited from TopologyVis
	TopologyVis ()
void	showOverlayNeighborArrow (const NodeHandle &neighbor, bool flush=true, const char *displayString=NULL)
	Draws an arrow from this node to neighbor.
void	deleteOverlayNeighborArrow (const NodeHandle &neighbor)
	Removes an arrow from this node to neighbor.

Protected Member Functions
void	handleJoinTimerExpired (cMessage *msg)
	handles a expired join timer
void	handleBucketTimerExpired (cMessage *msg)
	handles a expired bucket refresh timer
int	getRoutingDistance (const OverlayKey &key, const OverlayKey &node, int dist)
	calculates the de-buijn distance between a key and a nodeId
bool	routingAdd (const NodeHandle &node, bool isAlive, simtime_t rtt=MAXTIME)
	Adds a node to the routing table.
void	changeState (int state)
	changes the node's state
NodeVector *	findNode (const OverlayKey &key, int numRedundantNodes, int numSiblings, BaseOverlayMessage *msg)
	Implements the find node call.
int	getMaxNumSiblings ()
	Query the maximum number of siblings (nodes close to a key) that are maintained by this overlay protocol.
int	getMaxNumRedundantNodes ()
	Query the maximum number of redundant next hop nodes that are returned by findNode().
void	displayBucketState ()
	debug function which output the content of the node's buckets
void	handleRpcResponse (BaseResponseMessage *msg, const RpcState &rpcState, simtime_t rtt)
	This method is called if an RPC response has been received.
void	handleRpcTimeout (const RpcState &rpcState)
	This method is called if an RPC timeout has been reached.
void	handleFindNodeTimeout (FindNodeCall *findNode, const TransportAddress &dest, const OverlayKey &destKey)
	This method is called if an Find Node Call timeout has been reached.
void	handleBucketRequestRpc (BucketCall *msg)
	handles a received Bucket request
void	handleBucketResponseRpc (BucketResponse *msg, const RpcState &rpcState)
	handles a received Bucket response
void	handleBucketTimeout (BucketCall *msg)
	handles a received Bucket timeout
void	routingTimeout (const BrooseHandle &handle)
virtual void	pingResponse (PingResponse pingResponse, cPolymorphic context, int rpcId, simtime_t rtt)
virtual void	pingTimeout (PingCall pingCall, const TransportAddress &dest, cPolymorphic context, int rpcId)
void	setLastSeen (const NodeHandle &node)
	updates the timestamp of a node in all buckets
void	addNode (const NodeHandle &node)
	adds a node to all buckets
void	resetFailedResponses (const NodeHandle &node)
	resets the counter of failed responses
void	setRTT (const NodeHandle &node, simtime_t rtt)
	sets the rtt to a node in all buckets
Protected Member Functions inherited from BaseOverlay
int	numInitStages () const
	Sets init stage.
void	bindToPort (int port)
	Tells UDP we want to get all packets arriving on the given port.
virtual void	route (const OverlayKey &key, CompType destComp, CompType srcComp, cPacket *msg, const std::vector< TransportAddress > &sourceRoute=TransportAddress::UNSPECIFIED_NODES, RoutingType routingType=DEFAULT_ROUTING)
	Routes message through overlay.
void	callDeliver (BaseOverlayMessage *msg, const OverlayKey &destKey)
	Calls deliver function in application.
void	callForward (const OverlayKey &key, BaseRouteMessage *msg, const NodeHandle &nextHopNode)
	Calls forward function in application.
void	callUpdate (const NodeHandle &node, bool joined)
	Informs application about state changes of nodes or newly joined nodes.
void	handleMessage (cMessage *msg)
	Checks for message type and calls corresponding method.
void	handleBaseOverlayMessage (BaseOverlayMessage *msg, const OverlayKey &destKey=OverlayKey::UNSPECIFIED_KEY)
	Handles a BaseOverlayMessage
virtual void	handleUDPMessage (BaseOverlayMessage *msg)
	Processes messages from underlay.
virtual void	handleAppMessage (cMessage *msg)
	Processes "timer" self-messages.
virtual void	receiveChangeNotification (int category, const cPolymorphic *details)
	callback-method for events at the NotificationBoard
virtual void	handleTransportAddressChangedNotification ()
	This method gets call if the node has a new TransportAddress (IP address) because he changed his access network.
virtual void	handleNodeLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed.
virtual void	handleNodeGracefulLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed if this node is among the gracefulLeaveProbability nodes.
void	setOverlayReady (bool ready)
	Sets the overlay ready icon and register/deregisters the node at the GlobalNodeList.
virtual AbstractLookup *	createLookup (RoutingType routingType=DEFAULT_ROUTING, const BaseOverlayMessage msg=NULL, const cPacket findNodeExt=NULL, bool appLookup=false)
	Creates an abstract iterative lookup instance.
virtual void	removeLookup (AbstractLookup *lookup)
	Removes the abstract lookup instance.
virtual void	joinForeignPartition (const NodeHandle &node)
	Join another overlay partition with the given node as bootstrap node.
virtual bool	handleFailedNode (const TransportAddress &failed)
	Handles a failed node.
virtual void	lookupRpc (LookupCall *call)
virtual void	nextHopRpc (NextHopCall *call)
void	countFindNodeCall (const FindNodeCall *call)
void	countFailedNodeCall (const FailedNodeCall *call)
bool	internalHandleRpcCall (BaseCallMessage *msg)
	Handles internal rpc requests.
void	internalHandleRpcResponse (BaseResponseMessage msg, cPolymorphic context, int rpcId, simtime_t rtt)
	Handles rpc responses internal in base classes
void	internalHandleRpcTimeout (BaseCallMessage msg, const TransportAddress &dest, cPolymorphic context, int rpcId, const OverlayKey &destKey)
	Handles rpc timeouts internal in base classes
void	internalSendRouteRpc (BaseRpcMessage *message, const OverlayKey &destKey, const std::vector< TransportAddress > &sourceRoute, RoutingType routingType)
CompType	getThisCompType ()
	Return the component type of this module.
Protected Member Functions inherited from BaseRpc
void	initRpcs ()
	Initializes Remote-Procedure state.
void	finishRpcs ()
	Deinitializes Remote-Procedure state.
virtual void	internalHandleRpcMessage (BaseRpcMessage *msg)
	Handles incoming rpc messages and delegates them to the corresponding listeners or handlers.
uint32_t	sendRouteRpcCall (CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Routes a Remote-Procedure-Call message to an OverlayKey.
uint32_t	sendRouteRpcCall (CompType destComp, const OverlayKey &destKey, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Routes a Remote-Procedure-Call message to an OverlayKey.
uint32_t	sendRouteRpcCall (CompType destComp, const TransportAddress &dest, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends a Remote-Procedure-Call message using the overlay's UDP port This replaces ROUTE_DIRECT calls!
uint32_t	sendUdpRpcCall (const TransportAddress &dest, BaseCallMessage msg, cPolymorphic context=NULL, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends a Remote-Procedure-Call message to the underlay
uint32_t	sendInternalRpcCall (CompType destComp, BaseCallMessage msg, cPolymorphic context=NULL, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends an internal Remote-Procedure-Call between two tiers
void	cancelRpcMessage (uint32_t nonce)
	Cancels a Remote-Procedure-Call.
void	cancelAllRpcs ()
	Cancels all RPCs.
void	sendRpcResponse (TransportType transportType, CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage call, BaseResponseMessage response)
	Send Remote-Procedure response message and deletes call message.
void	sendRpcResponse (BaseCallMessage call, BaseResponseMessage response)
	Send Remote-Procedure response message to UDP and deletes call message.
int	pingNode (const TransportAddress &dest, simtime_t timeout=-1, int retries=0, cPolymorphic context=NULL, const char caption="PING", RpcListener *rpcListener=NULL, int rpcId=-1, TransportType transportType=INVALID_TRANSPORT)
	ping a node by its TransportAddress
bool	internalHandleMessage (cMessage *msg)
Protected Member Functions inherited from RpcListener
virtual void	handleRpcResponse (BaseResponseMessage msg, cPolymorphic context, int rpcId, simtime_t rtt)
	This method is called if an RPC response has been received.
virtual void	handleRpcTimeout (BaseCallMessage msg, const TransportAddress &dest, cPolymorphic context, int rpcId, const OverlayKey &destKey)
	This method is called if an RPC timeout has been reached.
Protected Member Functions inherited from BaseTcpSupport
void	handleTCPMessage (cMessage *msg)
	Member function to handle incoming TCP messages.
void	bindAndListenTcp (int port)
	Member function to bind service to the specified port and listen afterwards.
bool	isAlreadyConnected (TransportAddress address)
	Member function to check if the service is already connected.
void	establishTcpConnection (TransportAddress address)
	Member function to establish a connection to the specified node.
void	sendTcpData (cPacket *msg, TransportAddress address)
	Member function to send TCP data to the specified node.
virtual void	handleConnectionEvent (EvCode code, TransportAddress address)
	Member function to handle passive connection events.
virtual void	handleDataReceived (TransportAddress address, cPacket *msg, bool urgent)
	Member function to handle incoming data.
virtual void	handleIncomingConnection (TransportAddress address)
	Member function to handle newly opened connections.
void	closeTcpConnection (TransportAddress address)
	Member function to close an established connection.
void	setTcpOut (cGate *gate)
	Member function to set local gate towards the TCP module during init phase.
cGate *	getTcpOut ()
	Member function to get local gate towards the TCP module.
Protected Member Functions inherited from TopologyVis
void	initVis (cModule *terminal)

Protected Attributes
int	chooseLookup
	decides which kind of lookup (right/left shifting) is used
simtime_t	joinDelay
	time interval between two join tries
int	receivedJoinResponse
	number of received join response messages
int	receivedBBucketLookup
	number of received lookup responses for the B bucket
int	numberBBucketLookup
	maximal number of lookup responses for the B bucket
int	receivedLBucketLookup
	number of received lookup responses for the L bucket
int	numberLBucketLookup
	maximal number of lookup responses for the L bucket
int	shiftingBits
	number of bits shifted in/out each step
int	powShiftingBits
	2^{variable shiftingBits}
uint32_t	bucketSize
	maximal number of bucket entries
uint32_t	rBucketSize
	maximal number of entries in the r buckets
int	keyLength
	length of the node and data IDs
simtime_t	refreshTime
	idle time after which a node is pinged
uint32_t	userDist
	how many hops are added to the estimated hop count
int	numberRetries
	number of retries in case of timeout
int	bucketRetries
	number of bucket retries for a successful join
bool	stab1
bool	stab2
int	bucketCount
	number of Bucket messages
int	bucketBytesSent
	length of all Bucket messages
int	numFailedPackets
	number of packets which couldn't be routed correctly
BrooseBucket *	lBucket
BrooseBucket *	bBucket
BrooseBucket **	rBucket
std::vector< BrooseBucket * >	bucketVector
	vector of all Broose buckets
cMessage *	join_timer
cMessage *	bucket_timer
	timer to reconstruct all buckets
TransportAddress	bootstrapNode
	node handle holding the bootstrap node
Protected Attributes inherited from BaseOverlay
int	numAppDataForwarded
	number of forwarded app data packets
int	bytesAppDataForwarded
	number of forwarded app data bytes at out-gate
int	numAppLookupForwarded
	number of forwarded app lookup packets
int	bytesAppLookupForwarded
	number of forwarded app lookup bytes at out-gate
int	numMaintenanceForwarded
	number of forwarded maintenance packets
int	bytesMaintenanceForwarded
	number of forwarded maintenance bytes at out-gate
int	numFindNodeSent
int	bytesFindNodeSent
int	numFindNodeResponseSent
int	bytesFindNodeResponseSent
int	numFailedNodeSent
int	bytesFailedNodeSent
int	numFailedNodeResponseSent
int	bytesFailedNodeResponseSent
std::vector< HopDelayRecord * >	singleHopDelays
simtime_t	creationTime
	simtime when the node has been created
GlobalNodeList *	globalNodeList
	pointer to GlobalNodeList in this node
NotificationBoard *	notificationBoard
	pointer to NotificationBoard in this node
UnderlayConfigurator *	underlayConfigurator
	pointer to UnderlayConfigurator in this node
BootstrapList *	bootstrapList
	pointer to the BootstrapList module
GlobalParameters *	globalParameters
	pointer to the GlobalParameters module
uint32_t	overlayId
	identifies the overlay this node belongs to (used for multiple overlays)
bool	debugOutput
	debug output ?
RoutingType	defaultRoutingType
bool	useCommonAPIforward
	forward messages to applications?
bool	collectPerHopDelay
	collect delay for single hops
bool	routeMsgAcks
	send ACK when receiving route message
uint32_t	recNumRedundantNodes
	numRedundantNodes for recursive routing
bool	recordRoute
	record visited hops on route
bool	drawOverlayTopology
bool	rejoinOnFailure
bool	sendRpcResponseToLastHop
	needed by KBR protocols for NAT support
bool	dropFindNodeAttack
	if node is malicious, it tries a findNode attack
bool	isSiblingAttack
	if node is malicious, it tries a isSibling attack
bool	invalidNodesAttack
	if node is malicious, it tries a invalidNode attack
bool	dropRouteMessageAttack
	if node is malicious, it drops all received BaseRouteMessages
int	localPort
	used UDP-port
int	hopCountMax
	maximum hop count
bool	measureAuthBlock
	if true, measure the overhead of signatures in rpc messages
bool	restoreContext
	if true, a node rejoins with its old nodeId and malicious state
int	numDropped
	number of dropped packets
int	bytesDropped
	number of dropped bytes
cOutVector	delayVector
	statistical output vector for packet-delays
cOutVector	hopCountVector
	statistical output vector for hop-counts
States	state
IterativeLookupConfiguration	iterativeLookupConfig
RecursiveLookupConfiguration	recursiveLookupConfig
LookupSet	lookups
bool	kbr
	set this to true, if the overlay provides KBR services
Protected Attributes inherited from BaseRpc
NodeHandle	thisNode
	NodeHandle to this node.
BaseOverlay *	overlay
bool	debugOutput
	debug output ?
GlobalStatistics *	globalStatistics
	pointer to GlobalStatistics module in this node
CompType	thisCompType
NeighborCache *	neighborCache
	pointer to the neighbor cache
CryptoModule *	cryptoModule
	pointer to CryptoModule
int	numPingSent
int	bytesPingSent
int	numPingResponseSent
int	bytesPingResponseSent
Protected Attributes inherited from TopologyVis
cModule *	thisTerminal
GlobalNodeList *	globalNodeList
	pointer to corresponding node

Friends
class	BrooseBucket

Additional Inherited Members
Public Types inherited from BaseOverlay
enum	States { INIT = 0, BOOTSTRAP = 1, DISCOVERY = 2, PREJOIN = 3, JOIN = 4, POSTJOIN = 5, READY = 6, REFRESH = 7, SHUTDOWN = 8, FAILED = 9, RSET = JOIN, BSET = POSTJOIN }
Protected Types inherited from BaseOverlay
typedef UNORDERED_SET < AbstractLookup *, lookupHashFcn, lookupHashFcn >	LookupSet

Detailed Description

Broose overlay module.

Implementation of the Broose KBR overlay as described in "Broose: A Practical Distributed Hashtable Based on the De-Bruijn Topology" by Anh-Tuan Gai and Laurent Viennot

Author: Jochen Schenk

See Also: Bucket

Definition at line 52 of file Broose.h.

Constructor & Destructor Documentation

Broose::Broose ( )

Definition at line 51 of file Broose.cc.

{
    join_timer = NULL;
    bucket_timer = NULL;
    rBucket = NULL;
    lBucket = NULL;
    bBucket =  NULL;
}

Broose::~Broose ( )

Definition at line 59 of file Broose.cc.

{
    // delete timers
    cancelAndDelete(join_timer);
    cancelAndDelete(bucket_timer);
}

Member Function Documentation

void Broose::addNode ( const NodeHandle & node )

protected

adds a node to all buckets

Parameters

node	node handle which should be added

Definition at line 1116 of file Broose.cc.

{
    // add node to all buckets
    for (size_t i = 0; i < bucketVector.size(); i++) {
        bucketVector[i]->add(node);
    }
}

void Broose::changeState ( int state )

protected

changes the node's state

Parameters

state the state to which a node is changing

Definition at line 145 of file Broose.cc.

{
    switch (toState) {
    case INIT: {
        state = INIT;
        // find a new bootstrap node and enroll to the bootstrap list
        bootstrapNode = bootstrapList->getBootstrapNode();
        cancelEvent(join_timer);
        scheduleAt(simTime(), join_timer);
        // initialize respectively clear the buckets
        for (int i = 0; i < powShiftingBits; i++) {
            rBucket[i]->initializeBucket(shiftingBits, i, rBucketSize, this);
        }
        lBucket->initializeBucket(-shiftingBits, 0, powShiftingBits*rBucketSize,
                                  this);
        bBucket->initializeBucket(0, 0, 7*bucketSize, this, true);
        // if we have restarted the join protocol reset parameters
        receivedBBucketLookup = 0;
        receivedLBucketLookup = 0;
        receivedJoinResponse = 0;
        getParentModule()->getParentModule()->bubble("Enter INIT state.");
        updateTooltip();
        break;
    }
    case RSET: {
        state = RSET;
        BrooseBucket* tmpBucket = new BrooseBucket();
        tmpBucket->initializeBucket(0, 0, powShiftingBits*rBucketSize, this);
        for (int i = 0; i < powShiftingBits; i++) {
            int size = rBucket[i]->getSize();
            for (int j = 0; j < size; j++) {
                tmpBucket->add(rBucket[i]->get(j));
            }
        }
        BucketCall** bCall = new BucketCall*[tmpBucket->getSize()];
        for (uint32_t i = 0; i < tmpBucket->getSize(); i++) {
            bCall[i] = new BucketCall("LBucketCall");
            bCall[i]->setBucketType(LEFT);
            bCall[i]->setProState(PRSET);
            bCall[i]->setBitLength(BUCKETCALL_L(bcall[i]));
            sendUdpRpcCall(tmpBucket->get(i), bCall[i], NULL,
                           10);
        }
        // half of the calls must return for a state change
        numberBBucketLookup = ceil((double)tmpBucket->getSize() / 2);
        delete tmpBucket;
        getParentModule()->getParentModule()->bubble("Enter RSET state.");
        break;
    }
    case BSET: {
        state = BSET;
        // half of the calls must return for a state change
        numberLBucketLookup = ceil((double)bBucket->getSize() / 2);
        // send messages to all entries of the B Bucket
        int size2 = bBucket->getSize();
        BucketCall** bCall2 = new BucketCall*[size2];
        for (int i = 0; i < size2; i++) {
            bCall2[i] = new BucketCall("LBucketCall");
            bCall2[i]->setBucketType(LEFT);
            bCall2[i]->setProState(PBSET);
            bCall2[i]->setBitLength(BUCKETCALL_L(bcall2[i]));
            sendUdpRpcCall(bBucket->get(i), bCall2[i], NULL,
                           10);
        }
        getParentModule()->getParentModule()->bubble("Enter BSET state.");
        break;
    }
    case READY: {
        state = READY;
        // fill the bucket also with this node
        for (size_t i = 0; i < bucketVector.size(); i++) {
            bucketVector[i]->add(thisNode);
        }
        // to disable the ping protocol a pingDelay or
        // refreshTime of zero was given
        if (refreshTime != 0) {
            cancelEvent(bucket_timer);
            scheduleAt(simTime() + (refreshTime / 2.0), bucket_timer);
        }
        getParentModule()->getParentModule()->bubble("Enter READY state.");
        updateTooltip();
        break;
    }
    }
    setOverlayReady(state == READY);
}

void Broose::displayBucketState ( )

protected

debug function which output the content of the node's buckets

Definition at line 805 of file Broose.cc.

{
    EV << "[Broose::displayBucketState() @ " << thisNode.getIp()
       << " (" << thisNode.getKey().toString(16) << ")]" << endl;
    for (int i = 0; i < powShiftingBits; i++) {
        EV << "    Content of rBucket[" << i << "]: ";
        rBucket[i]->output();
    }
    EV << "    Content of lBucket: ";
    lBucket->output();
    EV << "    Content of bBucket: ";
    bBucket->output();
    EV << endl;
}

NodeVector * Broose::findNode	(	const OverlayKey &	key,
		int	numRedundantNodes,
		int	numSiblings,
		BaseOverlayMessage *	msg
	)

protectedvirtual

Implements the find node call.

This method simply returns the closest nodes known in the corresponding routing topology. If the node is a sibling for this key (isSiblingFor(key) = true), this method returns all numSiblings siblings, with the closest neighbor to the key first.

Parameters

key	The lookup key.
numRedundantNodes	Maximum number of next hop nodes to return.
numSiblings	number of siblings to return
msg	A pointer to the BaseRouteMessage or FindNodeCall message of this lookup.

Returns: NodeVector with closest nodes.

Reimplemented from BaseOverlay.

Definition at line 574 of file Broose.cc.

{
    if ((state == INIT) || (state == RSET) || (state == FAILED))
        return new NodeVector();
    BrooseFindNodeExtMessage *findNodeExt = NULL;
    bool err;
    bool isSibling = isSiblingFor(thisNode, key, numSiblings, &err);
    int resultSize;
    if (numSiblings < 0) {
        // exhaustive iterative doesn't care about siblings
        resultSize = numRedundantNodes;
    } else {
        resultSize = isSibling ? (numSiblings ? numSiblings : 1)
                                                      : numRedundantNodes;
    }
    assert(numSiblings || numRedundantNodes);
    NodeVector* result = new NodeVector(resultSize);
    if (isSibling) {
        //return the closest nodes
        // sort with XOR distance to key
        KeyDistanceComparator<KeyXorMetric>* comp =
            new KeyDistanceComparator<KeyXorMetric>(key);
        result->setComparator(comp);
        bBucket->fillVector(result);
        result->add(thisNode);
        delete comp;
        /*
        std::cout << "key: " << key.toString(2).substr(0, 8)
                  << " ThisNode: " << thisNode.getKey().toString(2).substr(0, 8);
        if (result->size() > 0) {
            std::cout << " next hop (final): " << (*result)[0].getKey().toString(2).substr(0, 8);
        } else {
            std::cout << " no next hop! (final)";
        }
        std::cout << std::endl << std::endl;
        */
        return result;
    }
    if (msg != NULL) {
        if (!msg->hasObject("findNodeExt")) {
            findNodeExt = new BrooseFindNodeExtMessage("findNodeExt");
            OverlayKey routeKey = thisNode.getKey();
            // estimate distance
            int dist = max(rBucket[0]->longestPrefix(),
                           rBucket[1]->longestPrefix()) + 1 + userDist;
            if ((dist % shiftingBits) != 0)
                dist += (shiftingBits - (dist % shiftingBits));
            if (dist > keyLength) {
                if ((keyLength % shiftingBits) == 0) {
                    dist = keyLength;
                } else {
                    dist = (keyLength - keyLength % shiftingBits);
                }
            }
            if ((chooseLookup++) % 2 == 0) {
                // init left shifting lookup
                findNodeExt->setRightShifting(false);
                int prefix = 0;
                for (int i = 0; i < dist; i++) {
                    prefix += thisNode.getKey().getBit(thisNode.getKey().getLength() - i - 1) << (dist - i - 1);
                }
                OverlayKey pre(prefix);
                routeKey = key >> dist;
                routeKey += (pre << key.getLength() - dist);
                dist = -dist;
            } else {
                // init right shifting lookup
                findNodeExt->setRightShifting(true);
            }
            //add contact for next Hop
            findNodeExt->setLastNode(thisNode);
            findNodeExt->setRouteKey(routeKey);
            findNodeExt->setStep(dist);
            findNodeExt->setBitLength(BROOSEFINDNODEEXTMESSAGE_L);
            msg->addObject( findNodeExt );
        }
        findNodeExt = (BrooseFindNodeExtMessage*) msg->getObject("findNodeExt");
    }
    // update buckets with last hop
    addNode(findNodeExt->getLastNode());
    setLastSeen(findNodeExt->getLastNode());
    // replace last hop contact information with
    // this hop contact information
    findNodeExt->setLastNode(thisNode);
    // brother lookup
    if (findNodeExt->getStep() == 0) {
        // return the closest nodes sorted by XOR distance to key
        KeyDistanceComparator<KeyXorMetric>* comp =
            new KeyDistanceComparator<KeyXorMetric>(key);
        result->setComparator(comp);
        bBucket->fillVector(result);
        result->add(thisNode);
        delete comp;
        return result;
    }
    if (findNodeExt->getRightShifting() == false) {
        // Left Shifting Lookup
        // can't handle left shifting lookup in BSET-State
        if (state == BSET)
            return result;
        // calculate routing key
        findNodeExt->setRouteKey((findNodeExt->getRouteKey()) << shiftingBits);
        findNodeExt->setStep(findNodeExt->getStep() + shiftingBits);
        KeyDistanceComparator<KeyXorMetric>* comp = NULL;
        comp = new KeyDistanceComparator<KeyXorMetric>(
                findNodeExt->getRouteKey());
        result->setComparator(comp);
        lBucket->fillVector(result);
        result->add(thisNode);
        delete comp;
        /*
        std::cout << "key: " << key.toString(2).substr(0, 8)
                  << " dist: " << findNodeExt->getStep()
                  << " rtkey: " << findNodeExt->getRouteKey().toString(2).substr(0, 8)
                  << " ThisNode: " << thisNode.getKey().toString(2).substr(0, 8);
        if (result->size() > 0) {
            std::cout << " next hop: " << (*result)[0].getKey().toString(2).substr(0, 8);
        } else {
            std::cout << " no next hop!";
        }
        std::cout << std::endl << std::endl;
        */
    } else {
        // Right Shifting Lookup
        // calculate routing key
        int prefix = 0;
        int dist = findNodeExt->getStep();
        OverlayKey routeKey = findNodeExt->getRouteKey() >> shiftingBits;
        for (int i = 0; i < shiftingBits; i++)
            prefix += ((int)key.getBit(key.getLength() - dist + i) << i);
        OverlayKey pre(prefix);
        routeKey += (pre << (routeKey.getLength()-shiftingBits));
        findNodeExt->setRouteKey(routeKey);
        findNodeExt->setStep(dist - shiftingBits);
        KeyDistanceComparator<KeyXorMetric>* comp = NULL;
        comp = new KeyDistanceComparator<KeyXorMetric>(routeKey);
        result->setComparator(comp);
        rBucket[prefix]->fillVector(result);
        result->add(thisNode);
        delete comp;
        /*
        std::cout << "key: " << key.toString(2).substr(0, 8)
                  << " dist: " << findNodeExt->getStep()
                  << " rtkey: " << findNodeExt->getRouteKey().toString(2).substr(0, 8)
                  << " ThisNode: " << thisNode.getKey().toString(2).substr(0, 8);
        if (result->size() > 0) {
            std::cout << " next hop: " << (*result)[0].getKey().toString(2).substr(0, 8);
        } else {
            std::cout << " no next hop!";
        }
        std::cout << std::endl << std::endl;
        */
    }
    if ((*result)[0] == thisNode) {
        delete result;
        return (findNode(key, numRedundantNodes, numSiblings, msg));
    } else
        return result;
}

void Broose::finishOverlay ( )

virtual

collects statistical data in derived class

Reimplemented from BaseOverlay.

Definition at line 772 of file Broose.cc.

{
    // store statistics
    simtime_t time = globalStatistics->calcMeasuredLifetime(creationTime);
    if (time < GlobalStatistics::MIN_MEASURED) return;
    globalStatistics->addStdDev("Broose: Number of non-routable packets/s", numFailedPackets / time);
    globalStatistics->addStdDev("Broose: Sent BUCKET Messages/s", bucketCount / time);
    globalStatistics->addStdDev("Broose: Sent BUCKET Byte/s", bucketBytesSent / time);
    globalStatistics->addStdDev("Broose: Bucket retries at join", bucketRetries);
}

int Broose::getMaxNumRedundantNodes ( )

protectedvirtual

Query the maximum number of redundant next hop nodes that are returned by findNode().

Returns: int number of redundant nodes returned by findNode().

Reimplemented from BaseOverlay.

Definition at line 351 of file Broose.cc.

{
    return bucketSize;
}

int Broose::getMaxNumSiblings ( )

protectedvirtual

Query the maximum number of siblings (nodes close to a key) that are maintained by this overlay protocol.

Returns: int number of siblings.

Reimplemented from BaseOverlay.

Definition at line 346 of file Broose.cc.

{
    return bucketSize;
}

int Broose::getRoutingDistance	(	const OverlayKey &	key,
		const OverlayKey &	node,
		int	dist
	)

protected

calculates the de-buijn distance between a key and a nodeId

Parameters

key	the overlay key
node	the nodeId
dist	the estimated maximum distance based on the number of nodes in the system

Returns: the number of routing steps to the destination (negative for left shifting lookups)

Definition at line 356 of file Broose.cc.

{
    for (uint i = 0; i < (uint)abs(dist); i++) {
        if (node.sharedPrefixLength(key << i) >= (abs(dist) - i)) {
             return i; // right shifting
         }
        if (key.sharedPrefixLength(node << i) >= (abs(dist) - i)) {
            return -i; // left shifting
        }
    }
    if (((chooseLookup++) % 2) == 0) {
        return -dist;
    } else {
        return dist;
    }
}

void Broose::handleBucketRequestRpc ( BucketCall * msg )

protected

handles a received Bucket request

Parameters

msg	the message to process

Definition at line 962 of file Broose.cc.

{
    if (msg->getBucketType() == LEFT) {
        // TODO: dependent on the churn scenarios this may give better
        //       or worse results
        if (stab1 && (state == BSET)) {
            // can't handle LBucketRequest in BSET-State
            delete msg;
            return;
        }
        // return L-Bucket
        int size = lBucket->getSize();
        BucketResponse* bResponse = new BucketResponse("LBucketResponse");
        bResponse->setNodesArraySize(size);
        for (int i = 0; i < size; i++) {
            bResponse->setNodes(i, lBucket->get(i));
        }
        bResponse->setBitLength(BUCKETRESPONSE_L(bResponse));
        // only add, if the originator is already in the BSET state
        // in which the node already is able to do right shifting lookups
        // TODO: this leads to lower lookup success rates in some scenarios
        //       but helps to prevent deadlock situations with high churn rates
        if (stab2 || (msg->getProState() == PBSET)) {
            routingAdd(msg->getSrcNode(), true);
        }
        sendRpcResponse(msg, bResponse);
    } else if (msg->getBucketType() == BROTHER) {
        // return B-Bucket
        int size = bBucket->getSize();
        BucketResponse* bResponse = new BucketResponse("BBucketResponse");
        bResponse->setNodesArraySize(size);
        for (int i = 0; i < size; i++) {
            bResponse->setNodes(i, bBucket->get(i));
        }
        bResponse->setBitLength(BUCKETRESPONSE_L(bResponse));
        sendRpcResponse(msg, bResponse);
    } else
        error("Broose::handleBucketRequestRpc() - Wrong Bucket Type!");
}

void Broose::handleBucketResponseRpc	(	BucketResponse *	msg,
		const RpcState &	rpcState
	)

protected

handles a received Bucket response

Parameters

msg	the message to process
rpcState	the state object for the received RPC

Definition at line 1009 of file Broose.cc.

{
    BucketCall* call = check_and_cast<BucketCall*>(rpcState.getCallMsg());
    for (uint i = 0; i < msg->getNodesArraySize(); i++) {
        routingAdd(msg->getNodes(i), false);
    }
    if (call->getBucketType() == LEFT) {
        switch (state) {
        case RSET:
            if (call->getProState() == PRSET) {
                receivedBBucketLookup++;
                if (receivedBBucketLookup == numberBBucketLookup)
                    changeState(BSET);
            }
            break;
        case BSET:
            if (call->getProState() == PBSET) {
                receivedLBucketLookup++;
                if (receivedLBucketLookup == numberLBucketLookup)
                    changeState(READY);
            }
            break;
        default:
            break;
        }
    } else if (call->getBucketType() == BROTHER) {
        switch(state) {
        case INIT:
            if (call->getProState() == PINIT) {
                receivedJoinResponse++;
                if (receivedJoinResponse == powShiftingBits)
                    changeState(RSET);
            }
        default:
            break;
        }
    } else
        error("Broose::handleBucketRequestRpc() - unknown error.");
}

void Broose::handleBucketTimeout ( BucketCall * msg )

protected

handles a received Bucket timeout

Parameters

msg	the message to process

Definition at line 1055 of file Broose.cc.

{
    if (state == READY)
        return;
    else {
        bucketRetries++;
        changeState(INIT);
    }
}

void Broose::handleBucketTimerExpired ( cMessage * msg )

protected

handles a expired bucket refresh timer

Parameters

msg	the bucket refresh self-message

Definition at line 318 of file Broose.cc.

{
    BrooseBucket* tmpBucket = new BrooseBucket();
    tmpBucket->initializeBucket(0, 0,
                                (2*powShiftingBits*rBucketSize + 7*bucketSize),
                                this);
    for (size_t i = 0; i < bucketVector.size(); i++) {
        for(uint32_t j = 0; j < bucketVector[i]->getSize(); j++) {
            if ((simTime() - bucketVector[i]->getLastSeen(
                        bucketVector[i]->get(j))) > refreshTime
                    || bucketVector[i]->getRTT(bucketVector[i]->get(j)) == -1) {
                tmpBucket->add(BrooseHandle(bucketVector[i]->get(j)));
            }
        }
    }
    for (uint32_t i = 0; i < tmpBucket->getSize(); i++) {
        pingNode(tmpBucket->get(i));
    }
    delete tmpBucket;
    scheduleAt(simTime() + (refreshTime / 2.0), bucket_timer);
}

void Broose::handleFindNodeTimeout	(	FindNodeCall *	findNode,
		const TransportAddress &	dest,
		const OverlayKey &	destKey
	)

protected

This method is called if an Find Node Call timeout has been reached.

Parameters

findNode	The original FindNodeCall
dest	the destination node
destKey	the destination OverlayKey

Definition at line 1083 of file Broose.cc.

{
    routingTimeout(dynamic_cast<const NodeHandle&>(dest));
}

void Broose::handleJoinTimerExpired ( cMessage * msg )

protected

handles a expired join timer

Parameters

msg	the timer self-message

Definition at line 268 of file Broose.cc.

{
    if (state == READY)
        return;
    if (!bootstrapNode.isUnspecified()) {
        // create new lookup message
#if 0
        BucketCall* bCall = new BucketCall();
        bCall->setBucketType(BROTHER);
        bCall->setProState(FAILED);
        bCall->setBitLength(BUCKETCALL_L(call));
        sendRouteRpcCall(OVERLAY_COMP, bootstrapNode, thisNode.getKey(),
                         bCall);
        BucketCall* lCall = new BucketCall();
        lCall->setBucketType(BROTHER);
        lCall->setProState(FAILED);
        lCall->setBitLength(BUCKETCALL_L(call));
        sendRouteRpcCall(OVERLAY_COMP, bootstrapNode,
                         thisNode.getKey() << shiftingBits, lCall);
#endif
        // do lookups for key >> shiftingBits for each prefix
        OverlayKey newKey = thisNode.getKey() >> shiftingBits;
        BucketCall* bCallArray[powShiftingBits];
        for (int i = 0; i < powShiftingBits; i++) {
            OverlayKey add(i);
            add = add << (keyLength - shiftingBits);
            add += newKey;
            bCallArray[i] = new BucketCall("BBucketCall");
            bCallArray[i]->setBucketType(BROTHER);
            bCallArray[i]->setBucketIndex(i);
            bCallArray[i]->setProState(PINIT);
            bCallArray[i]->setBitLength(BUCKETCALL_L(bCallArray[i]));
            // restart join protocol if one call times out
            // otherwise the node might be isolated
            sendRouteRpcCall(OVERLAY_COMP, bootstrapNode, add,
                             bCallArray[i]);
        }
        //createLookup()->lookup(getThisNode().getKey() + 1, 0, 0, 0,
        //                       new BrooseLookupListener(this));
    } else {
        // if the bootstrap node is unspecified we are the only node in the network
        // so we can skip the "normal" join protocol
        changeState(READY);
    }
}

bool Broose::handleRpcCall ( BaseCallMessage * msg )

virtual

Processes Remote-Procedure-Call invocation messages.

This method should be overloaded when the overlay provides RPC functionality.

Returns: true, if rpc has been handled

Reimplemented from BaseRpc.

Definition at line 873 of file Broose.cc.

{
    if (state == BSET || state == READY) {
        // delegate messages
        RPC_SWITCH_START(msg)
        RPC_DELEGATE(Bucket, handleBucketRequestRpc);
        RPC_ON_CALL(Ping) {
            // add pinging node to all buckets and update lastSeen of node
            routingAdd(msg->getSrcNode(), true);
            return false;
            break;
        }
        RPC_ON_CALL(FindNode) {
            // add pinging node to all buckets and update lastSeen of node
            routingAdd(msg->getSrcNode(), true);
            return false;
            break;
        }
        RPC_SWITCH_END()
        return RPC_HANDLED;
    } else {
        RPC_SWITCH_START(msg)
        // don't answer PING and FIND_NODE calls, if the node can't route yet
        RPC_ON_CALL(Ping) {
            delete msg;
            return true;
            break;
        }
        RPC_ON_CALL(FindNode) {
            delete msg;
            return true;
            break;
        }
        RPC_SWITCH_END()
        return RPC_HANDLED;
    }
}

void Broose::handleRpcResponse	(	BaseResponseMessage *	msg,
		const RpcState &	rpcState,
		simtime_t	rtt
	)

protectedvirtual

This method is called if an RPC response has been received.

Parameters

msg	The response message.
rpcState	Reference to an RpcState object containing e.g. the original call message, the destination (TransportAddress and/or OverlayKey), a context pointer, ...
rtt	The round-trip time of this RPC

Reimplemented from RpcListener.

Definition at line 911 of file Broose.cc.

{
    // add sender to all buckets and update lastSeen of node
    routingAdd(msg->getSrcNode(), true, rtt);
    RPC_SWITCH_START(msg)
    RPC_ON_RESPONSE( Bucket ) {
        handleBucketResponseRpc(_BucketResponse, rpcState);
        EV << "[Broose::handleRpcResponse() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    Bucket RPC Response received: id=" << rpcState.getId() << "\n"
           << "    msg=" << *_BucketResponse << " rtt=" << rtt
           << endl;
        break;
    }
    RPC_ON_RESPONSE(FindNode)
    {
        // add inactive nodes
        for (uint32_t i=0; i<_FindNodeResponse->getClosestNodesArraySize(); i++)
            routingAdd(_FindNodeResponse->getClosestNodes(i), false);
        break;
    }
    RPC_SWITCH_END( )
}

void Broose::handleRpcTimeout ( const RpcState & rpcState )

protectedvirtual

This method is called if an RPC timeout has been reached.

Parameters

rpcState Reference to an RpcState object containing e.g. the original call message, the destination (TransportAddress and/or OverlayKey), a context pointer, ...

Reimplemented from RpcListener.

Definition at line 938 of file Broose.cc.

{
    RPC_SWITCH_START(rpcState.getCallMsg())
    RPC_ON_CALL(FindNode) {
        handleFindNodeTimeout(_FindNodeCall, rpcState.getDest(), rpcState.getDestKey());
        EV << "[Broose::handleRpcTimeout() @ " << thisNode.getIp()
        << " (" << thisNode.getKey().toString(16) << ")]\n"
        << "    Find Node RPC Call timed out: id=" << rpcState.getId() << "\n"
        << "    msg=" << *_FindNodeCall
        << endl;
        break;
    }
    RPC_ON_CALL(Bucket) {
        handleBucketTimeout(_BucketCall);
        EV << "[Broose::handleRpcTimeout() @ " << thisNode.getIp()
        << " (" << thisNode.getKey().toString(16) << ")]\n"
        << "    Bucket RPC Call timed out: id=" << rpcState.getId() << "\n"
        << "    msg=" << *_BucketCall
        << endl;
        break;
    }
    RPC_SWITCH_END()
}

void Broose::handleTimerEvent ( cMessage * msg )

virtual

Reimplemented from BaseRpc.

Definition at line 258 of file Broose.cc.

{
    if (msg == join_timer)
        handleJoinTimerExpired(msg);
    else if (msg == bucket_timer)
        handleBucketTimerExpired(msg);
    else
        error("Broose::handleTimerEvent - no other timer currently in use!");
}

void Broose::initializeOverlay ( int stage )

virtual

Initializes derived-class-attributes.

Initializes derived-class-attributes, called by BaseOverlay::initialize(). By default this method is called once. If more stages are needed one can overload numInitStages() and add more stages.

Parameters

stage the init stage

Reimplemented from BaseOverlay.

Definition at line 66 of file Broose.cc.

{
    // because of IPAddressResolver, we need to wait until interfaces
    // are registered, address auto-assignment takes place etc.
    if (stage != MIN_STAGE_OVERLAY)
        return;
    // Broose provides KBR services
    kbr = true;
    // fetch some parameters
    bucketSize = par("bucketSize"); // = k
    rBucketSize = par("rBucketSize"); // = k'
    joinDelay = par("joinDelay");
    shiftingBits = par("brooseShiftingBits");
    userDist = par("userDist");
    refreshTime = par("refreshTime");
    numberRetries = par("numberRetries");
    stab1 = par("stab1");
    stab2 = par("stab2");
    //statistics
    bucketCount = 0;
    bucketBytesSent = 0;
    //init local parameters
    chooseLookup = 0;
    receivedJoinResponse = 0;
    receivedBBucketLookup = 0;
    numberBBucketLookup = 0;
    receivedLBucketLookup = 0;
    numberLBucketLookup = 0;
    powShiftingBits = 1 << shiftingBits;
    keyLength = OverlayKey::getLength();
    numFailedPackets = 0;
    bucketRetries = 0;
    // add some watches
    WATCH(receivedJoinResponse);
    WATCH(receivedBBucketLookup);
    WATCH(numberBBucketLookup);
    WATCH(receivedLBucketLookup);
    WATCH(numberLBucketLookup);
    WATCH(state);
    // get module pointers for all buckets
    rBucket = new BrooseBucket*[powShiftingBits];
    for (int i = 0; i < powShiftingBits; i++) {
        rBucket[i] = check_and_cast<BrooseBucket*>
                     (getParentModule()->getSubmodule("rBucket",i));
        bucketVector.push_back(rBucket[i]);
    }
    lBucket = check_and_cast<BrooseBucket*>
              (getParentModule()->getSubmodule("lBucket"));
    bucketVector.push_back(lBucket);
    bBucket = check_and_cast<BrooseBucket*>
              (getParentModule()->getSubmodule("bBucket"));
    bucketVector.push_back(bBucket);
    // create join and bucket timer
    join_timer = new cMessage("join_timer");
    bucket_timer = new cMessage("bucket_timer");
}

bool Broose::isSiblingFor	(	const NodeHandle &	node,
		const OverlayKey &	key,
		int	numSiblings,
		bool *	err
	)

virtual

Query if a node is among the siblings for a given key.

Query if a node is among the siblings for a given key. This means, that the nodeId of this node is among the closest numSiblings nodes to the key and that by a local findNode() call all other siblings to this key can be retrieved.

Parameters

node	the NodeHandle
key	destination key
numSiblings	The nodes knows all numSiblings nodes close to this key
err	return false if the range could not be determined

Returns: bool true, if the node is responsible for the key.

Reimplemented from BaseOverlay.

Definition at line 823 of file Broose.cc.

{
// TODO: node != thisNode doesn't work yet
    if (key.isUnspecified())
        error("Broose::isSiblingFor(): key is unspecified!");
    if (node != thisNode)
        error("Broose::isSiblingsFor(): "
              "node != thisNode is not implemented!");
    if (numSiblings > getMaxNumSiblings()) {
        opp_error("Broose::isSiblingFor(): numSiblings too big!");
    }
    // set default number of siblings to consider
    if (numSiblings == -1) numSiblings = getMaxNumSiblings();
    if (numSiblings == 0) {
        *err = false;
        return (node.getKey() == key);
    }
    if (state != READY) {
        *err = true;
        return false;
    }
    // TODO: handle numSibling parameter
    return bBucket->keyInRange(key);
}

void Broose::joinOverlay ( )

virtual

Join the overlay with a given nodeID in thisNode.key.

Join the overlay with a given nodeID in thisNode.key. This method may be called by an application to join the overlay with a specific nodeID. It is also called if the node's IP address changes.

Reimplemented from BaseOverlay.

Definition at line 133 of file Broose.cc.

{
    changeState(INIT);
    // if the bootstrap node is unspecified we are the only node in the network
    // so we can skip the "normal" join protocol
    if (bootstrapNode.isUnspecified()) {
        changeState(READY);
    }
}

void Broose::pingResponse	(	PingResponse *	pingResponse,
		cPolymorphic *	context,
		int	rpcId,
		simtime_t	rtt
	)

protectedvirtual

Reimplemented from BaseRpc.

Definition at line 1065 of file Broose.cc.

                                                    {
    // if node respond reset failedResponses and add lastSeen to node
    routingAdd(pingResponse->getSrcNode(), true, rtt);
}

void Broose::pingTimeout	(	PingCall *	pingCall,
		const TransportAddress &	dest,
		cPolymorphic *	context,
		int	rpcId
	)

protectedvirtual

Reimplemented from BaseRpc.

Definition at line 1090 of file Broose.cc.

{
    routingTimeout(dynamic_cast<const NodeHandle&>(dest));
}

void Broose::recordOverlaySentStats ( BaseOverlayMessage * msg )

virtual

Collect overlay specific sent messages statistics.

This method is called from BaseOverlay::sendMessageToUDP() for every overlay message that is sent by a node. Use this to collect statistical data for overlay protocol specific message types.

Parameters

msg	The overlay message to be sent to the UDP layer

Reimplemented from BaseOverlay.

Definition at line 785 of file Broose.cc.

{
    BaseOverlayMessage* innerMsg = msg;
    while (innerMsg->getType() != APPDATA &&
           innerMsg->getEncapsulatedPacket() != NULL) {
        innerMsg =
            static_cast<BaseOverlayMessage*>(innerMsg->getEncapsulatedPacket());
    }
    switch (innerMsg->getType()) {
    case RPC:
        if ((dynamic_cast<BucketCall*>(innerMsg) != NULL) ||
                (dynamic_cast<BucketResponse*>(innerMsg) != NULL)) {
            RECORD_STATS(bucketCount++; bucketBytesSent +=
                             msg->getByteLength());
        }
        break;
    }
}

void Broose::resetFailedResponses ( const NodeHandle & node )

protected

resets the counter of failed responses

Parameters

node	node handle of the responding node

Definition at line 1124 of file Broose.cc.

{
    for (size_t i = 0; i < bucketVector.size(); i++) {
        bucketVector[i]->resetFailedResponses(node);
    }
}

bool Broose::routingAdd	(	const NodeHandle &	node,
		bool	isAlive,
		simtime_t	rtt = `MAXTIME`
	)

protected

Adds a node to the routing table.

Parameters

node	NodeHandle to add
isAlive	true, if it is known that the node is alive
rtt	measured round-trip-time to node

Returns: true, if the node was known or has been added

Definition at line 1097 of file Broose.cc.

{
    bool added = false;
    for (size_t i = 0; i < bucketVector.size(); i++) {
        added |= bucketVector[i]->add(node, isAlive, rtt);
    }
    return added;
}

void Broose::routingTimeout ( const BrooseHandle & handle )

protected

Definition at line 1071 of file Broose.cc.

{
    for (size_t i = 0; i < bucketVector.size(); i++) {
        if (bucketVector[i]->getFailedResponses(handle) == numberRetries)
            bucketVector[i]->remove(handle);
        else
            bucketVector[i]->increaseFailedResponses(handle);
    }
    // TODO: if we loose the last node (despite ourself) from the
    //       B bucket, we should call join() to rejoin the network
}

void Broose::setLastSeen ( const NodeHandle & node )

protected

updates the timestamp of a node in all buckets

Parameters

node	node handle which should be updated

Definition at line 1109 of file Broose.cc.

{
    for (size_t i = 0; i < bucketVector.size(); i++) {
        bucketVector[i]->setLastSeen(node, simTime());
    }
}

void Broose::setRTT	(	const NodeHandle &	node,
		simtime_t	rtt
	)

protected

sets the rtt to a node in all buckets

Parameters

node	node handle to which a rtt is added/updated
rtt	round trip time to the node

Definition at line 1131 of file Broose.cc.

{
    for (size_t i = 0; i < bucketVector.size(); i++) {
        bucketVector[i]->setRTT(node, rtt);
    }
}

void Broose::updateTooltip ( )

updates information shown in tk-environment

Definition at line 856 of file Broose.cc.

{
    if (ev.isGUI()) {
        std::stringstream ttString;
        // show our ip and key in tooltip
        ttString << thisNode.getIp() << " " << thisNode.getKey();
        getParentModule()->getParentModule()->getDisplayString().
                                  setTagArg("tt", 0, ttString.str().c_str());
        getParentModule()->getDisplayString().
                                  setTagArg("tt", 0, ttString.str().c_str());
        getDisplayString().setTagArg("tt", 0, ttString.str().c_str());
    }
}

Friends And Related Function Documentation

friend class BrooseBucket

friend

Definition at line 273 of file Broose.h.

Member Data Documentation

BrooseBucket * Broose::bBucket

protected

Definition at line 114 of file Broose.h.

TransportAddress Broose::bootstrapNode

protected

node handle holding the bootstrap node

Definition at line 124 of file Broose.h.

cMessage* Broose::bucket_timer

protected

timer to reconstruct all buckets

Definition at line 121 of file Broose.h.

int Broose::bucketBytesSent

protected

length of all Bucket messages

Definition at line 110 of file Broose.h.

int Broose::bucketCount

protected

number of Bucket messages

Definition at line 109 of file Broose.h.

int Broose::bucketRetries

protected

number of bucket retries for a successful join

Definition at line 104 of file Broose.h.

uint32_t Broose::bucketSize

protected

maximal number of bucket entries

Definition at line 98 of file Broose.h.

std::vector<BrooseBucket*> Broose::bucketVector

protected

vector of all Broose buckets

Definition at line 117 of file Broose.h.

int Broose::chooseLookup

protected

decides which kind of lookup (right/left shifting) is used

Definition at line 89 of file Broose.h.

cMessage* Broose::join_timer

protected

Definition at line 120 of file Broose.h.

simtime_t Broose::joinDelay

protected

time interval between two join tries

Definition at line 90 of file Broose.h.

int Broose::keyLength

protected

length of the node and data IDs

Definition at line 100 of file Broose.h.

BrooseBucket* Broose::lBucket

protected

Definition at line 114 of file Broose.h.

int Broose::numberBBucketLookup

protected

maximal number of lookup responses for the B bucket

Definition at line 93 of file Broose.h.

int Broose::numberLBucketLookup

protected

maximal number of lookup responses for the L bucket

Definition at line 95 of file Broose.h.

int Broose::numberRetries

protected

number of retries in case of timeout

Definition at line 103 of file Broose.h.

int Broose::numFailedPackets

protected

number of packets which couldn't be routed correctly

Definition at line 111 of file Broose.h.

int Broose::powShiftingBits

protected

2^{variable shiftingBits}

Definition at line 97 of file Broose.h.

BrooseBucket** Broose::rBucket

protected

Definition at line 115 of file Broose.h.

uint32_t Broose::rBucketSize

protected

maximal number of entries in the r buckets

Definition at line 99 of file Broose.h.

int Broose::receivedBBucketLookup

protected

number of received lookup responses for the B bucket

Definition at line 92 of file Broose.h.

int Broose::receivedJoinResponse

protected

number of received join response messages

Definition at line 91 of file Broose.h.

int Broose::receivedLBucketLookup

protected

number of received lookup responses for the L bucket

Definition at line 94 of file Broose.h.

simtime_t Broose::refreshTime

protected

idle time after which a node is pinged

Definition at line 101 of file Broose.h.

int Broose::shiftingBits

protected

number of bits shifted in/out each step

Definition at line 96 of file Broose.h.

bool Broose::stab1

protected

Definition at line 105 of file Broose.h.

bool Broose::stab2

protected

Definition at line 106 of file Broose.h.

uint32_t Broose::userDist

protected

how many hops are added to the estimated hop count

Definition at line 102 of file Broose.h.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
