BaseRpc Class Reference

Base class for RPCs. More...

#include <BaseRpc.h>

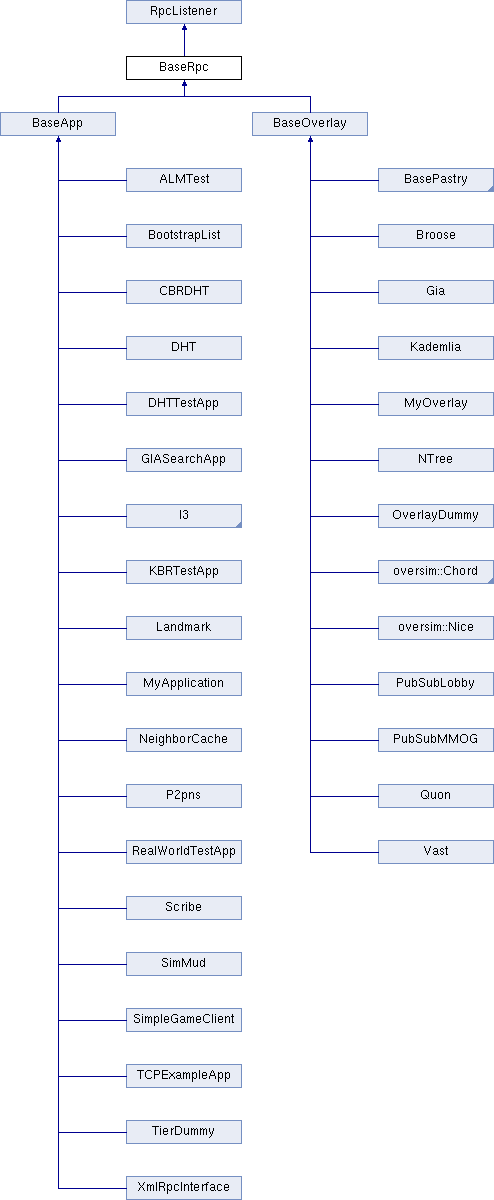

Inheritance diagram for BaseRpc:

Public Member Functions
	BaseRpc ()
const NodeHandle &	getThisNode ()
	Returns the NodeHandle of this node.
simtime_t	getUdpTimeout ()
Public Member Functions inherited from RpcListener
virtual	~RpcListener ()
	destructor

Protected Member Functions
virtual bool	internalHandleRpcCall (BaseCallMessage *msg)
	Handles internal rpc requests.
virtual void	internalHandleRpcResponse (BaseResponseMessage *msg, cPolymorphic *context, int rpcId, simtime_t rtt)
	Handles rpc responses internal in base classes
virtual void	internalHandleRpcTimeout (BaseCallMessage *msg, const TransportAddress &dest, cPolymorphic *context, int rpcId, const OverlayKey &destKey)
	Handles rpc timeouts internal in base classes
void	initRpcs ()
	Initializes Remote-Procedure state.
void	finishRpcs ()
	Deinitializes Remote-Procedure state.
virtual void	internalHandleRpcMessage (BaseRpcMessage *msg)
	Handles incoming rpc messages and delegates them to the corresponding listeners or handlers.
uint32_t	sendRouteRpcCall (CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage *msg, cPolymorphic *context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Routes a Remote-Procedure-Call message to an OverlayKey.
uint32_t	sendRouteRpcCall (CompType destComp, const OverlayKey &destKey, BaseCallMessage *msg, cPolymorphic *context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Routes a Remote-Procedure-Call message to an OverlayKey.
uint32_t	sendRouteRpcCall (CompType destComp, const TransportAddress &dest, BaseCallMessage *msg, cPolymorphic *context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends a Remote-Procedure-Call message using the overlay's UDP port This replaces ROUTE_DIRECT calls!
uint32_t	sendUdpRpcCall (const TransportAddress &dest, BaseCallMessage *msg, cPolymorphic *context=NULL, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends a Remote-Procedure-Call message to the underlay
uint32_t	sendInternalRpcCall (CompType destComp, BaseCallMessage *msg, cPolymorphic *context=NULL, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends an internal Remote-Procedure-Call between two tiers
void	cancelRpcMessage (uint32_t nonce)
	Cancels a Remote-Procedure-Call.
void	cancelAllRpcs ()
	Cancels all RPCs.
void	sendRpcResponse (TransportType transportType, CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage *call, BaseResponseMessage *response)
	Send Remote-Procedure response message and deletes call message.
void	sendRpcResponse (BaseCallMessage *call, BaseResponseMessage *response)
	Send Remote-Procedure response message to UDP and deletes call message.
int	pingNode (const TransportAddress &dest, simtime_t timeout=-1, int retries=0, cPolymorphic *context=NULL, const char *caption="PING", RpcListener *rpcListener=NULL, int rpcId=-1, TransportType transportType=INVALID_TRANSPORT)
	ping a node by its TransportAddress
virtual bool	handleRpcCall (BaseCallMessage *msg)
	Processes Remote-Procedure-Call invocation messages.
virtual CompType	getThisCompType ()=0
	Return the component type of this module.
virtual void	sendMessageToUDP (const TransportAddress &addr, cPacket *message, simtime_t delay=SIMTIME_ZERO)
virtual void	pingResponse (PingResponse *pingResponse, cPolymorphic *context, int rpcId, simtime_t rtt)
virtual void	pingTimeout (PingCall *pingCall, const TransportAddress &dest, cPolymorphic *context, int rpcId)
bool	internalHandleMessage (cMessage *msg)
Protected Member Functions inherited from RpcListener
virtual void	handleRpcResponse (BaseResponseMessage *msg, cPolymorphic *context, int rpcId, simtime_t rtt)
	This method is called if an RPC response has been received.
virtual void	handleRpcResponse (BaseResponseMessage *msg, const RpcState &rpcState, simtime_t rtt)
	This method is called if an RPC response has been received.
virtual void	handleRpcTimeout (BaseCallMessage *msg, const TransportAddress &dest, cPolymorphic *context, int rpcId, const OverlayKey &destKey)
	This method is called if an RPC timeout has been reached.
virtual void	handleRpcTimeout (const RpcState &rpcState)
	This method is called if an RPC timeout has been reached.

Protected Attributes
NodeHandle	thisNode
	NodeHandle to this node.
BaseOverlay *	overlay
bool	debugOutput
	debug output ?
GlobalStatistics *	globalStatistics
	pointer to GlobalStatistics module in this node
CompType	thisCompType
NeighborCache *	neighborCache
	pointer to the neighbor cache
CryptoModule *	cryptoModule
	pointer to CryptoModule
int	numPingSent
int	bytesPingSent
int	numPingResponseSent
int	bytesPingResponseSent

Private Types
typedef UNORDERED_MAP< int, RpcState >	RpcStates

Private Member Functions
virtual void	handleTimerEvent (cMessage *msg)
uint32_t	sendRpcCall (TransportType transportType, CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage *msg, cPolymorphic *context, RoutingType routingType, simtime_t timeout, int retries, int rpcId, RpcListener *rpcListener)
	Sends a Remote-Procedure-Call message to the underlay.
void	sendRpcMessageWithTransport (TransportType transportType, CompType destComp, RoutingType routingType, const std::vector< TransportAddress > &sourceRoute, const OverlayKey &destKey, BaseRpcMessage *message)
virtual void	internalSendRouteRpc (BaseRpcMessage *message, const OverlayKey &destKey, const std::vector< TransportAddress > &sourceRoute, RoutingType routingType)=0
virtual void	internalSendRpcResponse (BaseCallMessage *call, BaseResponseMessage *response)=0
void	pingRpcCall (PingCall *call)
void	pingRpcResponse (PingResponse *response, cPolymorphic *context, int rpcId, simtime_t rtt)
void	pingRpcTimeout (PingCall *pingCall, const TransportAddress &dest, cPolymorphic *context, int rpcId)

Private Attributes
int	rpcsPending
RpcListener *	defaultRpcListener
RpcStates	rpcStates
simtime_t	rpcUdpTimeout
simtime_t	rpcKeyTimeout
bool	optimizeTimeouts
bool	rpcExponentialBackoff

Detailed Description

Base class for RPCs.

Base class for RPCs.

Author

Sebastian Mies

Ingmar Baumgart

Bernhard Heep

Gregoire Menuel

Definition at line 59 of file BaseRpc.h.

Member Typedef Documentation

typedef UNORDERED_MAP<int,RpcState> BaseRpc::RpcStates

private

Definition at line 520 of file BaseRpc.h.

Constructor & Destructor Documentation

BaseRpc::BaseRpc

(

)

Definition at line 52 of file BaseRpc.cc.

{
    defaultRpcListener = NULL;
    neighborCache = NULL;
    cryptoModule = NULL;
}

Member Function Documentation

void BaseRpc::cancelAllRpcs ( )

protected

Cancels all RPCs.

Definition at line 158 of file BaseRpc.cc.

Referenced by BasePastry::baseChangeState(), Pastry::changeState(), and finishRpcs().

{
    // stop all rpcs
    for (RpcStates::iterator i = rpcStates.begin();
        i != rpcStates.end(); i++) {
        cancelAndDelete(i->second.callMsg);
        cancelAndDelete(i->second.timeoutMsg);
        delete i->second.dest;
        i->second.dest = NULL;
        delete i->second.context;
        i->second.context = NULL;
    }
    rpcStates.clear();
}

void BaseRpc::cancelRpcMessage ( uint32_t  nonce )

protected

Cancels a Remote-Procedure-Call.

Parameters

nonce

The nonce of the RPC

Definition at line 278 of file BaseRpc.cc.

Referenced by RecursiveLookup::abortLookup(), IterativeLookup::abortLookup(), IterativeLookup::checkStop(), and IterativeLookup::stop().

{
    if (rpcStates.count(nonce)==0)
        return;
    RpcState state = rpcStates[nonce];
    rpcStates.erase(nonce);
    cancelAndDelete(state.callMsg);
    cancelAndDelete(state.timeoutMsg);
    delete state.dest;
    state.dest = NULL;
    delete state.context;
    state.context = NULL;
}

void BaseRpc::finishRpcs ( )

protected

Deinitializes Remote-Procedure state.

Definition at line 147 of file BaseRpc.cc.

{
    cancelAllRpcs();

    // delete default rpc listener
    if (defaultRpcListener != NULL) {
        delete defaultRpcListener;
        defaultRpcListener = NULL;
    }
}

virtual CompType BaseRpc::getThisCompType ( )

protectedpure virtual

Return the component type of this module.

This method is overloaded by BaseOverlay/BaseApp and returns the appropriate component type of this module.

Returns

the component type of this module

Implemented in BaseOverlay, BaseApp, NeighborCache, and BootstrapList.

Referenced by initRpcs(), pingNode(), sendRpcCall(), and sendRpcMessageWithTransport().

const NodeHandle& BaseRpc::getThisNode ( )

inline

Returns the NodeHandle of this node.

Returns

the NodeHandle of this node.

Reimplemented in SimpleGameClient.

Definition at line 71 of file BaseRpc.h.

Referenced by TreeManagement::addChildNode(), IterativeLookup::addSibling(), TreeManagement::checkParentValid(), GlobalViewBuilder::cleanup(), TreeManagement::connectToParent(), TreeManagement::debugChildren(), RealWorldTestApp::deliver(), KBRTestApp::deliver(), PastryLeafSet::failedNode(), KBRTestApp::forward(), PastryLeafSet::getBiggestNode(), NeighborCache::getOverlayThisNode(), NeighborCache::getProx(), TreeManagement::getResponsibleDomainKey(), PastryLeafSet::getSmallestNode(), oversim::Nice::handleAppMessage(), Kademlia::handleBucketRefreshTimerExpired(), GlobalViewBuilder::handleCoordinateRpcCall(), GlobalViewBuilder::handleCoordSendTimer(), KBRTestApp::handleLookupResponse(), GIASearchApp::handleLowerMessage(), Kademlia::handleNodeGracefulLeaveNotification(), TreeManagement::handleParentRequestRpcCall(), TreeManagement::handleParentRequestRpcResponse(), NeighborCache::handleReadyMessage(), IterativePathLookup::handleResponse(), DiscoveryMode::handleRpcResponse(), KBRTestApp::handleRpcResponse(), Kademlia::handleRpcResponse(), TreeManagement::handleRpcTimeout(), KBRTestApp::handleRpcTimeout(), SimpleGameClient::handleTimerEvent(), GIASearchApp::handleTimerEvent(), Landmark::initializeApp(), SimpleGameClient::initializeApp(), BrooseBucket::initializeBucket(), PastryLeafSet::insertLeaf(), TreeManagement::isRoot(), BrooseBucket::keyInRange(), IterativeLookup::lookup(), PastryLeafSet::mergeNode(), BrooseBucket::output(), TreeManagement::removeParentConnection(), Kademlia::routingAdd(), Kademlia::routingBucketIndex(), DiscoveryMode::sendNewRequest(), IterativePathLookup::sendRpc(), sendRpcCall(), sendRpcResponse(), Nps::setOwnLayer(), GlobalViewBuilder::spreadGlobalView(), DiscoveryMode::start(), IterativeLookup::start(), DiscoveryMode::stop(), IterativeLookup::stop(), and NeighborCache::updateNode().

{ return thisNode; };

simtime_t BaseRpc::getUdpTimeout ( )

inline

Definition at line 73 of file BaseRpc.h.

{ return rpcUdpTimeout; };

bool BaseRpc::handleRpcCall ( BaseCallMessage *  msg )

protectedvirtual

Processes Remote-Procedure-Call invocation messages.

This method should be overloaded when the overlay provides RPC functionality.

Returns

true, if rpc has been handled

Reimplemented in NeighborCache, oversim::Chord, BasePastry, oversim::Koorde, Kademlia, Scribe, CBRDHT, Broose, Pastry, SimMud, NTree, PubSubLobby, and PubSubMMOG.

Definition at line 527 of file BaseRpc.cc.

Referenced by internalHandleRpcMessage().

{
    return false;
}

void BaseRpc::handleTimerEvent ( cMessage *  msg )

privatevirtual

Reimplemented in NeighborCache, Kademlia, Gia, Scribe, I3, Broose, oversim::Nice, CBRDHT, SimMud, GIASearchApp, Bamboo, Pastry, SimpleGameClient, oversim::Koorde, oversim::Chord, NTree, ALMTest, Quon, Vast, RealWorldTestApp, PubSubLobby, and PubSubMMOG.

Definition at line 86 of file BaseRpc.cc.

Referenced by internalHandleMessage().

{
    // ...
}

void BaseRpc::initRpcs ( )

protected

Initializes Remote-Procedure state.

Definition at line 92 of file BaseRpc.cc.

{
    // set friend modules
    globalStatistics = GlobalStatisticsAccess().get();

    rpcUdpTimeout = par("rpcUdpTimeout");
    rpcKeyTimeout = par("rpcKeyTimeout");
    optimizeTimeouts = par("optimizeTimeouts");
    rpcExponentialBackoff = par("rpcExponentialBackoff");

    rpcsPending = 0;
    rpcStates.clear();

    defaultRpcListener = new RpcListener();

    //set ping cache
    numPingSent = 0;
    bytesPingSent = 0;
    numPingResponseSent = 0;
    bytesPingResponseSent = 0;

    WATCH(numPingSent);
    WATCH(bytesPingSent);
    WATCH(numPingResponseSent);
    WATCH(bytesPingResponseSent);

    // set overlay pointer
    overlay = OverlayAccess().get(this);

    // register component
    thisCompType = getThisCompType();
    overlay->registerComp(thisCompType, this);

    // get pointer to the neighborCache
    cModule *mod = getParentModule();
    while (neighborCache == NULL) {
        neighborCache = (NeighborCache*)mod->getSubmodule("neighborCache");
        mod = mod->getParentModule();
        if (!mod)
            throw cRuntimeError("BaseRpc::initRpc: "
                                "Module type contains no NeighborCache!");
    }

    // get pointer to the cryptoModule
    mod = getParentModule();
    cryptoModule = NULL;
    while (cryptoModule == NULL) {
        cryptoModule = (CryptoModule*)mod->getSubmodule("cryptoModule");
        mod = mod->getParentModule();
        if (!mod)
            throw cRuntimeError("BaseRpc::initRpc: CryptoModule not found!");
    }
}

bool BaseRpc::internalHandleMessage ( cMessage *  msg )

protected

Definition at line 59 of file BaseRpc.cc.

{
    // process self-messages and RPC-timeouts
    if (msg->isSelfMessage()) {
        // process rpc self-messages
        BaseRpcMessage* rpcMessage = dynamic_cast<BaseRpcMessage*>(msg);
        if (rpcMessage != NULL) {
            internalHandleRpcMessage(rpcMessage);
            return true;
        }
        // process all other self-messages
        handleTimerEvent(msg);
        return true;
    }

    // process RPC messages
    BaseRpcMessage* rpcMessage = dynamic_cast<BaseRpcMessage*>(msg);
    if (rpcMessage != NULL) {
        internalHandleRpcMessage(rpcMessage);
        return true;
    }

    // other messages are processed by derived classes
    // (e.g. BaseOverlay / BaseApp)
    return false;
}

bool BaseRpc::internalHandleRpcCall ( BaseCallMessage *  msg )

protectedvirtual

Handles internal rpc requests.

This method is used to implement basic functionality in the BaseRpc.

Parameters

msg	The call message

Returns

bool true, if call has been handled.

Reimplemented in BaseOverlay, and BaseApp.

Definition at line 492 of file BaseRpc.cc.

Referenced by BaseApp::internalHandleRpcCall(), BaseOverlay::internalHandleRpcCall(), and internalHandleRpcMessage().

{
    RPC_SWITCH_START( msg );
    RPC_DELEGATE( Ping, pingRpcCall );
    RPC_SWITCH_END( );

    return RPC_HANDLED;
}

void BaseRpc::internalHandleRpcMessage ( BaseRpcMessage *  msg )

protectedvirtual

Handles incoming rpc messages and delegates them to the corresponding listeners or handlers.

Parameters

msg	The message to handle.

Definition at line 293 of file BaseRpc.cc.

Referenced by internalHandleMessage().

{
    // check if this is a rpc call message
    BaseCallMessage* rpCall = dynamic_cast<BaseCallMessage*>(msg);
    if (rpCall != NULL) {
        // verify the message signature
        //cryptoModule->verifyMessage(msg);

        OverlayCtrlInfo* overlayCtrlInfo =
            dynamic_cast<OverlayCtrlInfo*>(msg->getControlInfo());

        if (overlayCtrlInfo && overlayCtrlInfo->getSrcRoute().isUnspecified() &&
            (!overlayCtrlInfo->getLastHop().isUnspecified())) {
            overlayCtrlInfo->setSrcRoute(NodeHandle(msg->getSrcNode().getKey(),
                                               overlayCtrlInfo->getLastHop()));
        }

        bool rpcHandled = true;
        if (!handleRpcCall(rpCall)) rpcHandled = internalHandleRpcCall(rpCall);
        if (!rpcHandled) {
            EV << "[BaseRpc::internalHandleRpcMessage() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    Error: RPC '" << msg->getFullName()<< "' was not handled"
               << endl;
            delete msg;
        }
        return;
    }

    // get nonce
    int nonce = msg->getNonce();

    // nonce known? no -> delete message and return
    if (rpcStates.count(nonce)==0) {
        EV << "[BaseRpc::internalHandleRpcMessage() @ " << thisNode.getIp()
           << " " << thisNode.getKey().toString(16) << ")]\n"
           << "    RPC: Nonce Unknown"
           << endl;
        delete msg;
        return;
    }

    // get state and remove from map
    RpcState state = rpcStates[nonce];
    rpcStates.erase(nonce);

    // is timeout message?
    if (msg->isSelfMessage() &&
        (dynamic_cast<RpcTimeoutMessage*>(msg) != NULL)) {
        // yes-> inform listener

        // retry?
        state.retries--;
        if (state.retries>=0) {
            // TODO: cleanup code to have only one type for source routes
            std::vector<TransportAddress> sourceRoute;
            sourceRoute.push_back(*state.dest);
            if (state.dest->getSourceRouteSize() > 0) {
                sourceRoute.insert(sourceRoute.begin(),
                                   state.dest->getSourceRoute().rend(),
                                   state.dest->getSourceRoute().rbegin());
                // remove the original source route from the destination
                sourceRoute.back().clearSourceRoute();
            }

            sendRpcMessageWithTransport(state.transportType, state.destComp,
                                        state.routingType,
                                        sourceRoute,
                                        state.destKey,
                                        dynamic_cast<BaseCallMessage*>
                                        (state.callMsg->dup()));

            if (rpcExponentialBackoff) {
                state.rto *= 2;
            }

            if (state.rto!=0)
                scheduleAt(simTime() + state.rto, msg);

            state.timeSent = simTime();
            rpcStates[nonce] = state;
            return;
        }
        EV << "[BaseRpc::internalHandleRpcMessage() @ " << thisNode.getIp()
           << " " << thisNode.getKey().toString(16) << ")]\n"
           << "    RPC to " << state.dest->getIp()
           << " timeout (" << state.callMsg->getName() << ")"
           << endl;

        // inform neighborcache
        if (state.transportType == UDP_TRANSPORT ||
            (!state.dest->isUnspecified() && state.destKey.isUnspecified())) {
            neighborCache->setNodeTimeout(*state.dest);
        }

        // inform listener
        if (state.listener != NULL)
            state.listener->handleRpcTimeout(state);

        // inform overlay
        internalHandleRpcTimeout(state.callMsg, *state.dest, state.context,
                                 state.id, state.destKey);
        handleRpcTimeout(state);

    } else { // no-> handle rpc response

        // verify the message signature
        //cryptoModule->verifyMessage(msg);

        OverlayCtrlInfo* overlayCtrlInfo =
            dynamic_cast<OverlayCtrlInfo*>(msg->getControlInfo());

        if (overlayCtrlInfo && overlayCtrlInfo->getSrcRoute().isUnspecified() &&
                 (!overlayCtrlInfo->getLastHop().isUnspecified())) {
             overlayCtrlInfo->setSrcRoute(NodeHandle(msg->getSrcNode().getKey(),
                                                overlayCtrlInfo->getLastHop()));
        }

        // drop responses with wrong source key
        if (state.destKey.isUnspecified()) {
            const NodeHandle* stateHandle =
                dynamic_cast<const NodeHandle*>(state.dest);
                if (stateHandle != NULL &&
                    stateHandle->getKey() != msg->getSrcNode().getKey()) {

                    EV << "[BaseRpc::internalHandleRpcMessage() @ "
                       << thisNode.getIp()
                       << " " << thisNode.getKey().toString(16) << ")]\n"
                       << "    Dropping RPC: Invalid source key"
                       << endl;

                    // restore state to trigger timeout message
                    rpcStates[nonce] = state;
                    delete msg;
                    return;
                }
        }

        // get parameters
        simtime_t rtt = simTime() - state.timeSent;
        BaseResponseMessage* response
            = dynamic_cast<BaseResponseMessage*>(msg);

        //if (state.transportType == UDP_TRANSPORT)
        //    globalStatistics->recordOutVector("BaseRpc: UDP Round Trip Time",
        //                                      rtt);

        // neighborCache/ncs stuff
        if (state.transportType == UDP_TRANSPORT ||
            (state.transportType != INTERNAL_TRANSPORT &&
             response->getCallHopCount() == 1)) {
            unsigned int ncsArraySize = response->getNcsInfoArraySize();
            if (ncsArraySize > 0) {
                std::vector<double> tempCoords(ncsArraySize);
                for (uint8_t i = 0; i < ncsArraySize; i++) {
                    tempCoords[i] = response->getNcsInfo(i);
                }
                AbstractNcsNodeInfo* coords =
                    neighborCache->getNcsAccess().createNcsInfo(tempCoords);

                OverlayCtrlInfo* ctrlInfo =
                    dynamic_cast<OverlayCtrlInfo*>(response->getControlInfo());

                neighborCache->updateNode(response->getSrcNode(), rtt,
                                          (ctrlInfo ?
                                           ctrlInfo->getSrcRoute() :
                                           NodeHandle::UNSPECIFIED_NODE),
                                           coords);
            } else {
                neighborCache->updateNode(response->getSrcNode(), rtt);
            }
        }

        // inform listener
        if (state.listener != NULL)
            state.listener->handleRpcResponse(response, state, rtt);

        // inform overlay
        internalHandleRpcResponse(response, state.context, state.id, rtt);
        handleRpcResponse(response, state, rtt);

        // delete response
        delete response->removeControlInfo();
        delete response;
    }

    // delete messages
    delete state.callMsg;
    cancelAndDelete(state.timeoutMsg);
    delete state.dest;

    // clean up pointers
    state.dest = NULL;
    state.context = NULL;
    state.callMsg = NULL;
    state.timeoutMsg = NULL;
}

void BaseRpc::internalHandleRpcResponse ( BaseResponseMessage *  msg, cPolymorphic *  context, int  rpcId, simtime_t  rtt  )

protectedvirtual

Handles rpc responses internal in base classes

This method is used to implement basic functionality in the BaseRpc.

Parameters

msg	The call message
context	Pointer to an optional state object. The object has to be handled/deleted by the internalHandleRpcResponse() code
rpcId	The ID of the call
rtt	the time between sending the call and receiving the response

Reimplemented in BaseOverlay, and BaseApp.

Definition at line 501 of file BaseRpc.cc.

Referenced by internalHandleRpcMessage(), BaseApp::internalHandleRpcResponse(), and BaseOverlay::internalHandleRpcResponse().

{
    // call rpc stubs
    RPC_SWITCH_START( msg );
    RPC_ON_RESPONSE( Ping ) {
        pingRpcResponse(_PingResponse, context, rpcId, rtt);
    }
    RPC_SWITCH_END( );
}

void BaseRpc::internalHandleRpcTimeout ( BaseCallMessage *  msg, const TransportAddress &  dest, cPolymorphic *  context, int  rpcId, const OverlayKey &  destKey  )

protectedvirtual

Handles rpc timeouts internal in base classes

This method is used to implement basic functionality in the BaseRpc.

Parameters

msg	The call message
dest	The node that did not response
context	Pointer to an optional state object. The object has to be handled/deleted by the internalHandleRpcResponse() code
rpcId	The ID of the call
destKey	The key of the call if used

Returns

bool true, if call has been handled.

Todo:

return bool?

Reimplemented in BaseOverlay.

Definition at line 513 of file BaseRpc.cc.

Referenced by internalHandleRpcMessage(), and BaseOverlay::internalHandleRpcTimeout().

{
    RPC_SWITCH_START( msg ) {
        RPC_ON_CALL( Ping ) {
            pingRpcTimeout(_PingCall, dest, context, rpcId);
        }
    }
    RPC_SWITCH_END( )
}

virtual void BaseRpc::internalSendRouteRpc ( BaseRpcMessage *  message, const OverlayKey &  destKey, const std::vector< TransportAddress > &  sourceRoute, RoutingType  routingType  )

privatepure virtual

Implemented in BaseOverlay, and BaseApp.

Referenced by sendRpcMessageWithTransport().

virtual void BaseRpc::internalSendRpcResponse ( BaseCallMessage *  call, BaseResponseMessage *  response  )

privatepure virtual

Referenced by sendRpcResponse().

int BaseRpc::pingNode ( const TransportAddress &  dest, simtime_t  timeout = -1, int  retries = 0, cPolymorphic *  context = NULL, const char *  caption = "PING", RpcListener *  rpcListener = NULL, int  rpcId = -1, TransportType  transportType = INVALID_TRANSPORT  )

protected

ping a node by its TransportAddress

Statistics are collected by this method.

Parameters

dest	the node to ping
timeout	RPC timeout
retries	how often to retry after timeout
context	a pointer to an arbitrary cPolymorphic object, which can be used to store additional state
caption	special name for the ping call (instead of "PING")
rpcListener	RPC Listener
rpcId	RPC id
transportType	The transport used for this RPC

Returns

the nonce of the sent ping call

Definition at line 702 of file BaseRpc.cc.

Referenced by IterativeLookup::addSibling(), Pastry::changeState(), Pastry::handleRequestLeafSetResponse(), Pastry::handleRequestRoutingRowResponse(), KBRTestApp::handleTimerEvent(), Kademlia::handleTimerEvent(), Kademlia::joinOverlay(), NeighborCache::queryProx(), and Kademlia::routingAdd().

{
    PingCall* call = new PingCall(caption);
    call->setBitLength(PINGCALL_L(call));
    RECORD_STATS(numPingSent++; bytesPingSent += call->getByteLength());

    if (transportType == UDP_TRANSPORT ||
        (transportType != ROUTE_TRANSPORT &&
         getThisCompType() == OVERLAY_COMP)) {
        return sendUdpRpcCall(dest, call, context, timeout, retries, rpcId,
                       rpcListener);
    } else {
        return sendRouteRpcCall(getThisCompType(), dest, call, context,
                         DEFAULT_ROUTING, timeout, retries, rpcId,
                         rpcListener);
    }
}

void BaseRpc::pingResponse ( PingResponse *  pingResponse, cPolymorphic *  context, int  rpcId, simtime_t  rtt  )

protectedvirtual

Reimplemented in oversim::Chord, Broose, BootstrapList, and Pastry.

Definition at line 659 of file BaseRpc.cc.

Referenced by pingRpcResponse().

{
}

void BaseRpc::pingRpcCall ( PingCall *  call )

private

Definition at line 669 of file BaseRpc.cc.

Referenced by internalHandleRpcCall().

{
    std::string pongName(call->getName());
    if (pongName == "PING")
        pongName = "PONG";
    else {
        pongName = "PONG: [ ";
        pongName += call->getName();
        pongName += " ]";
    }

    PingResponse* response = new PingResponse(pongName.c_str());
    response->setBitLength(PINGRESPONSE_L(response));
    RECORD_STATS(numPingResponseSent++; bytesPingResponseSent +=
        response->getByteLength());

    sendRpcResponse(call, response );
}

void BaseRpc::pingRpcResponse ( PingResponse *  response, cPolymorphic *  context, int  rpcId, simtime_t  rtt  )

private

Definition at line 688 of file BaseRpc.cc.

Referenced by internalHandleRpcResponse().

{
    pingResponse(response, context, rpcId, rtt);
}

void BaseRpc::pingRpcTimeout ( PingCall *  pingCall, const TransportAddress &  dest, cPolymorphic *  context, int  rpcId  )

private

Definition at line 694 of file BaseRpc.cc.

Referenced by internalHandleRpcTimeout().

{
    pingTimeout(pingCall, dest, context, rpcId);
}

void BaseRpc::pingTimeout ( PingCall *  pingCall, const TransportAddress &  dest, cPolymorphic *  context, int  rpcId  )

protectedvirtual

Reimplemented in oversim::Chord, Broose, and BootstrapList.

Definition at line 664 of file BaseRpc.cc.

Referenced by pingRpcTimeout().

{
}

uint32_t BaseRpc::sendInternalRpcCall ( CompType  destComp, BaseCallMessage *  msg, cPolymorphic *  context = NULL, simtime_t  timeout = -1, int  retries = 0, int  rpcId = -1, RpcListener *  rpcListener = NULL  )

inlineprotected

Sends an internal Remote-Procedure-Call between two tiers

If no timeout is provided, a default value of globalParameters.rpcUdpTimeout for underlay and globalParameters.rpcKeyTimeout for a overlay rpc is used. After a timeout the message gets retransmitted for at maximum retries times. The destKey attribute is kept untouched.

Parameters

destComp	Destination component
msg	RPC Call Message
context	a pointer to an arbitrary cPolymorphic object, which can be used to store additional state
timeout	RPC timeout in seconds (-1=use default value, 0=no timeout)
retries	How often we try to resent rpc call, if it gets lost
rpcId	RPC id
rpcListener	RPC Listener

Returns

The nonce of the RPC

Definition at line 326 of file BaseRpc.h.

Referenced by KBRTestApp::handleTimerEvent().

    {
        return sendRpcCall(INTERNAL_TRANSPORT, destComp,
                           TransportAddress::UNSPECIFIED_NODE,
                           OverlayKey::UNSPECIFIED_KEY, msg, context,
                           NO_OVERLAY_ROUTING, timeout, retries, rpcId,
                           rpcListener);
    }

virtual void BaseRpc::sendMessageToUDP ( const TransportAddress &  addr, cPacket *  message, simtime_t  delay = SIMTIME_ZERO  )

inlineprotectedvirtual

Reimplemented in BaseOverlay, and BaseApp.

Definition at line 429 of file BaseRpc.h.

Referenced by sendRpcMessageWithTransport().

    {
        throw cRuntimeError("sendMessageToUDP() not implemented");
    };

uint32_t BaseRpc::sendRouteRpcCall ( CompType  destComp, const TransportAddress &  dest, const OverlayKey &  destKey, BaseCallMessage *  msg, cPolymorphic *  context = NULL, RoutingType  routingType = DEFAULT_ROUTING, simtime_t  timeout = -1, int  retries = 0, int  rpcId = -1, RpcListener *  rpcListener = NULL  )

inlineprotected

Routes a Remote-Procedure-Call message to an OverlayKey.

If no timeout is provided, a default value of globalParameters.rpcUdpTimeout for underlay and globalParameters.rpcKeyTimeout for a overlay rpc is used. After a timeout the message gets retransmitted for at maximum retries times. The destKey attribute is kept untouched.

Parameters

destComp	The destination component
dest	Destination node handle (if specified, used as first hop)
destKey	Destination OverlayKey (if unspecified, the message will be sent to dest using the overlay's UDP port)
msg	RPC Call Message
context	a pointer to an arbitrary cPolymorphic object, which can be used to store additional state
routingType	KBR routing type
timeout	RPC timeout in seconds (-1=use default value, 0=no timeout)
retries	How often we try to resent rpc call, if it gets lost
rpcId	RPC id
rpcListener	RPC Listener

Returns

The nonce of the RPC

Definition at line 178 of file BaseRpc.h.

Referenced by Bamboo::changeState(), Pastry::changeState(), TreeManagement::checkTreeChildNodes(), MyOverlay::getNeighbors(), TreeManagement::handleRpcTimeout(), KBRTestApp::handleTimerEvent(), RecursiveLookup::lookup(), pingNode(), TreeManagement::registerAtParent(), GlobalViewBuilder::sendCapRequest(), TreeManagement::sendChildReleaseCall(), Nps::sendCoordsReqCall(), TreeManagement::sendMessageToChildren(), TreeManagement::sendMessageToParent(), DiscoveryMode::sendNewRequest(), and DiscoveryMode::start().

    {
        if (dest.isUnspecified() && destKey.isUnspecified())
            opp_error("BaseRpc::sendRouteRpcCall() with both key and "
                      "transportAddress unspecified!");
        return sendRpcCall(ROUTE_TRANSPORT, destComp, dest, destKey, msg,
                           context, routingType, timeout, retries,
                           rpcId, rpcListener);
    }

uint32_t BaseRpc::sendRouteRpcCall ( CompType  destComp, const OverlayKey &  destKey, BaseCallMessage *  msg, cPolymorphic *  context = NULL, RoutingType  routingType = DEFAULT_ROUTING, simtime_t  timeout = -1, int  retries = 0, int  rpcId = -1, RpcListener *  rpcListener = NULL  )

inlineprotected

Routes a Remote-Procedure-Call message to an OverlayKey.

If no timeout is provided, a default value of globalParameters.rpcUdpTimeout for underlay and globalParameters.rpcKeyTimeout for a overlay rpc is used. After a timeout the message gets retransmitted for at maximum retries times. The destKey attribute is kept untouched.

Parameters

destComp	The destination component
destKey	Destination OverlayKey
msg	RPC Call Message
context	a pointer to an arbitrary cPolymorphic object, which can be used to store additional state
routingType	KBR routing type
timeout	RPC timeout in seconds (-1=use default value, 0=no timeout)
retries	How often we try to resent rpc call, if it gets lost
rpcId	RPC id
rpcListener	RPC Listener

Returns

The nonce of the RPC

Definition at line 219 of file BaseRpc.h.

    {
        return sendRpcCall(ROUTE_TRANSPORT, destComp,
                           TransportAddress::UNSPECIFIED_NODE,
                           destKey, msg, context, routingType, timeout,
                           retries, rpcId, rpcListener);
    }

uint32_t BaseRpc::sendRouteRpcCall ( CompType  destComp, const TransportAddress &  dest, BaseCallMessage *  msg, cPolymorphic *  context = NULL, RoutingType  routingType = DEFAULT_ROUTING, simtime_t  timeout = -1, int  retries = 0, int  rpcId = -1, RpcListener *  rpcListener = NULL  )

inlineprotected

Sends a Remote-Procedure-Call message using the overlay's UDP port
This replaces ROUTE_DIRECT calls!

If no timeout is provided, a default value of globalParameters.rpcUdpTimeout for underlay and globalParameters.rpcKeyTimeout for a overlay rpc is used. After a timeout the message gets retransmitted for at maximum retries times. The destKey attribute is kept untouched.

Parameters

destComp	The destination component
dest	Destination node handle (may contain a source route)
msg	RPC Call Message
context	a pointer to an arbitrary cPolymorphic object, which can be used to store additional state
routingType	KBR routing type
timeout	RPC timeout
retries	How often we try to resent rpc call, if it gets lost
rpcId	RPC id
rpcListener	RPC Listener

Returns

The nonce of the RPC

Definition at line 258 of file BaseRpc.h.

    {
        return sendRpcCall(ROUTE_TRANSPORT, destComp, dest,
                           OverlayKey::UNSPECIFIED_KEY, msg, context,
                           routingType, timeout, retries, rpcId, rpcListener);
    }

uint32_t BaseRpc::sendRpcCall ( TransportType  transportType, CompType  destComp, const TransportAddress &  dest, const OverlayKey &  destKey, BaseCallMessage *  msg, cPolymorphic *  context, RoutingType  routingType, simtime_t  timeout, int  retries, int  rpcId, RpcListener *  rpcListener  )

private

Sends a Remote-Procedure-Call message to the underlay.

USE ONE OF THE WRAPPER FUNCTIONS INSTEAD:
sendRouteRpcCall(), sendInternalRpcCall(), or sendUdpRpcCall()

If no timeout is provided, a default value of globalParameters.rpcUdpTimeout for underlay and globalParameters.rpcKeyTimeout for a overlay rpc is used. Internal RPCs don't have a default timeout. After a timeout the message gets retransmitted for at maximum retries times. The destKey attribute is kept untouched.

Parameters

transportType	The type of transport
destComp	The destination component
dest	Destination node handle (may contain a source route)
destKey	route the RPC to the node that is responsible for destkey
msg	RPC Call Message
context	a pointer to an arbitrary cPolymorphic object, which can be used to store additional state
routingType	KBR routing type
timeout	RPC timeout in seconds (-1=use default value, 0=no timeout)
retries	How often we try to resent rpc call, if it gets lost
rpcId	RPC id
rpcListener	RPC Listener (callback handler)

Returns

The nonce of the RPC

Definition at line 173 of file BaseRpc.cc.

Referenced by sendInternalRpcCall(), sendRouteRpcCall(), and sendUdpRpcCall().

{
    // create nonce, timeout and set default parameters
    uint32_t nonce;
    do {
        nonce = intuniform(1, 2147483647);
    } while (rpcStates.count(nonce) > 0);

    if (timeout == -1) {
        switch (transportType) {
        case INTERNAL_TRANSPORT:
            timeout = 0;
            break;
        case UDP_TRANSPORT:
            if (optimizeTimeouts) {
                timeout = neighborCache->getNodeTimeout(dest);
                if (timeout == -1) timeout = rpcUdpTimeout;
            } else timeout = rpcUdpTimeout;
            break;
        case ROUTE_TRANSPORT:
            timeout = (destKey.isUnspecified() ?
                       rpcUdpTimeout :
                       rpcKeyTimeout);
            break;
        default:
            throw cRuntimeError("BaseRpc::sendRpcMessage(): "
                                "Unknown RpcTransportType!");
        }
    }

    if (rpcListener == NULL)
        rpcListener = defaultRpcListener;

    // create state
    RpcState state;
    state.id = rpcId;
    state.timeSent = simTime();
    state.dest = dest.dup();
    state.destKey = destKey;
    state.srcComp = getThisCompType();
    state.destComp = destComp;
    state.listener = rpcListener;
    state.timeoutMsg = new RpcTimeoutMessage();
    state.timeoutMsg->setNonce(nonce);
    state.retries = retries;
    state.rto = timeout;
    state.transportType = transportType;
    //state.transportType = (destKey.isUnspecified() && (dest.getSourceRouteSize() == 0)
    //        ? UDP_TRANSPORT : transportType); //test
    state.routingType = routingType;
    state.context = context;

    if (rpcStates.count(nonce) > 0)
        throw cRuntimeError("RPC nonce collision");

    // set message parameters
    msg->setNonce(nonce);
    if (transportType == ROUTE_TRANSPORT)
        msg->setSrcNode(overlay->getThisNode());
    else
        msg->setSrcNode(thisNode);
    msg->setType(RPC);

    // sign the message
    // if (transportType != INTERNAL_TRANSPORT) cryptoModule->signMessage(msg);

    // save copy of call message in RpcState
    state.callMsg = dynamic_cast<BaseCallMessage*>(msg->dup());
    assert(!msg->getEncapsulatedPacket() || !msg->getEncapsulatedPacket()->getControlInfo());

    // register state
    rpcStates[nonce] = state;

    // schedule timeout message
    if (state.rto != 0)
        scheduleAt(simTime() + state.rto, state.timeoutMsg);

    // TODO: cleanup code to have only one type for source routes
    std::vector<TransportAddress> sourceRoute;
    sourceRoute.push_back(dest);
    if (dest.getSourceRouteSize() > 0) {
        state.transportType = transportType = ROUTE_TRANSPORT;
        sourceRoute.insert(sourceRoute.begin(), dest.getSourceRoute().rend(),
                          dest.getSourceRoute().rbegin());
        // remove the original source route from the destination
        sourceRoute.back().clearSourceRoute();
    }
    sendRpcMessageWithTransport(transportType, destComp, routingType,
                                sourceRoute, destKey, msg);

    return nonce;
}

void BaseRpc::sendRpcMessageWithTransport ( TransportType  transportType, CompType  destComp, RoutingType  routingType, const std::vector< TransportAddress > &  sourceRoute, const OverlayKey &  destKey, BaseRpcMessage *  message  )

private

Definition at line 620 of file BaseRpc.cc.

Referenced by internalHandleRpcMessage(), sendRpcCall(), and sendRpcResponse().

{
    switch (transportType) {
    case UDP_TRANSPORT: {
        sendMessageToUDP(sourceRoute[0], message);
        break;
    }
    case ROUTE_TRANSPORT: {
        internalSendRouteRpc(message, destKey,
                             sourceRoute, routingType);
        break;
    }
    case INTERNAL_TRANSPORT: {
        cGate *destCompGate = overlay->getCompRpcGate(destComp);
        if (destCompGate == NULL) {
            throw cRuntimeError("BaseRpc::sendRpcMessageWithTransport():"
                                    " INTERNAL_RPC to unknown RpcCompType!");
        }
        OverlayCtrlInfo *overlayCtrlInfo = new OverlayCtrlInfo();
        overlayCtrlInfo->setSrcComp(getThisCompType());
        overlayCtrlInfo->setDestComp(destComp);
        overlayCtrlInfo->setTransportType(INTERNAL_TRANSPORT);
        message->setControlInfo(overlayCtrlInfo);
        sendDirect(message, destCompGate);
        break;
    }
    default:
        throw cRuntimeError("BaseRpc::sendRpcMessageWithTransport: "
                                "invalid transportType!");
        break;
    }
}

void BaseRpc::sendRpcResponse ( TransportType  transportType, CompType  destComp, const TransportAddress &  dest, const OverlayKey &  destKey, BaseCallMessage *  call, BaseResponseMessage *  response  )

protected

Send Remote-Procedure response message and deletes call message.

Parameters

transportType	The transport used for this RPC
destComp	Destination component
dest	The TransportAddress of the destination (hint for ROUTE_TRANSPORT)
destKey	The destination key for a ROUTE_TRANSPORT
call	The corresponding call message to the response
response	The response message

Definition at line 532 of file BaseRpc.cc.

Referenced by Nps::coordsReqRpc(), GlobalViewBuilder::handleCapReqRpcCall(), TreeManagement::handleChildCheckRpcCall(), GlobalViewBuilder::handleCoordinateRpcCall(), TreeManagement::handleParentRequestRpcCall(), Pastry::handlePastryJoinCall(), BasePastry::handleRequestLeafSetCall(), Pastry::handleRequestRepairCall(), BasePastry::handleRequestRoutingRowCall(), Pastry::handleRequestStateCall(), DiscoveryMode::handleRpcCall(), MyOverlay::handleRpcCall(), KBRTestApp::kbrTestCall(), pingRpcCall(), sendRpcResponse(), and KBRTestApp::underlayTestCall().

{
    if (call == NULL || response == NULL) {
        throw cRuntimeError("call or response = NULL!");
    }

    // vivaldi: set coordinates and error estimation in response
    if (neighborCache->piggybackOwnCoords()) { //TODO only for directly sent msgs
        std::vector<double> nodeCoord =
            neighborCache->getNcsAccess().getOwnNcsInfo();

        response->setNcsInfoArraySize(nodeCoord.size());
        for (uint32_t i = 0; i < nodeCoord.size(); i++) {
            response->setNcsInfo(i, nodeCoord[i]);
        }
    }

    assert(transportType == INTERNAL_TRANSPORT ||
           !dest.isUnspecified() ||
           !destKey.isUnspecified());

    if (transportType == ROUTE_TRANSPORT)
        response->setSrcNode(overlay->getThisNode());
    else
        response->setSrcNode(thisNode);
    response->setType(RPC);
    response->setNonce(call->getNonce());
    response->setStatType(call->getStatType());

    RoutingType routingType = NO_OVERLAY_ROUTING;
    OverlayCtrlInfo* overlayCtrlInfo = NULL;
    if (dynamic_cast<OverlayCtrlInfo*>(call->getControlInfo())) {
        overlayCtrlInfo =
            static_cast<OverlayCtrlInfo*>(call->removeControlInfo());
        response->setCallHopCount(overlayCtrlInfo->getHopCount());
    } else {
        delete call->removeControlInfo();
        response->setCallHopCount(1); // one udp hop (?)
    }

    // source routing
    std::vector<TransportAddress> sourceRoute;
    if (overlayCtrlInfo && transportType == ROUTE_TRANSPORT) {
        routingType =
            static_cast<RoutingType>(overlayCtrlInfo->getRoutingType());
        for (uint32_t i = overlayCtrlInfo->getVisitedHopsArraySize(); i > 0; --i) {
            sourceRoute.push_back(overlayCtrlInfo->getVisitedHops(i - 1));
        }
    }

    if (sourceRoute.size() == 0) {
        // empty visited hops list => direct response
        sourceRoute.push_back(dest);
    }

    sendRpcMessageWithTransport(transportType, compType,
                                routingType, sourceRoute,
                                destKey, response);
    delete overlayCtrlInfo;
    delete call;
}

void BaseRpc::sendRpcResponse ( BaseCallMessage *  call, BaseResponseMessage *  response  )

protected

Send Remote-Procedure response message to UDP and deletes call message.

Parameters

call	The corresponding call message to the response
response	The response message

Definition at line 600 of file BaseRpc.cc.

{
    const TransportAddress* destNode = &(call->getSrcNode());
    const OverlayKey* destKey = &(call->getSrcNode().getKey());

    OverlayCtrlInfo* overlayCtrlInfo =
        dynamic_cast<OverlayCtrlInfo*>(call->getControlInfo());

    // "magic" transportType selection: internal
    if (overlayCtrlInfo &&
        overlayCtrlInfo->getTransportType() == INTERNAL_TRANSPORT) {
        sendRpcResponse(INTERNAL_TRANSPORT,
                        static_cast<CompType>(overlayCtrlInfo->getSrcComp()),
                        *destNode, *destKey, call, response);
    } else {
        internalSendRpcResponse(call, response);
    }
}

uint32_t BaseRpc::sendUdpRpcCall ( const TransportAddress &  dest, BaseCallMessage *  msg, cPolymorphic *  context = NULL, simtime_t  timeout = -1, int  retries = 0, int  rpcId = -1, RpcListener *  rpcListener = NULL  )

inlineprotected

Sends a Remote-Procedure-Call message to the underlay

If no timeout is provided, a default value of globalParameters.rpcUdpTimeout for underlay and globalParameters.rpcKeyTimeout for a overlay rpc is used. After a timeout the message gets retransmitted for at maximum retries times. The destKey attribute is kept untouched.

Parameters

dest	Destination node handle (may contain a source route)
msg	RPC Call Message
context	a pointer to an arbitrary cPolymorphic object, which can be used to store additional state
timeout	RPC timeout in seconds (-1=use default value, 0=no timeout)
retries	How often we try to resent rpc call, if it gets lost
rpcId	RPC id
rpcListener	RPC Listener

Returns

The nonce of the RPC

Definition at line 293 of file BaseRpc.h.

Referenced by Pastry::changeState(), Pastry::checkProxCache(), Bamboo::doLeafsetMaintenance(), Bamboo::doLocalTuning(), Pastry::doRoutingTableMaintenance(), Pastry::doSecondStage(), Pastry::handleFailedNode(), Kademlia::handleNodeGracefulLeaveNotification(), Pastry::handleStateMessage(), IterativePathLookup::handleTimeout(), Pastry::handleTimerEvent(), KBRTestApp::handleTimerEvent(), pingNode(), IterativeLookup::sendRpc(), and Kademlia::sendSiblingFindNodeCall().

    {
        return sendRpcCall(UDP_TRANSPORT, INVALID_COMP, dest,
                           OverlayKey::UNSPECIFIED_KEY, msg, context,
                           NO_OVERLAY_ROUTING, timeout, retries, rpcId,
                           rpcListener);
    }

Member Data Documentation

int BaseRpc::bytesPingResponseSent

protected

Definition at line 451 of file BaseRpc.h.

Referenced by initRpcs(), and pingRpcCall().

int BaseRpc::bytesPingSent

protected

Definition at line 449 of file BaseRpc.h.

Referenced by initRpcs(), and pingNode().

CryptoModule* BaseRpc::cryptoModule

protected

pointer to CryptoModule

Definition at line 446 of file BaseRpc.h.

Referenced by BaseRpc(), and initRpcs().

bool BaseRpc::debugOutput

protected

debug output ?

Definition at line 83 of file BaseRpc.h.

RpcListener* BaseRpc::defaultRpcListener

private

Definition at line 523 of file BaseRpc.h.

Referenced by BaseRpc(), finishRpcs(), initRpcs(), and sendRpcCall().

GlobalStatistics* BaseRpc::globalStatistics

protected

pointer to GlobalStatistics module in this node

Definition at line 86 of file BaseRpc.h.

Referenced by Quon::changeState(), Vast::finishOverlay(), Quon::finishOverlay(), MyOverlay::finishOverlay(), Gia::finishOverlay(), oversim::Nice::finishOverlay(), BasePastry::finishOverlay(), Kademlia::finishOverlay(), Kademlia::handleBucketRefreshTimerExpired(), Quon::handleNodeMove(), Vast::handleNodeMove(), initRpcs(), and SendToKeyListener::SendToKeyListener().

NeighborCache* BaseRpc::neighborCache

protected

pointer to the neighbor cache

Definition at line 445 of file BaseRpc.h.

Referenced by BasePastry::baseInit(), BaseRpc(), BasePastry::determineAliveTable(), Landmark::finishApp(), Landmark::initializeApp(), initRpcs(), internalHandleRpcMessage(), Bamboo::lookupFinished(), BasePastry::pingNodes(), BasePastry::prePing(), Kademlia::routingAdd(), sendRpcCall(), and sendRpcResponse().

int BaseRpc::numPingResponseSent

protected

Definition at line 450 of file BaseRpc.h.

Referenced by initRpcs(), and pingRpcCall().

int BaseRpc::numPingSent

protected

Definition at line 448 of file BaseRpc.h.

Referenced by initRpcs(), and pingNode().

bool BaseRpc::optimizeTimeouts

private

Definition at line 526 of file BaseRpc.h.

Referenced by initRpcs(), and sendRpcCall().

BaseOverlay* BaseRpc::overlay

protected

Definition at line 80 of file BaseRpc.h.

Referenced by BaseApp::callLocalLookup(), BaseApp::callNeighborSet(), GlobalViewBuilder::cleanup(), SimpleUnderlayNCS::createNcsInfo(), RealWorldTestApp::deliver(), KBRTestApp::deliver(), KBRTestApp::forward(), NeighborCache::getOverlayThisNode(), NeighborCache::getProx(), oversim::Nice::handleAppMessage(), GlobalViewBuilder::handleCoordSendTimer(), KBRTestApp::handleLookupResponse(), GIASearchApp::handleLowerMessage(), TreeManagement::handleParentRequestRpcResponse(), NeighborCache::handleReadyMessage(), KBRTestApp::handleRpcResponse(), KBRTestApp::handleRpcTimeout(), SimpleGameClient::handleTimerEvent(), GIASearchApp::handleTimerEvent(), KBRTestApp::handleTimerEvent(), NeighborCache::handleTimerEvent(), SimpleUnderlayNCS::init(), TreeManagement::init(), Nps::init(), Landmark::initializeApp(), SimpleGameClient::initializeApp(), NeighborCache::initializeApp(), initRpcs(), BaseApp::isSiblingFor(), IterativeLookup::lookup(), NeighborCache::prepareOverlay(), sendRpcCall(), sendRpcMessageWithTransport(), sendRpcResponse(), NeighborCache::setCbrNodeId(), Nps::setOwnLayer(), GlobalViewBuilder::spreadGlobalView(), and NeighborCache::updateNode().

bool BaseRpc::rpcExponentialBackoff

private

Definition at line 527 of file BaseRpc.h.

Referenced by initRpcs(), and internalHandleRpcMessage().

simtime_t BaseRpc::rpcKeyTimeout

private

Definition at line 525 of file BaseRpc.h.

Referenced by initRpcs(), and sendRpcCall().

int BaseRpc::rpcsPending

private

Definition at line 522 of file BaseRpc.h.

Referenced by initRpcs().

RpcStates BaseRpc::rpcStates

private

Definition at line 524 of file BaseRpc.h.

Referenced by cancelAllRpcs(), cancelRpcMessage(), initRpcs(), internalHandleRpcMessage(), and sendRpcCall().

simtime_t BaseRpc::rpcUdpTimeout

private

Definition at line 525 of file BaseRpc.h.

Referenced by initRpcs(), and sendRpcCall().

CompType BaseRpc::thisCompType

protected

Definition at line 427 of file BaseRpc.h.

Referenced by initRpcs().

NodeHandle BaseRpc::thisNode

protected

NodeHandle to this node.

Definition at line 73 of file BaseRpc.h.

Referenced by Quon::addSite(), BasePastry::baseChangeState(), BasePastry::baseInit(), oversim::Nice::BasicJoinLayer(), MyOverlay::callbackNeighbors(), MyOverlay::callbackTimeout(), Gia::changeState(), Bamboo::changeState(), Quon::changeState(), oversim::Nice::changeState(), Pastry::changeState(), oversim::Nice::checkLeaderHeartbeatsForCollisions(), Pastry::checkProxCache(), oversim::Nice::cleanPeers(), oversim::Nice::ClusterMerge(), oversim::Nice::ClusterMergeRequest(), oversim::Nice::ClusterSplit(), Nps::coordsReqRpcResponse(), BasePastry::createStateMessage(), Quon::deleteSite(), MyApplication::deliver(), Bamboo::doGlobalTuning(), Pastry::doJoinUpdate(), Bamboo::doLocalTuning(), Pastry::doRoutingTableMaintenance(), Pastry::doSecondStage(), Pastry::endProcessingState(), MyOverlay::findNode(), BasePastry::findNode(), Kademlia::findNode(), BasePastry::finishOverlay(), oversim::Nice::getHighestLayer(), oversim::Nice::getHighestLeaderLayer(), oversim::Nice::getMaxDistance(), oversim::Nice::getMeanDistance(), MyOverlay::getNeighbors(), getThisNode(), oversim::Nice::gracefulLeave(), Quon::handleAppMessage(), oversim::Nice::handleAppMessage(), Pastry::handleFailedNode(), oversim::Nice::handleNiceClusterMergeRequest(), oversim::Nice::handleNiceHeartbeat(), oversim::Nice::handleNiceJoinCluster(), oversim::Nice::handleNiceJoineval(), oversim::Nice::handleNiceLeaderHeartbeat(), oversim::Nice::handleNiceLeaderTransfer(), oversim::Nice::handleNiceMulticast(), oversim::Nice::handleNicePingProbe(), oversim::Nice::handleNicePollRp(), oversim::Nice::handleNiceQuery(), oversim::Nice::handleNiceQueryResponse(), oversim::Nice::handleNiceRemove(), Pastry::handlePastryJoinCall(), Pastry::handlePastryJoinResponse(), NeighborCache::handleReadyMessage(), SimpleGameClient::handleRealworldPacket(), BasePastry::handleRequestLeafSetCall(), Bamboo::handleRequestLeafSetResponse(), Pastry::handleRequestLeafSetResponse(), BasePastry::handleRequestLeafSetResponse(), Pastry::handleRequestRepairCall(), Pastry::handleRequestRepairResponse(), BasePastry::handleRequestRoutingRowCall(), Pastry::handleRequestRoutingRowResponse(), BasePastry::handleRequestRoutingRowResponse(), Pastry::handleRequestStateCall(), Pastry::handleRequestStateResponse(), Pastry::handleRpcCall(), MyOverlay::handleRpcCall(), BasePastry::handleRpcCall(), Bamboo::handleRpcResponse(), Pastry::handleRpcResponse(), BasePastry::handleRpcResponse(), Pastry::handleRpcTimeout(), Kademlia::handleRpcTimeout(), BasePastry::handleRpcTimeout(), Pastry::handleStateMessage(), Bamboo::handleStateMessage(), MyApplication::handleTimerEvent(), Pastry::handleTimerEvent(), Bamboo::handleTimerEvent(), KBRTestApp::handleTimerEvent(), NeighborCache::handleTimerEvent(), Quon::handleUDPMessage(), MyApplication::handleUDPMessage(), Pastry::handleUDPMessage(), Landmark::initializeApp(), KBRTestApp::initializeApp(), Vast::initializeOverlay(), Quon::initializeOverlay(), MyOverlay::initializeOverlay(), oversim::Nice::initializeOverlay(), internalHandleRpcMessage(), MyOverlay::isSiblingFor(), BasePastry::isSiblingFor(), Kademlia::isSiblingFor(), oversim::Nice::JoinCluster(), MyOverlay::joinOverlay(), Kademlia::joinOverlay(), oversim::Nice::LeaderTransfer(), Bamboo::lookupFinished(), oversim::Nice::maintenance(), oversim::Nice::mergeNeeded(), Pastry::mergeState(), BasePastry::newLeafs(), BasePastry::pingNodes(), Pastry::pingResponse(), oversim::Nice::pollRP(), NeighborCache::prepareOverlay(), BasePastry::prePing(), Pastry::processState(), BasePastry::proxCallback(), Quon::purgeSites(), oversim::Nice::Query(), Pastry::recursiveRoutingHook(), Kademlia::recursiveRoutingHook(), oversim::Nice::Remove(), Kademlia::routingAdd(), Kademlia::routingInit(), oversim::Nice::sendDataToOverlay(), oversim::Nice::sendHeartbeats(), oversim::Nice::sendHeartbeatTo(), Quon::sendMessage(), oversim::Nice::sendRemoveTo(), sendRpcCall(), sendRpcResponse(), Kademlia::sendSiblingFindNodeCall(), Quon::sendToApp(), Kademlia::setBucketUsage(), NeighborCache::setCbrNodeId(), MyOverlay::setOwnNodeID(), oversim::Nice::splitNeeded(), NeighborCache::updateNcsInfo(), SimpleGameClient::updateNeighbors(), NeighborCache::updateNode(), Quon::updateThisSite(), BasePastry::updateTooltip(), Gia::updateTooltip(), Kademlia::updateTooltip(), and oversim::Nice::updateVisualization().

---

The documentation for this class was generated from the following files:

• BaseRpc.h
• BaseRpc.cc
