#include <MyOverlay.h>

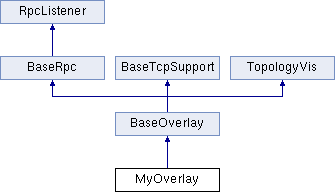

Inheritance diagram for MyOverlay:

Public Member Functions
	MyOverlay ()
	~MyOverlay ()
Public Member Functions inherited from BaseOverlay
	BaseOverlay ()
virtual	~BaseOverlay ()
	Virtual destructor.
States	getState ()
bool	isMalicious ()
	Returns true, if node is malicious.
bool	isInSimpleMultiOverlayHost ()
	Returns true if overlay is one in an array, inside a SimpleMultiOverlayHost.
const simtime_t &	getCreationTime ()
void	join (const OverlayKey &nodeID=OverlayKey::UNSPECIFIED_KEY)
	Join the overlay with a given nodeID.
virtual NodeVector *	local_lookup (const OverlayKey &key, int num, bool safe)
	finds nodes closest to the given OverlayKey
virtual NodeVector *	neighborSet (int num)
virtual bool	isSiblingFor (const NodeHandle &node, const OverlayKey &key, int numSiblings, bool *err)
	Query if a node is among the siblings for a given key.
virtual int	getMaxNumSiblings ()
	Query the maximum number of siblings (nodes close to a key) that are maintained by this overlay protocol.
virtual int	getMaxNumRedundantNodes ()
	Query the maximum number of redundant next hop nodes that are returned by findNode().
void	sendMessageToUDP (const TransportAddress &dest, cPacket *msg, simtime_t delay=SIMTIME_ZERO)
	Sends message to underlay.
void	sendToKey (const OverlayKey &key, BaseOverlayMessage *message, int numSiblings=1, const std::vector< TransportAddress > &sourceRoute=TransportAddress::UNSPECIFIED_NODES, RoutingType routingType=DEFAULT_ROUTING)
	Sends a message to an overlay node, with the generic routing algorithm.
virtual OverlayKey	distance (const OverlayKey &x, const OverlayKey &y, bool useAlternative=false) const
	This method should implement the distance between two keys.
void	registerComp (CompType compType, cModule *module)
cModule *	getCompModule (CompType compType)
cGate *	getCompRpcGate (CompType compType)
void	sendMessageToAllComp (cMessage *msg, CompType srcComp)
bool	providesKbr ()
virtual uint8_t	getBitsPerDigit ()
bool	getMeasureAuthBlock ()
BootstrapList &	getBootstrapList () const
virtual OverlayKey	estimateMeanDistance ()
	returns mean distance between OverlayKeys in the network
virtual uint32_t	estimateOverlaySize ()
	estimates the current number of nodes online
Public Member Functions inherited from BaseRpc
	BaseRpc ()
const NodeHandle &	getThisNode ()
	Returns the NodeHandle of this node.
simtime_t	getUdpTimeout ()
Public Member Functions inherited from RpcListener
virtual	~RpcListener ()
	destructor
Public Member Functions inherited from BaseTcpSupport
virtual void	socketDataArrived (int connId, void yourPtr, cPacket msg, bool urgent)
virtual void	socketEstablished (int connId, void *yourPtr)
virtual void	socketPeerClosed (int connId, void *yourPtr)
virtual void	socketFailure (int connId, void *yourPtr, int code)
virtual void	socketStatusArrived (int connId, void yourPtr, TCPStatusInfo status)
Public Member Functions inherited from TopologyVis
	TopologyVis ()
void	showOverlayNeighborArrow (const NodeHandle &neighbor, bool flush=true, const char *displayString=NULL)
	Draws an arrow from this node to neighbor.
void	deleteOverlayNeighborArrow (const NodeHandle &neighbor)
	Removes an arrow from this node to neighbor.

Private Member Functions
void	handleTimerEvent (cMessage *msg)
void	initializeOverlay (int stage)
void	setOwnNodeID ()
void	joinOverlay ()
void	finishOverlay ()
NodeVector *	findNode (const OverlayKey &key, int numRedundantNodes, int numSiblings, BaseOverlayMessage *msg)
bool	isSiblingFor (const NodeHandle &node, const OverlayKey &key, int numSiblings, bool *err)
int	getMaxNumSiblings ()
int	getMaxNumRedundantNodes ()
void	getNeighbors (const OverlayKey &neighborKey)
virtual void	callbackNeighbors (const NodeHandle &neighborKey, const NodeHandle &prevNeighbor, const NodeHandle &nextNeighbor)
virtual void	callbackTimeout (const OverlayKey &neighborKey)
bool	handleRpcCall (BaseCallMessage *msg)
void	handleRpcResponse (BaseResponseMessage msg, cPolymorphic context, int rpcId, simtime_t rtt)
void	handleRpcTimeout (BaseCallMessage msg, const TransportAddress &dest, cPolymorphic context, int rpcId, const OverlayKey &)

Private Attributes
cMessage *	rpcTimer
int	myKey
NodeHandle	prevNode
NodeHandle	nextNode
double	dropChance
int	numDropped

Additional Inherited Members
Public Types inherited from BaseOverlay
enum	States { INIT = 0, BOOTSTRAP = 1, DISCOVERY = 2, PREJOIN = 3, JOIN = 4, POSTJOIN = 5, READY = 6, REFRESH = 7, SHUTDOWN = 8, FAILED = 9, RSET = JOIN, BSET = POSTJOIN }
Protected Types inherited from BaseOverlay
typedef UNORDERED_SET < AbstractLookup *, lookupHashFcn, lookupHashFcn >	LookupSet
Protected Member Functions inherited from BaseOverlay
int	numInitStages () const
	Sets init stage.
virtual void	initializeOverlay (int stage)
	Initializes derived-class-attributes.
virtual void	finishOverlay ()
	collects statistical data in derived class
void	bindToPort (int port)
	Tells UDP we want to get all packets arriving on the given port.
virtual void	route (const OverlayKey &key, CompType destComp, CompType srcComp, cPacket *msg, const std::vector< TransportAddress > &sourceRoute=TransportAddress::UNSPECIFIED_NODES, RoutingType routingType=DEFAULT_ROUTING)
	Routes message through overlay.
void	callDeliver (BaseOverlayMessage *msg, const OverlayKey &destKey)
	Calls deliver function in application.
void	callForward (const OverlayKey &key, BaseRouteMessage *msg, const NodeHandle &nextHopNode)
	Calls forward function in application.
void	callUpdate (const NodeHandle &node, bool joined)
	Informs application about state changes of nodes or newly joined nodes.
void	handleMessage (cMessage *msg)
	Checks for message type and calls corresponding method.
void	handleBaseOverlayMessage (BaseOverlayMessage *msg, const OverlayKey &destKey=OverlayKey::UNSPECIFIED_KEY)
	Handles a BaseOverlayMessage
virtual void	handleUDPMessage (BaseOverlayMessage *msg)
	Processes messages from underlay.
virtual void	handleAppMessage (cMessage *msg)
	Processes "timer" self-messages.
virtual void	receiveChangeNotification (int category, const cPolymorphic *details)
	callback-method for events at the NotificationBoard
virtual void	handleTransportAddressChangedNotification ()
	This method gets call if the node has a new TransportAddress (IP address) because he changed his access network.
virtual void	handleNodeLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed.
virtual void	handleNodeGracefulLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed if this node is among the gracefulLeaveProbability nodes.
virtual void	recordOverlaySentStats (BaseOverlayMessage *msg)
	Collect overlay specific sent messages statistics.
void	setOverlayReady (bool ready)
	Sets the overlay ready icon and register/deregisters the node at the GlobalNodeList.
virtual AbstractLookup *	createLookup (RoutingType routingType=DEFAULT_ROUTING, const BaseOverlayMessage msg=NULL, const cPacket findNodeExt=NULL, bool appLookup=false)
	Creates an abstract iterative lookup instance.
virtual void	removeLookup (AbstractLookup *lookup)
	Removes the abstract lookup instance.
virtual NodeVector *	findNode (const OverlayKey &key, int numRedundantNodes, int numSiblings, BaseOverlayMessage *msg=NULL)
	Implements the find node call.
virtual void	joinOverlay ()
	Join the overlay with a given nodeID in thisNode.key.
virtual void	joinForeignPartition (const NodeHandle &node)
	Join another overlay partition with the given node as bootstrap node.
virtual bool	handleFailedNode (const TransportAddress &failed)
	Handles a failed node.
virtual void	lookupRpc (LookupCall *call)
virtual void	nextHopRpc (NextHopCall *call)
void	countFindNodeCall (const FindNodeCall *call)
void	countFailedNodeCall (const FailedNodeCall *call)
bool	internalHandleRpcCall (BaseCallMessage *msg)
	Handles internal rpc requests.
void	internalHandleRpcResponse (BaseResponseMessage msg, cPolymorphic context, int rpcId, simtime_t rtt)
	Handles rpc responses internal in base classes
void	internalHandleRpcTimeout (BaseCallMessage msg, const TransportAddress &dest, cPolymorphic context, int rpcId, const OverlayKey &destKey)
	Handles rpc timeouts internal in base classes
void	internalSendRouteRpc (BaseRpcMessage *message, const OverlayKey &destKey, const std::vector< TransportAddress > &sourceRoute, RoutingType routingType)
CompType	getThisCompType ()
	Return the component type of this module.
Protected Attributes inherited from BaseOverlay
int	numAppDataForwarded
	number of forwarded app data packets
int	bytesAppDataForwarded
	number of forwarded app data bytes at out-gate
int	numAppLookupForwarded
	number of forwarded app lookup packets
int	bytesAppLookupForwarded
	number of forwarded app lookup bytes at out-gate
int	numMaintenanceForwarded
	number of forwarded maintenance packets
int	bytesMaintenanceForwarded
	number of forwarded maintenance bytes at out-gate
int	numFindNodeSent
int	bytesFindNodeSent
int	numFindNodeResponseSent
int	bytesFindNodeResponseSent
int	numFailedNodeSent
int	bytesFailedNodeSent
int	numFailedNodeResponseSent
int	bytesFailedNodeResponseSent
std::vector< HopDelayRecord * >	singleHopDelays
simtime_t	creationTime
	simtime when the node has been created
GlobalNodeList *	globalNodeList
	pointer to GlobalNodeList in this node
NotificationBoard *	notificationBoard
	pointer to NotificationBoard in this node
UnderlayConfigurator *	underlayConfigurator
	pointer to UnderlayConfigurator in this node
BootstrapList *	bootstrapList
	pointer to the BootstrapList module
GlobalParameters *	globalParameters
	pointer to the GlobalParameters module
uint32_t	overlayId
	identifies the overlay this node belongs to (used for multiple overlays)
bool	debugOutput
	debug output ?
RoutingType	defaultRoutingType
bool	useCommonAPIforward
	forward messages to applications?
bool	collectPerHopDelay
	collect delay for single hops
bool	routeMsgAcks
	send ACK when receiving route message
uint32_t	recNumRedundantNodes
	numRedundantNodes for recursive routing
bool	recordRoute
	record visited hops on route
bool	drawOverlayTopology
bool	rejoinOnFailure
bool	sendRpcResponseToLastHop
	needed by KBR protocols for NAT support
bool	dropFindNodeAttack
	if node is malicious, it tries a findNode attack
bool	isSiblingAttack
	if node is malicious, it tries a isSibling attack
bool	invalidNodesAttack
	if node is malicious, it tries a invalidNode attack
bool	dropRouteMessageAttack
	if node is malicious, it drops all received BaseRouteMessages
int	localPort
	used UDP-port
int	hopCountMax
	maximum hop count
bool	measureAuthBlock
	if true, measure the overhead of signatures in rpc messages
bool	restoreContext
	if true, a node rejoins with its old nodeId and malicious state
int	numDropped
	number of dropped packets
int	bytesDropped
	number of dropped bytes
cOutVector	delayVector
	statistical output vector for packet-delays
cOutVector	hopCountVector
	statistical output vector for hop-counts
States	state
IterativeLookupConfiguration	iterativeLookupConfig
RecursiveLookupConfiguration	recursiveLookupConfig
LookupSet	lookups
bool	kbr
	set this to true, if the overlay provides KBR services

Detailed Description

Author: Antonio Zea

Definition at line 28 of file MyOverlay.h.

Constructor & Destructor Documentation

MyOverlay::MyOverlay ( )

inline

Definition at line 95 of file MyOverlay.h.

{ rpcTimer = NULL; };

MyOverlay::~MyOverlay ( )

inline

Definition at line 96 of file MyOverlay.h.

{ cancelAndDelete(rpcTimer); };

Member Function Documentation

void MyOverlay::callbackNeighbors	(	const NodeHandle &	neighborKey,
		const NodeHandle &	prevNeighbor,
		const NodeHandle &	nextNeighbor
	)

privatevirtual

Definition at line 278 of file MyOverlay.cc.

Referenced by handleRpcResponse().

{
    EV << thisNode << ": (RPC) Got response from "
       << neighborKey << "\n"
       << thisNode << ": (RPC) Neighbors: "
       << prevNeighbor.getIp() << ", "
       << nextNeighbor.getIp() << std::endl;
}

void MyOverlay::callbackTimeout ( const OverlayKey & neighborKey )

privatevirtual

Definition at line 289 of file MyOverlay.cc.

Referenced by handleRpcTimeout().

{
    EV << thisNode << ": (RPC) Query to " << neighborKey
       << " timed out!" << std::endl;
}

NodeVector * MyOverlay::findNode	(	const OverlayKey &	key,
		int	numRedundantNodes,
		int	numSiblings,
		BaseOverlayMessage *	msg
	)

private

Definition at line 121 of file MyOverlay.cc.

{
    NodeVector* nextHops;
    // do we drop the packet?
    if (uniform(0, 1) < dropChance) {
        // if yes, return an empty node vector
        nextHops = new NodeVector(0);
        numDropped++;
        return nextHops;
    }
    // else, set the response vector with one node
    nextHops = new NodeVector(1);
    // are we responsible? next step is this node
    if (key == thisNode.getKey()) {
        nextHops->add(thisNode);
    }
    // is the key behind us? next step is the previous node
    else if (key < thisNode.getKey()) {
        nextHops->add(prevNode);
    }
    // otherwise, the next step is the next node
    else {
        nextHops->add(nextNode);
    }
    return nextHops;
}

void MyOverlay::finishOverlay ( )

private

Definition at line 155 of file MyOverlay.cc.

{
    // remove this node from the overlay
    setOverlayReady(false);
    // save the statistics (see BaseApp)
    globalStatistics->addStdDev("MyOverlay: Dropped packets", numDropped);
}

int MyOverlay::getMaxNumRedundantNodes ( )

private

Definition at line 171 of file MyOverlay.cc.

{
    return 1;
}

int MyOverlay::getMaxNumSiblings ( )

private

Definition at line 165 of file MyOverlay.cc.

{
    return 1;
}

void MyOverlay::getNeighbors ( const OverlayKey & neighborKey )

private

Definition at line 177 of file MyOverlay.cc.

Referenced by handleTimerEvent().

{
    MyNeighborCall *msg = new MyNeighborCall();
    msg->setDestinationKey(neighborKey);
    // The function we'll be using to send an RPC is sendRouteRpcCall.
    // The first value is to which tier we'll be talking. Can be either
    // OVERLAY_COMP, TIER1_COMP, TIER2_COMP, and so on.
    // The second parameter is the node to which we'll send the message.
    // Can be either an OverlayKey or a TransportAddress.
    // The third parameter is the message.
    EV << thisNode << ": (RPC) Sending query to "
       << neighborKey << "!" << std::endl;
    sendRouteRpcCall(OVERLAY_COMP, neighborKey, msg);
}

bool MyOverlay::handleRpcCall ( BaseCallMessage * msg )

private

Definition at line 197 of file MyOverlay.cc.

{
    // There are many macros to simplify the handling of RPCs. The full list is in <OverSim>/src/common/RpcMacros.h.
    // start a switch
    RPC_SWITCH_START(msg);
    // enters the following block if the message is of type MyNeighborCall (note the shortened parameter!)
    RPC_ON_CALL(MyNeighbor) {
        // get Call message
        MyNeighborCall *mrpc = (MyNeighborCall*)msg;
        // create response
        MyNeighborResponse *rrpc = new MyNeighborResponse();
        rrpc->setRespondingNode(thisNode);
        rrpc->setPrevNeighbor(prevNode);
        rrpc->setNextNeighbor(nextNode);
        // now send the response. sendRpcResponse can automatically tell where
        // to send it to. Note that sendRpcResponse will delete mrpc (aka msg)!
        sendRpcResponse(mrpc, rrpc);
        RPC_HANDLED = true;  // set to true, since we did handle this RPC (default is false)
    }
    // end the switch
    RPC_SWITCH_END();
    // return whether we handled the message or not.
    // don't delete unhandled messages!
    return RPC_HANDLED;
}

void MyOverlay::handleRpcResponse	(	BaseResponseMessage *	msg,
		cPolymorphic *	context,
		int	rpcId,
		simtime_t	rtt
	)

private

Definition at line 255 of file MyOverlay.cc.

{
    // The macros are here similar. Just use RPC_ON_RESPONSE instead of RPC_ON_CALL.
    // start a switch
    RPC_SWITCH_START(msg);
    // enters the following block if the message is of type MyNeighborCall (note the shortened parameter!)
    RPC_ON_RESPONSE(MyNeighbor) {
        // get Response message
        MyNeighborResponse *mrpc = (MyNeighborResponse*)msg;
        // call our interface function
        callbackNeighbors(mrpc->getRespondingNode(),
                          mrpc->getPrevNeighbor(),
                          mrpc->getNextNeighbor());
    }
    // end the switch
    RPC_SWITCH_END();
}

void MyOverlay::handleRpcTimeout	(	BaseCallMessage *	msg,
		const TransportAddress &	dest,
		cPolymorphic *	context,
		int	rpcId,
		const OverlayKey &
	)

private

Definition at line 233 of file MyOverlay.cc.

{
    // Same macros as in handleRpc
    // start a switch
    RPC_SWITCH_START(msg);
    // enters the following block if the message is of type MyNeighborCall (note the shortened parameter!)
    RPC_ON_CALL(MyNeighbor) {
        MyNeighborCall *mrpc = (MyNeighborCall*)msg;          // get Call message
        callbackTimeout(mrpc->getDestinationKey());           // call interface function
    }
    // end the switch
    RPC_SWITCH_END();
}

void MyOverlay::handleTimerEvent ( cMessage * msg )

private

Definition at line 86 of file MyOverlay.cc.

{
    if (msg == rpcTimer) {
        // reschedule the timer
        scheduleAt(simTime() + 5, rpcTimer);
        // if the simulator is still busy creating the network, let's wait a bit longer
        if (underlayConfigurator->isInInitPhase()) return;
        // pick either or next neighbor, or our previous neighbor, and request their neighbors
        OverlayKey key;
        int neighborToAsk = intuniform(0, 1);
        if (neighborToAsk == 0) key = prevNode.getKey();
        else key = nextNode.getKey();
        getNeighbors(key);
    }
}

void MyOverlay::initializeOverlay ( int stage )

private

Definition at line 41 of file MyOverlay.cc.

{
    // see BaseApp.cc
    if (stage != MIN_STAGE_OVERLAY) return;
    // get our key from our IP address
    myKey = thisNode.getIp().get4().getInt() & ~BIGBIT;
    // initialize the rest of variables
    numDropped = 0;
    if (!(par("enableDrops"))) {
        dropChance = 0;
    } else {
        dropChance = par("dropChance");
    }
    rpcTimer = new cMessage("RPC timer");
    scheduleAt(simTime() + 5, rpcTimer);
}

bool MyOverlay::isSiblingFor	(	const NodeHandle &	node,
		const OverlayKey &	key,
		int	numSiblings,
		bool *	err
	)

private

Definition at line 107 of file MyOverlay.cc.

{
    // is it our node and our key?
    if (node == thisNode && key == thisNode.getKey()) {
        return true;
    }
    // we don't know otherwise
    return false;
}

void MyOverlay::joinOverlay ( )

private

Definition at line 70 of file MyOverlay.cc.

{
    // Set the information of the previous step in the chain
    prevNode.setIp(IPAddress(BIGBIT | (myKey - 1)));
    prevNode.setPort(thisNode.getPort());
    prevNode.setKey(OverlayKey(myKey - 1));
    // Set the information of the next step in the chain
    nextNode.setIp(IPAddress(BIGBIT | (myKey + 1)));
    nextNode.setPort(thisNode.getPort());
    nextNode.setKey(OverlayKey(myKey + 1));
    // tell the simulator that we're ready
    setOverlayReady(true);
}

void MyOverlay::setOwnNodeID ( )

private

Definition at line 62 of file MyOverlay.cc.

{
    // create the corresponding overlay key
    thisNode.setKey(OverlayKey(myKey));
}

Member Data Documentation

double MyOverlay::dropChance

private

Definition at line 40 of file MyOverlay.h.

Referenced by findNode(), and initializeOverlay().

int MyOverlay::myKey

private

Definition at line 35 of file MyOverlay.h.

Referenced by initializeOverlay(), joinOverlay(), and setOwnNodeID().

NodeHandle MyOverlay::nextNode

private

Definition at line 37 of file MyOverlay.h.

Referenced by findNode(), handleRpcCall(), handleTimerEvent(), and joinOverlay().

int MyOverlay::numDropped

private

Definition at line 43 of file MyOverlay.h.

Referenced by findNode(), finishOverlay(), and initializeOverlay().

NodeHandle MyOverlay::prevNode

private

Definition at line 36 of file MyOverlay.h.

Referenced by findNode(), handleRpcCall(), handleTimerEvent(), and joinOverlay().

cMessage* MyOverlay::rpcTimer

private

Definition at line 32 of file MyOverlay.h.

Referenced by handleTimerEvent(), initializeOverlay(), MyOverlay(), and ~MyOverlay().

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
