#include <Pastry.h>

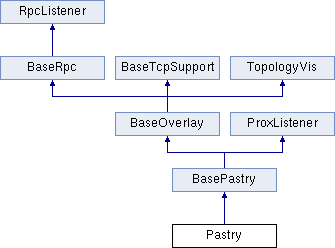

Inheritance diagram for Pastry:

Public Member Functions
virtual	~Pastry ()
virtual void	initializeOverlay (int stage)
	Initializes derived-class-attributes.
virtual void	handleTimerEvent (cMessage *msg)
virtual void	handleUDPMessage (BaseOverlayMessage *msg)
	Processes messages from underlay.
void	handleStateMessage (PastryStateMessage *msg)
	processes state messages, merging with own state tables
virtual void	pingResponse (PingResponse pingResponse, cPolymorphic context, int rpcId, simtime_t rtt)
Public Member Functions inherited from BasePastry
virtual	~BasePastry ()
int	getMaxNumSiblings ()
	Query the maximum number of siblings (nodes close to a key) that are maintained by this overlay protocol.
int	getMaxNumRedundantNodes ()
	Query the maximum number of redundant next hop nodes that are returned by findNode().
virtual void	handleAppMessage (BaseOverlayMessage *msg)
	processes messages from application
virtual void	updateTooltip ()
	updates information shown in tk-environment
virtual NodeVector *	findNode (const OverlayKey &key, int numRedundantNodes, int numSiblings, BaseOverlayMessage *msg)
	Implements the find node call.
virtual void	finishOverlay ()
	collects statistical data in derived class
virtual bool	isSiblingFor (const NodeHandle &node, const OverlayKey &key, int numSiblings, bool *err)
	Query if a node is among the siblings for a given key.
virtual AbstractLookup *	createLookup (RoutingType routingType=DEFAULT_ROUTING, const BaseOverlayMessage msg=NULL, const cPacket dummy=NULL, bool appLookup=false)
	Creates an abstract iterative lookup instance.
uint8_t	getBitsPerDigit ()
void	proxCallback (const TransportAddress &node, int rpcId, cPolymorphic *contextPointer, Prox prox)
virtual OverlayKey	estimateMeanDistance ()
	returns mean distance between OverlayKeys in the network
uint8_t	getRTLastRow () const
std::vector< TransportAddress > *	getRTRow (uint8_t index) const
std::vector< TransportAddress > *	getLeafSet () const
Public Member Functions inherited from BaseOverlay
	BaseOverlay ()
virtual	~BaseOverlay ()
	Virtual destructor.
States	getState ()
bool	isMalicious ()
	Returns true, if node is malicious.
bool	isInSimpleMultiOverlayHost ()
	Returns true if overlay is one in an array, inside a SimpleMultiOverlayHost.
const simtime_t &	getCreationTime ()
void	join (const OverlayKey &nodeID=OverlayKey::UNSPECIFIED_KEY)
	Join the overlay with a given nodeID.
virtual NodeVector *	local_lookup (const OverlayKey &key, int num, bool safe)
	finds nodes closest to the given OverlayKey
virtual NodeVector *	neighborSet (int num)
void	sendMessageToUDP (const TransportAddress &dest, cPacket *msg, simtime_t delay=SIMTIME_ZERO)
	Sends message to underlay.
void	sendToKey (const OverlayKey &key, BaseOverlayMessage *message, int numSiblings=1, const std::vector< TransportAddress > &sourceRoute=TransportAddress::UNSPECIFIED_NODES, RoutingType routingType=DEFAULT_ROUTING)
	Sends a message to an overlay node, with the generic routing algorithm.
void	registerComp (CompType compType, cModule *module)
cModule *	getCompModule (CompType compType)
cGate *	getCompRpcGate (CompType compType)
void	sendMessageToAllComp (cMessage *msg, CompType srcComp)
bool	providesKbr ()
bool	getMeasureAuthBlock ()
BootstrapList &	getBootstrapList () const
virtual uint32_t	estimateOverlaySize ()
	estimates the current number of nodes online
Public Member Functions inherited from BaseRpc
	BaseRpc ()
const NodeHandle &	getThisNode ()
	Returns the NodeHandle of this node.
simtime_t	getUdpTimeout ()
Public Member Functions inherited from RpcListener
virtual	~RpcListener ()
	destructor
Public Member Functions inherited from BaseTcpSupport
virtual void	socketDataArrived (int connId, void yourPtr, cPacket msg, bool urgent)
virtual void	socketEstablished (int connId, void *yourPtr)
virtual void	socketPeerClosed (int connId, void *yourPtr)
virtual void	socketFailure (int connId, void *yourPtr, int code)
virtual void	socketStatusArrived (int connId, void yourPtr, TCPStatusInfo status)
Public Member Functions inherited from TopologyVis
	TopologyVis ()
void	showOverlayNeighborArrow (const NodeHandle &neighbor, bool flush=true, const char *displayString=NULL)
	Draws an arrow from this node to neighbor.
void	deleteOverlayNeighborArrow (const NodeHandle &neighbor)
	Removes an arrow from this node to neighbor.

Protected Member Functions
virtual void	purgeVectors (void)
	delete all information/messages caching vectors, used for restarting overlay or finish()
bool	handleRpcCall (BaseCallMessage *msg)
	Processes Remote-Procedure-Call invocation messages.
void	handlePastryJoinCall (PastryJoinCall *call)
void	handleRequestStateCall (RequestStateCall *call)
void	handleRequestRepairCall (RequestRepairCall *call)
void	handleRpcResponse (BaseResponseMessage msg, cPolymorphic context, int rpcId, simtime_t rtt)
	This method is called if an RPC response has been received.
void	handlePastryJoinResponse (PastryJoinResponse *response)
void	handleRequestStateResponse (RequestStateResponse *response)
void	handleRequestRepairResponse (RequestRepairResponse *response)
void	handleRequestLeafSetResponse (RequestLeafSetResponse *response)
void	handleRequestRoutingRowResponse (RequestRoutingRowResponse *response)
void	handleRpcTimeout (BaseCallMessage call, const TransportAddress &dest, cPolymorphic context, int rpcId, const OverlayKey &key)
	This method is called if an RPC timeout has been reached.
virtual void	changeState (int toState)
	changes node state
virtual bool	recursiveRoutingHook (const TransportAddress &dest, BaseRouteMessage *msg)
	Hook for forwarded message in recursive lookup mode.
void	iterativeJoinHook (BaseOverlayMessage *msg, bool incrHopCount)
Protected Member Functions inherited from BasePastry
void	handleRequestLeafSetCall (RequestLeafSetCall *call)
void	handleRequestRoutingRowCall (RequestRoutingRowCall *call)
PastryStateMessage *	createStateMessage (enum PastryStateMsgType type=PASTRY_STATE_STD, simtime_t timestamp=-1, int16_t row=-1, bool lastHop=false)
virtual void	checkProxCache (void)=0
	checks whether proxCache is complete, takes appropriate actions depending on the protocol state
void	baseInit (void)
	initializes parameters and variables used in both Bamboo and Pastry
void	baseChangeState (int)
	changes node state, but leaves specific behavour, scheduling tasks in particular, to the inheriting protocols
OverlayKey	distance (const OverlayKey &x, const OverlayKey &y, bool useAlternative=false) const
	This method should implement the distance between two keys.
void	prePing (const PastryStateMessage *stateMsg)
	ping all nodes in a given state message.
void	pingNodes (void)
	ping all nodes in the pastry state message pointed to by private member stateCache
void	determineAliveTable (const PastryStateMessage *stateMsg)
	change the aliveTable to match the given stateMsg.
void	newLeafs (void)
	Pastry API: send newLeafs() to application if enabled.
Protected Member Functions inherited from BaseOverlay
int	numInitStages () const
	Sets init stage.
void	bindToPort (int port)
	Tells UDP we want to get all packets arriving on the given port.
virtual void	route (const OverlayKey &key, CompType destComp, CompType srcComp, cPacket *msg, const std::vector< TransportAddress > &sourceRoute=TransportAddress::UNSPECIFIED_NODES, RoutingType routingType=DEFAULT_ROUTING)
	Routes message through overlay.
void	callDeliver (BaseOverlayMessage *msg, const OverlayKey &destKey)
	Calls deliver function in application.
void	callForward (const OverlayKey &key, BaseRouteMessage *msg, const NodeHandle &nextHopNode)
	Calls forward function in application.
void	callUpdate (const NodeHandle &node, bool joined)
	Informs application about state changes of nodes or newly joined nodes.
void	handleMessage (cMessage *msg)
	Checks for message type and calls corresponding method.
void	handleBaseOverlayMessage (BaseOverlayMessage *msg, const OverlayKey &destKey=OverlayKey::UNSPECIFIED_KEY)
	Handles a BaseOverlayMessage
virtual void	handleAppMessage (cMessage *msg)
	Processes "timer" self-messages.
virtual void	receiveChangeNotification (int category, const cPolymorphic *details)
	callback-method for events at the NotificationBoard
virtual void	handleTransportAddressChangedNotification ()
	This method gets call if the node has a new TransportAddress (IP address) because he changed his access network.
virtual void	handleNodeLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed.
virtual void	handleNodeGracefulLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed if this node is among the gracefulLeaveProbability nodes.
virtual void	recordOverlaySentStats (BaseOverlayMessage *msg)
	Collect overlay specific sent messages statistics.
void	setOverlayReady (bool ready)
	Sets the overlay ready icon and register/deregisters the node at the GlobalNodeList.
virtual void	removeLookup (AbstractLookup *lookup)
	Removes the abstract lookup instance.
virtual void	joinOverlay ()
	Join the overlay with a given nodeID in thisNode.key.
virtual void	joinForeignPartition (const NodeHandle &node)
	Join another overlay partition with the given node as bootstrap node.
virtual bool	handleFailedNode (const TransportAddress &failed)
	Handles a failed node.
virtual void	lookupRpc (LookupCall *call)
virtual void	nextHopRpc (NextHopCall *call)
void	countFindNodeCall (const FindNodeCall *call)
void	countFailedNodeCall (const FailedNodeCall *call)
bool	internalHandleRpcCall (BaseCallMessage *msg)
	Handles internal rpc requests.
void	internalHandleRpcResponse (BaseResponseMessage msg, cPolymorphic context, int rpcId, simtime_t rtt)
	Handles rpc responses internal in base classes
void	internalHandleRpcTimeout (BaseCallMessage msg, const TransportAddress &dest, cPolymorphic context, int rpcId, const OverlayKey &destKey)
	Handles rpc timeouts internal in base classes
void	internalSendRouteRpc (BaseRpcMessage *message, const OverlayKey &destKey, const std::vector< TransportAddress > &sourceRoute, RoutingType routingType)
CompType	getThisCompType ()
	Return the component type of this module.
Protected Member Functions inherited from BaseRpc
void	initRpcs ()
	Initializes Remote-Procedure state.
void	finishRpcs ()
	Deinitializes Remote-Procedure state.
virtual void	internalHandleRpcMessage (BaseRpcMessage *msg)
	Handles incoming rpc messages and delegates them to the corresponding listeners or handlers.
uint32_t	sendRouteRpcCall (CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Routes a Remote-Procedure-Call message to an OverlayKey.
uint32_t	sendRouteRpcCall (CompType destComp, const OverlayKey &destKey, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Routes a Remote-Procedure-Call message to an OverlayKey.
uint32_t	sendRouteRpcCall (CompType destComp, const TransportAddress &dest, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends a Remote-Procedure-Call message using the overlay's UDP port This replaces ROUTE_DIRECT calls!
uint32_t	sendUdpRpcCall (const TransportAddress &dest, BaseCallMessage msg, cPolymorphic context=NULL, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends a Remote-Procedure-Call message to the underlay
uint32_t	sendInternalRpcCall (CompType destComp, BaseCallMessage msg, cPolymorphic context=NULL, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends an internal Remote-Procedure-Call between two tiers
void	cancelRpcMessage (uint32_t nonce)
	Cancels a Remote-Procedure-Call.
void	cancelAllRpcs ()
	Cancels all RPCs.
void	sendRpcResponse (TransportType transportType, CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage call, BaseResponseMessage response)
	Send Remote-Procedure response message and deletes call message.
void	sendRpcResponse (BaseCallMessage call, BaseResponseMessage response)
	Send Remote-Procedure response message to UDP and deletes call message.
int	pingNode (const TransportAddress &dest, simtime_t timeout=-1, int retries=0, cPolymorphic context=NULL, const char caption="PING", RpcListener *rpcListener=NULL, int rpcId=-1, TransportType transportType=INVALID_TRANSPORT)
	ping a node by its TransportAddress
virtual void	pingTimeout (PingCall pingCall, const TransportAddress &dest, cPolymorphic context, int rpcId)
bool	internalHandleMessage (cMessage *msg)
Protected Member Functions inherited from RpcListener
virtual void	handleRpcResponse (BaseResponseMessage *msg, const RpcState &rpcState, simtime_t rtt)
	This method is called if an RPC response has been received.
virtual void	handleRpcTimeout (const RpcState &rpcState)
	This method is called if an RPC timeout has been reached.
Protected Member Functions inherited from BaseTcpSupport
void	handleTCPMessage (cMessage *msg)
	Member function to handle incoming TCP messages.
void	bindAndListenTcp (int port)
	Member function to bind service to the specified port and listen afterwards.
bool	isAlreadyConnected (TransportAddress address)
	Member function to check if the service is already connected.
void	establishTcpConnection (TransportAddress address)
	Member function to establish a connection to the specified node.
void	sendTcpData (cPacket *msg, TransportAddress address)
	Member function to send TCP data to the specified node.
virtual void	handleConnectionEvent (EvCode code, TransportAddress address)
	Member function to handle passive connection events.
virtual void	handleDataReceived (TransportAddress address, cPacket *msg, bool urgent)
	Member function to handle incoming data.
virtual void	handleIncomingConnection (TransportAddress address)
	Member function to handle newly opened connections.
void	closeTcpConnection (TransportAddress address)
	Member function to close an established connection.
void	setTcpOut (cGate *gate)
	Member function to set local gate towards the TCP module during init phase.
cGate *	getTcpOut ()
	Member function to get local gate towards the TCP module.
Protected Member Functions inherited from TopologyVis
void	initVis (cModule *terminal)

Protected Attributes
std::vector< PastryStateMsgHandle >	stReceived
	State messages to process during join.
std::vector < PastryStateMsgHandle > ::iterator	stReceivedPos
std::vector< TransportAddress >	notifyList
	List of nodes to notify after join.
std::vector< PastrySendState * >	sendStateWait
Protected Attributes inherited from BasePastry
uint32_t	bitsPerDigit
uint32_t	numberOfLeaves
uint32_t	numberOfNeighbors
double	readyWaitAmount
double	joinTimeoutAmount
double	repairTimeout
bool	enableNewLeafs
bool	useRegularNextHop
bool	alwaysSendUpdate
bool	optimizeLookup
bool	proximityNeighborSelection
simtime_t	nearNodeRtt
bool	nearNodeImproved
bool	periodicMaintenance
TransportAddress *	leaf2ask
TransportAddress	bootstrapNode
TransportAddress	nearNode
simtime_t	lastStateChange
PastryStateMsgHandle	stateCache
	Handle for processing a single state message.
std::queue< PastryStateMsgHandle >	stateCacheQueue
	Queue of state messages waiting to be processed in READY state.
PastryStateMsgProximity	aliveTable
	Early update of leaf set: helper structure for marking known-dead nodes.
uint32_t	joinHopCount
cMessage *	readyWait
cMessage *	joinUpdateWait
PastryRoutingTable *	routingTable
PastryLeafSet *	leafSet
PastryNeighborhoodSet *	neighborhoodSet
Protected Attributes inherited from BaseOverlay
int	numAppDataForwarded
	number of forwarded app data packets
int	bytesAppDataForwarded
	number of forwarded app data bytes at out-gate
int	numAppLookupForwarded
	number of forwarded app lookup packets
int	bytesAppLookupForwarded
	number of forwarded app lookup bytes at out-gate
int	numMaintenanceForwarded
	number of forwarded maintenance packets
int	bytesMaintenanceForwarded
	number of forwarded maintenance bytes at out-gate
int	numFindNodeSent
int	bytesFindNodeSent
int	numFindNodeResponseSent
int	bytesFindNodeResponseSent
int	numFailedNodeSent
int	bytesFailedNodeSent
int	numFailedNodeResponseSent
int	bytesFailedNodeResponseSent
std::vector< HopDelayRecord * >	singleHopDelays
simtime_t	creationTime
	simtime when the node has been created
GlobalNodeList *	globalNodeList
	pointer to GlobalNodeList in this node
NotificationBoard *	notificationBoard
	pointer to NotificationBoard in this node
UnderlayConfigurator *	underlayConfigurator
	pointer to UnderlayConfigurator in this node
BootstrapList *	bootstrapList
	pointer to the BootstrapList module
GlobalParameters *	globalParameters
	pointer to the GlobalParameters module
uint32_t	overlayId
	identifies the overlay this node belongs to (used for multiple overlays)
bool	debugOutput
	debug output ?
RoutingType	defaultRoutingType
bool	useCommonAPIforward
	forward messages to applications?
bool	collectPerHopDelay
	collect delay for single hops
bool	routeMsgAcks
	send ACK when receiving route message
uint32_t	recNumRedundantNodes
	numRedundantNodes for recursive routing
bool	recordRoute
	record visited hops on route
bool	drawOverlayTopology
bool	rejoinOnFailure
bool	sendRpcResponseToLastHop
	needed by KBR protocols for NAT support
bool	dropFindNodeAttack
	if node is malicious, it tries a findNode attack
bool	isSiblingAttack
	if node is malicious, it tries a isSibling attack
bool	invalidNodesAttack
	if node is malicious, it tries a invalidNode attack
bool	dropRouteMessageAttack
	if node is malicious, it drops all received BaseRouteMessages
int	localPort
	used UDP-port
int	hopCountMax
	maximum hop count
bool	measureAuthBlock
	if true, measure the overhead of signatures in rpc messages
bool	restoreContext
	if true, a node rejoins with its old nodeId and malicious state
int	numDropped
	number of dropped packets
int	bytesDropped
	number of dropped bytes
cOutVector	delayVector
	statistical output vector for packet-delays
cOutVector	hopCountVector
	statistical output vector for hop-counts
States	state
IterativeLookupConfiguration	iterativeLookupConfig
RecursiveLookupConfiguration	recursiveLookupConfig
LookupSet	lookups
bool	kbr
	set this to true, if the overlay provides KBR services
Protected Attributes inherited from BaseRpc
NodeHandle	thisNode
	NodeHandle to this node.
BaseOverlay *	overlay
bool	debugOutput
	debug output ?
GlobalStatistics *	globalStatistics
	pointer to GlobalStatistics module in this node
CompType	thisCompType
NeighborCache *	neighborCache
	pointer to the neighbor cache
CryptoModule *	cryptoModule
	pointer to CryptoModule
int	numPingSent
int	bytesPingSent
int	numPingResponseSent
int	bytesPingResponseSent
Protected Attributes inherited from TopologyVis
cModule *	thisTerminal
GlobalNodeList *	globalNodeList
	pointer to corresponding node

Private Member Functions
void	clearVectors ()
void	doSecondStage (void)
	do the second stage of initialization as described in the paper
void	doRoutingTableMaintenance ()
	periodic routing table maintenance requests the corresponding routing table row from one node in each row
bool	handleFailedNode (const TransportAddress &failed)
	notifies leafset and routingtable of a failed node and sends out a repair request if possible
void	checkProxCache (void)
	checks whether proxCache is complete, takes appropriate actions depending on the protocol state
void	processState (void)
bool	mergeState (void)
void	endProcessingState (void)
void	doJoinUpdate (void)
	send updated state to all nodes when entering ready state
virtual void	joinOverlay ()
void	sendStateDelayed (const TransportAddress &destination)
	send a standard state message with a small delay

Private Attributes
simtime_t	secondStageInterval
simtime_t	routingTableMaintenanceInterval
simtime_t	discoveryTimeoutAmount
bool	partialJoinPath
uint16_t	discoveryModeProbedNodes
int	depth
int	updateCounter
bool	minimalJoinState
bool	useDiscovery
bool	useSecondStage
bool	useRoutingTableMaintenance
bool	sendStateAtLeafsetRepair
bool	pingBeforeSecondStage
bool	overrideOldPastry
bool	overrideNewPastry
cMessage *	secondStageWait
cMessage *	ringCheck
cMessage *	discoveryTimeout
cMessage *	repairTaskTimeout

Additional Inherited Members
Public Types inherited from BaseOverlay
enum	States { INIT = 0, BOOTSTRAP = 1, DISCOVERY = 2, PREJOIN = 3, JOIN = 4, POSTJOIN = 5, READY = 6, REFRESH = 7, SHUTDOWN = 8, FAILED = 9, RSET = JOIN, BSET = POSTJOIN }
Public Attributes inherited from BasePastry
int	joins
int	joinTries
int	joinPartial
int	joinSeen
int	joinBytesSeen
int	joinReceived
int	joinBytesReceived
int	joinSent
int	joinBytesSent
int	stateSent
int	stateBytesSent
int	stateReceived
int	stateBytesReceived
int	repairReqSent
int	repairReqBytesSent
int	repairReqReceived
int	repairReqBytesReceived
int	stateReqSent
int	stateReqBytesSent
int	stateReqReceived
int	stateReqBytesReceived
int	totalLookups
int	responsibleLookups
int	routingTableLookups
int	closerNodeLookups
int	closerNodeLookupsFromNeighborhood
int	leafsetReqSent
int	leafsetReqBytesSent
int	leafsetReqReceived
int	leafsetReqBytesReceived
int	leafsetSent
int	leafsetBytesSent
int	leafsetReceived
int	leafsetBytesReceived
int	routingTableRowReqSent
int	routingTableRowReqBytesSent
int	routingTableRowReqReceived
int	routingTableRowReqBytesReceived
int	routingTableRowSent
int	routingTableRowBytesSent
int	routingTableRowReceived
int	routingTableRowBytesReceived
Protected Types inherited from BasePastry
enum	StateObject { ROUTINGTABLE, LEAFSET, NEIGHBORHOODSET }
enum	{ PING_RECEIVED_STATE = 1, PING_NEXT_HOP = 2, PING_SINGLE_NODE = 3, PING_DISCOVERY = 4 }

Detailed Description

Pastry overlay module.

Author: Felix Palmen

See Also: BaseOverlay

Definition at line 53 of file Pastry.h.

Constructor & Destructor Documentation

Pastry::~Pastry ( )

virtual

Definition at line 39 of file Pastry.cc.

{
    // destroy self timer messages
    cancelAndDelete(readyWait);
    cancelAndDelete(joinUpdateWait);
    cancelAndDelete(secondStageWait);
    if (useDiscovery) cancelAndDelete(discoveryTimeout);
    if (routingTableMaintenanceInterval > 0) cancelAndDelete(repairTaskTimeout);
    clearVectors();
}

Member Function Documentation

void Pastry::changeState ( int toState )

protectedvirtual

changes node state

Parameters

toState state to change to

Reimplemented from BasePastry.

Definition at line 161 of file Pastry.cc.

Referenced by checkProxCache(), handleStateMessage(), handleTimerEvent(), and joinOverlay().

{
    if (readyWait->isScheduled()) cancelEvent(readyWait);
    baseChangeState(toState);
    switch (toState) {
    case INIT:
        cancelAllRpcs();
        purgeVectors();
        break;
    case DISCOVERY: {
        state = DISCOVERY;
        nearNodeRtt = MAXTIME;
        discoveryModeProbedNodes = 0;
        pingNode(bootstrapNode, discoveryTimeoutAmount, 0,
                 NULL, "PING bootstrapNode in discovery mode",
                 NULL, PING_DISCOVERY, UDP_TRANSPORT); //TODO
        RequestLeafSetCall* call =
            new RequestLeafSetCall("REQUEST LEAFSET Call");
        call->setStatType(MAINTENANCE_STAT);
        call->setBitLength(PASTRYREQUESTLEAFSETCALL_L(call));
        RECORD_STATS(leafsetReqSent++;
                     leafsetReqBytesSent += call->getByteLength());
        sendUdpRpcCall(bootstrapNode, call);
        depth = -1;
    }
    break;
    case JOIN: {
        joinHopCount = 0;
        PastryJoinCall* call = new PastryJoinCall("JOIN Call");
        call->setStatType(MAINTENANCE_STAT);
        call->setBitLength(PASTRYJOINCALL_L(msg));
        RECORD_STATS(joinSent++; joinBytesSent += call->getByteLength());
        sendRouteRpcCall(OVERLAY_COMP, nearNode, thisNode.getKey(), call);
    }
    break;
    case READY:
        // determine list of all known nodes as notifyList
        notifyList.clear();
        leafSet->dumpToVector(notifyList);
        routingTable->dumpToVector(notifyList);
        sort(notifyList.begin(), notifyList.end());
        notifyList.erase(unique(notifyList.begin(), notifyList.end()),
                         notifyList.end());
        // schedule update
        cancelEvent(joinUpdateWait);
        scheduleAt(simTime() + 0.0001, joinUpdateWait);
        // schedule second stage
        if (useSecondStage) {
            cancelEvent(secondStageWait);
            scheduleAt(simTime() + secondStageInterval, secondStageWait);
        }
        // schedule routing table maintenance task
        if (useRoutingTableMaintenance) {
            cancelEvent(repairTaskTimeout);
            scheduleAt(simTime() + routingTableMaintenanceInterval, repairTaskTimeout);
        }
        break;
    }
}

void Pastry::checkProxCache ( void )

private

checks whether proxCache is complete, takes appropriate actions depending on the protocol state

Definition at line 939 of file Pastry.cc.

{
    EV << "[Pastry::checkProxCache() @ " << thisNode.getIp()
       << " (" << thisNode.getKey().toString(16) << ")]"
       << endl;
    // no cached STATE message?
    assert(stateCache.msg || !stateCache.prox);
    if (!stateCache.msg) {
        return;
    }
    // no entries in stateCache.prox?
    if (stateCache.prox->pr_rt.empty() &&
        stateCache.prox->pr_ls.empty() &&
        stateCache.prox->pr_ns.empty())
        throw cRuntimeError("ERROR in Pastry: stateCache.prox empty!");
    // some entries not yet determined?
    if ((find(stateCache.prox->pr_rt.begin(), stateCache.prox->pr_rt.end(),
        PASTRY_PROX_PENDING) != stateCache.prox->pr_rt.end()) ||
        (find(stateCache.prox->pr_ls.begin(), stateCache.prox->pr_ls.end(),
         PASTRY_PROX_PENDING) != stateCache.prox->pr_ls.end()) ||
        (find(stateCache.prox->pr_ns.begin(), stateCache.prox->pr_ns.end(),
         PASTRY_PROX_PENDING) != stateCache.prox->pr_ns.end())) {
        return;
    }
    EV << "[Pastry::checkProxCache() @ " << thisNode.getIp()
       << " (" << thisNode.getKey().toString(16) << ")]\n"
       << "    all proximities for current STATE message from "
       << stateCache.msg->getSender().getIp()
       << " collected!"
       << endl;
    simtime_t now = simTime();
    if (state == JOIN) {
        // save pointer to proximity vectors (it is NULL until now):
        stReceivedPos->prox = stateCache.prox;
        // collected proximities for all STATE messages?
        if (++stReceivedPos == stReceived.end()) {
            EV << "[Pastry::checkProxCache() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    proximities for all STATE messages collected!"
               << endl;
            stateCache.msg = NULL;
            stateCache.prox = NULL;
            if (debugOutput) {
                EV << "[Pastry::checkProxCache() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    [JOIN] starting to build own state from "
                   << stReceived.size() << " received state messages..."
                   << endl;
            }
            if (mergeState()) {
                changeState(READY);
                EV << "[Pastry::checkProxCache() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    changeState(READY) called"
                   << endl;
            } else {
                EV << "[Pastry::checkProxCache() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    Error initializing while joining! Restarting ..."
                   << endl;
                joinOverlay();
            }
        } else {
            EV << "[Pastry::checkProxCache() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    NOT all proximities for all STATE messages collected!"
               << endl;
            // process next state message in vector:
            if (stReceivedPos->msg == NULL)
                throw cRuntimeError("stReceivedPos->msg = NULL");
            stateCache = *stReceivedPos;
            if (stateCache.msg == NULL)
                throw cRuntimeError("msg = NULL");
            processState();
        }
    } else {
        // state == READY
        if (stateCache.msg->getPastryStateMsgType() == PASTRY_STATE_REPAIR) {
            // try to repair routingtable based on repair message:
            const TransportAddress& askRt =
                routingTable->repair(stateCache.msg, stateCache.prox);
            if (! askRt.isUnspecified()) {
                RequestRepairCall* call =
                    new RequestRepairCall("REQUEST REPAIR Call");
                call->setBitLength(PASTRYREQUESTREPAIRCALL_L(call));
                RECORD_STATS(repairReqSent++; repairReqBytesSent += call->getByteLength());
                sendUdpRpcCall(askRt, call);
            }
            // while not really known, it's safe to assume that a repair
            // message changed our state:
            lastStateChange = now;
        } else {
            if (stateCache.outdatedUpdate) {
                // send another STATE message on outdated state update:
                updateCounter++;
                sendStateDelayed(stateCache.msg->getSender());
            } else {
                // merge info in own state tables
                // except leafset (was already handled in handleStateMessage)
                if (neighborhoodSet->mergeState(stateCache.msg, stateCache.prox))
                    lastStateChange = now;
                EV << "[Pastry::checkProxCache() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    Merging nodes into routing table"
                   << endl;
                if (routingTable->mergeState(stateCache.msg, stateCache.prox)) {
                    lastStateChange = now;
                    EV << "[Pastry::checkProxCache() @ " << thisNode.getIp()
                       << " (" << thisNode.getKey().toString(16) << ")]\n"
                       << "    Merged nodes into routing table"
                       << endl;
                }
            }
        }
        updateTooltip();
        endProcessingState();
    }
}

void Pastry::clearVectors ( )

private

Definition at line 52 of file Pastry.cc.

Referenced by purgeVectors(), and ~Pastry().

{
    // purge pending state messages
    if (!stReceived.empty()) {
        for (std::vector<PastryStateMsgHandle>::iterator it =
            stReceived.begin(); it != stReceived.end(); it++) {
            // check whether one of the pointers is a duplicate of stateCache
            if (it->msg == stateCache.msg) stateCache.msg = NULL;
            if (it->prox == stateCache.prox) stateCache.prox = NULL;
            delete it->msg;
            delete it->prox;
        }
        stReceived.clear();
        stReceivedPos = stReceived.end();
    }
    // purge notify list:
    notifyList.clear();
}

void Pastry::doJoinUpdate ( void )

private

send updated state to all nodes when entering ready state

Definition at line 761 of file Pastry.cc.

Referenced by handleTimerEvent().

{
    // send "update" state message to all nodes who sent us their state
    // during INIT, remove these from notifyList so they don't get our
    // state twice
    std::vector<TransportAddress>::iterator nListPos;
    if (!stReceived.empty()) {
        for (std::vector<PastryStateMsgHandle>::iterator it =
                 stReceived.begin(); it != stReceived.end(); ++it) {
            PastryStateMessage* stateMsg =
                 createStateMessage(PASTRY_STATE_UPDATE,
                                    it->msg->getTimestamp());
            RECORD_STATS(stateSent++;
                         stateBytesSent += stateMsg->getByteLength());
            sendMessageToUDP(it->msg->getSender(), stateMsg);
            nListPos = find(notifyList.begin(), notifyList.end(),
                            it->msg->getSender());
            if (nListPos != notifyList.end()) {
                notifyList.erase(nListPos);
            }
            delete it->msg;
            delete it->prox;
        }
        stReceived.clear();
    }
    // send a normal STATE message to all remaining known nodes
    for (std::vector<TransportAddress>::iterator it =
             notifyList.begin(); it != notifyList.end(); it++) {
        if (*it != thisNode) {
            PastryStateMessage* stateMsg =
                createStateMessage(PASTRY_STATE_JOINUPDATE);
            RECORD_STATS(stateSent++;
                         stateBytesSent += stateMsg->getByteLength());
            sendMessageToUDP(*it, stateMsg);
        }
    }
    notifyList.clear();
    updateTooltip();
}

void Pastry::doRoutingTableMaintenance ( )

private

periodic routing table maintenance requests the corresponding routing table row from one node in each row

Definition at line 859 of file Pastry.cc.

Referenced by handleTimerEvent().

{
    for (int i = 0; i < routingTable->getLastRow(); i++) {
        const TransportAddress& ask4row = routingTable->getRandomNode(i);
        assert(!dynamic_cast<const NodeHandle&>(ask4row).getKey().isUnspecified());
        if ((!ask4row.isUnspecified()) && (ask4row != thisNode)) {
            RequestRoutingRowCall* call =
                new RequestRoutingRowCall("REQUEST ROUTING ROW Call");
            call->setStatType(MAINTENANCE_STAT);
            call->setRow(i + 1);
            call->setBitLength(PASTRYREQUESTROUTINGROWCALL_L(call));
            RECORD_STATS(routingTableRowReqSent++;
            routingTableRowReqBytesSent += call->getByteLength());
            sendUdpRpcCall(ask4row, call);
        } else {
            EV << "[Pastry::doRoutingTableMaintenance() @ "
               << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    could not send Message to Node in Row" << i
               << endl;
        }
    }
}

void Pastry::doSecondStage ( void )

private

do the second stage of initialization as described in the paper

Definition at line 804 of file Pastry.cc.

Referenced by handleTimerEvent().

{
    getParentModule()->getParentModule()->bubble("entering SECOND STAGE");
    // probe nodes in local state
    if (leafSet->isValid()) {
        PastryStateMessage* stateMsg = createStateMessage();
        PastryStateMsgHandle handle(stateMsg);
        if (!stateCache.msg) {
            stateCache = handle;
            processState();
        } else {
            stateCacheQueue.push(handle);
            if (stateCacheQueue.size() > 15) {
                delete stateCacheQueue.front().msg;
                stateCacheQueue.pop();
                EV << "[Pastry::doSecondStage() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    stateCacheQueue full -> pop()" << endl;
            }
            if (proximityNeighborSelection) {
                prePing(stateMsg);
            }
        }
    }
    // "second stage" for locality:
    notifyList.clear();
    routingTable->dumpToVector(notifyList);
    neighborhoodSet->dumpToVector(notifyList);
    sort(notifyList.begin(), notifyList.end());
    notifyList.erase(unique(notifyList.begin(), notifyList.end()),
                     notifyList.end());
    for (std::vector<TransportAddress>::iterator it = notifyList.begin();
         it != notifyList.end(); it++) {
        if (*it == thisNode) continue;
        EV << "[Pastry::doSecondStage() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    second stage: requesting state from " << *it
           << endl;
        RequestStateCall* call =
            new RequestStateCall("REQUEST STATE Call");
        call->setBitLength(PASTRYREQUESTREPAIRCALL_L(call));
        RECORD_STATS(stateReqSent++;
                     stateReqBytesSent += call->getByteLength());
        sendUdpRpcCall(*it, call);
    }
    notifyList.clear();
}

void Pastry::endProcessingState ( void )

private

Definition at line 1070 of file Pastry.cc.

Referenced by checkProxCache(), and processState().

{
    // if state message was not an update, send one back:
    if (stateCache.msg &&
        stateCache.msg->getPastryStateMsgType() != PASTRY_STATE_UPDATE &&
        (alwaysSendUpdate || lastStateChange == simTime()) &&
        !stateCache.msg->getSender().isUnspecified() &&
        thisNode != stateCache.msg->getSender()) {//hack
        PastryStateMessage* stateMsg =
            createStateMessage(PASTRY_STATE_UPDATE,
                               stateCache.msg->getTimestamp());
        RECORD_STATS(stateSent++;
                     stateBytesSent += stateMsg->getByteLength());
        sendMessageToUDP(stateCache.msg->getSender(), stateMsg);
    }
    delete stateCache.msg;
    stateCache.msg = NULL;
    delete stateCache.prox;
    stateCache.prox = NULL;
    // process next queued message:
    if (! stateCacheQueue.empty()) {
        stateCache = stateCacheQueue.front();
        stateCacheQueue.pop();
        processState();
    }
}

bool Pastry::handleFailedNode ( const TransportAddress & failed )

private

notifies leafset and routingtable of a failed node and sends out a repair request if possible

Parameters

failed the failed node

Returns: true as long as local state is READY (signals lookup to try again)

Definition at line 886 of file Pastry.cc.

Referenced by handlePastryJoinCall(), and recursiveRoutingHook().

{
    if (state != READY) return false;
    bool wasValid = leafSet->isValid();
    if (failed.isUnspecified())
        opp_error("Pastry::handleFailedNode(): failed is unspecified!");
    const TransportAddress& lsAsk = leafSet->failedNode(failed);
    const TransportAddress& rtAsk = routingTable->failedNode(failed);
    neighborhoodSet->failedNode(failed);
    if (!lsAsk.isUnspecified()) {
        newLeafs();
        if (sendStateAtLeafsetRepair) {
            RequestRepairCall* call =
                new RequestRepairCall("REQUEST REPAIR Call");
            call->setBitLength(PASTRYREQUESTREPAIRCALL_L(call));
            RECORD_STATS(repairReqSent++;
                         repairReqBytesSent += call->getByteLength());
            sendUdpRpcCall(lsAsk, call);
        } else {
            RequestLeafSetCall* call =
                new RequestLeafSetCall("REQUEST LEAFSET Call");
            call->setBitLength(PASTRYREQUESTLEAFSETCALL_L(call));
            RECORD_STATS(leafsetReqSent++;
                         leafsetReqBytesSent += call->getByteLength());
            sendUdpRpcCall(lsAsk, call);
        }
    }
    if (!rtAsk.isUnspecified() && (lsAsk.isUnspecified() || lsAsk != rtAsk)) {
        RequestRepairCall* call =
            new RequestRepairCall("REQUEST REPAIR Call");
        call->setBitLength(PASTRYREQUESTREPAIRCALL_L(call));
        RECORD_STATS(repairReqSent++; repairReqBytesSent += call->getByteLength());
        sendUdpRpcCall(rtAsk, call);
    }
    if (wasValid && lsAsk.isUnspecified() && (! leafSet->isValid())) {
        EV << "[Pastry::handleFailedNode() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    lost connection to the network, trying to re-join."
           << endl;
        join();
        return false;
    }
    return true;
}

void Pastry::handlePastryJoinCall ( PastryJoinCall * call )

protected

Definition at line 382 of file Pastry.cc.

Referenced by handleRpcCall().

{
    EV << "[Pastry::handlePastryJoinCall() @ " << thisNode.getIp()
       << " (" << thisNode.getKey().toString(16) << ")]"
       << endl;
    RECORD_STATS(joinReceived++;
                 joinBytesReceived += call->getByteLength());
    if (state != READY) {
        if (call->getSrcNode() == thisNode) {
            EV << "[Pastry::handlePastryJoinCall() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    PastryJoinCall received by originator!"
               << endl;
        } else {
            EV << "[Pastry::handlePastryJoinCall() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    received join message before reaching "
               << "READY state, dropping message!"
               << endl;
        }
    } else if (call->getSrcNode() == thisNode) {
        EV << "[Pastry::handlePastryJoinCall() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    PastryJoinCall gets dropped because it is "
           << "outdated and has been received by originator!"
           << endl;
    } else {
        OverlayCtrlInfo* overlayCtrlInfo =
            check_and_cast<OverlayCtrlInfo*>(call->getControlInfo());
        uint32_t joinHopCount =  overlayCtrlInfo->getHopCount();
        if ((joinHopCount > 1) &&
                ((defaultRoutingType == ITERATIVE_ROUTING) ||
                        (defaultRoutingType == EXHAUSTIVE_ITERATIVE_ROUTING)))
            joinHopCount--;
        // remove node from state if it is rejoining
        handleFailedNode(call->getSrcNode());
        PastryJoinResponse* response = new PastryJoinResponse("JOIN Response");
        // create new state msg and set special fields for some types:
        response->setStatType(MAINTENANCE_STAT);
        response->setTimestamp(simTime());
        response->setBitLength(PASTRYJOINRESPONSE_L(response));
        response->encapsulate(createStateMessage((minimalJoinState ?
                                                  PASTRY_STATE_MINJOIN :
                                                  PASTRY_STATE_JOIN),
                                                  -1, joinHopCount, true));
        // send...
        RECORD_STATS(stateSent++;
                     stateBytesSent += response->getByteLength());
        sendRpcResponse(call, response);
    }
}

void Pastry::handlePastryJoinResponse ( PastryJoinResponse * response )

protected

Definition at line 594 of file Pastry.cc.

Referenced by handleRpcResponse().

{
    EV << "[Pastry::handlePastryJoinResponse() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]"
           << endl;
    RECORD_STATS(stateReceived++;
                 stateBytesReceived += response->getByteLength());
    if (state == JOIN) {
        handleStateMessage(check_and_cast<PastryStateMessage*>(response->decapsulate()));
    }
}

void Pastry::handleRequestLeafSetResponse ( RequestLeafSetResponse * response )

protectedvirtual

Reimplemented from BasePastry.

Definition at line 623 of file Pastry.cc.

Referenced by handleRpcResponse().

{
    EV << "[Pastry::handleRequestLeafSetResponse() @ " << thisNode.getIp()
       << " (" << thisNode.getKey().toString(16) << ")]"
       << endl;
    if (state == DISCOVERY) {
        const NodeHandle* node;
        discoveryModeProbedNodes = 0;
        PastryStateMessage* leaves =
            check_and_cast<PastryStateMessage*>(response->getEncapsulatedPacket());
        for (uint32_t i = 0; i < leaves->getLeafSetArraySize(); ++i) {
            node = &(leaves->getLeafSet(i));
            // unspecified nodes not considered
            if ( !(node->isUnspecified()) ) {
                pingNode(*node, discoveryTimeoutAmount, 0,
                         NULL, "PING received leaves for nearest node",
                         NULL, -1, UDP_TRANSPORT); //TODO
                discoveryModeProbedNodes++;
            }
        }
        EV << "    received leafset, waiting for pings"
           << endl;
        if (discoveryTimeout->isScheduled()) cancelEvent(discoveryTimeout);
        scheduleAt(simTime() + discoveryTimeoutAmount, discoveryTimeout);
    }
}

void Pastry::handleRequestRepairCall ( RequestRepairCall * call )

protected

Definition at line 474 of file Pastry.cc.

Referenced by handleRpcCall().

{
    EV << "[Pastry::handleRequestRepairCall() @ " << thisNode.getIp()
       << " (" << thisNode.getKey().toString(16) << ")]"
       << endl;
    RECORD_STATS(repairReqReceived++;
                 repairReqBytesReceived += call->getByteLength());
    if (state != READY) {
        EV << "    received repair request before reaching"
           << " READY state, dropping message!"
           << endl;
        delete call;
        return;
    }
    RequestRepairResponse* response =
        new RequestRepairResponse("REQUEST REPAIR Response");
    response->setStatType(MAINTENANCE_STAT);
    response->setBitLength(PASTRYREQUESTREPAIRRESPONSE_L(response));
    response->encapsulate(createStateMessage(PASTRY_STATE_REPAIR));
    RECORD_STATS(stateSent++;
                 stateBytesSent += response->getByteLength());
    sendRpcResponse(call, response);
}

void Pastry::handleRequestRepairResponse ( RequestRepairResponse * response )

protected

Definition at line 504 of file Pastry.cc.

Referenced by handleRpcResponse().

{
    EV << "[Pastry::handleRequestRepairResponse() @ " << thisNode.getIp()
       << " (" << thisNode.getKey().toString(16) << ")]"
       << endl;
    RECORD_STATS(stateReceived++;
                 stateBytesReceived += response->getByteLength());
    if (state == READY) {
        handleStateMessage(check_and_cast<PastryStateMessage*>(response->decapsulate()));
    }
}

void Pastry::handleRequestRoutingRowResponse ( RequestRoutingRowResponse * response )

protectedvirtual

Reimplemented from BasePastry.

Definition at line 654 of file Pastry.cc.

Referenced by handleRpcResponse().

{
    EV << "[Pastry::handleRequestRoutingRowResponse() @ " << thisNode.getIp()
       << " (" << thisNode.getKey().toString(16) << ")]"
       << endl;
    if (state == DISCOVERY) {
        PastryStateMessage* rowState =
            check_and_cast<PastryStateMessage*>(response->getEncapsulatedPacket());
        uint32_t nodesPerRow = rowState->getRoutingTableArraySize();
        const NodeHandle* node;
        if (depth == -1) {
            depth = rowState->getRow();
        }
        discoveryModeProbedNodes = 0;
        nearNodeImproved = false;
        if (depth > 0) {
            for (uint32_t i = 0; i < nodesPerRow; i++) {
                node = &(rowState->getRoutingTable(i));
                // unspecified nodes not considered
                if ( !(node->isUnspecified()) ) {
                    // we look for best connection here,
                    // so Timeout is short and there are no retries
                    pingNode(*node, discoveryTimeoutAmount, 0, NULL,
                             "PING received routing table for nearest node",
                             NULL, -1, UDP_TRANSPORT); //TODO
                    discoveryModeProbedNodes++;
                }
            }
            depth--;
        }
        EV << "    received routing table, waiting for pings"
           << endl;
        if (discoveryTimeout->isScheduled()) cancelEvent(discoveryTimeout);
        scheduleAt(simTime() + discoveryTimeoutAmount, discoveryTimeout);
    }
}

void Pastry::handleRequestStateCall ( RequestStateCall * call )

protected

Definition at line 444 of file Pastry.cc.

Referenced by handleRpcCall().

{
    EV << "[Pastry::handleRequestStateCall() @ " << thisNode.getIp()
       << " (" << thisNode.getKey().toString(16) << ")]"
       << endl;
    RECORD_STATS(stateReqReceived++;
                 stateReqBytesReceived += call->getByteLength());
    if (state != READY) {
        EV << "    received repair request before reaching"
                << " READY state, dropping message!"
                << endl;
        delete call;
        return;
    }
    RequestStateResponse* response =
        new RequestStateResponse("REQUEST STATE Response");
    response->setStatType(MAINTENANCE_STAT);
    response->setBitLength(PASTRYREQUESTSTATERESPONSE_L(response));
    response->encapsulate(createStateMessage());
    RECORD_STATS(stateSent++;
                 stateBytesSent += response->getByteLength());
    sendRpcResponse(call, response);
}

void Pastry::handleRequestStateResponse ( RequestStateResponse * response )

protected

Definition at line 608 of file Pastry.cc.

Referenced by handleRpcResponse().

{
    EV << "[Pastry::handleRequestStateResponse() @ " << thisNode.getIp()
       << " (" << thisNode.getKey().toString(16) << ")]"
       << endl;
    RECORD_STATS(stateReceived++;
                 stateBytesReceived += response->getByteLength());
    if (state == READY) {
        handleStateMessage(check_and_cast<PastryStateMessage*>(response->decapsulate()));
    }
}

bool Pastry::handleRpcCall ( BaseCallMessage * msg )

protectedvirtual

Processes Remote-Procedure-Call invocation messages.

This method should be overloaded when the overlay provides RPC functionality.

Returns: true, if rpc has been handled

Reimplemented from BasePastry.

Definition at line 358 of file Pastry.cc.

{
    if (BasePastry::handleRpcCall(msg)) return true;
    if (state != READY) {
        EV << "[Pastry::handleRpcCall() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    Received RPC call and state != READY"
           << endl;
        return false;
    }
    // delegate messages
    RPC_SWITCH_START( msg )
    // RPC_DELEGATE( <messageName>[Call|Response], <methodToCall> )
    RPC_DELEGATE( PastryJoin, handlePastryJoinCall );
    RPC_DELEGATE( RequestState, handleRequestStateCall );
    RPC_DELEGATE( RequestRepair, handleRequestRepairCall );
    RPC_SWITCH_END( )
    return RPC_HANDLED;
}

void Pastry::handleRpcResponse	(	BaseResponseMessage *	msg,
		cPolymorphic *	context,
		int	rpcId,
		simtime_t	rtt
	)

protectedvirtual

This method is called if an RPC response has been received.

Parameters

msg	The response message.
context	Pointer to an optional state object. The object has to be handled/deleted by the handleRpcResponse() code
rpcId	The RPC id.
rtt	The Round-Trip-Time of this RPC

Reimplemented from BasePastry.

Definition at line 519 of file Pastry.cc.

{
    BasePastry::handleRpcResponse(msg, context, rpcId, rtt);
    RPC_SWITCH_START(msg)
    RPC_ON_RESPONSE( PastryJoin ) {
        EV << "[Pastry::handleRpcResponse() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    Received a JOIN RPC Response: id=" << rpcId << "\n"
           << "    msg=" << *_PastryJoinResponse << " rtt=" << SIMTIME_DBL(rtt)
           << endl;
        handlePastryJoinResponse(_PastryJoinResponse);
        break;
        }
    RPC_ON_RESPONSE( RequestState ) {
        EV << "[Pastry::handleRpcResponse() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    Received a RequestState RPC Response: id=" << rpcId << "\n"
           << "    msg=" << *_RequestStateResponse << " rtt=" << SIMTIME_DBL(rtt)
           << endl;
        handleRequestStateResponse(_RequestStateResponse);
        break;
    }
    RPC_ON_RESPONSE( RequestRepair ) {
        EV << "[BasePastry::handleRpcResponse() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    Received a Request Repair RPC Response: id=" << rpcId << "\n"
           << "    msg=" << *_RequestRepairResponse << " rtt=" << SIMTIME_DBL(rtt)
           << endl;
        handleRequestRepairResponse(_RequestRepairResponse);
        break;
    }
    RPC_ON_RESPONSE( RequestLeafSet ) {
        EV << "[Pastry::handleRpcResponse() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    Received a RequestLeafSet RPC Response: id=" << rpcId << "\n"
           << "    msg=" << *_RequestLeafSetResponse << " rtt=" << SIMTIME_DBL(rtt)
           << endl;
        handleRequestLeafSetResponse(_RequestLeafSetResponse);
        break;
    }
    RPC_ON_RESPONSE( RequestRoutingRow ) {
        EV << "[Pastry::handleRpcResponse() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    Received a RequestRoutingRow RPC Response: id=" << rpcId << "\n"
           << "    msg=" << *_RequestRoutingRowResponse << " rtt=" << rtt
           << endl;
        handleRequestRoutingRowResponse(_RequestRoutingRowResponse);
        break;
    }
    RPC_SWITCH_END( )
}

void Pastry::handleRpcTimeout	(	BaseCallMessage *	msg,
		const TransportAddress &	dest,
		cPolymorphic *	context,
		int	rpcId,
		const OverlayKey &	destKey
	)

protectedvirtual

This method is called if an RPC timeout has been reached.

Parameters

msg	The original RPC message.
dest	The destination node
context	Pointer to an optional state object. The object has to be handled/deleted by the handleRpcResponse() code
rpcId	The RPC id.
destKey	the destination OverlayKey

Reimplemented from BasePastry.

Definition at line 575 of file Pastry.cc.

{
    BasePastry::handleRpcTimeout(call, dest, context, rpcId, key);
    EV << "[Pastry::handleRpcTimeout() @ " << thisNode.getIp()
       << " (" << thisNode.getKey().toString(16) << ")]\n"
       << "    Timeout of RPC Call: id=" << rpcId << "\n"
       << "    msg=" << *call << " key=" << key
       << endl;
    if (state == DISCOVERY && dynamic_cast<RequestLeafSetCall*>(call)) {
        join();
    }
}

void Pastry::handleStateMessage ( PastryStateMessage * msg )

virtual

processes state messages, merging with own state tables

Parameters

msg	the pastry state message

Implements BasePastry.

Definition at line 1193 of file Pastry.cc.

Referenced by handlePastryJoinResponse(), handleRequestRepairResponse(), handleRequestStateResponse(), and handleUDPMessage().

{
    if (debugOutput) {
        EV << "[Pastry::handleStateMessage() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    new STATE message to process "
           << static_cast<void*>(msg) << " in state " <<
            ((state == READY)?"READY":((state == JOIN)?"JOIN":"INIT"))
           << endl;
        if (state == JOIN) {
            EV << "[Pastry::handleStateMessage() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    ***   own joinHopCount:  " << joinHopCount << endl
               << "    ***   already received:  " << stReceived.size() << endl
               << "    ***   last-hop flag:     "
               << (msg->getLastHop() ? "true" : "false") << endl
               << "    ***   msg joinHopCount:  "
               << msg->getRow() << endl;
        }
    }
    if (state == INIT || state == DISCOVERY) {
        EV << "[Pastry::handleStateMessage() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    can't handle state messages until at least reaching JOIN state."
           << endl;
        delete msg;
        return;
    }
    PastryStateMsgHandle handle(msg);
    // in JOIN state, store all received state Messages, need them later:
    if (state == JOIN) {
        if (!(msg->getPastryStateMsgType() &
              (PASTRY_STATE_JOIN | PASTRY_STATE_MINJOIN))) {
            delete msg;
            return;
        }
        if (joinHopCount && stReceived.size() == joinHopCount) {
            EV << "[Pastry::handleStateMessage() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    Warning: dropping state message received after "
               << "all needed state messages were collected in JOIN state."
               << endl;
            delete msg;
            return;
        }
        stReceived.push_back(handle);
        if (pingBeforeSecondStage && proximityNeighborSelection) prePing(msg);
        if (msg->getLastHop()) {
            if (joinHopCount) {
                EV << "[Pastry::handleStateMessage() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    Error: received a second `last' state message! Restarting ..."
                   << endl;
                joinOverlay();
                return;
            }
            joinHopCount = msg->getRow();
            if (stReceived.size() < joinHopCount) {
                // some states still missing:
                cancelEvent(readyWait);
                scheduleAt(simTime() + readyWaitAmount, readyWait);
            }
        }
        if (joinHopCount) {
            if (stReceived.size() > joinHopCount) {
                EV << "[Pastry::handleStateMessage() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    Error: too many state messages received in JOIN state! ("
                   << stReceived.size() << " > " << joinHopCount << ") Restarting ..."
                   << endl;
                joinOverlay();
                return;
            }
            if (stReceived.size() == joinHopCount) {
                // all state messages are here, sort by hopcount:
                sort(stReceived.begin(), stReceived.end(),
                     stateMsgIsSmaller);
                // start pinging the nodes found in the first state message:
                stReceivedPos = stReceived.begin();
                stateCache = *stReceivedPos;
                EV << "[Pastry::handleStateMessage() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    have all STATE messages, now pinging nodes."
                   << endl;
                if (pingBeforeSecondStage && proximityNeighborSelection) {
                    pingNodes();
                } else {
                    mergeState();
                    stateCache.msg = NULL;
                    changeState(READY);
                    EV << "[Pastry::handleStateMessage() @ " << thisNode.getIp()
                       << " (" << thisNode.getKey().toString(16) << ")]\n"
                       << "    changeState(READY) called"
                       << endl;
                }
                // cancel timeout:
                if (readyWait->isScheduled()) cancelEvent(readyWait);
            } else {
                //TODO occasionally, here we got a wrong hop count in
                // iterative mode due to more than one it. lookup during join
                // procedure
                EV << "[Pastry::handleStateMessage() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    Still need some STATE messages."
                   << endl;
            }
        }
        return;
    }
    if (debugOutput) {
        EV << "[Pastry::handleStateMessage() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    handling STATE message"
           << endl;
        EV << "        type: " << ((msg->getPastryStateMsgType()
                                    == PASTRY_STATE_UPDATE) ? "update"
                                                            :"standard")
           << endl;
        if (msg->getPastryStateMsgType() == PASTRY_STATE_UPDATE) {
            EV << "        msg timestamp:      " <<
                msg->getTimestamp() << endl;
            EV << "        last state change:  " <<
                lastStateChange << endl;
        }
    }
    if (((msg->getPastryStateMsgType() == PASTRY_STATE_UPDATE))
            && (msg->getTimestamp() <= lastStateChange)) {
        // if we received an update based on our outdated state,
        // mark handle for retrying later:
        EV << "[Pastry::handleStateMessage() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    outdated state from " << msg->getSender()
           << endl;
        handle.outdatedUpdate = true;
    }
    // determine aliveTable to prevent leafSet from merging nodes that are
    // known to be dead:
    determineAliveTable(msg);
    if (msg->getPastryStateMsgType() == PASTRY_STATE_REPAIR) {
        // try to repair leafset based on repair message right now
        const TransportAddress& askLs = leafSet->repair(msg, &aliveTable);
        if (! askLs.isUnspecified()) {
            //sendRequest(askLs, PASTRY_REQ_REPAIR);
            RequestRepairCall* call =
                new RequestRepairCall("REQUEST REPAIR Call");
            call->setBitLength(PASTRYREQUESTREPAIRCALL_L(call));
            RECORD_STATS(repairReqSent++; repairReqBytesSent += call->getByteLength());
            sendUdpRpcCall(askLs, call);
        }
        // while not really known, it's safe to assume that a repair
        // message changed our state:
        lastStateChange = simTime();
        newLeafs();
    } else if (leafSet->mergeState(msg, &aliveTable)) {
        // merged state into leafset right now
        lastStateChange = simTime();
        newLeafs();
        updateTooltip();
    }
    // in READY state, only ping nodes to get proximity metric:
    if (!stateCache.msg) {
        // no state message is processed right now, start immediately:
        assert(stateCache.prox == NULL);
        stateCache = handle;
        processState();
    } else {
        if (proximityNeighborSelection && (pingBeforeSecondStage ||
            msg->getPastryStateMsgType() == PASTRY_STATE_STD)) {
            // enqueue message for later processing:
            stateCacheQueue.push(handle);
            if (stateCacheQueue.size() > 15) {
                delete stateCacheQueue.front().msg;
                stateCacheQueue.pop();
                EV << "[Pastry::handleStateMessage() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    stateCacheQueue full -> pop()" << endl;
            }
            prePing(msg);
        } else {
            bool temp = true;
            if (!neighborhoodSet->mergeState(msg, NULL)) {
                temp = false;
            }
            if (!leafSet->mergeState(msg, NULL)) {
                temp = false;
            } else {
                newLeafs();
            }
            if (!routingTable->mergeState(msg, NULL)) {
                temp = false;
            }
            if (temp) lastStateChange = simTime();
            delete msg;
        }
    }
}

void Pastry::handleTimerEvent ( cMessage * msg )

virtual

Reimplemented from BaseRpc.

Definition at line 252 of file Pastry.cc.

{
    if (msg == readyWait) {
        if (partialJoinPath) {
            RECORD_STATS(joinPartial++);
            sort(stReceived.begin(), stReceived.end(), stateMsgIsSmaller);
            // start pinging the nodes found in the first state message:
            stReceivedPos = stReceived.begin();
            stateCache = *stReceivedPos;
            EV << "[Pastry::handleTimerEvent() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    joining despite some missing STATE messages."
               << endl;
            processState();
        } else {
            EV << "[Pastry::handleTimerEvent() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    timeout waiting for missing state messages"
               << " in JOIN state, restarting..."
               << endl;
            join();
        }
    } else if (msg == joinUpdateWait) {
        EV << "[Pastry::handleTimerEvent() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    sending state updates to all nodes."
           << endl;
        doJoinUpdate();
    } else if (msg == secondStageWait) {
        EV << "[Pastry::handleTimerEvent() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    sending STATE requests to all nodes in"
           << " second stage of initialization."
           << endl;
        doSecondStage();
    } else if (msg == discoveryTimeout) {
        if ((depth == 0) && (nearNodeImproved)) {
            depth++; //repeat last step if closer node was found
        }
        if ((depth == 0) || (discoveryModeProbedNodes < 1)) {
            changeState(JOIN);
        } else {
            RequestRoutingRowCall* call =
                new RequestRoutingRowCall("REQUEST ROUTING ROW Call");
            call->setStatType(MAINTENANCE_STAT);
            call->setRow(depth);
            call->setBitLength(PASTRYREQUESTROUTINGROWCALL_L(call));
            RECORD_STATS(routingTableRowReqSent++;
                         routingTableRowReqBytesSent += call->getByteLength());
            sendUdpRpcCall(nearNode, call);
        }
    } else if (msg == repairTaskTimeout) {
        EV << "[Pastry::handleTimerEvent() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    starting routing table maintenance"
           << endl;
        doRoutingTableMaintenance();
        scheduleAt(simTime() + routingTableMaintenanceInterval,
                   repairTaskTimeout);
    } else if (dynamic_cast<PastrySendState*>(msg)) {
        PastrySendState* sendStateMsg = static_cast<PastrySendState*>(msg);
        std::vector<PastrySendState*>::iterator pos =
            std::find(sendStateWait.begin(), sendStateWait.end(),
                      sendStateMsg);
        if (pos != sendStateWait.end()) sendStateWait.erase(pos);
        PastryStateMessage* stateMsg = createStateMessage();
        RECORD_STATS(stateSent++;
                     stateBytesSent += stateMsg->getByteLength());
        sendMessageToUDP(sendStateMsg->getDest(), stateMsg);
        delete sendStateMsg;
    }
}

void Pastry::handleUDPMessage ( BaseOverlayMessage * msg )

virtual

Processes messages from underlay.

Parameters

msg	Message from UDP

Reimplemented from BaseOverlay.

Definition at line 339 of file Pastry.cc.

{
    PastryStateMessage* stateMsg = check_and_cast<PastryStateMessage*>(msg);
    uint32_t type = stateMsg->getPastryStateMsgType();
    if (debugOutput) {
        EV << "[Pastry::handleUDPMessage() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    incoming STATE message of type "
           << cEnum::get("PastryStateMsgType")->getStringFor(type) << endl;
    }
    RECORD_STATS(stateReceived++; stateBytesReceived +=
                 stateMsg->getByteLength());
    handleStateMessage(stateMsg);
}

void Pastry::initializeOverlay ( int stage )

virtual

Initializes derived-class-attributes.

Initializes derived-class-attributes, called by BaseOverlay::initialize(). By default this method is called once. If more stages are needed one can overload numInitStages() and add more stages.

Parameters

stage the init stage

Reimplemented from BaseOverlay.

Definition at line 91 of file Pastry.cc.

{
    if ( stage != MIN_STAGE_OVERLAY )
        return;
    // Pastry provides KBR services
    kbr = true;
    baseInit();
    useDiscovery = par("useDiscovery");
    useSecondStage = par("useSecondStage");
    pingBeforeSecondStage = par("pingBeforeSecondStage");
    secondStageInterval = par("secondStageWait");
    discoveryTimeoutAmount = par("discoveryTimeoutAmount");
    useRoutingTableMaintenance = par("useRoutingTableMaintenance");
    routingTableMaintenanceInterval = par("routingTableMaintenanceInterval");
    sendStateAtLeafsetRepair = par("sendStateAtLeafsetRepair");
    partialJoinPath = par("partialJoinPath");
    readyWaitAmount = par("readyWait");
    minimalJoinState = par("minimalJoinState");
    overrideOldPastry = par("overrideOldPastry");
    overrideNewPastry = par("overrideNewPastry");
    if (overrideOldPastry) {
        useSecondStage = true;
        useDiscovery = false;
        useRoutingTableMaintenance = false;
        sendStateAtLeafsetRepair = true;
        minimalJoinState = false;
    }
    if (overrideNewPastry) {
        useSecondStage = false;
        useDiscovery = true;
        useRoutingTableMaintenance = true;
        sendStateAtLeafsetRepair = false;
        minimalJoinState = true;
    }
    readyWait = new cMessage("readyWait");
    secondStageWait = new cMessage("secondStageWait");
    joinUpdateWait = new cMessage("joinUpdateWait");
    discoveryTimeout =
        (useDiscovery ? new cMessage("discoveryTimeout") : NULL);
    repairTaskTimeout =
        (useRoutingTableMaintenance ? new cMessage("repairTaskTimeout") : NULL);
    updateCounter = 0;
}

void Pastry::iterativeJoinHook	(	BaseOverlayMessage *	msg,
		bool	incrHopCount
	)

protectedvirtual

Reimplemented from BasePastry.

Definition at line 729 of file Pastry.cc.

{
    PastryFindNodeExtData* findNodeExt = NULL;
    if (msg && msg->hasObject("findNodeExt")) {
        findNodeExt =
            check_and_cast<PastryFindNodeExtData*>(msg->
                    getObject("findNodeExt"));
    }
    // Send state tables on any JOIN message we see:
    if (findNodeExt) {
        const TransportAddress& stateRecipient =
            findNodeExt->getSendStateTo();
        if (!stateRecipient.isUnspecified()) {
            RECORD_STATS(joinSeen++);
            PastryStateMessage* stateMsg =
                createStateMessage((minimalJoinState ?
                                    PASTRY_STATE_MINJOIN :
                                    PASTRY_STATE_JOIN),
                                   -1,
                                   findNodeExt->getJoinHopCount(),
                                   false);
            RECORD_STATS(stateSent++;
                         stateBytesSent += stateMsg->getByteLength());
            sendMessageToUDP(stateRecipient, stateMsg);
        }
        if (incrHopCount) {
            findNodeExt->setJoinHopCount(findNodeExt->getJoinHopCount() + 1);
        }
    }
}

void Pastry::joinOverlay ( )

privatevirtual

Definition at line 145 of file Pastry.cc.

Referenced by checkProxCache(), and handleStateMessage().

{
    changeState(INIT);
    if (bootstrapNode.isUnspecified()) {
        // no existing pastry network -> first node of a new one
        changeState(READY);
    } else {
        // join existing pastry network
        nearNode = bootstrapNode;
        if (useDiscovery) changeState(DISCOVERY);
        else changeState(JOIN);
    }
}

bool Pastry::mergeState ( void )

private

Definition at line 1101 of file Pastry.cc.

Referenced by checkProxCache(), handleStateMessage(), and processState().

{
    bool ret = true;
    if (state == JOIN) {
        // building initial state
        if (debugOutput) {
            EV << "[Pastry::mergeState() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    [JOIN] starting to build own state from "
               << stReceived.size() << " received state messages..."
               << endl;
        }
        if (stateCache.msg &&
            stateCache.msg->getNeighborhoodSetArraySize() > 0) {
            if (debugOutput) {
                EV << "[Pastry::mergeState() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    [JOIN] initializing NeighborhoodSet from "
                   << stReceived.front().msg->getRow() << ". hop"
                   << endl;
            }
            if (!neighborhoodSet->mergeState(stReceived.front().msg,
                                             stReceived.front().prox )) {
                EV << "[Pastry::mergeState() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    Error initializing own neighborhoodSet"
                   << " while joining! Restarting ..."
                   << endl;
                ret = false;
            }
        }
        if (debugOutput) {
            EV << "[Pastry::mergeState() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    [JOIN] initializing LeafSet from "
               << stReceived.back().msg->getRow() << ". hop"
               << endl;
        }
        if (!leafSet->mergeState(stReceived.back().msg,
                                 stReceived.back().prox )) {
            EV << "[Pastry::mergeState() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    Error initializing own leafSet while joining!"
               << " Restarting ..."
               << endl;
            ret = false;
        } else {
            newLeafs();
        }
        if (debugOutput) {
            EV << "[Pastry::mergeState() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    [JOIN] initializing RoutingTable from all hops"
               << endl;
        }
        assert(!stateCache.msg ||
               stateCache.msg->getRoutingTableArraySize() > 0);
        if (!routingTable->initStateFromHandleVector(stReceived)) {
            EV << "[Pastry::mergeState() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    Error initializing own routingTable while joining!"
               << " Restarting ..."
               << endl;
            ret = false;
        }
    } else if (state == READY) {
        // merging single state (stateCache.msg)
        if ((stateCache.msg->getNeighborhoodSetArraySize() > 0) &&
            (!neighborhoodSet->mergeState(stateCache.msg, NULL))) {
            ret = false;
        }
        if (!leafSet->mergeState(stateCache.msg, NULL)) {
            ret = false;
        } else {
            newLeafs();
        }
        if (!routingTable->mergeState(stateCache.msg, NULL)) {
            ret = false;
        }
    }
    if (ret) lastStateChange = simTime();
    return ret;
}

void Pastry::pingResponse	(	PingResponse *	pingResponse,
		cPolymorphic *	context,
		int	rpcId,
		simtime_t	rtt
	)

virtual

Reimplemented from BaseRpc.

Definition at line 232 of file Pastry.cc.

{
    if (state == DISCOVERY) {
        EV << "[Pastry::pingResponse() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    Pong (or Ping-context from NeighborCache) received (from "
           << pingResponse->getSrcNode().getIp() << ") in DISCOVERY mode"
           << endl;
        if (nearNodeRtt > rtt) {
            nearNode = pingResponse->getSrcNode();
            nearNodeRtt = rtt;
            nearNodeImproved = true;
        }
    }
}

void Pastry::processState ( void )

private

Definition at line 1410 of file Pastry.cc.

Referenced by checkProxCache(), doSecondStage(), endProcessingState(), handleStateMessage(), and handleTimerEvent().

{
    EV << "[Pastry::processState() @ " << thisNode.getIp()
       << " (" << thisNode.getKey().toString(16) << ")]\n"
       << "    new \""
       << std::string(cEnum::find("PastryStateMsgType")
              ->getStringFor(stateCache.msg->getPastryStateMsgType())).erase(0, 13)
       << "\" STATE message " << static_cast<void*>(stateCache.msg)
       << " from " << stateCache.msg->getSender().getIp() << " to process "
       << endl;
    if (proximityNeighborSelection && (pingBeforeSecondStage ||
        stateCache.msg->getPastryStateMsgType() == PASTRY_STATE_STD)) {
        pingNodes();
    } else {
        mergeState();
        endProcessingState();
    }
}

void Pastry::purgeVectors ( void )

protectedvirtual

delete all information/messages caching vectors, used for restarting overlay or finish()

Reimplemented from BasePastry.

Definition at line 73 of file Pastry.cc.

Referenced by changeState().

{
    clearVectors();
    // purge vector of waiting sendState messages:
    if (! sendStateWait.empty()) {
        for (std::vector<PastrySendState*>::iterator it =
                 sendStateWait.begin(); it != sendStateWait.end(); it++) {
            if ( (*it)->isScheduled() ) cancelEvent(*it);
            delete *it;
        }
        sendStateWait.clear();
    }
    BasePastry::purgeVectors();
}

bool Pastry::recursiveRoutingHook	(	const TransportAddress &	dest,
		BaseRouteMessage *	msg
	)

protectedvirtual

Hook for forwarded message in recursive lookup mode.

This hook is called just before a message is forwarded to a next hop or if the message is at its destination just before it is sent to the app. Default implementation just returns true. This hook can for example be used to detect failed nodes and call handleFailedNode() before the actual forwarding takes place.

Parameters

dest	destination node
msg	message to send

Returns: true, if message should be forwarded; false, if message will be forwarded later by an other function or message has been discarded

Reimplemented from BaseOverlay.

Definition at line 696 of file Pastry.cc.

{
    if (dest == thisNode) {
        return true;
    }
    PastryJoinCall* call =
            dynamic_cast<PastryJoinCall*>(msg->getEncapsulatedPacket());
        if (call && call->getSrcNode() != thisNode) {
            RECORD_STATS(joinSeen++;
                         joinBytesSeen += call->getByteLength());
            // remove node from state if it is rejoining
            handleFailedNode(call->getSrcNode());
            PastryStateMessage* stateMsg =
                createStateMessage((minimalJoinState ?
                                    PASTRY_STATE_MINJOIN :
                                    PASTRY_STATE_JOIN),
                                   -1,
                                   check_and_cast<OverlayCtrlInfo*>(msg->getControlInfo())->getHopCount(),
                                   false);
            RECORD_STATS(stateSent++;
                         stateBytesSent += stateMsg->getByteLength());
            sendMessageToUDP(call->getSrcNode(), stateMsg);
        }
    // forward now:
    return true;
}

void Pastry::sendStateDelayed ( const TransportAddress & destination )

private

send a standard state message with a small delay

Parameters

destination destination node

Definition at line 330 of file Pastry.cc.

Referenced by checkProxCache().

{
    PastrySendState* selfMsg = new PastrySendState("sendStateWait");
    selfMsg->setDest(destination);
    sendStateWait.push_back(selfMsg);
    scheduleAt(simTime() + 0.0001, selfMsg);
}
