#include <Bamboo.h>

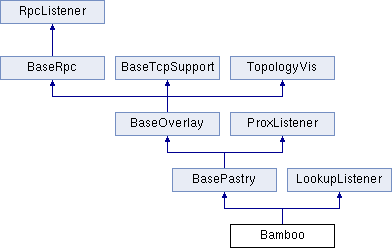

Inheritance diagram for Bamboo:

Public Member Functions
virtual	~Bamboo ()
virtual void	initializeOverlay (int stage)
	Initializes derived-class-attributes.
virtual void	handleTimerEvent (cMessage *msg)
void	handleRpcResponse (BaseResponseMessage msg, cPolymorphic context, int rpcId, simtime_t rtt)
	This method is called if an RPC response has been received.
void	handleRequestLeafSetResponse (RequestLeafSetResponse *response)
void	handleStateMessage (PastryStateMessage *msg)
	processes state messages, merging with own state tables
Public Member Functions inherited from BasePastry
virtual	~BasePastry ()
int	getMaxNumSiblings ()
	Query the maximum number of siblings (nodes close to a key) that are maintained by this overlay protocol.
int	getMaxNumRedundantNodes ()
	Query the maximum number of redundant next hop nodes that are returned by findNode().
virtual void	handleAppMessage (BaseOverlayMessage *msg)
	processes messages from application
virtual void	updateTooltip ()
	updates information shown in tk-environment
virtual NodeVector *	findNode (const OverlayKey &key, int numRedundantNodes, int numSiblings, BaseOverlayMessage *msg)
	Implements the find node call.
virtual void	finishOverlay ()
	collects statistical data in derived class
virtual bool	isSiblingFor (const NodeHandle &node, const OverlayKey &key, int numSiblings, bool *err)
	Query if a node is among the siblings for a given key.
virtual AbstractLookup *	createLookup (RoutingType routingType=DEFAULT_ROUTING, const BaseOverlayMessage msg=NULL, const cPacket dummy=NULL, bool appLookup=false)
	Creates an abstract iterative lookup instance.
uint8_t	getBitsPerDigit ()
void	proxCallback (const TransportAddress &node, int rpcId, cPolymorphic *contextPointer, Prox prox)
virtual OverlayKey	estimateMeanDistance ()
	returns mean distance between OverlayKeys in the network
uint8_t	getRTLastRow () const
std::vector< TransportAddress > *	getRTRow (uint8_t index) const
std::vector< TransportAddress > *	getLeafSet () const
Public Member Functions inherited from BaseOverlay
	BaseOverlay ()
virtual	~BaseOverlay ()
	Virtual destructor.
States	getState ()
bool	isMalicious ()
	Returns true, if node is malicious.
bool	isInSimpleMultiOverlayHost ()
	Returns true if overlay is one in an array, inside a SimpleMultiOverlayHost.
const simtime_t &	getCreationTime ()
void	join (const OverlayKey &nodeID=OverlayKey::UNSPECIFIED_KEY)
	Join the overlay with a given nodeID.
virtual NodeVector *	local_lookup (const OverlayKey &key, int num, bool safe)
	finds nodes closest to the given OverlayKey
virtual NodeVector *	neighborSet (int num)
void	sendMessageToUDP (const TransportAddress &dest, cPacket *msg, simtime_t delay=SIMTIME_ZERO)
	Sends message to underlay.
void	sendToKey (const OverlayKey &key, BaseOverlayMessage *message, int numSiblings=1, const std::vector< TransportAddress > &sourceRoute=TransportAddress::UNSPECIFIED_NODES, RoutingType routingType=DEFAULT_ROUTING)
	Sends a message to an overlay node, with the generic routing algorithm.
void	registerComp (CompType compType, cModule *module)
cModule *	getCompModule (CompType compType)
cGate *	getCompRpcGate (CompType compType)
void	sendMessageToAllComp (cMessage *msg, CompType srcComp)
bool	providesKbr ()
bool	getMeasureAuthBlock ()
BootstrapList &	getBootstrapList () const
virtual uint32_t	estimateOverlaySize ()
	estimates the current number of nodes online
Public Member Functions inherited from BaseRpc
	BaseRpc ()
const NodeHandle &	getThisNode ()
	Returns the NodeHandle of this node.
simtime_t	getUdpTimeout ()
Public Member Functions inherited from RpcListener
virtual	~RpcListener ()
	destructor
Public Member Functions inherited from BaseTcpSupport
virtual void	socketDataArrived (int connId, void yourPtr, cPacket msg, bool urgent)
virtual void	socketEstablished (int connId, void *yourPtr)
virtual void	socketPeerClosed (int connId, void *yourPtr)
virtual void	socketFailure (int connId, void *yourPtr, int code)
virtual void	socketStatusArrived (int connId, void yourPtr, TCPStatusInfo status)
Public Member Functions inherited from TopologyVis
	TopologyVis ()
void	showOverlayNeighborArrow (const NodeHandle &neighbor, bool flush=true, const char *displayString=NULL)
	Draws an arrow from this node to neighbor.
void	deleteOverlayNeighborArrow (const NodeHandle &neighbor)
	Removes an arrow from this node to neighbor.
Public Member Functions inherited from LookupListener
virtual	~LookupListener ()
	virtual destructor

Protected Member Functions
void	lookupFinished (AbstractLookup *lookup)
virtual void	changeState (int toState)
	changes node state
Protected Member Functions inherited from BasePastry
virtual bool	handleRpcCall (BaseCallMessage *msg)
	Processes Remote-Procedure-Call invocation messages.
virtual void	handleRpcTimeout (BaseCallMessage call, const TransportAddress &dest, cPolymorphic context, int rpcId, const OverlayKey &key)
	This method is called if an RPC timeout has been reached.
void	handleRequestLeafSetCall (RequestLeafSetCall *call)
void	handleRequestRoutingRowCall (RequestRoutingRowCall *call)
virtual void	handleRequestRoutingRowResponse (RequestRoutingRowResponse *response)
PastryStateMessage *	createStateMessage (enum PastryStateMsgType type=PASTRY_STATE_STD, simtime_t timestamp=-1, int16_t row=-1, bool lastHop=false)
virtual void	checkProxCache (void)=0
	checks whether proxCache is complete, takes appropriate actions depending on the protocol state
virtual void	purgeVectors (void)
	delete all information/messages caching vectors, used for restarting overlay or finish()
void	baseInit (void)
	initializes parameters and variables used in both Bamboo and Pastry
void	baseChangeState (int)
	changes node state, but leaves specific behavour, scheduling tasks in particular, to the inheriting protocols
OverlayKey	distance (const OverlayKey &x, const OverlayKey &y, bool useAlternative=false) const
	This method should implement the distance between two keys.
virtual void	iterativeJoinHook (BaseOverlayMessage *msg, bool incrHopCount)
void	prePing (const PastryStateMessage *stateMsg)
	ping all nodes in a given state message.
void	pingNodes (void)
	ping all nodes in the pastry state message pointed to by private member stateCache
void	determineAliveTable (const PastryStateMessage *stateMsg)
	change the aliveTable to match the given stateMsg.
void	newLeafs (void)
	Pastry API: send newLeafs() to application if enabled.
Protected Member Functions inherited from BaseOverlay
int	numInitStages () const
	Sets init stage.
void	bindToPort (int port)
	Tells UDP we want to get all packets arriving on the given port.
virtual void	route (const OverlayKey &key, CompType destComp, CompType srcComp, cPacket *msg, const std::vector< TransportAddress > &sourceRoute=TransportAddress::UNSPECIFIED_NODES, RoutingType routingType=DEFAULT_ROUTING)
	Routes message through overlay.
void	callDeliver (BaseOverlayMessage *msg, const OverlayKey &destKey)
	Calls deliver function in application.
void	callForward (const OverlayKey &key, BaseRouteMessage *msg, const NodeHandle &nextHopNode)
	Calls forward function in application.
void	callUpdate (const NodeHandle &node, bool joined)
	Informs application about state changes of nodes or newly joined nodes.
void	handleMessage (cMessage *msg)
	Checks for message type and calls corresponding method.
void	handleBaseOverlayMessage (BaseOverlayMessage *msg, const OverlayKey &destKey=OverlayKey::UNSPECIFIED_KEY)
	Handles a BaseOverlayMessage
virtual void	handleUDPMessage (BaseOverlayMessage *msg)
	Processes messages from underlay.
virtual void	handleAppMessage (cMessage *msg)
	Processes "timer" self-messages.
virtual void	receiveChangeNotification (int category, const cPolymorphic *details)
	callback-method for events at the NotificationBoard
virtual void	handleTransportAddressChangedNotification ()
	This method gets call if the node has a new TransportAddress (IP address) because he changed his access network.
virtual void	handleNodeLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed.
virtual void	handleNodeGracefulLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed if this node is among the gracefulLeaveProbability nodes.
virtual void	recordOverlaySentStats (BaseOverlayMessage *msg)
	Collect overlay specific sent messages statistics.
void	setOverlayReady (bool ready)
	Sets the overlay ready icon and register/deregisters the node at the GlobalNodeList.
virtual void	removeLookup (AbstractLookup *lookup)
	Removes the abstract lookup instance.
virtual void	joinOverlay ()
	Join the overlay with a given nodeID in thisNode.key.
virtual void	joinForeignPartition (const NodeHandle &node)
	Join another overlay partition with the given node as bootstrap node.
virtual bool	handleFailedNode (const TransportAddress &failed)
	Handles a failed node.
virtual void	lookupRpc (LookupCall *call)
virtual void	nextHopRpc (NextHopCall *call)
void	countFindNodeCall (const FindNodeCall *call)
void	countFailedNodeCall (const FailedNodeCall *call)
bool	internalHandleRpcCall (BaseCallMessage *msg)
	Handles internal rpc requests.
void	internalHandleRpcResponse (BaseResponseMessage msg, cPolymorphic context, int rpcId, simtime_t rtt)
	Handles rpc responses internal in base classes
void	internalHandleRpcTimeout (BaseCallMessage msg, const TransportAddress &dest, cPolymorphic context, int rpcId, const OverlayKey &destKey)
	Handles rpc timeouts internal in base classes
void	internalSendRouteRpc (BaseRpcMessage *message, const OverlayKey &destKey, const std::vector< TransportAddress > &sourceRoute, RoutingType routingType)
CompType	getThisCompType ()
	Return the component type of this module.
Protected Member Functions inherited from BaseRpc
void	initRpcs ()
	Initializes Remote-Procedure state.
void	finishRpcs ()
	Deinitializes Remote-Procedure state.
virtual void	internalHandleRpcMessage (BaseRpcMessage *msg)
	Handles incoming rpc messages and delegates them to the corresponding listeners or handlers.
uint32_t	sendRouteRpcCall (CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Routes a Remote-Procedure-Call message to an OverlayKey.
uint32_t	sendRouteRpcCall (CompType destComp, const OverlayKey &destKey, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Routes a Remote-Procedure-Call message to an OverlayKey.
uint32_t	sendRouteRpcCall (CompType destComp, const TransportAddress &dest, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends a Remote-Procedure-Call message using the overlay's UDP port This replaces ROUTE_DIRECT calls!
uint32_t	sendUdpRpcCall (const TransportAddress &dest, BaseCallMessage msg, cPolymorphic context=NULL, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends a Remote-Procedure-Call message to the underlay
uint32_t	sendInternalRpcCall (CompType destComp, BaseCallMessage msg, cPolymorphic context=NULL, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends an internal Remote-Procedure-Call between two tiers
void	cancelRpcMessage (uint32_t nonce)
	Cancels a Remote-Procedure-Call.
void	cancelAllRpcs ()
	Cancels all RPCs.
void	sendRpcResponse (TransportType transportType, CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage call, BaseResponseMessage response)
	Send Remote-Procedure response message and deletes call message.
void	sendRpcResponse (BaseCallMessage call, BaseResponseMessage response)
	Send Remote-Procedure response message to UDP and deletes call message.
int	pingNode (const TransportAddress &dest, simtime_t timeout=-1, int retries=0, cPolymorphic context=NULL, const char caption="PING", RpcListener *rpcListener=NULL, int rpcId=-1, TransportType transportType=INVALID_TRANSPORT)
	ping a node by its TransportAddress
virtual void	pingResponse (PingResponse pingResponse, cPolymorphic context, int rpcId, simtime_t rtt)
virtual void	pingTimeout (PingCall pingCall, const TransportAddress &dest, cPolymorphic context, int rpcId)
bool	internalHandleMessage (cMessage *msg)
Protected Member Functions inherited from RpcListener
virtual void	handleRpcResponse (BaseResponseMessage *msg, const RpcState &rpcState, simtime_t rtt)
	This method is called if an RPC response has been received.
virtual void	handleRpcTimeout (const RpcState &rpcState)
	This method is called if an RPC timeout has been reached.
Protected Member Functions inherited from BaseTcpSupport
void	handleTCPMessage (cMessage *msg)
	Member function to handle incoming TCP messages.
void	bindAndListenTcp (int port)
	Member function to bind service to the specified port and listen afterwards.
bool	isAlreadyConnected (TransportAddress address)
	Member function to check if the service is already connected.
void	establishTcpConnection (TransportAddress address)
	Member function to establish a connection to the specified node.
void	sendTcpData (cPacket *msg, TransportAddress address)
	Member function to send TCP data to the specified node.
virtual void	handleConnectionEvent (EvCode code, TransportAddress address)
	Member function to handle passive connection events.
virtual void	handleDataReceived (TransportAddress address, cPacket *msg, bool urgent)
	Member function to handle incoming data.
virtual void	handleIncomingConnection (TransportAddress address)
	Member function to handle newly opened connections.
void	closeTcpConnection (TransportAddress address)
	Member function to close an established connection.
void	setTcpOut (cGate *gate)
	Member function to set local gate towards the TCP module during init phase.
cGate *	getTcpOut ()
	Member function to get local gate towards the TCP module.
Protected Member Functions inherited from TopologyVis
void	initVis (cModule *terminal)

Private Member Functions
void	doLeafsetMaintenance (void)
	periodically repairs the leafset by pushing it to and pulling it from from a random live leafset node
int	getNextRowToMaintain ()
void	doLocalTuning ()
void	doGlobalTuning (void)
	periodically repairs the routing table by performing random lookups
bool	handleFailedNode (const TransportAddress &failed)
	notifies leafset and routingtable of a failed node and sends out a repair request if possible
void	checkProxCache (void)
	checks whether proxCache is complete, takes appropriate actions depending on the protocol state
virtual void	joinOverlay ()

Private Attributes
uint16_t	rowToAsk
simtime_t	leafsetMaintenanceInterval
simtime_t	localTuningInterval
simtime_t	globalTuningInterval
cMessage *	leafsetMaintenanceTimer
cMessage *	globalTuningTimer
cMessage *	localTuningTimer

Friends
class	BambooLookupListener

Additional Inherited Members
Public Types inherited from BaseOverlay
enum	States { INIT = 0, BOOTSTRAP = 1, DISCOVERY = 2, PREJOIN = 3, JOIN = 4, POSTJOIN = 5, READY = 6, REFRESH = 7, SHUTDOWN = 8, FAILED = 9, RSET = JOIN, BSET = POSTJOIN }
Public Attributes inherited from BasePastry
int	joins
int	joinTries
int	joinPartial
int	joinSeen
int	joinBytesSeen
int	joinReceived
int	joinBytesReceived
int	joinSent
int	joinBytesSent
int	stateSent
int	stateBytesSent
int	stateReceived
int	stateBytesReceived
int	repairReqSent
int	repairReqBytesSent
int	repairReqReceived
int	repairReqBytesReceived
int	stateReqSent
int	stateReqBytesSent
int	stateReqReceived
int	stateReqBytesReceived
int	totalLookups
int	responsibleLookups
int	routingTableLookups
int	closerNodeLookups
int	closerNodeLookupsFromNeighborhood
int	leafsetReqSent
int	leafsetReqBytesSent
int	leafsetReqReceived
int	leafsetReqBytesReceived
int	leafsetSent
int	leafsetBytesSent
int	leafsetReceived
int	leafsetBytesReceived
int	routingTableRowReqSent
int	routingTableRowReqBytesSent
int	routingTableRowReqReceived
int	routingTableRowReqBytesReceived
int	routingTableRowSent
int	routingTableRowBytesSent
int	routingTableRowReceived
int	routingTableRowBytesReceived
Protected Types inherited from BasePastry
enum	StateObject { ROUTINGTABLE, LEAFSET, NEIGHBORHOODSET }
enum	{ PING_RECEIVED_STATE = 1, PING_NEXT_HOP = 2, PING_SINGLE_NODE = 3, PING_DISCOVERY = 4 }
Protected Attributes inherited from BasePastry
uint32_t	bitsPerDigit
uint32_t	numberOfLeaves
uint32_t	numberOfNeighbors
double	readyWaitAmount
double	joinTimeoutAmount
double	repairTimeout
bool	enableNewLeafs
bool	useRegularNextHop
bool	alwaysSendUpdate
bool	optimizeLookup
bool	proximityNeighborSelection
simtime_t	nearNodeRtt
bool	nearNodeImproved
bool	periodicMaintenance
TransportAddress *	leaf2ask
TransportAddress	bootstrapNode
TransportAddress	nearNode
simtime_t	lastStateChange
PastryStateMsgHandle	stateCache
	Handle for processing a single state message.
std::queue< PastryStateMsgHandle >	stateCacheQueue
	Queue of state messages waiting to be processed in READY state.
PastryStateMsgProximity	aliveTable
	Early update of leaf set: helper structure for marking known-dead nodes.
uint32_t	joinHopCount
cMessage *	readyWait
cMessage *	joinUpdateWait
PastryRoutingTable *	routingTable
PastryLeafSet *	leafSet
PastryNeighborhoodSet *	neighborhoodSet

Detailed Description

Bamboo overlay module.

Author: Gerhard Petruschat

See Also: BaseOverlay

Definition at line 53 of file Bamboo.h.

Constructor & Destructor Documentation

Bamboo::~Bamboo ( )

virtual

Definition at line 41 of file Bamboo.cc.

{
    // destroy self timer messages
    cancelAndDelete(localTuningTimer);
    cancelAndDelete(leafsetMaintenanceTimer);
    cancelAndDelete(globalTuningTimer);
}

Member Function Documentation

void Bamboo::changeState ( int toState )

protectedvirtual

changes node state

Parameters

toState state to change to

Reimplemented from BasePastry.

Definition at line 86 of file Bamboo.cc.

Referenced by checkProxCache(), and joinOverlay().

{
    baseChangeState(toState);
    switch (toState) {
    case INIT:
        break;
    case DISCOVERY:
        break;
    case JOIN: {
        EV << "[Bamboo::changeState()]\n"
           << "    sending join message via " << bootstrapNode
           << " to " << thisNode.getKey()
           << endl;
        RequestLeafSetCall* call = new RequestLeafSetCall("JOIN Call");
        call->setTimestamp(simTime());
        call->setStatType(MAINTENANCE_STAT);
        call->setBitLength(PASTRYREQUESTLEAFSETCALL_L(call));
        call->encapsulate(createStateMessage(PASTRY_STATE_LEAFSET));
        RECORD_STATS(leafsetReqSent++;
                     leafsetReqBytesSent += call->getByteLength());
        sendRouteRpcCall(OVERLAY_COMP, bootstrapNode, thisNode.getKey(), call);
    }
    break;
    case READY:
        cancelEvent(leafsetMaintenanceTimer);
        scheduleAt(simTime(), leafsetMaintenanceTimer);
        // schedule routing table maintenance task
        cancelEvent(localTuningTimer);
        scheduleAt(simTime() + localTuningInterval, localTuningTimer);
        cancelEvent(globalTuningTimer);
        scheduleAt(simTime() + globalTuningInterval, globalTuningTimer);
        break;
    }
}

void Bamboo::checkProxCache ( void )

private

checks whether proxCache is complete, takes appropriate actions depending on the protocol state

Definition at line 323 of file Bamboo.cc.

Referenced by handleStateMessage(), and lookupFinished().

{
    // no cached STATE message?
    if (stateCache.msg) {
        simtime_t now = simTime();
        if (stateCache.prox) {
            // some entries not yet determined?
            if ((find(stateCache.prox->pr_rt.begin(), stateCache.prox->pr_rt.end(),
                      PASTRY_PROX_PENDING) != stateCache.prox->pr_rt.end()) ||
                (find(stateCache.prox->pr_ls.begin(), stateCache.prox->pr_ls.end(),
                      PASTRY_PROX_PENDING) != stateCache.prox->pr_ls.end()) ||
                (find(stateCache.prox->pr_ns.begin(), stateCache.prox->pr_ns.end(),
                      PASTRY_PROX_PENDING) != stateCache.prox->pr_ns.end())) {
                return;
            }
        }
        // merge info in own state tables
        // except leafset (was already handled in handleStateMessage)
        if (neighborhoodSet->mergeState(stateCache.msg, stateCache.prox)) {
            lastStateChange = now;
        }
        if (routingTable->mergeState(stateCache.msg, stateCache.prox)) {
            lastStateChange = now;
            EV << "[Bamboo::checkProxCache()]\n"
                    << "    Merged nodes into routing table."
                    << endl;
        }
    }
    delete stateCache.msg;
    stateCache.msg = NULL;
    delete stateCache.prox;
    stateCache.prox = NULL;
    if (state == JOIN) {
        changeState(READY);
    }
    updateTooltip();
    // process next queued message:
    if (! stateCacheQueue.empty()) {
        stateCache = stateCacheQueue.front();
              stateCacheQueue.pop();
        if (proximityNeighborSelection) {
            pingNodes();
        } else {
            checkProxCache();
        }
    }
}

void Bamboo::doGlobalTuning ( void )

private

periodically repairs the routing table by performing random lookups

Definition at line 275 of file Bamboo.cc.

Referenced by handleTimerEvent().

{
    int digit = getNextRowToMaintain();
    // would be a better alternative
    //OverlayKey OverlayKey::randomSuffix(uint pos) const;
    uint32_t maxDigitIndex = OverlayKey::getLength() - bitsPerDigit;
    uint32_t maxKeyIndex = OverlayKey::getLength() - 1;
    OverlayKey newKey = OverlayKey::random();
    while (newKey.getBitRange(maxDigitIndex - digit * bitsPerDigit, bitsPerDigit) ==
           thisNode.getKey().getBitRange(maxDigitIndex - digit * bitsPerDigit, bitsPerDigit)) {
        newKey = OverlayKey::random();
    }
    assert(digit * bitsPerDigit < OverlayKey::getLength());
    for (uint16_t i = 0; i < digit * bitsPerDigit; ++i) {
        newKey[maxKeyIndex - i] = thisNode.getKey().getBit(maxKeyIndex - i);
    }
    createLookup()->lookup(newKey, 1, 0, 0, new BambooLookupListener(this));
}

void Bamboo::doLeafsetMaintenance ( void )

private

periodically repairs the leafset by pushing it to and pulling it from from a random live leafset node

Definition at line 202 of file Bamboo.cc.

Referenced by handleTimerEvent().

{
    const TransportAddress& ask = leafSet->getRandomNode();
    if (!ask.isUnspecified()) {
        EV << "[Bamboo::doLeafsetMaintenance()]\n"
           << "    leafset maintenance: pulling leafset from "
           << ask << endl;
        RequestLeafSetCall* call = new RequestLeafSetCall("LeafSet PULL");
        call->setTimestamp(simTime());
        call->setStatType(MAINTENANCE_STAT);
        call->setBitLength(PASTRYREQUESTLEAFSETCALL_L(call));
        call->encapsulate(createStateMessage(PASTRY_STATE_LEAFSET));
        RECORD_STATS(leafsetReqSent++;
                     leafsetReqBytesSent += call->getByteLength());
        sendUdpRpcCall(ask, call);
    }
}

void Bamboo::doLocalTuning ( )

private

Definition at line 250 of file Bamboo.cc.

Referenced by handleTimerEvent().

{
    rowToAsk = getNextRowToMaintain();
    const TransportAddress& ask4row = routingTable->getRandomNode(rowToAsk);
    if ((!ask4row.isUnspecified()) && (ask4row != thisNode)) {
        EV << "[Bamboo::doLocalTuning() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    Sending  Message to Node in Row" << rowToAsk
           << endl;
        RequestRoutingRowCall* call =
            new RequestRoutingRowCall("REQUEST ROUTINGROW Call (Local Tuning)");
        call->setStatType(MAINTENANCE_STAT);
        call->setRow(rowToAsk + 1);
        call->setBitLength(PASTRYREQUESTROUTINGROWCALL_L(call));
        RECORD_STATS(routingTableRowReqSent++;
                     routingTableRowReqBytesSent += call->getByteLength());
        sendUdpRpcCall(ask4row, call);
    }
}

int Bamboo::getNextRowToMaintain ( )

private

Definition at line 224 of file Bamboo.cc.

Referenced by doGlobalTuning(), and doLocalTuning().

{
    int digit = 0;
    int lastRow = routingTable->getLastRow();
    int* choices = new int[lastRow + 1];
    int sum = 0;
    for (int i = 0; i < lastRow; ++i) {
        sum += (choices[i] = lastRow - i);
    }
    int rval = intuniform(0, sum);
    while (true) {
        rval -= choices [digit];
        if (rval <= 0)
            break;
        ++digit;
    }
    delete[] choices;
    return digit;
}

bool Bamboo::handleFailedNode ( const TransportAddress & failed )

private

notifies leafset and routingtable of a failed node and sends out a repair request if possible

Parameters

failed the failed node

Returns: true as long as local state is READY (signals lookup to try again)

Definition at line 299 of file Bamboo.cc.

{
    if (state != READY) return false;
    if (failed.isUnspecified()) {
        throw cRuntimeError("Bamboo::handleFailedNode(): failed is unspecified!");
    }
    const TransportAddress& lsAsk = leafSet->failedNode(failed);
    routingTable->failedNode(failed);
    neighborhoodSet->failedNode(failed);
    if (lsAsk.isUnspecified() && (! leafSet->isValid())) {
        EV << "[Bamboo::handleFailedNode()]\n"
           << "    lost connection to the network, trying to re-join."
           << endl;
        join();
        return false;
    }
    return true;
}

void Bamboo::handleRequestLeafSetResponse ( RequestLeafSetResponse * response )

virtual

Reimplemented from BasePastry.

Definition at line 183 of file Bamboo.cc.

Referenced by handleRpcResponse().

{
    EV << "[Bamboo::handleRequestLeafSetResponse() @ " << thisNode.getIp()
       << " (" << thisNode.getKey().toString(16) << ")]"
       << endl;
    if (state == JOIN) {
        PastryStateMessage* stateMsg =
             check_and_cast<PastryStateMessage*>(response->decapsulate());
        stateMsg->setLeafSetArraySize(stateMsg->getLeafSetArraySize() + 1);
        stateMsg->setLeafSet(stateMsg->getLeafSetArraySize() - 1,
                             stateMsg->getSender());
        handleStateMessage(stateMsg);
    }
}

void Bamboo::handleRpcResponse	(	BaseResponseMessage *	msg,
		cPolymorphic *	context,
		int	rpcId,
		simtime_t	rtt
	)

virtual

This method is called if an RPC response has been received.

Parameters

msg	The response message.
context	Pointer to an optional state object. The object has to be handled/deleted by the handleRpcResponse() code
rpcId	The RPC id.
rtt	The Round-Trip-Time of this RPC

Reimplemented from BasePastry.

Definition at line 162 of file Bamboo.cc.

{
    BasePastry::handleRpcResponse(msg, context, rpcId, rtt);
    RPC_SWITCH_START( msg )
    RPC_ON_RESPONSE( RequestLeafSet ) {
        EV << "[Bamboo::handleRpcResponse() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    Received a RequestLeafSet RPC Response (PUSH): id="
           << rpcId << "\n"
           << "    msg=" << *_RequestLeafSetResponse << " rtt=" << rtt
           << endl;
        handleRequestLeafSetResponse(_RequestLeafSetResponse);
        break;
    }
    RPC_SWITCH_END( )
}

void Bamboo::handleStateMessage ( PastryStateMessage * msg )

virtual

processes state messages, merging with own state tables

Parameters

msg	the pastry state message

Implements BasePastry.

Definition at line 377 of file Bamboo.cc.

Referenced by handleRequestLeafSetResponse().

{
    if (debugOutput) {
        EV << "[Bamboo::handleStateMessage() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    new STATE message to process "
           << static_cast<void*>(msg) << " in state "
           << ((state == READY)?"READY":((state == JOIN)?"JOIN":"INIT"))
           << endl;
    }
    if (state == INIT) {
        EV << "[Bamboo::handleStateMessage() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    can't handle state messages until at least reaching JOIN state."
           << endl;
        delete msg;
        return;
    }
    PastryStateMsgHandle handle(msg);
    if (state == JOIN) {
        determineAliveTable(msg);
        leafSet->mergeState(msg, &aliveTable);
        // merged state into leafset right now
        lastStateChange = simTime();
        newLeafs();
        updateTooltip();
        // no state message is processed right now, start immediately:
        stateCache = handle;
        if (proximityNeighborSelection) {
            pingNodes();
        } else {
            checkProxCache();
        }
        return;
    }
    // determine aliveTable to prevent leafSet from merging nodes that are
    // known to be dead:
    determineAliveTable(msg);
    if (leafSet->mergeState(msg, &aliveTable)) {
        // merged state into leafset right now
        lastStateChange = simTime();
        newLeafs();
        updateTooltip();
    }
    // in READY state, only ping nodes to get proximity metric:
    if (!stateCache.msg) {
        // no state message is processed right now, start immediately:
        stateCache = handle;
        if (proximityNeighborSelection) {
            pingNodes();
        } else {
            checkProxCache();
        }
    } else {
        // enqueue message for later processing:
        stateCacheQueue.push(handle);
        if (stateCacheQueue.size() > 15) {
            delete stateCacheQueue.front().msg;
            stateCacheQueue.pop();
            EV << "[Bamboo::handleStateMessage() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    stateCacheQueue full -> pop()" << endl;
        }
        if (proximityNeighborSelection) {
            prePing(msg);
        } else {
            checkProxCache();
        }
    }
}

void Bamboo::handleTimerEvent ( cMessage * msg )

virtual

Reimplemented from BaseRpc.

Definition at line 133 of file Bamboo.cc.

{
    if (msg == localTuningTimer) {
        EV << "[Bamboo::handleTimerEvent() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    starting local tuning "
           << "(aka neighbor's neighbors / routing table maintenance)"
           << endl;
        doLocalTuning();
        scheduleAt(simTime() + localTuningInterval, localTuningTimer);
    } else if (msg == leafsetMaintenanceTimer) {
        EV << "[Bamboo::handleTimerEvent() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    starting leafset maintenance"
           << endl;
        doLeafsetMaintenance();
        scheduleAt(simTime() + leafsetMaintenanceInterval,
                   leafsetMaintenanceTimer);
    } else if (msg == globalTuningTimer) {
        EV << "[Bamboo::handleTimerEvent() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    starting global tuning"
           << endl;
        doGlobalTuning();
        scheduleAt(simTime() + globalTuningInterval, globalTuningTimer);
    }
}

void Bamboo::initializeOverlay ( int stage )

virtual

Initializes derived-class-attributes.

Initializes derived-class-attributes, called by BaseOverlay::initialize(). By default this method is called once. If more stages are needed one can overload numInitStages() and add more stages.

Parameters

stage the init stage

Reimplemented from BaseOverlay.

Definition at line 50 of file Bamboo.cc.

{
    if ( stage != MIN_STAGE_OVERLAY )
        return;
    // Bamboo provides KBR services
    kbr = true;
    rowToAsk = 0;
    baseInit();
    localTuningInterval = par("localTuningInterval");
    leafsetMaintenanceInterval = par("leafsetMaintenanceInterval");
    globalTuningInterval = par("globalTuningInterval");
    localTuningTimer = new cMessage("repairTaskTimer");
    leafsetMaintenanceTimer = new cMessage("leafsetMaintenanceTimer");
    globalTuningTimer = new cMessage("globalTuningTimer");
}

void Bamboo::joinOverlay ( )

privatevirtual

Definition at line 72 of file Bamboo.cc.

{
    changeState(INIT);
    if (bootstrapNode.isUnspecified()) {
        // no existing pastry network -> first node of a new one
        changeState(READY);
    } else {
        // join existing pastry network
        changeState(JOIN);
    }
}

void Bamboo::lookupFinished ( AbstractLookup * lookup )

protectedvirtual

Implements LookupListener.

Definition at line 455 of file Bamboo.cc.

Referenced by BambooLookupListener::lookupFinished().

{
    EV << "[Bamboo::lookupFinished() @ " << thisNode.getIp()
       << " (" << thisNode.getKey().toString(16) << ")]\n"
       << endl;
    if (lookup->isValid()) {
        EV  << "    Lookup successful" << endl;
        const NodeVector& result = lookup->getResult();
        if (result[0] != thisNode) {
            if (proximityNeighborSelection) {
                // Global Tuning PING
                Prox prox = neighborCache->getProx(result[0],
                                                   NEIGHBORCACHE_DEFAULT,
                                                   PING_SINGLE_NODE,
                                                   this, NULL);
                if (prox != Prox::PROX_UNKNOWN && prox != Prox::PROX_WAITING) {
                    routingTable->mergeNode(result[0], prox.proximity);
                }
            } else {
                routingTable->mergeNode(result[0], -1.0);
                checkProxCache();
            }
        }
    } else {
        EV << "    Lookup failed" << endl;
    }
}
