Applicaton that communicates with a realword application via a socket. More...

#include <XmlRpcInterface.h>

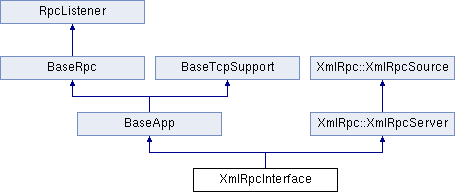

Inheritance diagram for XmlRpcInterface:

Classes
struct	XmlRpcConnectionState

Public Member Functions
	XmlRpcInterface ()
	~XmlRpcInterface ()
virtual void	initializeApp (int stage)
	initializes derived class-attributes
virtual void	handleMessage (cMessage *msg)
	The "main loop".
void	handleRpcTimeout (BaseCallMessage msg, const TransportAddress &dest, cPolymorphic context, int rpcId, const OverlayKey &)
	This method is called if an RPC timeout has been reached.
void	deliverTunneledMessage (const BinaryValue &payload)
void	localLookup (XmlRpc::XmlRpcValue &params, XmlRpc::XmlRpcValue &result)
void	lookup (XmlRpc::XmlRpcValue &params, XmlRpc::XmlRpcValue &result)
void	p2pnsRegister (XmlRpc::XmlRpcValue &params, XmlRpc::XmlRpcValue &result)
void	p2pnsResolve (XmlRpc::XmlRpcValue &params, XmlRpc::XmlRpcValue &result)
void	put (XmlRpc::XmlRpcValue &params, XmlRpc::XmlRpcValue &result)
void	get (XmlRpc::XmlRpcValue &params, XmlRpc::XmlRpcValue &result)
void	dumpDht (XmlRpc::XmlRpcValue &params, XmlRpc::XmlRpcValue &result)
void	joinOverlay (XmlRpc::XmlRpcValue &params, XmlRpc::XmlRpcValue &result)
Public Member Functions inherited from BaseApp
	BaseApp ()
virtual	~BaseApp ()
	virtual destructor
Public Member Functions inherited from BaseRpc
	BaseRpc ()
const NodeHandle &	getThisNode ()
	Returns the NodeHandle of this node.
simtime_t	getUdpTimeout ()
Public Member Functions inherited from RpcListener
virtual	~RpcListener ()
	destructor
Public Member Functions inherited from BaseTcpSupport
virtual void	socketDataArrived (int connId, void yourPtr, cPacket msg, bool urgent)
virtual void	socketEstablished (int connId, void *yourPtr)
virtual void	socketPeerClosed (int connId, void *yourPtr)
virtual void	socketFailure (int connId, void *yourPtr, int code)
virtual void	socketStatusArrived (int connId, void yourPtr, TCPStatusInfo status)
Public Member Functions inherited from XmlRpc::XmlRpcServer
	XmlRpcServer ()
	Create a server object.
virtual	~XmlRpcServer ()
	Destructor.
void	enableIntrospection (bool enabled=true)
	Specify whether introspection is enabled or not. Default is not enabled.
void	addMethod (XmlRpcServerMethod *method)
	Add a command to the RPC server.
void	removeMethod (XmlRpcServerMethod *method)
	Remove a command from the RPC server.
void	removeMethod (const std::string &methodName)
	Remove a command from the RPC server by name.
XmlRpcServerMethod *	findMethod (const std::string &name) const
	Look up a method by name.
bool	bindAndListen (int port, int backlog=5)
	Create a socket, bind to the specified port, and set it in listen mode to make it available for clients.
int	getPort (void) const
	Get the port number this server is listening on.
void	work (double msTime)
	Process client requests for the specified time.
void	exit ()
	Temporarily stop processing client requests and exit the work() method.
void	shutdown ()
	Close all connections with clients and the socket file descriptor.
void	listMethods (XmlRpcValue &result)
	Introspection support.
virtual std::string	executeRequest (std::string const &request)
	Parses the request xml, runs the method, generates the response (header+xml).
virtual unsigned	handleEvent (unsigned eventType)
	Handle client connection requests.
virtual void	removeConnection (XmlRpcServerConnection *)
	Remove a connection from the dispatcher.
Public Member Functions inherited from XmlRpc::XmlRpcSource
	XmlRpcSource (int fd=-1, bool deleteOnClose=false)
	Constructor.
virtual	~XmlRpcSource ()
	Destructor.
int	getfd () const
	Return the file descriptor being monitored.
void	setfd (int fd)
	Specify the file descriptor to monitor.
bool	getKeepOpen () const
	Return whether the file descriptor should be kept open if it is no longer monitored.
void	setKeepOpen (bool b=true)
	Specify whether the file descriptor should be kept open if it is no longer monitored.
virtual void	close ()
	Close the owned fd. If deleteOnClose was specified at construction, the object is deleted.

Protected Types
enum	ServerConnectionState { READ_HEADER, READ_REQUEST, EXECUTE_REQUEST, WRITE_RESPONSE }
	Possible IO states for the connection. More...
Protected Types inherited from XmlRpc::XmlRpcServer
typedef std::map< std::string, XmlRpcServerMethod * >	MethodMap
	Collection of methods. This could be a set keyed on method name if we wanted...

Protected Member Functions
bool	readHeader (char *buf, uint32_t length)
	Reads the http header.
bool	readRequest (char *buf, uint32_t length)
	Reads the request (based on the content-length header value)
bool	writeResponse ()
	Executes the request and writes the resulting response.
bool	isPrivileged ()
	Check if the connected application is allowed to call privileged methods.
void	handleAppTunPacket (char *buf, uint32_t len)
void	handleRealworldPacket (char *buf, uint32_t len)
void	handleCommonAPIPacket (cMessage *msg)
void	handleRpcResponse (BaseResponseMessage msg, cPolymorphic context, int rpcId, simtime_t rtt)
	This method is called if an RPC response has been received.
void	resetConnectionState ()
	Reset the internal connection state.
void	closeConnection ()
void	sendInternalRpcWithTimeout (CompType destComp, BaseCallMessage *call)
virtual void	handleReadyMessage (CompReadyMessage *msg)
	method to handle ready messages from the overlay
Protected Member Functions inherited from BaseApp
int	numInitStages () const
	method to set InitStage
void	initialize (int stage)
	initializes base class-attributes
virtual void	receiveChangeNotification (int category, const cPolymorphic *details)
	callback-method for events at the NotificationBoard
virtual void	handleTransportAddressChangedNotification ()
	This method gets call if the node has a new TransportAddress (IP address) because he changed his access network.
virtual void	handleNodeLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed.
virtual void	handleNodeGracefulLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed if this node is among the gracefulLeaveProbability nodes.
void	finish ()
	collects statistical data
virtual void	finishApp ()
	collects statistical data of derived app
void	callRoute (const OverlayKey &key, cPacket *msg, const TransportAddress &hint=TransportAddress::UNSPECIFIED_NODE, RoutingType routingType=DEFAULT_ROUTING)
	Common API function: calls route-method in overlay.
void	callRoute (const OverlayKey &key, cPacket *msg, const std::vector< TransportAddress > &sourceRoute, RoutingType routingType=DEFAULT_ROUTING)
virtual void	deliver (OverlayKey &key, cMessage *msg)
	Common API function: handles delivered messages from overlay.
virtual void	forward (OverlayKey key, cPacket msg, NodeHandle nextHopNode)
	Common API function: handles messages from overlay to be forwarded.
virtual void	update (const NodeHandle &node, bool joined)
	Common API function: informs application about neighbors and own nodeID.
NodeVector *	callLocalLookup (const OverlayKey &key, int num, bool safe)
	Common API function: produces a list of nodes that can be used as next hops towards key.
NodeVector *	callNeighborSet (int num)
	Common API function: produces a list of neighbor nodes.
bool	isSiblingFor (const NodeHandle &node, const OverlayKey &key, int numSiblings, bool *err)
	Query if a node is among the siblings for a given key.
virtual void	handleLowerMessage (cMessage *msg)
	processes self-messages
virtual void	handleUpperMessage (cMessage *msg)
	handleUpperMessage gets called of handleMessage(cMessage* msg) if msg arrivedOn from_upperTier (currently msg gets deleted in this function)
virtual void	handleUDPMessage (cMessage *msg)
	method to handle messages that come directly from the UDP gate
virtual void	bindToPort (int port)
	Tells UDP we want to get all packets arriving on the given port.
virtual void	sendMessageToUDP (const TransportAddress &destAddr, cPacket *msg, simtime_t delay=SIMTIME_ZERO)
	Sends a packet over UDP.
virtual void	handleTraceMessage (cMessage *msg)
	handleTraceMessage gets called of handleMessage(cMessage* msg) if a message arrives at trace_in.
void	sendMessageToLowerTier (cPacket *msg)
	sends non-commonAPI message to the lower tier
bool	internalHandleRpcCall (BaseCallMessage *msg)
	Handles internal rpc requests.
void	internalHandleRpcResponse (BaseResponseMessage msg, cPolymorphic context, int rpcId, simtime_t rtt)
	Handles rpc responses internal in base classes
void	internalSendRouteRpc (BaseRpcMessage *message, const OverlayKey &destKey, const std::vector< TransportAddress > &sourceRoute, RoutingType routingType)
virtual CompType	getThisCompType ()
	Return the component type of this module.
void	sendReadyMessage (bool ready=true, const OverlayKey &nodeId=OverlayKey::UNSPECIFIED_KEY)
Protected Member Functions inherited from BaseRpc
virtual void	internalHandleRpcTimeout (BaseCallMessage msg, const TransportAddress &dest, cPolymorphic context, int rpcId, const OverlayKey &destKey)
	Handles rpc timeouts internal in base classes
void	initRpcs ()
	Initializes Remote-Procedure state.
void	finishRpcs ()
	Deinitializes Remote-Procedure state.
virtual void	internalHandleRpcMessage (BaseRpcMessage *msg)
	Handles incoming rpc messages and delegates them to the corresponding listeners or handlers.
uint32_t	sendRouteRpcCall (CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Routes a Remote-Procedure-Call message to an OverlayKey.
uint32_t	sendRouteRpcCall (CompType destComp, const OverlayKey &destKey, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Routes a Remote-Procedure-Call message to an OverlayKey.
uint32_t	sendRouteRpcCall (CompType destComp, const TransportAddress &dest, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends a Remote-Procedure-Call message using the overlay's UDP port This replaces ROUTE_DIRECT calls!
uint32_t	sendUdpRpcCall (const TransportAddress &dest, BaseCallMessage msg, cPolymorphic context=NULL, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends a Remote-Procedure-Call message to the underlay
uint32_t	sendInternalRpcCall (CompType destComp, BaseCallMessage msg, cPolymorphic context=NULL, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends an internal Remote-Procedure-Call between two tiers
void	cancelRpcMessage (uint32_t nonce)
	Cancels a Remote-Procedure-Call.
void	cancelAllRpcs ()
	Cancels all RPCs.
void	sendRpcResponse (TransportType transportType, CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage call, BaseResponseMessage response)
	Send Remote-Procedure response message and deletes call message.
void	sendRpcResponse (BaseCallMessage call, BaseResponseMessage response)
	Send Remote-Procedure response message to UDP and deletes call message.
int	pingNode (const TransportAddress &dest, simtime_t timeout=-1, int retries=0, cPolymorphic context=NULL, const char caption="PING", RpcListener *rpcListener=NULL, int rpcId=-1, TransportType transportType=INVALID_TRANSPORT)
	ping a node by its TransportAddress
virtual bool	handleRpcCall (BaseCallMessage *msg)
	Processes Remote-Procedure-Call invocation messages.
virtual void	pingResponse (PingResponse pingResponse, cPolymorphic context, int rpcId, simtime_t rtt)
virtual void	pingTimeout (PingCall pingCall, const TransportAddress &dest, cPolymorphic context, int rpcId)
bool	internalHandleMessage (cMessage *msg)
Protected Member Functions inherited from RpcListener
virtual void	handleRpcResponse (BaseResponseMessage *msg, const RpcState &rpcState, simtime_t rtt)
	This method is called if an RPC response has been received.
virtual void	handleRpcTimeout (const RpcState &rpcState)
	This method is called if an RPC timeout has been reached.
Protected Member Functions inherited from BaseTcpSupport
void	handleTCPMessage (cMessage *msg)
	Member function to handle incoming TCP messages.
void	bindAndListenTcp (int port)
	Member function to bind service to the specified port and listen afterwards.
bool	isAlreadyConnected (TransportAddress address)
	Member function to check if the service is already connected.
void	establishTcpConnection (TransportAddress address)
	Member function to establish a connection to the specified node.
void	sendTcpData (cPacket *msg, TransportAddress address)
	Member function to send TCP data to the specified node.
virtual void	handleConnectionEvent (EvCode code, TransportAddress address)
	Member function to handle passive connection events.
virtual void	handleDataReceived (TransportAddress address, cPacket *msg, bool urgent)
	Member function to handle incoming data.
virtual void	handleIncomingConnection (TransportAddress address)
	Member function to handle newly opened connections.
void	closeTcpConnection (TransportAddress address)
	Member function to close an established connection.
void	setTcpOut (cGate *gate)
	Member function to set local gate towards the TCP module during init phase.
cGate *	getTcpOut ()
	Member function to get local gate towards the TCP module.
Protected Member Functions inherited from XmlRpc::XmlRpcServer
virtual void	acceptConnection ()
	Accept a client connection request.
virtual XmlRpcServerConnection *	createConnection (int socket)
	Create a new connection object for processing requests from a specific client.
virtual void	dispatchConnection (XmlRpcServerConnection *sc)
	Hand off a new connection object to a dispatcher.
std::string	parseRequest (std::string const &request, XmlRpcValue &params)
	Parse the methodName and parameters from the request.
bool	executeMethod (const std::string &methodName, XmlRpcValue &params, XmlRpcValue &result)
	Execute a named method with the specified params.
bool	executeMulticall (const std::string &methodName, XmlRpcValue &params, XmlRpcValue &result)
	Execute multiple calls and return the results in an array.
std::string	generateResponse (std::string const &resultXml)
	Construct a response from the result XML.
std::string	generateFaultResponse (std::string const &msg, int errorCode=-1)
	Construct a fault response.
std::string	generateHeader (std::string const &body)
	Return the appropriate headers for the response.

Protected Attributes
unsigned int	mtu
cMessage *	packetNotification
PacketBuffer	packetBuffer
RealtimeScheduler *	scheduler
std::map< int, XmlRpcConnectionState >	state
SOCKET	curAppFd
bool	limitAccess
XmlRpc::XmlRpcServerMethod *	_localLookup
XmlRpc::XmlRpcServerMethod *	_lookup
XmlRpc::XmlRpcServerMethod *	_register
XmlRpc::XmlRpcServerMethod *	_resolve
XmlRpc::XmlRpcServerMethod *	_put
XmlRpc::XmlRpcServerMethod *	_get
XmlRpc::XmlRpcServerMethod *	_dumpDht
XmlRpc::XmlRpcServerMethod *	_joinOverlay
XmlRpc::XmlRpcServerMethod *	_addContact
XmlRpc::XmlRpcServerMethod *	_removeContact
XmlRpc::XmlRpcServerMethod *	_getContacts
XmlRpc::XmlRpcServerMethod *	_getUserId
XmlRpc::XmlRpcServerMethod *	_searchContact
XmlRpc::XmlRpcServerMethod *	_publish
XmlRpc::XmlRpcServerMethod *	_pull_notification
XmlRpc::XmlRpcServerMethod *	_subscribe
SOCKET	appTunFd
	FD of the application TUN socket used for tunneling.
P2pns *	p2pns
	Pointer to the P2PNS module.
Protected Attributes inherited from BaseApp
UnderlayConfigurator *	underlayConfigurator
	pointer to UnderlayConfigurator in this node
GlobalNodeList *	globalNodeList
	pointer to GlobalNodeList in this node
GlobalStatistics *	globalStatistics
	pointer to GlobalStatistics module in this node
NotificationBoard *	notificationBoard
	pointer to NotificationBoard in this node
bool	debugOutput
	debug output yes/no?
int	numOverlaySent
	number of sent packets to overlay
int	bytesOverlaySent
	number of sent bytes to overlay
int	numOverlayReceived
	number of received packets from overlay
int	bytesOverlayReceived
	number of received bytes from overlay
int	numUdpSent
	number of sent packets to UDP
int	bytesUdpSent
	number of sent bytes to UDP
int	numUdpReceived
	number of received packets from UDP
int	bytesUdpReceived
	number of received bytes from UDP
simtime_t	creationTime
	simTime when the App has been created
Protected Attributes inherited from BaseRpc
NodeHandle	thisNode
	NodeHandle to this node.
BaseOverlay *	overlay
bool	debugOutput
	debug output ?
GlobalStatistics *	globalStatistics
	pointer to GlobalStatistics module in this node
CompType	thisCompType
NeighborCache *	neighborCache
	pointer to the neighbor cache
CryptoModule *	cryptoModule
	pointer to CryptoModule
int	numPingSent
int	bytesPingSent
int	numPingResponseSent
int	bytesPingResponseSent
Protected Attributes inherited from XmlRpc::XmlRpcServer
bool	_introspectionEnabled
	Whether the introspection API is supported by this server.
XmlRpcDispatch	_disp
	Event dispatcher.
MethodMap	_methods
	Registered RPC methods.
XmlRpcServerMethod *	_listMethods
	List all registered RPC methods (only available if introspection is enabled)
XmlRpcServerMethod *	_methodHelp
	Return help string for a specified method (only available if introspection is enabled)

Additional Inherited Members
Public Types inherited from BaseTcpSupport
enum	EvCode { NO_EST_CONNECTION, PEER_CLOSED, PEER_TIMEDOUT, PEER_REFUSED, CONNECTION_RESET, CONNECTION_SUCC_ClOSED }
Public Attributes inherited from XmlRpc::XmlRpcSource
bool	_ssl
SSL_CTX *	_ssl_ctx
SSL *	_ssl_ssl
SSL_METHOD *	_ssl_meth
Static Protected Attributes inherited from XmlRpc::XmlRpcServer
static const char	METHODNAME_TAG [] = "<methodName>"
static const char	PARAMS_TAG [] = "<params>"
static const char	PARAMS_ETAG [] = "</params>"
static const char	PARAM_TAG [] = "<param>"
static const char	PARAM_ETAG [] = "</param>"
static const std::string	SYSTEM_MULTICALL
static const std::string	METHODNAME = "methodName"
static const std::string	PARAMS = "params"
static const std::string	FAULTCODE = "faultCode"
static const std::string	FAULTSTRING = "faultString"

Detailed Description

Applicaton that communicates with a realword application via a socket.

Definition at line 44 of file XmlRpcInterface.h.

Member Enumeration Documentation

enum XmlRpcInterface::ServerConnectionState

protected

Possible IO states for the connection.

Enumerator:

READ_HEADER
READ_REQUEST
EXECUTE_REQUEST
WRITE_RESPONSE

Definition at line 63 of file XmlRpcInterface.h.

{ READ_HEADER, READ_REQUEST, EXECUTE_REQUEST,

WRITE_RESPONSE };

Constructor & Destructor Documentation

XmlRpcInterface::XmlRpcInterface ( )

Definition at line 471 of file XmlRpcInterface.cc.

{
    p2pns = NULL;
    _localLookup = NULL;
    _lookup = NULL;
    _register = NULL;
    _resolve = NULL;
    _put = NULL;
    _get = NULL;
    _dumpDht = NULL;
    _joinOverlay = NULL;
    _addContact = NULL;
    _removeContact = NULL;
    _getContacts = NULL;
    _getUserId = NULL;
    _searchContact = NULL;
    _subscribe = NULL;
    _publish = NULL;
    _pull_notification = NULL;
    packetNotification = NULL;
}

XmlRpcInterface::~XmlRpcInterface ( )

Definition at line 495 of file XmlRpcInterface.cc.

{
    delete _localLookup;
    delete _lookup;
    delete _register;
    delete _resolve;
    delete _put;
    delete _get;
    delete _dumpDht;
    delete _joinOverlay;
    delete _addContact;
    delete _removeContact;
    delete _getContacts;
    delete _getUserId;
    delete _searchContact;
    delete _publish;
    delete _subscribe;
    delete _pull_notification;
    cancelAndDelete(packetNotification);
}

Member Function Documentation

void XmlRpcInterface::closeConnection ( )

protected

Definition at line 533 of file XmlRpcInterface.cc.

{
    scheduler->closeAppSocket(curAppFd);
    resetConnectionState();
}

void XmlRpcInterface::deliverTunneledMessage ( const BinaryValue & payload )

Definition at line 742 of file XmlRpcInterface.cc.

{
#if not defined _WIN32 && not defined __APPLE__
    Enter_Method_Silent();
    if (payload.size() == 0) {
        return;
    }
    int curBytesWritten = scheduler->sendBytes(&payload[0],
                                               payload.size(),
                                               0, 0, true, appTunFd);
    if (curBytesWritten <= 0) {
        throw cRuntimeError("XmlRpcServerConnection::deliverTunneledMessage(): "
                            "Error writing to application TUN device.");
    }
#endif
}

void XmlRpcInterface::dumpDht	(	XmlRpc::XmlRpcValue &	params,
		XmlRpc::XmlRpcValue &	result
	)

Definition at line 407 of file XmlRpcInterface.cc.

{
    if (params.size() != 1) {
        throw XmlRpcException("dump_dht(int dummy): Invalid argument type");
    }
    if (!isPrivileged()) {
         throw XmlRpcException("dump_dht(int dummy): Not allowed");
     }
    if (overlay->getCompModule(TIER1_COMP) == NULL)
        throw XmlRpcException("dump_dht(): No DHT service");
    state[curAppFd]._connectionState = EXECUTE_REQUEST;
    DHTdumpCall* call = new DHTdumpCall();
    sendInternalRpcWithTimeout(TIER1_COMP, call);
}

void XmlRpcInterface::get	(	XmlRpc::XmlRpcValue &	params,
		XmlRpc::XmlRpcValue &	result
	)

Definition at line 383 of file XmlRpcInterface.cc.

{
    if ((params.size() != 4)
            || (params[0].getType() != XmlRpcValue::TypeBase64)
            || (params[1].getType() != XmlRpcValue::TypeInt)
            || (params[2].getType() != XmlRpcValue::TypeBase64)
            || (params[3].getType() != XmlRpcValue::TypeString))
        throw XmlRpcException("get(base64 key, int num, base64 placemark "
                ", string application): Invalid argument type");
    if (overlay->getCompModule(TIER1_COMP) == NULL)
        throw XmlRpcException("get(base64 key, int num, base64 placemark "
                ", string application): No DHT service");
    state[curAppFd]._connectionState = EXECUTE_REQUEST;
    DHTgetCAPICall* dhtGetMsg = new DHTgetCAPICall();
    BinaryValue keyString = (const XmlRpcValue::BinaryData&)params[0];
    dhtGetMsg->setKey(OverlayKey::sha1(keyString));
    sendInternalRpcWithTimeout(TIER1_COMP, dhtGetMsg);
}

void XmlRpcInterface::handleAppTunPacket	(	char *	buf,
		uint32_t	len
	)

protected

Definition at line 702 of file XmlRpcInterface.cc.

{
#if not defined _WIN32 && not defined __APPLE__
    EV << "XmlRpcInterface::handleAppTunPacket(): packet of "
       << "length " << length << endl;
    if (!p2pns) {
        throw cRuntimeError("XmlRpcInterface::handleAppTunPacket(): "
                "P2PNS module missing on tier2!");
    }
    if (OverlayKey::getLength() < 100) {
        throw cRuntimeError("XmlRpcInterface::handleAppTunPacket(): "
                "P2PNS needs at least 100 bit nodeIds!");
    }
    if (length < 40) {
        EV << "XmlRpcInterface::handleAppTunPacket(): packet too "
           << "short - discarding packet!" << endl;
        return;
    }
    ip6_hdr* ip_buf = (ip6_hdr*) buf;
    if (((ip_buf->ip6_vfc & 0xf0) >> 4) != 6) {
        EV << "XmlRpcInterface::handleAppTunPacket(): received packet "
              "is no IPv6 - discarding packet!" << endl;
        return;
    }
    OverlayKey destKey = OverlayKey(ntohl(ip_buf->ip6_dst.s6_addr32[0]));
    for (int i = 1; i < 4; i++) {
        destKey = (destKey << 32) + OverlayKey(ntohl(ip_buf->ip6_dst.s6_addr32[i]));
    }
    destKey = destKey << (OverlayKey::getLength() - 100);
    p2pns->tunnel(destKey, BinaryValue(buf, length));
#endif
}

void XmlRpcInterface::handleCommonAPIPacket ( cMessage * msg )

protected

Definition at line 956 of file XmlRpcInterface.cc.

{
    error("DHTXMLRealworldApp::handleCommonAPIPacket(): Unknown Packet!");
}

void XmlRpcInterface::handleMessage ( cMessage * msg )

virtual

The "main loop".

Every message that is received or send is handled by this method

Reimplemented from BaseApp.

Definition at line 547 of file XmlRpcInterface.cc.

{
    // Packet from the application...
    if (msg==packetNotification) {
        EV << "[XmlRpcInterface::handleMessage() @ " << overlay->getThisNode().getIp()
        << " (" << overlay->getThisNode().getKey().toString(16) << ")]\n"
        << "    Message from application. Queue length = " << packetBuffer.size()
        << endl;
        while (packetBuffer.size() > 0) {
            // get packet from buffer and parse it
            PacketBufferEntry packet =
                    *(packetBuffer.begin());
            packetBuffer.pop_front();
            curAppFd = packet.fd;
            switch (packet.func) {
            case PacketBufferEntry::PACKET_APPTUN_DATA:
                handleAppTunPacket(packet.data, packet.length);
                break;
            case PacketBufferEntry::PACKET_DATA:
                if (state.count(curAppFd) == 0) {
                    throw cRuntimeError("XmlRpcInterface::handleMessage(): "
                                            "Received packet "
                                            "from unknown socket!");
                }
                handleRealworldPacket(packet.data, packet.length);
                break;
            case PacketBufferEntry::PACKET_FD_NEW:
                if (state.count(curAppFd)) {
                    throw cRuntimeError("XmlRpcInterface::handleMessage(): "
                                            "Connection state table corrupt!");
                }
                resetConnectionState();
                if (packet.addr != NULL) {
                    if (((sockaddr_in*)packet.addr)->sin_addr.s_addr
                            == inet_addr("127.0.0.1")) {
                        state[curAppFd].localhost = true;
                    }
                    delete packet.addr;
                    packet.addr = NULL;
                }
                break;
            case PacketBufferEntry::PACKET_FD_CLOSE:
                if (state.count(curAppFd) == 0) {
                    throw cRuntimeError("XmlRpcInterface::handleMessage(): "
                                            "Trying to close unknown "
                                            "connection!");
                }
                resetConnectionState();
                state.erase(curAppFd);
            }
            if (packet.data) {
                delete[] packet.data;
            }
        }
    } else if (msg->isSelfMessage()) {
        // process rpc self-messages
        BaseRpcMessage* rpcMessage = dynamic_cast<BaseRpcMessage*>(msg);
        if (rpcMessage!=NULL) {
            internalHandleRpcMessage(rpcMessage);
            return;
        }
        delete msg;
    } else {
        // RPCs
        BaseRpcMessage* rpcMessage = dynamic_cast<BaseRpcMessage*>(msg);
        if (rpcMessage!=NULL) {
            internalHandleRpcMessage(rpcMessage);
            return;
        }
        // common API
        CommonAPIMessage* commonAPIMsg = dynamic_cast<CommonAPIMessage*>(msg);
        if (commonAPIMsg != NULL)
            handleCommonAPIPacket(commonAPIMsg);
        CompReadyMessage* readyMsg = dynamic_cast<CompReadyMessage*>(msg);
        if (readyMsg != NULL)
            handleReadyMessage(readyMsg);
        delete msg;
    }
}

void XmlRpcInterface::handleReadyMessage ( CompReadyMessage * msg )

protectedvirtual

method to handle ready messages from the overlay

Parameters

msg	message to handle

Reimplemented from BaseApp.

Definition at line 657 of file XmlRpcInterface.cc.

{
    if ((msg->getReady() == false) || (msg->getComp() != OVERLAY_COMP)) {
        return;
    }
    if (appTunFd != INVALID_SOCKET) {
        // set TUN interface address using the current NodeId
        // TODO: this is ugly
        const OverlayKey& key = overlay->getThisNode().getKey();
        if (OverlayKey::getLength() < 100) {
            throw cRuntimeError("XmlRpcInterface::handleReadyMessage(): "
                    "P2PNS needs at least 100 bit nodeIds!");
        }
        std::stringstream addr;
        addr << "2001:001";
        for (int i = 0; i < 100/4; i++) {
            if (((i + 3) % 4) == 0) {
                addr << ":";
            }
            addr << std::hex << key.getBitRange(OverlayKey::getLength() -
                                                4 * (i + 1), 4);
        }
        std::string cmd = "/sbin/ip addr add " + addr.str() + "/28 dev tun0";
        EV << "XmlRpcInterface::handleOverlayReady(): "
              "Setting TUN interface address " << addr.str() << endl;
        if (system(cmd.c_str()) != 0) {
            EV << "XmlRpcInterface::handleOverlayReady(): "
                  "Failed to set TUN interface address!" << endl;
        }
        if (system("/sbin/ip link set tun0 up") != 0) {
            EV << "XmlRpcInterface::handleOverlayReady(): "
                  "Failed to set TUN interface up!" << endl;
        }
        p2pns->registerId(addr.str());
    }
}

void XmlRpcInterface::handleRealworldPacket	(	char *	buf,
		uint32_t	len
	)

protected

Definition at line 762 of file XmlRpcInterface.cc.

{
    if (state[curAppFd]._connectionState == READ_HEADER) {
        if (!readHeader(buf, length)) {
            // discard data, if the header is invalid
            state[curAppFd]._header = "";
            state[curAppFd]._request = "";
            state[curAppFd]._response = "";
            state[curAppFd]._connectionState = READ_HEADER;
            return;
        }
    }
    if (state[curAppFd]._connectionState == READ_REQUEST)
        if (!readRequest(buf, length))
            return;
    if (state[curAppFd]._connectionState == WRITE_RESPONSE)
        if (!writeResponse() ) {
            closeConnection();
            return;
        }
    return;
}

void XmlRpcInterface::handleRpcResponse	(	BaseResponseMessage *	msg,
		cPolymorphic *	context,
		int	rpcId,
		simtime_t	rtt
	)

protectedvirtual

This method is called if an RPC response has been received.

Parameters

msg	The response message.
context	Pointer to an optional state object. The object has to be handled/deleted by the handleRpcResponse() code
rpcId	The RPC id.
rtt	The Round-Trip-Time of this RPC

Reimplemented from RpcListener.

Definition at line 788 of file XmlRpcInterface.cc.

{
    curAppFd = rpcId;
    if (state.count(curAppFd) == 0) {
        return;
    }
    RPC_SWITCH_START(msg)
    RPC_ON_RESPONSE(Lookup) {
        if (state[curAppFd]._connectionState != EXECUTE_REQUEST) break;
        XmlRpcValue resultValue;
        resultValue.setSize(_LookupResponse->getSiblingsArraySize());
        if (_LookupResponse->getIsValid() == true) {
            for (uint32_t i=0; i < _LookupResponse->getSiblingsArraySize();
                    i++) {
                resultValue[i].setSize(3);
                resultValue[i][0] =
                    _LookupResponse->getSiblings(i).getIp().str();
                resultValue[i][1] =
                    _LookupResponse->getSiblings(i).getPort();
                resultValue[i][2] =
                    _LookupResponse->getSiblings(i).getKey().toString(16);
            }
            state[curAppFd]._response = generateResponse(resultValue.toXml());
        } else {
            std::cout << "XmlRpcInterface(): lookup() failed!" << endl;
            state[curAppFd]._response = generateFaultResponse("lookup() failed", 22);
        }
        state[curAppFd]._connectionState = WRITE_RESPONSE;
        if (!writeResponse()) {
            closeConnection();
        }
        break;
    }
    RPC_ON_RESPONSE(P2pnsRegister) {
        if (state[curAppFd]._connectionState != EXECUTE_REQUEST)
            break;
        XmlRpcValue resultValue;
        if (_P2pnsRegisterResponse->getIsSuccess() == true) {
            resultValue = 0;
            state[curAppFd]._response = generateResponse(resultValue.toXml());
        } else {
            std::cout << "XmlRpcInterface(): register() failed!" << endl;
            state[curAppFd]._response = generateFaultResponse("register() failed", 22);
        }
        state[curAppFd]._connectionState = WRITE_RESPONSE;
        if (!writeResponse() ) {
            closeConnection();
        }
        break;
    }
    RPC_ON_RESPONSE(P2pnsResolve) {
        if (state[curAppFd]._connectionState != EXECUTE_REQUEST)
            break;
        XmlRpcValue resultValue;
        resultValue.setSize(_P2pnsResolveResponse->getAddressArraySize());
        if (_P2pnsResolveResponse->getIsSuccess() == true) {
            for (uint i=0; i < _P2pnsResolveResponse->getAddressArraySize(); i++) {
                resultValue[i].setSize(3);
                BinaryValue& addr = _P2pnsResolveResponse->getAddress(i);
                resultValue[i][0] = XmlRpcValue(&addr[0], addr.size());
                resultValue[i][1] = (int)_P2pnsResolveResponse->getKind(i);
                resultValue[i][2] = (int)_P2pnsResolveResponse->getId(i);
            }
            state[curAppFd]._response = generateResponse(resultValue.toXml());
        } else {
            std::cout << "XmlRpcInterface(): resolve() failed!" << endl;
            state[curAppFd]._response = generateFaultResponse("resolve() failed: Name not found", 9);
        }
        state[curAppFd]._connectionState = WRITE_RESPONSE;
        if (!writeResponse() ) {
            closeConnection();
        }
        break;
    }
    RPC_ON_RESPONSE(DHTputCAPI) {
        if (state[curAppFd]._connectionState != EXECUTE_REQUEST)
            break;
        XmlRpcValue resultValue;
        if (_DHTputCAPIResponse->getIsSuccess() == true) {
            resultValue = 0;
            state[curAppFd]._response = generateResponse(resultValue.toXml());
        } else {
            std::cout << "XmlRpcInterface(): put() failed!" << endl;
            state[curAppFd]._response = generateFaultResponse("put() failed", 22);
        }
        state[curAppFd]._connectionState = WRITE_RESPONSE;
        if (!writeResponse() ) {
            closeConnection();
        }
        break;
    }
    RPC_ON_RESPONSE(DHTgetCAPI) {
        if (state[curAppFd]._connectionState != EXECUTE_REQUEST)
            break;
        XmlRpcValue resultValue;
        resultValue.setSize(2);
        resultValue[0].setSize(_DHTgetCAPIResponse->getResultArraySize());
        if (_DHTgetCAPIResponse->getIsSuccess() == true) {
            for (uint i=0; i < _DHTgetCAPIResponse->getResultArraySize(); i++) {
                resultValue[i].setSize(2);
                DhtDumpEntry& entry = _DHTgetCAPIResponse->getResult(i);
                resultValue[0][i] = XmlRpcValue(&(*(entry.getValue().begin())),
                                                entry.getValue().size());
            }
            resultValue[1] = std::string();
            state[curAppFd]._response = generateResponse(resultValue.toXml());
        } else {
            std::cout << "XmlRpcInterface(): get() failed!" << endl;
            state[curAppFd]._response = generateFaultResponse("get() failed", 22);
        }
        state[curAppFd]._connectionState = WRITE_RESPONSE;
        if (!writeResponse() ) {
            closeConnection();
        }
        break;
    }
    RPC_ON_RESPONSE(DHTdump) {
        if (state[curAppFd]._connectionState != EXECUTE_REQUEST)
            break;
        XmlRpcValue resultValue;
        resultValue.setSize(_DHTdumpResponse->getRecordArraySize());
        for (uint32_t i=0; i < _DHTdumpResponse->getRecordArraySize();
             i++) {
            resultValue[i].setSize(3);
            resultValue[i][0] =
                _DHTdumpResponse->getRecord(i).getKey().toString(16);
            resultValue[i][1] = XmlRpcValue(
                 &(*(_DHTdumpResponse->getRecord(i).getValue().begin())),
                 _DHTdumpResponse->getRecord(i).getValue().size());
            resultValue[i][2] =
                _DHTdumpResponse->getRecord(i).getTtl();
        }
        state[curAppFd]._response = generateResponse(resultValue.toXml());
        state[curAppFd]._connectionState = WRITE_RESPONSE;
         if (!writeResponse()) {
             closeConnection();
         }
         break;
    }
    RPC_SWITCH_END( )
}

void XmlRpcInterface::handleRpcTimeout	(	BaseCallMessage *	msg,
		const TransportAddress &	dest,
		cPolymorphic *	context,
		int	rpcId,
		const OverlayKey &	destKey
	)

virtual

This method is called if an RPC timeout has been reached.

Parameters

msg	The original RPC message.
dest	The destination node
context	Pointer to an optional state object. The object has to be handled/deleted by the handleRpcResponse() code
rpcId	The RPC id.
destKey	the destination OverlayKey

Reimplemented from RpcListener.

Definition at line 639 of file XmlRpcInterface.cc.

{
    curAppFd = rpcId;
    if (state.count(curAppFd) == 0)
        return;
    std::cout << "XmlRpcInterface(): XML-RPC failed!" << endl;
    state[curAppFd]._response = generateFaultResponse("XML-RPC timeout", 22);
    state[curAppFd]._connectionState = WRITE_RESPONSE;
    if (!writeResponse() ) {
        closeConnection();
    }
}

void XmlRpcInterface::initializeApp ( int stage )

virtual

initializes derived class-attributes

Parameters

stage the init stage

Reimplemented from BaseApp.

Definition at line 437 of file XmlRpcInterface.cc.

{
    // all initialization is done in the first stage
    if (stage != MAX_STAGE_APP)
        return;
    packetNotification = new cMessage("packetNotification");
    mtu = par("mtu");
    limitAccess = par("limitAccess");
    scheduler = check_and_cast<RealtimeScheduler *>(simulation.getScheduler());
    scheduler->setInterfaceModule(this, packetNotification, &packetBuffer, mtu,
                                  true);
    appTunFd = scheduler->getAppTunFd();
    p2pns = dynamic_cast<P2pns*>(overlay->getCompModule(TIER2_COMP));
    XmlRpc::setVerbosity(1);
    _localLookup = new LocalLookup(this);
    _lookup = new Lookup(this);
    _register = new P2pnsRegister(this);
    _resolve = new P2pnsResolve(this);
    _put = new Put(this);
    _get = new Get(this);
    _dumpDht = new DumpDht(this);
    _joinOverlay = new JoinOverlay(this);
    enableIntrospection(true);
    curAppFd = INVALID_SOCKET;
}

bool XmlRpcInterface::isPrivileged ( )

protected

Check if the connected application is allowed to call privileged methods.

Currently this is true for all applications connecting to localhost. If **.limitAccess = false there are no access restrictions.

Returns: true, if the application is allowed to call privileged methods

Definition at line 428 of file XmlRpcInterface.cc.

{
    if (limitAccess) {
        return state[curAppFd].localhost;
    } else {
        return true;
    }
}

void XmlRpcInterface::joinOverlay	(	XmlRpc::XmlRpcValue &	params,
		XmlRpc::XmlRpcValue &	result
	)

Definition at line 333 of file XmlRpcInterface.cc.

{
    if ((params.size() != 1)
            || (params[0].getType() != XmlRpcValue::TypeBase64))
        throw XmlRpcException("join(base64 nodeID): Invalid argument type");
    if (!isPrivileged()) {
        throw XmlRpcException("join(base64 nodeID): Not allowed");
    }
    BinaryValue nodeID = (const XmlRpcValue::BinaryData&)params[0];
    overlay->join(OverlayKey::sha1(nodeID));
    result[0] = 0;
}

void XmlRpcInterface::localLookup	(	XmlRpc::XmlRpcValue &	params,
		XmlRpc::XmlRpcValue &	result
	)

Definition at line 259 of file XmlRpcInterface.cc.

{
    if ((params.size() != 3)
            || (params[0].getType() != XmlRpcValue::TypeBase64)
            || (params[1].getType() != XmlRpcValue::TypeInt)
            || (params[2].getType() != XmlRpcValue::TypeBoolean))
        throw XmlRpcException("local_lookup(base64 key, int num, "
                "boolean safe): Invalid argument type");
    BinaryValue keyString = (const XmlRpcValue::BinaryData&)params[0];
    NodeVector* nextHops = NULL;
    if (keyString.size() > 0) {
        nextHops = overlay->local_lookup(OverlayKey::sha1(keyString),
                                                     params[1], params[2]);
    } else {
        nextHops = overlay->local_lookup(overlay->getThisNode().getKey(),
                                                     params[1], params[2]);
    }
    for (uint32_t i=0; i < nextHops->size(); i++) {
        result[i][0] = (*nextHops)[i].getIp().str();
        result[i][1] = (*nextHops)[i].getPort();
        result[i][2] = (*nextHops)[i].getKey().toString(16);
    }
    delete nextHops;
}

void XmlRpcInterface::lookup	(	XmlRpc::XmlRpcValue &	params,
		XmlRpc::XmlRpcValue &	result
	)

Definition at line 289 of file XmlRpcInterface.cc.

{
    if (((params.size() != 2)
            || (params[0].getType() != XmlRpcValue::TypeBase64)
            || (params[1].getType() != XmlRpcValue::TypeInt))
        && ((params.size() != 3)
            || (params[0].getType() != XmlRpcValue::TypeBase64)
            || (params[1].getType() != XmlRpcValue::TypeInt)
            || (params[2].getType() != XmlRpcValue::TypeInt)))
        throw XmlRpcException("lookup(base64 key, int numSiblings(, "
                              "int RoutingType)): Invalid argument type");
    if ((int)params[1] > overlay->getMaxNumSiblings())
        throw XmlRpcException("lookup(base64 key, int numSiblings(, "
                              "int RoutingType)): numSibling to big");
    if (params.size() == 3) {
        if (((int)params[2] != DEFAULT_ROUTING) &&
            ((int)params[2] != ITERATIVE_ROUTING) &&
            ((int)params[2] != EXHAUSTIVE_ITERATIVE_ROUTING) &&
            ((int)params[2] != SEMI_RECURSIVE_ROUTING) &&
            ((int)params[2] != FULL_RECURSIVE_ROUTING) &&
            ((int)params[2] != RECURSIVE_SOURCE_ROUTING)) {
            throw XmlRpcException("lookup(base64 key, int numSiblings(, "
                                  "int RoutingType)): invalid routingType");
        }
    }
    state[curAppFd]._connectionState = EXECUTE_REQUEST;
    LookupCall* lookupCall = new LookupCall();
    BinaryValue keyString = (const XmlRpcValue::BinaryData&)params[0];
    lookupCall->setKey(OverlayKey::sha1(keyString));
    lookupCall->setNumSiblings(params[1]);
    if (params.size() == 3) {
        lookupCall->setRoutingType(params[2]);
    }
    sendInternalRpcWithTimeout(OVERLAY_COMP, lookupCall);
}

void XmlRpcInterface::p2pnsRegister	(	XmlRpc::XmlRpcValue &	params,
		XmlRpc::XmlRpcValue &	result
	)

Definition at line 205 of file XmlRpcInterface.cc.

{
    if ((params.size() != 5) ||
            (params[0].getType() != XmlRpcValue::TypeBase64) ||
            (params[1].getType() != XmlRpcValue::TypeInt) ||
            (params[2].getType() != XmlRpcValue::TypeInt) ||
            (params[3].getType() != XmlRpcValue::TypeBase64) ||
            (params[4].getType() != XmlRpcValue::TypeInt))
        throw XmlRpcException("register(base64 name, int kind, int id, base64 address, int ttl): "
                              "Invalid argument type");
    if (overlay->getCompModule(TIER2_COMP) == NULL)
        throw XmlRpcException("register(base64 name, int kind, int id, base64 address, int ttl): "
                              "No P2PNS service");
    if (!isPrivileged()) {
        throw XmlRpcException("register(base64 name, int kind, base64 address, "
                              "int ttl): Not allowed");
    }
    state[curAppFd]._connectionState = EXECUTE_REQUEST;
    P2pnsRegisterCall* registerCall = new P2pnsRegisterCall();
    registerCall->setP2pName(((const XmlRpcValue::BinaryData&)params[0]));
    registerCall->setKind((int)params[1]);
    registerCall->setId((int)params[2]);
    registerCall->setAddress(((const XmlRpcValue::BinaryData&)params[3]));
    registerCall->setTtl(params[4]);
    sendInternalRpcWithTimeout(TIER2_COMP, registerCall);
}

void XmlRpcInterface::p2pnsResolve	(	XmlRpc::XmlRpcValue &	params,
		XmlRpc::XmlRpcValue &	result
	)

Definition at line 237 of file XmlRpcInterface.cc.

{
    if ((params.size() != 2) ||
            (params[0].getType() != XmlRpcValue::TypeBase64) ||
            (params[1].getType() != XmlRpcValue::TypeInt))
        throw XmlRpcException("resolve(base64 name, int kind): Invalid argument type");
    if (overlay->getCompModule(TIER2_COMP) == NULL)
        throw XmlRpcException("resolve(base64 name, int kind): No P2PNS service");
    state[curAppFd]._connectionState = EXECUTE_REQUEST;
    P2pnsResolveCall* resolveCall = new P2pnsResolveCall();
    resolveCall->setP2pName(((const XmlRpcValue::BinaryData&)params[0]));
    resolveCall->setKind((int)params[1]);
    resolveCall->setId(0);
    sendInternalRpcWithTimeout(TIER2_COMP, resolveCall);
}

void XmlRpcInterface::put	(	XmlRpc::XmlRpcValue &	params,
		XmlRpc::XmlRpcValue &	result
	)

Definition at line 350 of file XmlRpcInterface.cc.

{
    if ((params.size() != 4)
            || (params[0].getType() != XmlRpcValue::TypeBase64)
            || (params[1].getType() != XmlRpcValue::TypeBase64)
            || (params[2].getType() != XmlRpcValue::TypeInt)
            || (params[3].getType() != XmlRpcValue::TypeString))
        throw XmlRpcException("put(base64 key, base64 value, int ttl "
                ", string application): Invalid argument type");
    if (!isPrivileged()) {
        throw XmlRpcException("put(base64 key, base64 value, int ttl "
                ", string application): Not allowed");
    }
    if (overlay->getCompModule(TIER1_COMP) == NULL)
        throw XmlRpcException("put(base64 key, base64 value, int ttl "
                ", string application): No DHT service");
    state[curAppFd]._connectionState = EXECUTE_REQUEST;
    DHTputCAPICall* dhtPutMsg = new DHTputCAPICall();
    BinaryValue keyString = (const XmlRpcValue::BinaryData&)params[0];
    dhtPutMsg->setKey(OverlayKey::sha1(keyString));
    dhtPutMsg->setValue(((const XmlRpcValue::BinaryData&)params[1]));
    dhtPutMsg->setTtl(params[2]);
    dhtPutMsg->setIsModifiable(true);
    sendInternalRpcWithTimeout(TIER1_COMP, dhtPutMsg);
}

bool XmlRpcInterface::readHeader	(	char *	buf,
		uint32_t	length
	)

protected

Reads the http header.

Definition at line 961 of file XmlRpcInterface.cc.

{
    // Read available data
    bool eof = false;
    state[curAppFd]._header.append(std::string(buf, length));
    if (length <= 0) {
        // Its only an error if we already have read some data
        if (state[curAppFd]._header.length() > 0)
            XmlRpcUtil::error("XmlRpcServerConnection::readHeader: error "
                "while reading header.");
        return false;
    }
    XmlRpcUtil::log(4, "XmlRpcServerConnection::readHeader: read %d bytes.",
                    state[curAppFd]._header.length());
    char *hp = (char*)state[curAppFd]._header.c_str(); // Start of header
    char *ep = hp + state[curAppFd]._header.length(); // End of string
    char *bp = 0; // Start of body
    char *lp = 0; // Start of content-length value
    char *kp = 0; // Start of connection value
    for (char *cp = hp; (bp == 0) && (cp < ep); ++cp) {
        if ((ep - cp > 16) && (strncasecmp(cp, "Content-length: ", 16) == 0))
            lp = cp + 16;
        else if ((ep - cp > 12) && (strncasecmp(cp, "Connection: ", 12) == 0))
            kp = cp + 12;
        else if ((ep - cp > 4) && (strncmp(cp, "\r\n\r\n", 4) == 0))
            bp = cp + 4;
        else if ((ep - cp > 2) && (strncmp(cp, "\n\n", 2) == 0))
            bp = cp + 2;
    }
    // If we haven't gotten the entire header yet, return (keep reading)
    if (bp == 0) {
        // EOF in the middle of a request is an error, otherwise its ok
        if (eof) {
            XmlRpcUtil::log(4, "XmlRpcServerConnection::readHeader: EOF");
            if (state[curAppFd]._header.length() > 0)
                XmlRpcUtil::error("XmlRpcServerConnection::readHeader: EOF while reading header");
            return false; // Either way we close the connection
        }
        return true; // Keep reading
    }
    // Decode content length
    if (lp == 0) {
        XmlRpcUtil::error("XmlRpcServerConnection::readHeader: No Content-length specified");
        return false; // We could try to figure it out by parsing as we read, but for now...
    }
    state[curAppFd]._contentLength = atoi(lp);
    if (state[curAppFd]._contentLength <= 0) {
        XmlRpcUtil::error(
                          "XmlRpcServerConnection::readHeader: Invalid Content-length specified (%d).",
                          state[curAppFd]._contentLength);
        return false;
    }
    XmlRpcUtil::log(
                     3,
                    "XmlRpcServerConnection::readHeader: specified content length is %d.",
                    state[curAppFd]._contentLength);
    // Otherwise copy non-header data to request buffer and set state to read request.
    state[curAppFd]._request = bp;
    // Parse out any interesting bits from the header (HTTP version, connection)
    state[curAppFd]._keepAlive = true;
    if (state[curAppFd]._header.find("HTTP/1.0") != std::string::npos) {
        if (kp == 0 || strncasecmp(kp, "keep-alive", 10) != 0)
            state[curAppFd]._keepAlive = false; // Default for HTTP 1.0 is to close the connection
    } else {
        if (kp != 0 && strncasecmp(kp, "close", 5) == 0)
            state[curAppFd]._keepAlive = false;
    }
    XmlRpcUtil::log(3, "KeepAlive: %d", state[curAppFd]._keepAlive);
    state[curAppFd]._header = "";
    state[curAppFd]._connectionState = READ_REQUEST;
    return true; // Continue monitoring this source
}

bool XmlRpcInterface::readRequest	(	char *	buf,
		uint32_t	length
	)

protected

Reads the request (based on the content-length header value)

Definition at line 1046 of file XmlRpcInterface.cc.

{
    // If we dont have the entire request yet, read available data
    if (int(state[curAppFd]._request.length()) < state[curAppFd]._contentLength) {
        bool eof = false;
        state[curAppFd]._request.append(std::string(buf, length));
        if (length <= 0) {
            XmlRpcUtil::error("XmlRpcServerConnection::readRequest: read error.");
            return false;
        }
        // If we haven't gotten the entire request yet, return (keep reading)
        if (int(state[curAppFd]._request.length()) < state[curAppFd]._contentLength) {
            if (eof) {
                XmlRpcUtil::error("XmlRpcServerConnection::readRequest: EOF while reading request");
                return false; // Either way we close the connection
            }
            return true;
        }
    }
    // Otherwise, parse and dispatch the request
    XmlRpcUtil::log(3, "XmlRpcServerConnection::readRequest read %d bytes.",
                    state[curAppFd]._request.length());
    //XmlRpcUtil::log(5, "XmlRpcServerConnection::readRequest:\n%s\n", state[curAppFd]._request.c_str());
    state[curAppFd]._connectionState = WRITE_RESPONSE;
    return true; // Continue monitoring this source
}

void XmlRpcInterface::resetConnectionState ( )

protected

Reset the internal connection state.

This is called after a RPC has finished and the socket was closed.

Definition at line 517 of file XmlRpcInterface.cc.

{
    if (state.count(curAppFd) && state[curAppFd].pendingRpc) {
        cancelRpcMessage(state[curAppFd].pendingRpc);
    }
    state[curAppFd].appFd = INVALID_SOCKET;
    state[curAppFd].localhost = false;
    state[curAppFd]._header = "";
    state[curAppFd]._request = "";
    state[curAppFd]._response = "";
    state[curAppFd]._connectionState = READ_HEADER;
    state[curAppFd]._keepAlive = true;
    state[curAppFd].pendingRpc = 0;
}

void XmlRpcInterface::sendInternalRpcWithTimeout	(	CompType	destComp,
		BaseCallMessage *	call
	)

protected

Definition at line 539 of file XmlRpcInterface.cc.

{
    state[curAppFd].pendingRpc = sendInternalRpcCall(destComp, call, NULL,
                                                     XMLRPC_TIMEOUT, 0,
                                                     curAppFd);
}

bool XmlRpcInterface::writeResponse ( )

protected

Executes the request and writes the resulting response.

Definition at line 1079 of file XmlRpcInterface.cc.

{
    if (state[curAppFd]._response.length() == 0) {
        state[curAppFd]._response = executeRequest(state[curAppFd]._request);
        state[curAppFd]._bytesWritten = 0;
        if (state[curAppFd]._connectionState == EXECUTE_REQUEST)
            return true;
        if (state[curAppFd]._response.length() == 0) {
            XmlRpcUtil::error("XmlRpcServerConnection::writeResponse: empty response.");
            return false;
        }
    }
    // Try to write the response
    int curBytesWritten = scheduler->sendBytes(state[curAppFd]._response.c_str(),
                                               state[curAppFd]._response.length(),
                                               0, 0, true, curAppFd);
    if (curBytesWritten <= 0) {
        XmlRpcUtil::error("XmlRpcServerConnection::writeResponse: write error.");
        return false;
    } else {
        state[curAppFd]._bytesWritten += curBytesWritten;
    }
    XmlRpcUtil::log(3,
                "XmlRpcServerConnection::writeResponse: wrote %d of %d bytes.",
                state[curAppFd]._bytesWritten, state[curAppFd]._response.length());
    // Prepare to read the next request
    if (state[curAppFd]._bytesWritten == int(state[curAppFd]._response.length())) {
        state[curAppFd]._header = "";
        state[curAppFd]._request = "";
        state[curAppFd]._response = "";
        state[curAppFd]._connectionState = READ_HEADER;
    }
    return state[curAppFd]._keepAlive; // Continue monitoring this source if true
}

Member Data Documentation

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_addContact

protected

Definition at line 112 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_dumpDht

protected

Definition at line 108 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_get

protected

Definition at line 107 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_getContacts

protected

Definition at line 114 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_getUserId

protected

Definition at line 115 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_joinOverlay

protected

Definition at line 109 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_localLookup

protected

Definition at line 102 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_lookup

protected

Definition at line 103 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_publish

protected

Definition at line 117 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_pull_notification

protected

Definition at line 118 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_put

protected

Definition at line 106 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_register

protected

Definition at line 104 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_removeContact

protected

Definition at line 113 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_resolve

protected

Definition at line 105 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_searchContact

protected

Definition at line 116 of file XmlRpcInterface.h.

XmlRpc::XmlRpcServerMethod* XmlRpcInterface::_subscribe

protected

Definition at line 119 of file XmlRpcInterface.h.

SOCKET XmlRpcInterface::appTunFd

protected

FD of the application TUN socket used for tunneling.

Definition at line 147 of file XmlRpcInterface.h.

SOCKET XmlRpcInterface::curAppFd

protected

Definition at line 99 of file XmlRpcInterface.h.

bool XmlRpcInterface::limitAccess

protected

Definition at line 100 of file XmlRpcInterface.h.

unsigned int XmlRpcInterface::mtu

protected

Definition at line 47 of file XmlRpcInterface.h.

P2pns* XmlRpcInterface::p2pns

protected

Pointer to the P2PNS module.

Definition at line 148 of file XmlRpcInterface.h.

PacketBuffer XmlRpcInterface::packetBuffer

protected

Definition at line 50 of file XmlRpcInterface.h.

cMessage* XmlRpcInterface::packetNotification

protected

Definition at line 49 of file XmlRpcInterface.h.

RealtimeScheduler* XmlRpcInterface::scheduler

protected

Definition at line 51 of file XmlRpcInterface.h.

std::map<int, XmlRpcConnectionState> XmlRpcInterface::state

protected

Definition at line 98 of file XmlRpcInterface.h.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
