Base class for applications. More...

#include <BaseApp.h>

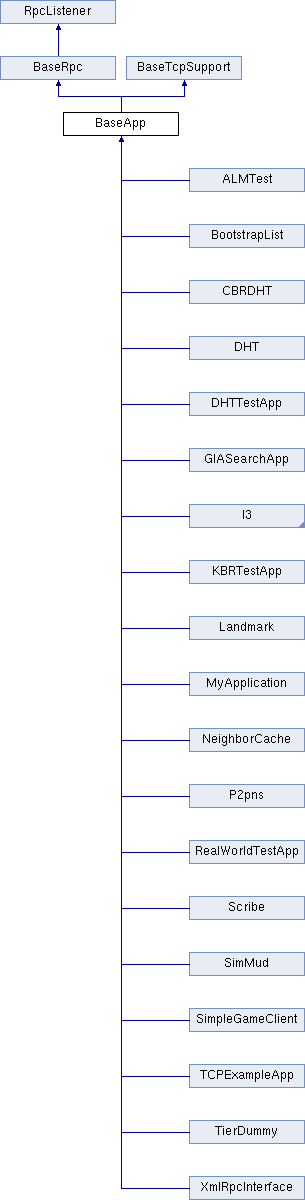

Inheritance diagram for BaseApp:

Public Member Functions
	BaseApp ()
virtual	~BaseApp ()
	virtual destructor
Public Member Functions inherited from BaseRpc
	BaseRpc ()
const NodeHandle &	getThisNode ()
	Returns the NodeHandle of this node.
simtime_t	getUdpTimeout ()
Public Member Functions inherited from RpcListener
virtual	~RpcListener ()
	destructor
Public Member Functions inherited from BaseTcpSupport
virtual void	socketDataArrived (int connId, void yourPtr, cPacket msg, bool urgent)
virtual void	socketEstablished (int connId, void *yourPtr)
virtual void	socketPeerClosed (int connId, void *yourPtr)
virtual void	socketFailure (int connId, void *yourPtr, int code)
virtual void	socketStatusArrived (int connId, void yourPtr, TCPStatusInfo status)

Protected Member Functions
int	numInitStages () const
	method to set InitStage
void	initialize (int stage)
	initializes base class-attributes
virtual void	initializeApp (int stage)
	initializes derived class-attributes
void	handleMessage (cMessage *msg)
	checks for message type and calls corresponding method
virtual void	receiveChangeNotification (int category, const cPolymorphic *details)
	callback-method for events at the NotificationBoard
virtual void	handleTransportAddressChangedNotification ()
	This method gets call if the node has a new TransportAddress (IP address) because he changed his access network.
virtual void	handleNodeLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed.
virtual void	handleNodeGracefulLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed if this node is among the gracefulLeaveProbability nodes.
void	finish ()
	collects statistical data
virtual void	finishApp ()
	collects statistical data of derived app
void	callRoute (const OverlayKey &key, cPacket *msg, const TransportAddress &hint=TransportAddress::UNSPECIFIED_NODE, RoutingType routingType=DEFAULT_ROUTING)
	Common API function: calls route-method in overlay.
void	callRoute (const OverlayKey &key, cPacket *msg, const std::vector< TransportAddress > &sourceRoute, RoutingType routingType=DEFAULT_ROUTING)
virtual void	deliver (OverlayKey &key, cMessage *msg)
	Common API function: handles delivered messages from overlay.
virtual void	forward (OverlayKey key, cPacket msg, NodeHandle nextHopNode)
	Common API function: handles messages from overlay to be forwarded.
virtual void	update (const NodeHandle &node, bool joined)
	Common API function: informs application about neighbors and own nodeID.
NodeVector *	callLocalLookup (const OverlayKey &key, int num, bool safe)
	Common API function: produces a list of nodes that can be used as next hops towards key.
NodeVector *	callNeighborSet (int num)
	Common API function: produces a list of neighbor nodes.
bool	isSiblingFor (const NodeHandle &node, const OverlayKey &key, int numSiblings, bool *err)
	Query if a node is among the siblings for a given key.
virtual void	handleLowerMessage (cMessage *msg)
	processes self-messages
virtual void	handleUpperMessage (cMessage *msg)
	handleUpperMessage gets called of handleMessage(cMessage* msg) if msg arrivedOn from_upperTier (currently msg gets deleted in this function)
virtual void	handleUDPMessage (cMessage *msg)
	method to handle messages that come directly from the UDP gate
virtual void	handleReadyMessage (CompReadyMessage *msg)
	method to handle ready messages from the overlay
virtual void	bindToPort (int port)
	Tells UDP we want to get all packets arriving on the given port.
virtual void	sendMessageToUDP (const TransportAddress &destAddr, cPacket *msg, simtime_t delay=SIMTIME_ZERO)
	Sends a packet over UDP.
virtual void	handleTraceMessage (cMessage *msg)
	handleTraceMessage gets called of handleMessage(cMessage* msg) if a message arrives at trace_in.
void	sendMessageToLowerTier (cPacket *msg)
	sends non-commonAPI message to the lower tier
bool	internalHandleRpcCall (BaseCallMessage *msg)
	Handles internal rpc requests.
void	internalHandleRpcResponse (BaseResponseMessage msg, cPolymorphic context, int rpcId, simtime_t rtt)
	Handles rpc responses internal in base classes
void	internalSendRouteRpc (BaseRpcMessage *message, const OverlayKey &destKey, const std::vector< TransportAddress > &sourceRoute, RoutingType routingType)
virtual CompType	getThisCompType ()
	Return the component type of this module.
void	sendReadyMessage (bool ready=true, const OverlayKey &nodeId=OverlayKey::UNSPECIFIED_KEY)
Protected Member Functions inherited from BaseRpc
virtual void	internalHandleRpcTimeout (BaseCallMessage msg, const TransportAddress &dest, cPolymorphic context, int rpcId, const OverlayKey &destKey)
	Handles rpc timeouts internal in base classes
void	initRpcs ()
	Initializes Remote-Procedure state.
void	finishRpcs ()
	Deinitializes Remote-Procedure state.
virtual void	internalHandleRpcMessage (BaseRpcMessage *msg)
	Handles incoming rpc messages and delegates them to the corresponding listeners or handlers.
uint32_t	sendRouteRpcCall (CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Routes a Remote-Procedure-Call message to an OverlayKey.
uint32_t	sendRouteRpcCall (CompType destComp, const OverlayKey &destKey, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Routes a Remote-Procedure-Call message to an OverlayKey.
uint32_t	sendRouteRpcCall (CompType destComp, const TransportAddress &dest, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends a Remote-Procedure-Call message using the overlay's UDP port This replaces ROUTE_DIRECT calls!
uint32_t	sendUdpRpcCall (const TransportAddress &dest, BaseCallMessage msg, cPolymorphic context=NULL, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends a Remote-Procedure-Call message to the underlay
uint32_t	sendInternalRpcCall (CompType destComp, BaseCallMessage msg, cPolymorphic context=NULL, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends an internal Remote-Procedure-Call between two tiers
void	cancelRpcMessage (uint32_t nonce)
	Cancels a Remote-Procedure-Call.
void	cancelAllRpcs ()
	Cancels all RPCs.
void	sendRpcResponse (TransportType transportType, CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage call, BaseResponseMessage response)
	Send Remote-Procedure response message and deletes call message.
void	sendRpcResponse (BaseCallMessage call, BaseResponseMessage response)
	Send Remote-Procedure response message to UDP and deletes call message.
int	pingNode (const TransportAddress &dest, simtime_t timeout=-1, int retries=0, cPolymorphic context=NULL, const char caption="PING", RpcListener *rpcListener=NULL, int rpcId=-1, TransportType transportType=INVALID_TRANSPORT)
	ping a node by its TransportAddress
virtual bool	handleRpcCall (BaseCallMessage *msg)
	Processes Remote-Procedure-Call invocation messages.
virtual void	pingResponse (PingResponse pingResponse, cPolymorphic context, int rpcId, simtime_t rtt)
virtual void	pingTimeout (PingCall pingCall, const TransportAddress &dest, cPolymorphic context, int rpcId)
bool	internalHandleMessage (cMessage *msg)
Protected Member Functions inherited from RpcListener
virtual void	handleRpcResponse (BaseResponseMessage msg, cPolymorphic context, int rpcId, simtime_t rtt)
	This method is called if an RPC response has been received.
virtual void	handleRpcResponse (BaseResponseMessage *msg, const RpcState &rpcState, simtime_t rtt)
	This method is called if an RPC response has been received.
virtual void	handleRpcTimeout (BaseCallMessage msg, const TransportAddress &dest, cPolymorphic context, int rpcId, const OverlayKey &destKey)
	This method is called if an RPC timeout has been reached.
virtual void	handleRpcTimeout (const RpcState &rpcState)
	This method is called if an RPC timeout has been reached.
Protected Member Functions inherited from BaseTcpSupport
void	handleTCPMessage (cMessage *msg)
	Member function to handle incoming TCP messages.
void	bindAndListenTcp (int port)
	Member function to bind service to the specified port and listen afterwards.
bool	isAlreadyConnected (TransportAddress address)
	Member function to check if the service is already connected.
void	establishTcpConnection (TransportAddress address)
	Member function to establish a connection to the specified node.
void	sendTcpData (cPacket *msg, TransportAddress address)
	Member function to send TCP data to the specified node.
virtual void	handleConnectionEvent (EvCode code, TransportAddress address)
	Member function to handle passive connection events.
virtual void	handleDataReceived (TransportAddress address, cPacket *msg, bool urgent)
	Member function to handle incoming data.
virtual void	handleIncomingConnection (TransportAddress address)
	Member function to handle newly opened connections.
void	closeTcpConnection (TransportAddress address)
	Member function to close an established connection.
void	setTcpOut (cGate *gate)
	Member function to set local gate towards the TCP module during init phase.
cGate *	getTcpOut ()
	Member function to get local gate towards the TCP module.

Protected Attributes
UnderlayConfigurator *	underlayConfigurator
	pointer to UnderlayConfigurator in this node
GlobalNodeList *	globalNodeList
	pointer to GlobalNodeList in this node
GlobalStatistics *	globalStatistics
	pointer to GlobalStatistics module in this node
NotificationBoard *	notificationBoard
	pointer to NotificationBoard in this node
bool	debugOutput
	debug output yes/no?
int	numOverlaySent
	number of sent packets to overlay
int	bytesOverlaySent
	number of sent bytes to overlay
int	numOverlayReceived
	number of received packets from overlay
int	bytesOverlayReceived
	number of received bytes from overlay
int	numUdpSent
	number of sent packets to UDP
int	bytesUdpSent
	number of sent bytes to UDP
int	numUdpReceived
	number of received packets from UDP
int	bytesUdpReceived
	number of received bytes from UDP
simtime_t	creationTime
	simTime when the App has been created
Protected Attributes inherited from BaseRpc
NodeHandle	thisNode
	NodeHandle to this node.
BaseOverlay *	overlay
bool	debugOutput
	debug output ?
GlobalStatistics *	globalStatistics
	pointer to GlobalStatistics module in this node
CompType	thisCompType
NeighborCache *	neighborCache
	pointer to the neighbor cache
CryptoModule *	cryptoModule
	pointer to CryptoModule
int	numPingSent
int	bytesPingSent
int	numPingResponseSent
int	bytesPingResponseSent

Private Member Functions
void	forwardResponse (const OverlayKey &key, cPacket *msg, const NodeHandle &nextHopNode)
	sends msg encapsulated in a KBRforward message to the overlay with destination key
void	handleCommonAPIMessage (CommonAPIMessage *commonAPIMsg)
	handles CommonAPIMessages
void	internalSendRpcResponse (BaseCallMessage call, BaseResponseMessage response)

Additional Inherited Members
Public Types inherited from BaseTcpSupport
enum	EvCode { NO_EST_CONNECTION, PEER_CLOSED, PEER_TIMEDOUT, PEER_REFUSED, CONNECTION_RESET, CONNECTION_SUCC_ClOSED }

Detailed Description

Base class for applications.

Base class for applications (Tier 1-3) that use overlay functionality. provides common API for structured overlays (KBR), RPC and UDP

BaseApp provides the following API calls for derived classes:

Method name	Call direction	available on Tier	implemented as
Modified CommonAPI for structured P2P overlays:
callRoute()	CALL	1	OMNeT++ messages
deliver()	CALLBACK	1	OMNeT++ messages
forward()	CALLBACK	1	OMNeT++ messages
update()	CALLBACK	1	OMNeT++ messages
callLocalLookup()	CALL	1-3	direct C++-method calls
callNeighborSet()	CALL	1-3	direct C++-method calls
isSiblingFor()	CALL	1-3	direct C++-method calls
Remote Procedure Call API (RPC):
sendUdpRpcCall()	CALL	1-3*	OMNeT++ messages
sendRouteRpcCall()	CALL	1-3*	OMNeT++ messages
sendInternalRpcCall()	CALL	1-3*	OMNeT++ messages
UDP API:
handleUDPMessage()	CALLBACK	1-3	OMNeT++ messages
sendMessageToUDP()	CALL	1-3	OMNeT++ messages
bindToPort()	CALL	1-3	OMNeT++ messages

Callback functions have to be implemented in derived classes!

See Also: KBRTestApp

Author: Bernhard Heep

Definition at line 76 of file BaseApp.h.

Constructor & Destructor Documentation

BaseApp::BaseApp ( )

Definition at line 41 of file BaseApp.cc.

{
    notificationBoard = NULL;
    overlay = NULL;
}

BaseApp::~BaseApp ( )

virtual

virtual destructor

Definition at line 48 of file BaseApp.cc.

{
    finishRpcs();
}

Member Function Documentation

void BaseApp::bindToPort ( int port )

protectedvirtual

Tells UDP we want to get all packets arriving on the given port.

Definition at line 511 of file BaseApp.cc.

Referenced by MyApplication::initializeApp(), and KBRTestApp::initializeApp().

{
    EV << "[BaseApp::bindToPort() @ " << thisNode.getIp()
       << ":  Binding to UDP port " << port << endl;
    thisNode.setPort(port);
    cMessage *msg = new cMessage("UDP_C_BIND", UDP_C_BIND);
    UDPControlInfo *ctrl = new UDPControlInfo();
    ctrl->setSrcPort(port);
    ctrl->setSockId(UDPSocket::generateSocketId());
    msg->setControlInfo(ctrl);
    send(msg, "udpOut");
}

NodeVector* BaseApp::callLocalLookup	(	const OverlayKey &	key,
		int	num,
		bool	safe
	)

inlineprotected

Common API function: produces a list of nodes that can be used as next hops towards key.

Parameters

key	the destination key
num	maximal number of nodes in answer
safe	fraction of faulty nodes is not higher than in the overlay?

Definition at line 233 of file BaseApp.h.

    {
        return overlay->local_lookup(key, num, safe);
    };

NodeVector* BaseApp::callNeighborSet ( int num )

inlineprotected

Common API function: produces a list of neighbor nodes.

Parameters

num	maximal number of nodes in answer

Definition at line 244 of file BaseApp.h.

    {
        return overlay->neighborSet(num);
    };

void BaseApp::callRoute	(	const OverlayKey &	key,
		cPacket *	msg,
		const TransportAddress &	hint = `TransportAddress::UNSPECIFIED_NODE`,
		RoutingType	routingType = `DEFAULT_ROUTING`
	)

inlineprotected

Common API function: calls route-method in overlay.

encapsulates msg into KBRroute message and sends it to the overlay module

Parameters

key	destination key
msg	message to route
hint	next hop (usually unused)
routingType	specifies the routing mode (ITERATIVE_ROUTING, ...)

Definition at line 181 of file BaseApp.h.

Referenced by RealWorldTestApp::deliver(), MyApplication::handleTimerEvent(), KBRTestApp::handleTimerEvent(), and RealWorldTestApp::handleUpperMessage().

    {
        std::vector<TransportAddress> sourceRoute;
        sourceRoute.push_back(hint);
        callRoute(key, msg, sourceRoute, routingType);
    }

void BaseApp::callRoute	(	const OverlayKey &	key,
		cPacket *	msg,
		const std::vector< TransportAddress > &	sourceRoute,
		RoutingType	routingType = `DEFAULT_ROUTING`
	)

protected

Definition at line 241 of file BaseApp.cc.

{
    // create route-message (common API)
    KBRroute* routeMsg = new KBRroute();
    routeMsg->setDestKey(key);
    if (!(sourceRoute.size() == 1 && sourceRoute[0].isUnspecified())) {
        routeMsg->setSourceRouteArraySize(sourceRoute.size());
        for (uint32_t i = 0; i < sourceRoute.size(); ++i) {
            routeMsg->setSourceRoute(i, sourceRoute[i]);
        }
    }
    routeMsg->encapsulate(msg);
    routeMsg->setSrcComp(thisCompType);
    routeMsg->setDestComp(thisCompType);
    routeMsg->setRoutingType(routingType);
    routeMsg->setType(KBR_ROUTE);
    sendDirect(routeMsg, overlay->getCompRpcGate(OVERLAY_COMP));
    // debug message
    if (debugOutput && !ev.isDisabled()) {
        EV << "[BaseApp::callRoute() @ " << thisNode.getIp()
           << " (" << overlay->getThisNode().getKey().toString(16) << ")]\n"
           << "    Sending " << *msg
           << " to destination key " << key
           << " with source route ";
        for (uint32_t i = 0; i < sourceRoute.size(); ++i) {
            EV << sourceRoute[i] << " ";
        }
        EV << endl;
    }
    // count
    RECORD_STATS(numOverlaySent++; bytesOverlaySent += msg->getByteLength());
}

void BaseApp::deliver	(	OverlayKey &	key,
		cMessage *	msg
	)

protectedvirtual

Common API function: handles delivered messages from overlay.

method to handle decapsulated KBRdeliver messages from overlay module, should be overwritten in derived application

Parameters

key	destination key
msg	delivered message

Reimplemented in Scribe, I3, and RealWorldTestApp.

Definition at line 283 of file BaseApp.cc.

{
    // deliver...
    delete msg;
}

void BaseApp::finish ( )

protected

collects statistical data

Reimplemented in I3.

Definition at line 468 of file BaseApp.cc.

{
    // record scalar data
    simtime_t time = globalStatistics->calcMeasuredLifetime(creationTime);
    string baseAppName = string("BaseApp (") += string(this->getName())
                         += string("): ");
    if (time >= GlobalStatistics::MIN_MEASURED) {
        globalStatistics->addStdDev(baseAppName + string("Sent Messages/s to "
                                                         "Overlay"),
                                    numOverlaySent / time);
        globalStatistics->addStdDev(baseAppName +
                                    string("Received Messages/s from Overlay"),
                                    numOverlayReceived / time);
        globalStatistics->addStdDev(baseAppName + string("Sent Bytes/s to "
                                                         "Overlay"),
                                    bytesOverlaySent / time);
        globalStatistics->addStdDev(baseAppName + string("Received Bytes/s "
                                                         "from Overlay"),
                                    bytesOverlayReceived / time);
        globalStatistics->addStdDev(baseAppName + string("Sent Messages/s to "
                                                         "UDP"),
                                    numUdpSent / time);
        globalStatistics->addStdDev(baseAppName +
                                    string("Received Messages/s from UDP"),
                                    numUdpReceived / time);
        globalStatistics->addStdDev(baseAppName + string("Sent Bytes/s to UDP"),
                                    bytesUdpSent / time);
        globalStatistics->addStdDev(baseAppName + string("Received Bytes/s "
                                                         "from UDP"),
                                    bytesUdpReceived / time);
    }
    finishApp();
}

void BaseApp::finishApp ( )

protectedvirtual

collects statistical data of derived app

Reimplemented in NeighborCache, Scribe, SimMud, CBRDHT, GIASearchApp, SimpleGameClient, RealWorldTestApp, and ALMTest.

Definition at line 506 of file BaseApp.cc.

{
    // ...
}

void BaseApp::forward	(	OverlayKey *	key,
		cPacket **	msg,
		NodeHandle *	nextHopNode
	)

protectedvirtual

Common API function: handles messages from overlay to be forwarded.

method to handle decapsulated KBRdeliver messages from overlay module, should be overwritten in derived application if needed

Parameters

key	destination key
msg	message to forward
nextHopNode	next hop

Reimplemented in Scribe, and I3.

Definition at line 290 of file BaseApp.cc.

Referenced by I3::forward().

{
    // usually do nothing
}

void BaseApp::forwardResponse	(	const OverlayKey &	key,
		cPacket *	msg,
		const NodeHandle &	nextHopNode
	)

private

sends msg encapsulated in a KBRforward message to the overlay with destination key

Parameters

key	the destination OverlayKey
msg	the message to forward
nextHopNode	the considered next hop node on the route to the destination

Definition at line 295 of file BaseApp.cc.

{
    OverlayCtrlInfo* ctrlInfo =
        check_and_cast<OverlayCtrlInfo*>(msg->removeControlInfo());
    //create forwardResponse message (common API)
    KBRforward* forwardMsg = new KBRforward();
    forwardMsg->setDestKey(key);
    forwardMsg->setNextHopNode(nextHopNode);
    forwardMsg->setControlInfo(ctrlInfo);
    forwardMsg->encapsulate(msg);
    forwardMsg->setType(KBR_FORWARD_RESPONSE);
    if (getThisCompType() == TIER1_COMP) {
        send(forwardMsg, "to_lowerTier");
    } else {
        sendDirect(forwardMsg, overlay->getCompRpcGate(OVERLAY_COMP));
    }
}

CompType BaseApp::getThisCompType ( )

protectedvirtual

Return the component type of this module.

This method is overloaded by BaseOverlay/BaseApp and returns the appropriate component type of this module.

Returns: the component type of this module

Implements BaseRpc.

Reimplemented in NeighborCache, and BootstrapList.

Definition at line 186 of file BaseApp.cc.

Referenced by ALMTest::handleReadyMessage(), and SimpleGameClient::handleReadyMessage().

{
    std::string name(this->getName());
    if (name == std::string("tier1")) {
        return TIER1_COMP;
    } else if (name == std::string("tier2")) {
        return TIER2_COMP;
    } else if (name == std::string("tier3")) {
        return TIER3_COMP;
    }
    std::string parentName(this->getParentModule()->getName());
    if (parentName == std::string("tier1")) {
        return TIER1_COMP;
    } else if (parentName == std::string("tier2")) {
        return TIER2_COMP;
    } else if (parentName == std::string("tier3")) {
        return TIER3_COMP;
    } else {
        throw cRuntimeError("BaseApp::getThisCompType(): "
                             "Unknown module type!");
    }
    return INVALID_COMP;
}

void BaseApp::handleCommonAPIMessage ( CommonAPIMessage * commonAPIMsg )

private

handles CommonAPIMessages

This method gets called from BaseApp::handleMessage if message arrived from_lowerTier. It determines type of msg (KBR_DELIVER, KBR_FORWARD, KBR_UPDATE) and calls corresponding methods. All other messages are deleted.

Parameters

commonAPIMsg CommonAPIMessage

Definition at line 332 of file BaseApp.cc.

{
    cPacket* tempMsg = commonAPIMsg->decapsulate();
    // process interface control information
    OverlayCtrlInfo* overlayCtrlInfo =
        dynamic_cast<OverlayCtrlInfo*>(commonAPIMsg->removeControlInfo());
    if (overlayCtrlInfo != NULL) {
        tempMsg->setControlInfo(overlayCtrlInfo);
    }
    switch (commonAPIMsg->getType()) {
        case KBR_DELIVER:
        {
            KBRdeliver* apiMsg = dynamic_cast<KBRdeliver*>(commonAPIMsg);
            OverlayKey key = apiMsg->getDestKey(); // TODO key in overlayCtrlInfo
            NodeHandle nextHopNode = overlay->getThisNode();
            //first call forward, then deliver
            forward(&key, &tempMsg, &nextHopNode);
            if(tempMsg != NULL) {
                //if key or nextHopNode is changed send msg back to overlay
                if ((!key.isUnspecified() && key != apiMsg->getDestKey()) ||
                    (!nextHopNode.isUnspecified()
                            && nextHopNode != overlay->getThisNode())) {
                    forwardResponse(key, tempMsg, nextHopNode);
                }
                else {
                    RECORD_STATS(numOverlayReceived++;
                                 bytesOverlayReceived += tempMsg->getByteLength());
                    assert(overlayCtrlInfo->getTransportType()
                           == ROUTE_TRANSPORT);
                    // debug message
                    if (debugOutput) {
                        EV << "[BaseApp:handleCommonAPIMessage() @ "
                        << thisNode.getIp() << " ("
                        << overlay->getThisNode().getKey().toString(16) << ")]\n"
                        << "    Received " << *tempMsg << " from "
                        << overlayCtrlInfo->getSrcRoute() << endl;
                    }
                    //handle RPC first
                    BaseRpcMessage* rpcMessage
                        = dynamic_cast<BaseRpcMessage*>(tempMsg);
                    if (rpcMessage!=NULL) {
                        internalHandleRpcMessage(rpcMessage);
                    } else {
                        deliver(apiMsg->getDestKey(), tempMsg);
                    }
                }
            }
            break;
        }
        case KBR_FORWARD:
        {
            KBRforward* apiMsg = dynamic_cast<KBRforward*>(commonAPIMsg);
            OverlayKey key = apiMsg->getDestKey();
            NodeHandle nextHopNode = apiMsg->getNextHopNode();
            forward(&key, &tempMsg, &nextHopNode);
            //if message ist not deleted send it back
            if(tempMsg != NULL) {
                if(nextHopNode == apiMsg->getNextHopNode())
                    //do we need this?
                    nextHopNode = NodeHandle::UNSPECIFIED_NODE;
                forwardResponse(key, tempMsg, nextHopNode);
            }
            break;
        }
        case KBR_UPDATE:
        {
            KBRupdate* apiMsg = dynamic_cast<KBRupdate*>(commonAPIMsg);
            update(apiMsg->getNode(), apiMsg->getJoined());
            break;
        }
        default:
        {
            delete tempMsg;
            break;
        }
    }
    delete commonAPIMsg;
}

void BaseApp::handleLowerMessage ( cMessage * msg )

protectedvirtual

processes self-messages

method to handle self-messages should be overwritten in derived application if needed

Parameters

msg	self-message method to handle non-commonAPI messages from the overlay
msg	message to handle

Reimplemented in SimMud, GIASearchApp, SimpleGameClient, and ALMTest.

Definition at line 430 of file BaseApp.cc.

{
    delete msg;
}

void BaseApp::handleMessage ( cMessage * msg )

protected

checks for message type and calls corresponding method

checks for message type (from overlay or selfmessage) and calls corresponding method like deliver(), forward(), and timer()

Parameters

msg	the handled message

Reimplemented in XmlRpcInterface.

Definition at line 137 of file BaseApp.cc.

{
    if (internalHandleMessage(msg)) {
        return;
    }
    if (msg->arrivedOn("from_lowerTier") ||
        msg->arrivedOn("direct_in")) {
        CompReadyMessage* readyMsg = dynamic_cast<CompReadyMessage*>(msg);
        if (readyMsg != NULL) {
            handleReadyMessage(readyMsg);
            return;
        }
        // common API
        CommonAPIMessage* commonAPIMsg = dynamic_cast<CommonAPIMessage*>(msg);
        if (commonAPIMsg != NULL) {
            handleCommonAPIMessage(commonAPIMsg);
        } else if (msg->arrivedOn("from_lowerTier")) {
            // TODO: What kind of messages to we want to measure here?
                cPacket* packet = check_and_cast<cPacket*>(msg);
            RECORD_STATS(numOverlayReceived++;
                         bytesOverlayReceived += packet->getByteLength());
            handleLowerMessage(msg);
        }
        else delete msg;
    } else if (msg->arrivedOn("from_upperTier")) {
        handleUpperMessage(msg);
    } else if (msg->arrivedOn("udpIn")) {
        cPacket* packet = check_and_cast<cPacket*>(msg);
        RECORD_STATS(numUdpReceived++; bytesUdpReceived += packet->getByteLength());
        // debug message
        if (debugOutput && !ev.isDisabled()) {
            UDPControlInfo* udpControlInfo =
                check_and_cast<UDPControlInfo*>(msg->getControlInfo());
            EV << "[BaseApp:handleMessage() @ " << thisNode.getIp()
            << " (" << overlay->getThisNode().getKey().toString(16) << ")]\n"
            << "    Received " << *msg << " from "
            << udpControlInfo->getSrcAddr() << endl;
        }
        handleUDPMessage(msg);
    } else if(msg->arrivedOn("tcpIn")) {
        handleTCPMessage(msg);
    } else if (msg->arrivedOn("trace_in")) {
        handleTraceMessage(msg);
    }else {
        delete msg;
    }
}

void BaseApp::handleNodeGracefulLeaveNotification ( )

protectedvirtual

This method gets call **.gracefulLeaveDelay seconds before it is killed if this node is among the gracefulLeaveProbability nodes.

Definition at line 236 of file BaseApp.cc.

{
    // ...
}

void BaseApp::handleNodeLeaveNotification ( )

protectedvirtual

This method gets call **.gracefulLeaveDelay seconds before it is killed.

Definition at line 231 of file BaseApp.cc.

{
    // ...
}

void BaseApp::handleReadyMessage ( CompReadyMessage * msg )

protectedvirtual

method to handle ready messages from the overlay

Parameters

msg	message to handle

Reimplemented in NeighborCache, XmlRpcInterface, Scribe, SimMud, SimpleGameClient, P2pns, and ALMTest.

Definition at line 440 of file BaseApp.cc.

{
    delete msg;
}

void BaseApp::handleTraceMessage ( cMessage * msg )

protectedvirtual

handleTraceMessage gets called of handleMessage(cMessage* msg) if a message arrives at trace_in.

The command included in this message should be parsed and handled.

Parameters

msg	the command message to handle

Definition at line 445 of file BaseApp.cc.

{
    throw cRuntimeError("This application cannot handle trace data. "
                         "You have to overwrite handleTraceMessage() in your "
                         "application to make trace files work");
}

void BaseApp::handleTransportAddressChangedNotification ( )

protectedvirtual

This method gets call if the node has a new TransportAddress (IP address) because he changed his access network.

Reimplemented in ALMTest.

Definition at line 226 of file BaseApp.cc.

{
    // ...
}

void BaseApp::handleUDPMessage ( cMessage * msg )

protectedvirtual

method to handle messages that come directly from the UDP gate

Parameters

msg	message to handle

Reimplemented in I3, and ALMTest.

Definition at line 435 of file BaseApp.cc.

{
    delete msg;
}

void BaseApp::handleUpperMessage ( cMessage * msg )

protectedvirtual

handleUpperMessage gets called of handleMessage(cMessage* msg) if msg arrivedOn from_upperTier (currently msg gets deleted in this function)

Parameters

msg	the message to handle

Reimplemented in Scribe, CBRDHT, SimMud, ALMTest, and RealWorldTestApp.

Definition at line 425 of file BaseApp.cc.

{
    delete msg;
}

void BaseApp::initialize ( int stage )

protected

initializes base class-attributes

Parameters

stage the init stage

Definition at line 58 of file BaseApp.cc.

{
    CompType compType = getThisCompType();
    bool tier = (compType == TIER1_COMP ||
                 compType == TIER2_COMP ||
                 compType == TIER3_COMP);
    if (stage == REGISTER_STAGE) {
        OverlayAccess().get(this)->registerComp(getThisCompType(), this);
        return;
    }
    if ((tier && stage == MIN_STAGE_APP) ||
        (!tier && stage == MIN_STAGE_COMPONENTS)) {
        // fetch parameters
        debugOutput = par("debugOutput");
        globalNodeList = GlobalNodeListAccess().get();
        underlayConfigurator = UnderlayConfiguratorAccess().get();
        globalStatistics = GlobalStatisticsAccess().get();
        notificationBoard = NotificationBoardAccess().get();
        // subscribe to the notification board
        notificationBoard->subscribe(this, NF_OVERLAY_TRANSPORTADDRESS_CHANGED);
        notificationBoard->subscribe(this, NF_OVERLAY_NODE_LEAVE);
        notificationBoard->subscribe(this, NF_OVERLAY_NODE_GRACEFUL_LEAVE);
        // determine the terminal's transport address
        if (getParentModule()->getSubmodule("interfaceTable", 0) != NULL) {
            thisNode.setIp(IPAddressResolver()
                          .addressOf(getParentModule()));
        } else {
            thisNode.setIp(IPAddressResolver()
                          .addressOf(getParentModule()->getParentModule()));
        }
        thisNode.setPort(-1);
        WATCH(thisNode);
        // statistics
        numOverlaySent = 0;
        numOverlayReceived = 0;
        bytesOverlaySent = 0;
        bytesOverlayReceived = 0;
        numUdpSent = 0;
        numUdpReceived = 0;
        bytesUdpSent = 0;
        bytesUdpReceived = 0;
        creationTime = simTime();
        WATCH(numOverlaySent);
        WATCH(numOverlayReceived);
        WATCH(bytesOverlaySent);
        WATCH(bytesOverlayReceived);
        WATCH(numUdpSent);
        WATCH(numUdpReceived);
        WATCH(bytesUdpSent);
        WATCH(bytesUdpReceived);
        // init rpcs
        initRpcs();
        // set TCP output gate
        setTcpOut(gate("tcpOut"));
    }
    if ((stage >= MIN_STAGE_APP && stage <= MAX_STAGE_APP) ||
        (stage >= MIN_STAGE_COMPONENTS && stage <= MAX_STAGE_COMPONENTS)) //TODO
        initializeApp(stage);
}

void BaseApp::initializeApp ( int stage )

protectedvirtual

initializes derived class-attributes

Parameters

stage the init stage

Reimplemented in NeighborCache, XmlRpcInterface, Scribe, CBRDHT, I3, SimMud, GIASearchApp, SimpleGameClient, RealWorldTestApp, and ALMTest.

Definition at line 131 of file BaseApp.cc.

{
    // ...
}

bool BaseApp::internalHandleRpcCall ( BaseCallMessage * msg )

protectedvirtual

Handles internal rpc requests.

This method is used to implement basic functionality in the BaseRpc.

Parameters

msg	The call message

Returns: bool true, if call has been handled.

Reimplemented from BaseRpc.

Definition at line 559 of file BaseApp.cc.

{
    // if RPC was handled return true, else tell the parent class to handle it
    return BaseRpc::internalHandleRpcCall(msg);
}

void BaseApp::internalHandleRpcResponse	(	BaseResponseMessage *	msg,
		cPolymorphic *	context,
		int	rpcId,
		simtime_t	rtt
	)

protectedvirtual

Handles rpc responses internal in base classes

This method is used to implement basic functionality in the BaseRpc.

Parameters

msg	The call message
context	Pointer to an optional state object. The object has to be handled/deleted by the internalHandleRpcResponse() code
rpcId	The ID of the call
rtt	the time between sending the call and receiving the response

Reimplemented from BaseRpc.

Definition at line 565 of file BaseApp.cc.

{
    // if RPC was handled return true, else tell the parent class to handle it
    BaseRpc::internalHandleRpcResponse(msg, context, rpcId, rtt);
}

void BaseApp::internalSendRouteRpc	(	BaseRpcMessage *	message,
		const OverlayKey &	destKey,
		const std::vector< TransportAddress > &	sourceRoute,
		RoutingType	routingType
	)

protectedvirtual

Implements BaseRpc.

Definition at line 573 of file BaseApp.cc.

                                                            {
    callRoute(destKey, message, sourceRoute, routingType);
}

void BaseApp::internalSendRpcResponse	(	BaseCallMessage *	call,
		BaseResponseMessage *	response
	)

private

Definition at line 581 of file BaseApp.cc.

{
    // default values for UDP transport
    TransportType transportType = UDP_TRANSPORT;
    CompType compType = INVALID_COMP;
    const TransportAddress* destNode = &TransportAddress::UNSPECIFIED_NODE;//&(call->getSrcNode());
    const OverlayKey* destKey = &OverlayKey::UNSPECIFIED_KEY;
    TransportAddress tempNode;
    OverlayCtrlInfo* overlayCtrlInfo =
        dynamic_cast<OverlayCtrlInfo*>(call->getControlInfo());
    if (overlayCtrlInfo &&
        overlayCtrlInfo->getTransportType() == ROUTE_TRANSPORT) {
        //destNode = &(overlayCtrlInfo->getSrcNode());
        if (overlayCtrlInfo->getSrcNode().isUnspecified())
            destNode = &(overlayCtrlInfo->getLastHop());
        else
            destNode = &(overlayCtrlInfo->getSrcNode());
        transportType = ROUTE_TRANSPORT;
        compType = static_cast<CompType>(overlayCtrlInfo->getSrcComp());
        if (static_cast<RoutingType>(overlayCtrlInfo->getRoutingType())
                == FULL_RECURSIVE_ROUTING) {
            destKey = &(overlayCtrlInfo->getSrcNode().getKey());//&(call->getSrcNode().getKey());
            destNode = &NodeHandle::UNSPECIFIED_NODE;
        }
    } else {
        UDPControlInfo* udpCtrlInfo =
            check_and_cast<UDPControlInfo*>(call->getControlInfo());
        tempNode = TransportAddress(udpCtrlInfo->getSrcAddr(), udpCtrlInfo->getSrcPort());
        destNode = &tempNode;
    }
    sendRpcResponse(transportType, compType,
                    *destNode, *destKey, call, response);
}

bool BaseApp::isSiblingFor	(	const NodeHandle &	node,
		const OverlayKey &	key,
		int	numSiblings,
		bool *	err
	)

inlineprotected

Query if a node is among the siblings for a given key.

Query if a node is among the siblings for a given key. This means, that the nodeId of this node among the close numSiblings nodes to the key and that by a local findNode() call all other siblings to this key can be retrieved.

Parameters

node	the NodeHandle
key	destination key
numSiblings	The nodes knows all numSiblings nodes close to this key
err	return false if the range could not be determined

Returns: bool true, if the node is responsible for the key.

Definition at line 264 of file BaseApp.h.

    {
        return overlay->isSiblingFor(node, key, numSiblings, err);
    };

int BaseApp::numInitStages ( ) const

protected

method to set InitStage

Reimplemented in I3.

Definition at line 53 of file BaseApp.cc.

Referenced by ALMTest::initializeApp().

{
    return MAX_STAGE_APP + 1;
}

void BaseApp::receiveChangeNotification	(	int	category,
		const cPolymorphic *	details
	)

protectedvirtual

callback-method for events at the NotificationBoard

Parameters

category	...
details	...

Definition at line 214 of file BaseApp.cc.

{
    Enter_Method_Silent();
    if (category == NF_OVERLAY_TRANSPORTADDRESS_CHANGED) {
        handleTransportAddressChangedNotification();
    } else if (category == NF_OVERLAY_NODE_LEAVE) {
        handleNodeLeaveNotification();
    } else if (category == NF_OVERLAY_NODE_GRACEFUL_LEAVE) {
        handleNodeGracefulLeaveNotification();
    }
}

void BaseApp::sendMessageToLowerTier ( cPacket * msg )

protected

sends non-commonAPI message to the lower tier

Parameters

msg	message to send

Definition at line 452 of file BaseApp.cc.

Referenced by SimpleGameClient::handleRealworldPacket(), SimpleGameClient::handleTimerEvent(), GIASearchApp::handleTimerEvent(), and SimpleGameClient::updatePosition().

{
    RECORD_STATS(numOverlaySent++; bytesOverlaySent += msg->getByteLength());
    send(msg, "to_lowerTier");
}

void BaseApp::sendMessageToUDP	(	const TransportAddress &	destAddr,
		cPacket *	msg,
		simtime_t	delay = `SIMTIME_ZERO`
	)

protectedvirtual

Sends a packet over UDP.

Reimplemented from BaseRpc.

Definition at line 526 of file BaseApp.cc.

Referenced by MyApplication::deliver().

{
    // send message to UDP, with the appropriate control info attached
    msg->removeControlInfo();
    msg->setKind(UDP_C_DATA);
    UDPControlInfo *ctrl = new UDPControlInfo();
    ctrl->setSrcPort(thisNode.getPort());
    ctrl->setSrcAddr(thisNode.getIp());
    ctrl->setDestAddr(destAddr.getIp());
    ctrl->setDestPort(destAddr.getPort());
    msg->setControlInfo(ctrl);
    if (ev.isGUI()) {
        BaseRpcMessage* rpc = dynamic_cast<BaseRpcMessage*>(msg);
        if (rpc) rpc->setStatType(APP_DATA_STAT);
    }
    // debug message
    if (debugOutput) {
        EV << "[BaseApp::sendMessageToUDP() @ " << thisNode.getIp()
        << " (" << overlay->getThisNode().getKey().toString(16) << ")]\n"
        << "    Sending " << *msg << " to " << destAddr.getIp()
        << endl;
    }
    RECORD_STATS(numUdpSent++; bytesUdpSent += msg->getByteLength());
    sendDelayed(msg, delay, "udpOut");
}

void BaseApp::sendReadyMessage	(	bool	ready = `true`,
		const OverlayKey &	nodeId = `OverlayKey::UNSPECIFIED_KEY`
	)

protected

Definition at line 458 of file BaseApp.cc.

Referenced by NeighborCache::prepareOverlay().

{
    CompReadyMessage* msg = new CompReadyMessage();
    msg->setReady(ready);
    msg->setComp(getThisCompType());
    msg->setNodeId(nodeId);
    overlay->sendMessageToAllComp(msg, getThisCompType());
}

void BaseApp::update	(	const NodeHandle &	node,
		bool	joined
	)

protectedvirtual

Common API function: informs application about neighbors and own nodeID.

Parameters

node	new or lost neighbor
joined	new or lost?

Reimplemented in Scribe, and CBRDHT.

Definition at line 317 of file BaseApp.cc.

{
    EV << "[BaseApp::update() @ " << thisNode.getIp()
       << " (" << overlay->getThisNode().getKey().toString(16) << ")]\n"
       << "    " << node << (joined ? " joined " : " left ") << "siblings"
       << endl;
    /*
    std::cout << simTime() << "  [BaseApp::update() @ " << thisNode.getIp()
              << " (" << overlay->getThisNode().getKey().toString(16) << ")]\n"
              << "    " << node << (joined ? " joined " : " left ") << "siblings"
              << std::endl;
     */
}

Member Data Documentation

int BaseApp::bytesOverlayReceived

protected

number of received bytes from overlay

Definition at line 356 of file BaseApp.h.

int BaseApp::bytesOverlaySent

protected

number of sent bytes to overlay

Definition at line 354 of file BaseApp.h.

int BaseApp::bytesUdpReceived

protected

number of received bytes from UDP

Definition at line 360 of file BaseApp.h.

int BaseApp::bytesUdpSent

protected

number of sent bytes to UDP

Definition at line 358 of file BaseApp.h.

simtime_t BaseApp::creationTime

protected

simTime when the App has been created

Definition at line 362 of file BaseApp.h.

Referenced by KBRTestApp::finishApp(), and NeighborCache::finishApp().

bool BaseApp::debugOutput

protected

debug output yes/no?

Definition at line 350 of file BaseApp.h.

Referenced by GIASearchApp::handleLowerMessage(), GIASearchApp::handleTimerEvent(), and SimpleGameClient::initializeApp().

GlobalNodeList* BaseApp::globalNodeList

protected

pointer to GlobalNodeList in this node

Definition at line 340 of file BaseApp.h.

Referenced by KBRTestApp::createDestKey(), GIASearchApp::handleTimerEvent(), KBRTestApp::handleTimerEvent(), and Landmark::initializeApp().

GlobalStatistics* BaseApp::globalStatistics

protected

pointer to GlobalStatistics module in this node

Definition at line 343 of file BaseApp.h.

Referenced by KBRTestApp::evaluateData(), Landmark::finishApp(), MyApplication::finishApp(), SimpleGameClient::finishApp(), GIASearchApp::finishApp(), KBRTestApp::finishApp(), KBRTestApp::handleLookupResponse(), KBRTestApp::handleRpcResponse(), KBRTestApp::handleRpcTimeout(), and KBRTestApp::handleTimerEvent().

NotificationBoard* BaseApp::notificationBoard

protected

pointer to NotificationBoard in this node

Definition at line 346 of file BaseApp.h.

int BaseApp::numOverlayReceived

protected

number of received packets from overlay

Definition at line 355 of file BaseApp.h.

int BaseApp::numOverlaySent

protected

number of sent packets to overlay

Definition at line 353 of file BaseApp.h.

int BaseApp::numUdpReceived

protected

number of received packets from UDP

Definition at line 359 of file BaseApp.h.

int BaseApp::numUdpSent

protected

number of sent packets to UDP

Definition at line 357 of file BaseApp.h.

UnderlayConfigurator* BaseApp::underlayConfigurator

protected

pointer to UnderlayConfigurator in this node

Definition at line 337 of file BaseApp.h.

Referenced by MyApplication::handleTimerEvent(), GIASearchApp::handleTimerEvent(), KBRTestApp::handleTimerEvent(), NeighborCache::prepareOverlay(), and GlobalViewBuilder::spreadGlobalView().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
