Compound Module GlobalObserver

Package: oversim.common
File: src/common/GlobalObserver.ned

global module that contains the globalNodeList and the globalStatistics module

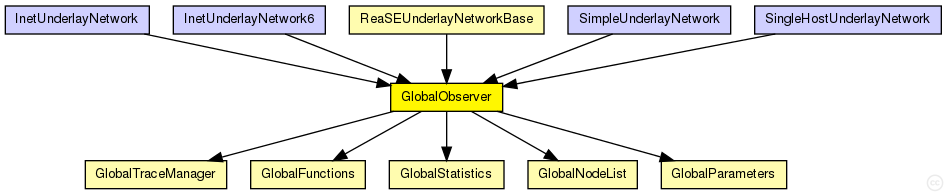

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Used in compound modules:

Name	Type	Description
ReaSEUnderlayNetworkBase	compound module	The InetUnderlay ned-file See also: ReaSEUnderlayConfigurator

Name

Type

Description

ReaSEUnderlayNetworkBase

compound module

The InetUnderlay ned-file

See also: ReaSEUnderlayConfigurator

Networks:

Name	Type	Description
InetUnderlayNetwork	network	The InetUnderlay ned-file See also: InetUnderlayConfigurator
InetUnderlayNetwork6	network	The InetUnderlay ned-file See also: InetUnderlayConfigurator
SimpleUnderlayNetwork	network	The SimpleUnderlay ned-file See also: SimpleUnderlayConfigurator
SingleHostUnderlayNetwork	network	The SingleHostUnderlay ned-file See also: SingleHostUnderlayConfigurator

Parameters:

Name	Type	Default value	Description
numGlobalFunctions	int

Properties:

Name	Value	Description
display	i=block/control

Unassigned submodule parameters:

Name	Type	Description
globalNodeList.maliciousNodeProbability	double	probability for a node to be malicious on creation
globalNodeList.maliciousNodeChange	bool	dynamically change number of malicious nodes
globalNodeList.maliciousNodeChangeStartTime	double	simTime at which nodes begin to become malicious
globalNodeList.maliciousNodeChangeRate	double	number of nodes to change to malicious compared to all nodes
globalNodeList.maliciousNodeChangeInterval	double	time between two node changes to malicious
globalNodeList.maliciousNodeChangeStartValue	double	minimum amount of malicious nodes in the peerSet
globalNodeList.maliciousNodeChangeStopValue	double	maximum amount of malicious nodes in the peerSet
globalNodeList.maxNumberOfKeys	int	maximum number of overlay keys the bootstrap oracle handles
globalNodeList.keyProbability	double	probability of keys to be owned by nodes
globalParameters.rpcUdpTimeout	double	default timeout value for direct RPCs
globalParameters.rpcKeyTimeout	double	default timeout value for routed RPCs
globalParameters.printStateToStdOut	bool	print overlay ready messages to std::cout
globalParameters.topologyAdaptation	bool	turn on topologyAdaptation (for demonstrator)
globalTraceManager.traceFile	string	file name of the trace file
globalStatistics.outputMinMax	bool	enable output of minimum and maximum for scalars
globalStatistics.outputStdDev	bool	enable output of standard deviation for scalars
globalStatistics.measureNetwInitPhase	bool	fetch statistics in init phase?
globalStatistics.globalStatTimerInterval	double	interval length of periodic statistic timer

Source code:

//

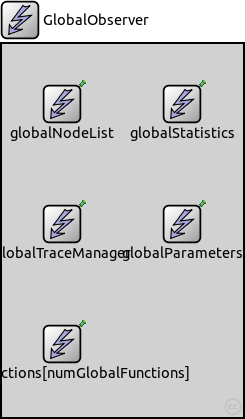

// global module that contains the globalNodeList and the globalStatistics module
//
module GlobalObserver
{
    parameters:
        int numGlobalFunctions;
        @display("i=block/control");

    submodules:
        globalNodeList: GlobalNodeList {
            parameters:
                @display("p=60,60;i=block/control");
        }
        globalParameters: GlobalParameters {
            parameters:
                @display("p=180,180;i=block/control");
        }
        globalTraceManager: GlobalTraceManager {
            parameters:
                @display("p=60,180;i=block/control");
        }
        globalFunctions[numGlobalFunctions]: GlobalFunctions {
            parameters:
                @display("p=60,300,column;i=block/control");
        }
        globalStatistics: GlobalStatistics {
            parameters:
                @display("p=180,60;i=block/control");
        }
}
