Network SimpleUnderlayNetwork

Package: oversim.underlay.simpleunderlay
File: src/underlay/simpleunderlay/SimpleUnderlay.ned

The SimpleUnderlay ned-file

See also: SimpleUnderlayConfigurator

Author: Stephan Krause, Bernhard Heep

SimpleUnderlayConfigurator ChurnGenerator GlobalObserver SimpleOverlayHost

Usage diagram:

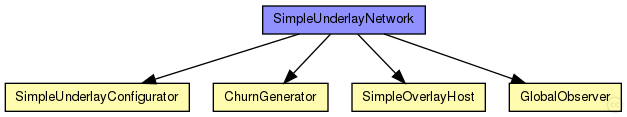

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

Inheritance diagram:

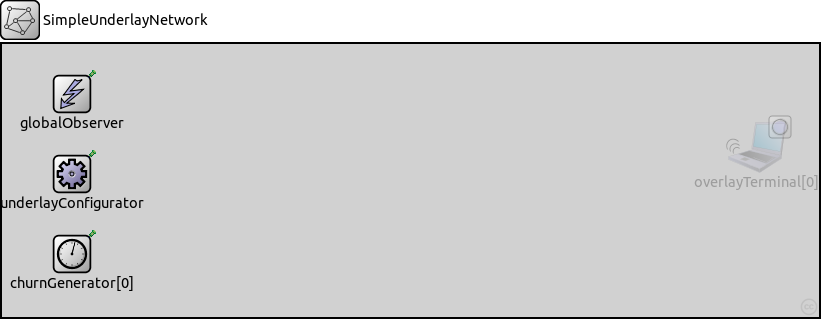

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Properties:

Name Value Description
isNetwork

Unassigned submodule parameters:

Name Type Default value Description
underlayConfigurator.terminalTypes string

list of terminal types
underlayConfigurator.churnGeneratorTypes string

a list of churn generators to be used
underlayConfigurator.transitionTime double

time to wait before measuring after init phase is finished
underlayConfigurator.measurementTime double

duration of the simulation after init and transition phase
underlayConfigurator.gracefulLeaveDelay double

time between prekill and removal from overlay
underlayConfigurator.gracefulLeaveProbability double

probability of gracefull leave
underlayConfigurator.fieldSize double

maximum x/y-coordinate for nodes
underlayConfigurator.nodeCoordinateSource string

name of xml-file with coordinates of nodes
underlayConfigurator.sendQueueLength int

send-queue length in bytes (0 = infinite)
underlayConfigurator.fixedNodePositions bool

put nodes on fixed coordiantes in playground
underlayConfigurator.useIPv6Addresses bool
churnGenerator.targetOverlayTerminalNum int

number of nodes after init phase
churnGenerator.initPhaseCreationInterval double

node creation interval in init phase
churnGenerator.noChurnThreshold double

if the lifetimeMean of a specific churn generator exceeds this, NoChurn is used instead
churnGenerator.channelTypes string

used (tx) access technologies (from common/channels.ned)
churnGenerator.channelTypesRx string

used (rx) access technologies (from common/channels.ned)
globalObserver.globalNodeList.maliciousNodeProbability double

probability for a node to be malicious on creation
globalObserver.globalNodeList.maliciousNodeChange bool

dynamically change number of malicious nodes
globalObserver.globalNodeList.maliciousNodeChangeStartTime double

simTime at which nodes begin to become malicious
globalObserver.globalNodeList.maliciousNodeChangeRate double

number of nodes to change to malicious compared to all nodes
globalObserver.globalNodeList.maliciousNodeChangeInterval double

time between two node changes to malicious
globalObserver.globalNodeList.maliciousNodeChangeStartValue double

minimum amount of malicious nodes in the peerSet
globalObserver.globalNodeList.maliciousNodeChangeStopValue double

maximum amount of malicious nodes in the peerSet
globalObserver.globalNodeList.maxNumberOfKeys int

maximum number of overlay keys the bootstrap oracle handles
globalObserver.globalNodeList.keyProbability double

probability of keys to be owned by nodes
globalObserver.globalParameters.rpcUdpTimeout double

default timeout value for direct RPCs
globalObserver.globalParameters.rpcKeyTimeout double

default timeout value for routed RPCs
globalObserver.globalParameters.printStateToStdOut bool

print overlay ready messages to std::cout
globalObserver.globalParameters.topologyAdaptation bool

turn on topologyAdaptation (for demonstrator)
globalObserver.globalTraceManager.traceFile string

file name of the trace file
globalObserver.globalStatistics.outputMinMax bool

enable output of minimum and maximum for scalars
globalObserver.globalStatistics.outputStdDev bool

enable output of standard deviation for scalars
globalObserver.globalStatistics.measureNetwInitPhase bool

fetch statistics in init phase?
globalObserver.globalStatistics.globalStatTimerInterval double

interval length of periodic statistic timer
overlayTerminal.udp.constantDelay double

constant delay between two peers
overlayTerminal.udp.useCoordinateBasedDelay bool

delay should be calculated from euklidean distance between two peers
overlayTerminal.udp.delayFaultType string

augment coordinate based delays with a realistic error, according to "Network Coordinates in the Wild", Figure 7 possible values: empty, "live_all", "live_planetlab", "simulation"
overlayTerminal.udp.jitter double

average amount of jitter in %
overlayTerminal.udp.enableAccessRouterTxQueue bool

model the tx queue of the access router of an destination node
overlayTerminal.tcp.advertisedWindow int 14*this.mss

in bytes, corresponds with the maximal receiver buffer capacity (Note: normally, NIC queues should be at least this size)
overlayTerminal.tcp.delayedAcksEnabled bool false

delayed ACK algorithm (RFC 1122) enabled/disabled
overlayTerminal.tcp.nagleEnabled bool true

Nagle's algorithm (RFC 896) enabled/disabled
overlayTerminal.tcp.limitedTransmitEnabled bool false

Limited Transmit algorithm (RFC 3042) enabled/disabled (can be used for TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl)
overlayTerminal.tcp.increasedIWEnabled bool false

Increased Initial Window (RFC 3390) enabled/disabled
overlayTerminal.tcp.sackSupport bool false

Selective Acknowledgment (RFC 2018, 2883, 3517) support (header option) (SACK will be enabled for a connection if both endpoints support it)
overlayTerminal.tcp.windowScalingSupport bool false

Window Scale (RFC 1323) support (header option) (WS will be enabled for a connection if both endpoints support it)
overlayTerminal.tcp.timestampSupport bool false

Timestamps (RFC 1323) support (header option) (TS will be enabled for a connection if both endpoints support it)
overlayTerminal.tcp.mss int 536

Maximum Segment Size (RFC 793) (header option)
overlayTerminal.tcp.tcpAlgorithmClass string "TCPReno"

TCPReno/TCPTahoe/TCPNewReno/TCPNoCongestionControl/DumbTCP
overlayTerminal.tcp.sendQueueClass string "TCPVirtualDataSendQueue"

TCPVirtualDataSendQueue/TCPMsgBasedSendQueue
overlayTerminal.tcp.receiveQueueClass string "TCPVirtualDataRcvQueue"

TCPVirtualDataRcvQueue/TCPMsgBasedRcvQueue
overlayTerminal.tcp.recordStats bool true

recording of seqNum etc. into output vectors enabled/disabled
overlayTerminal.tcp.constantDelay double

constant delay between two peers
overlayTerminal.tcp.useCoordinateBasedDelay bool

delay should be calculated from euklidean distance between two peers
overlayTerminal.tcp.delayFaultType string

augment coordinate based delays with a realistic error, according to "Network Coordinates in the Wild", Figure 7 possible values: empty, "live_all", "live_planetlab", "simulation"
overlayTerminal.tcp.jitter double

average amount of jitter in %
overlayTerminal.cryptoModule.keyFile string

the name of the file containing the public key pair used to sign messages
overlayTerminal.neighborCache.rpcUdpTimeout double

default timeout value for direct RPCs
overlayTerminal.neighborCache.rpcKeyTimeout double

default timeout value for routed RPCs
overlayTerminal.neighborCache.optimizeTimeouts bool

calculate timeouts from measured RTTs and network coordinates
overlayTerminal.neighborCache.rpcExponentialBackoff bool

if true, doubles the timeout for every retransmission
overlayTerminal.neighborCache.debugOutput bool

enable debug output
overlayTerminal.neighborCache.enableNeighborCache bool

use neighbor cache for reducing ping traffic?
overlayTerminal.neighborCache.rttExpirationTime double

expiration of the validity of the measured rtts
overlayTerminal.neighborCache.maxSize double

maximum size of the cache
overlayTerminal.neighborCache.rttHistory int
overlayTerminal.neighborCache.timeoutAccuracyLimit double
overlayTerminal.neighborCache.defaultQueryType string
overlayTerminal.neighborCache.defaultQueryTypeI string
overlayTerminal.neighborCache.defaultQueryTypeQ string
overlayTerminal.neighborCache.doDiscovery bool
overlayTerminal.neighborCache.collectClosestNodes int
overlayTerminal.neighborCache.ncsType string
overlayTerminal.neighborCache.useNcsForTimeout bool
overlayTerminal.neighborCache.ncsPiggybackOwnCoords bool
overlayTerminal.neighborCache.discoveryModeNumCloseNodes int

discovery mode settings
overlayTerminal.neighborCache.discoveryModeNumSpreadedNodes int
overlayTerminal.neighborCache.discoveryModeMaxSteps int
overlayTerminal.neighborCache.discoveryModeSpreadedSteps int
overlayTerminal.neighborCache.gnpDimensions int

gnp settings
overlayTerminal.neighborCache.gnpCoordCalcRuns int
overlayTerminal.neighborCache.gnpLandmarkTimeout double
overlayTerminal.neighborCache.npsMaxLayer int

nps settings
overlayTerminal.neighborCache.vivaldiShowPosition bool

vivaldi settings
overlayTerminal.neighborCache.vivaldiErrorConst double
overlayTerminal.neighborCache.vivaldiCoordConst double
overlayTerminal.neighborCache.vivaldiDimConst double
overlayTerminal.neighborCache.vivaldiEnableHeightVector bool
overlayTerminal.neighborCache.svivaldiLossConst double

svivaldi settings
overlayTerminal.neighborCache.svivaldiLossResetLimit double
overlayTerminal.neighborCache.simpleNcsDelayFaultType string

simpleNcs settings
overlayTerminal.neighborCache.treeMgmtEnableTreeManagement bool

Tree Management Settings
overlayTerminal.neighborCache.treeMgmtBuildInterval double

the interval to check the childNodeMap
overlayTerminal.neighborCache.treeMgmtChildrenTimeOut double

after this timeout an alive check ping is send
overlayTerminal.neighborCache.gvbEnableGlobalViewBuilder bool

Global View Builder Settings
overlayTerminal.neighborCache.gvbCoordSendInterval double

the interval to send the coordinates data
overlayTerminal.neighborCache.gvbOnlyAcceptCompleteCCD bool
overlayTerminal.neighborCache.gvbSendStrategy string

the send strategy to use. (sendAll|simplifyCoords|removeRandom|removeInaccurate|regions|treeTest)
overlayTerminal.neighborCache.gvbStrategyRemoveCoordsMode string

strategy mode (percentage|limitCoords|limitTraffic)
overlayTerminal.neighborCache.gvbStrategyRemoveCoordsPercentage int
overlayTerminal.neighborCache.gvbStrategyRemoveCoordsCoordsLimit int
overlayTerminal.neighborCache.gvbStrategyRemoveCoordsTrafficLimit int
overlayTerminal.neighborCache.gvbStrategyRegionsSizePerDimension int
overlayTerminal.neighborCache.gvbStrategyRegionsMaxSpread int
overlayTerminal.neighborCache.gvbStrategySimplifyCoordsFactor int
overlayTerminal.neighborCache.gvbC2AParameter string

parameterstring to append to c2a.rb call
overlayTerminal.neighborCache.gvbDistributeGlobalView bool

create areas and distribute the globalView to all nodes
overlayTerminal.bootstrapList.rpcUdpTimeout double

default timeout value for direct RPCs
overlayTerminal.bootstrapList.rpcKeyTimeout double

default timeout value for routed RPCs
overlayTerminal.bootstrapList.optimizeTimeouts bool

calculate timeouts from measured RTTs and network coordinates
overlayTerminal.bootstrapList.rpcExponentialBackoff bool

if true, doubles the timeout for every retransmission
overlayTerminal.bootstrapList.debugOutput bool

enable debug output
overlayTerminal.bootstrapList.mergeOverlayPartitions bool

if true, detect and merge overlay partitions
overlayTerminal.bootstrapList.maintainList bool

maintain a list of bootstrap candidates and check them periodically

Source code:

//
// The SimpleUnderlay ned-file @see SimpleUnderlayConfigurator
//
// @author Stephan Krause, Bernhard Heep
//
network SimpleUnderlayNetwork
{
    parameters:
        //@display("bgb=4000,4000"); // uncomment for large canvas

    submodules:
        underlayConfigurator: SimpleUnderlayConfigurator {
            @display("p=70,130");
        }
        churnGenerator[0]: ChurnGenerator {
            @display("p=70,210,column");
        }
        globalObserver: GlobalObserver {
            @display("p=70,50");
        }
        overlayTerminal[0]: SimpleOverlayHost {
            @dynamic;
        }
}
