Simple Module ChurnGenerator

Package: oversim.common
File: src/common/ChurnGenerator.ned

Usage diagram:

The following diagram shows usage relationships between types. Unresolved types are missing from the diagram. Click here to see the full picture.

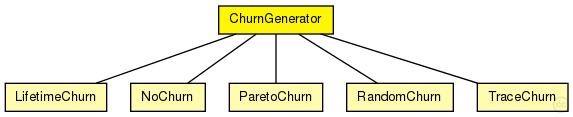

Inheritance diagram:

The following diagram shows inheritance relationships for this type. Unresolved types are missing from the diagram. Click here to see the full picture.

Known subclasses:

Name	Type	Description
LifetimeChurn	simple module	(no description)
NoChurn	simple module	No churn generating class (only bootstraps a networks)
ParetoChurn	simple module	Lifetime churn based on shifted pareto distribution
RandomChurn	simple module	Random churn generating module
TraceChurn	simple module	(no description)

Used in compound modules:

Name	Type	Description
ReaSEUnderlayNetworkBase	compound module	The InetUnderlay ned-file See also: ReaSEUnderlayConfigurator

Name

Type

Description

ReaSEUnderlayNetworkBase

compound module

The InetUnderlay ned-file

See also: ReaSEUnderlayConfigurator

Networks:

Name	Type	Description
InetUnderlayNetwork	network	The InetUnderlay ned-file See also: InetUnderlayConfigurator
InetUnderlayNetwork6	network	The InetUnderlay ned-file See also: InetUnderlayConfigurator
SimpleUnderlayNetwork	network	The SimpleUnderlay ned-file See also: SimpleUnderlayConfigurator
SingleHostUnderlayNetwork	network	The SingleHostUnderlay ned-file See also: SingleHostUnderlayConfigurator

Parameters:

Name	Type	Description
targetOverlayTerminalNum	int	number of nodes after init phase
initPhaseCreationInterval	double	node creation interval in init phase
noChurnThreshold	double	if the lifetimeMean of a specific churn generator exceeds this, NoChurn is used instead
channelTypes	string	used (tx) access technologies (from common/channels.ned)
channelTypesRx	string	used (rx) access technologies (from common/channels.ned)

Properties:

Name	Value	Description
display	i=block/timer

Source code:

//
// ChurnGenerator base module
//
simple ChurnGenerator
{
    parameters:
        int targetOverlayTerminalNum; // number of nodes after init phase
        double initPhaseCreationInterval @unit(s); // node creation interval in init phase
        double noChurnThreshold @unit(s); // if the lifetimeMean of a specific
                                          // churn generator exceeds this,
                                          // NoChurn is used instead
        string channelTypes;   // used (tx) access technologies (from common/channels.ned)
        string channelTypesRx; // used (rx) access technologies (from common/channels.ned)
        @display("i=block/timer");
}
