Quon Class Reference

QuON: An overlay network based on quadtrees. More...

#include <Quon.h>

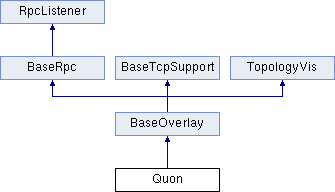

Inheritance diagram for Quon:

Public Member Functions
	~Quon ()
void	initializeOverlay (int stage)
	Initializes derived-class-attributes.
void	finishOverlay ()
	collects statistical data in derived class
void	handleUDPMessage (BaseOverlayMessage *msg)
	Processes messages from underlay.
void	handleTimerEvent (cMessage *msg)
void	handleAppMessage (cMessage *msg)
	Processes "timer" self-messages.
void	handleNodeGracefulLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed if this node is among the gracefulLeaveProbability nodes.
QState	getState ()
double	getAOI ()
Vector2D	getPosition ()
double	getAreaDimension ()
OverlayKey	getKey ()
long	getSoftNeighborCount ()
Public Member Functions inherited from BaseOverlay
	BaseOverlay ()
virtual	~BaseOverlay ()
	Virtual destructor.
bool	isMalicious ()
	Returns true, if node is malicious.
bool	isInSimpleMultiOverlayHost ()
	Returns true if overlay is one in an array, inside a SimpleMultiOverlayHost.
const simtime_t &	getCreationTime ()
void	join (const OverlayKey &nodeID=OverlayKey::UNSPECIFIED_KEY)
	Join the overlay with a given nodeID.
virtual NodeVector *	local_lookup (const OverlayKey &key, int num, bool safe)
	finds nodes closest to the given OverlayKey
virtual NodeVector *	neighborSet (int num)
virtual bool	isSiblingFor (const NodeHandle &node, const OverlayKey &key, int numSiblings, bool *err)
	Query if a node is among the siblings for a given key.
virtual int	getMaxNumSiblings ()
	Query the maximum number of siblings (nodes close to a key) that are maintained by this overlay protocol.
virtual int	getMaxNumRedundantNodes ()
	Query the maximum number of redundant next hop nodes that are returned by findNode().
void	sendMessageToUDP (const TransportAddress &dest, cPacket *msg, simtime_t delay=SIMTIME_ZERO)
	Sends message to underlay.
void	sendToKey (const OverlayKey &key, BaseOverlayMessage *message, int numSiblings=1, const std::vector< TransportAddress > &sourceRoute=TransportAddress::UNSPECIFIED_NODES, RoutingType routingType=DEFAULT_ROUTING)
	Sends a message to an overlay node, with the generic routing algorithm.
virtual OverlayKey	distance (const OverlayKey &x, const OverlayKey &y, bool useAlternative=false) const
	This method should implement the distance between two keys.
void	registerComp (CompType compType, cModule *module)
cModule *	getCompModule (CompType compType)
cGate *	getCompRpcGate (CompType compType)
void	sendMessageToAllComp (cMessage *msg, CompType srcComp)
bool	providesKbr ()
virtual uint8_t	getBitsPerDigit ()
bool	getMeasureAuthBlock ()
BootstrapList &	getBootstrapList () const
virtual OverlayKey	estimateMeanDistance ()
	returns mean distance between OverlayKeys in the network
virtual uint32_t	estimateOverlaySize ()
	estimates the current number of nodes online
Public Member Functions inherited from BaseRpc
	BaseRpc ()
const NodeHandle &	getThisNode ()
	Returns the NodeHandle of this node.
simtime_t	getUdpTimeout ()
Public Member Functions inherited from RpcListener
virtual	~RpcListener ()
	destructor
Public Member Functions inherited from BaseTcpSupport
virtual void	socketDataArrived (int connId, void *yourPtr, cPacket *msg, bool urgent)
virtual void	socketEstablished (int connId, void *yourPtr)
virtual void	socketPeerClosed (int connId, void *yourPtr)
virtual void	socketFailure (int connId, void *yourPtr, int code)
virtual void	socketStatusArrived (int connId, void *yourPtr, TCPStatusInfo *status)
Public Member Functions inherited from TopologyVis
	TopologyVis ()
void	showOverlayNeighborArrow (const NodeHandle &neighbor, bool flush=true, const char *displayString=NULL)
	Draws an arrow from this node to neighbor.
void	deleteOverlayNeighborArrow (const NodeHandle &neighbor)
	Removes an arrow from this node to neighbor.

Public Attributes
QuonSiteMap	Sites

Private Member Functions
void	sendToApp (cMessage *msg)
void	sendMessage (QuonMessage *quonMsg, NodeHandle destination)
void	setBootstrapedIcon ()
void	changeState (QState qstate)
void	processJoinTimer ()
void	processSecTimer ()
void	processDeleteTimer (cMessage *msg)
void	processAliveTimer ()
void	processBackupTimer ()
void	handleJoin (GameAPIPositionMessage *gameMsg)
void	handleMove (GameAPIPositionMessage *gameMsg)
void	handleEvent (GameAPIMessage *msg)
void	handleJoinRequest (QuonMessage *quonMsg)
void	handleJoinAcknowledge (QuonListMessage *quonListMsg)
void	handleNodeMove (QuonMoveMessage *quonMoveMsg)
void	handleNewNeighbors (QuonListMessage *quonListMsg)
void	handleNodeLeave (QuonListMessage *quonListMsg)
void	handleInvalidNode (QuonListMessage *quonListMsg)
void	synchronizeAppNeighbors (QPurgeType purgeSoftSites=QKEEPSOFT)
void	deleteAppNeighbor (NodeHandle node)
bool	addSite (Vector2D p, NodeHandle node, double AOI, bool isSoft=false, QUpdateType update=QFOREIGN)
void	updateThisSite (Vector2D p)
void	classifySites ()
bool	deleteSite (NodeHandle node)
int	purgeSites (QPurgeType purgeSoftSites=QKEEPSOFT)
void	adaptAoI ()

Private Attributes
simtime_t	joinTimeout
simtime_t	deleteTimeout
simtime_t	aliveTimeout
double	AOIWidth
double	minAOI
double	maxAOI
unsigned int	connectionLimit
double	areaDimension
simtime_t	backupIntervall
bool	useDynamicAOI
bool	useSquareMetric
bool	linearAdaption
double	adaptionSensitivity
double	gossipSensitivity
bool	nnOnlyBinding
cMessage *	join_timer
cMessage *	sec_timer
cMessage *	alive_timer
cMessage *	backup_timer
double	joinRequestBytesSend
double	joinAcknowledgeBytesSend
double	nodeMoveBytesSend
double	newNeighborsBytesSend
double	nodeLeaveBytesSend
double	maxBytesPerSecondSend
double	averageBytesPerSecondSend
double	bytesPerSecond
long	softConnections
long	softNeighborCount
long	bindingNeighborCount
long	directNeighborCount
unsigned int	secTimerCount
long	rejoinCount
unsigned long	avgAOI
simtime_t	joinTime
QuonSite *	thisSite
QDeleteMap	deletedSites
NodeHandle(*	bindingBackup )[4]
int	numBackups
QState	qstate
bool	aloneInOverlay
LoginCache *	loginCache
int	cacheInterval
int	timeSinceCache

Additional Inherited Members
Public Types inherited from BaseOverlay
enum	States {   INIT = 0, BOOTSTRAP = 1, DISCOVERY = 2, PREJOIN = 3,   JOIN = 4, POSTJOIN = 5, READY = 6, REFRESH = 7,   SHUTDOWN = 8, FAILED = 9, RSET = JOIN, BSET = POSTJOIN }
Protected Types inherited from BaseOverlay
typedef UNORDERED_SET < AbstractLookup *, lookupHashFcn, lookupHashFcn >	LookupSet
Protected Member Functions inherited from BaseOverlay
int	numInitStages () const
	Sets init stage.
void	bindToPort (int port)
	Tells UDP we want to get all packets arriving on the given port.
virtual void	route (const OverlayKey &key, CompType destComp, CompType srcComp, cPacket *msg, const std::vector< TransportAddress > &sourceRoute=TransportAddress::UNSPECIFIED_NODES, RoutingType routingType=DEFAULT_ROUTING)
	Routes message through overlay.
void	callDeliver (BaseOverlayMessage *msg, const OverlayKey &destKey)
	Calls deliver function in application.
void	callForward (const OverlayKey &key, BaseRouteMessage *msg, const NodeHandle &nextHopNode)
	Calls forward function in application.
void	callUpdate (const NodeHandle &node, bool joined)
	Informs application about state changes of nodes or newly joined nodes.
void	handleMessage (cMessage *msg)
	Checks for message type and calls corresponding method.
void	handleBaseOverlayMessage (BaseOverlayMessage *msg, const OverlayKey &destKey=OverlayKey::UNSPECIFIED_KEY)
	Handles a BaseOverlayMessage
virtual void	receiveChangeNotification (int category, const cPolymorphic *details)
	callback-method for events at the NotificationBoard
virtual void	handleTransportAddressChangedNotification ()
	This method gets call if the node has a new TransportAddress (IP address) because he changed his access network.
virtual void	handleNodeLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed.
virtual void	recordOverlaySentStats (BaseOverlayMessage *msg)
	Collect overlay specific sent messages statistics.
void	setOverlayReady (bool ready)
	Sets the overlay ready icon and register/deregisters the node at the GlobalNodeList.
virtual AbstractLookup *	createLookup (RoutingType routingType=DEFAULT_ROUTING, const BaseOverlayMessage *msg=NULL, const cPacket *findNodeExt=NULL, bool appLookup=false)
	Creates an abstract iterative lookup instance.
virtual void	removeLookup (AbstractLookup *lookup)
	Removes the abstract lookup instance.
virtual NodeVector *	findNode (const OverlayKey &key, int numRedundantNodes, int numSiblings, BaseOverlayMessage *msg=NULL)
	Implements the find node call.
virtual void	joinOverlay ()
	Join the overlay with a given nodeID in thisNode.key.
virtual void	joinForeignPartition (const NodeHandle &node)
	Join another overlay partition with the given node as bootstrap node.
virtual bool	handleFailedNode (const TransportAddress &failed)
	Handles a failed node.
virtual void	lookupRpc (LookupCall *call)
virtual void	nextHopRpc (NextHopCall *call)
void	countFindNodeCall (const FindNodeCall *call)
void	countFailedNodeCall (const FailedNodeCall *call)
bool	internalHandleRpcCall (BaseCallMessage *msg)
	Handles internal rpc requests.
void	internalHandleRpcResponse (BaseResponseMessage *msg, cPolymorphic *context, int rpcId, simtime_t rtt)
	Handles rpc responses internal in base classes
void	internalHandleRpcTimeout (BaseCallMessage *msg, const TransportAddress &dest, cPolymorphic *context, int rpcId, const OverlayKey &destKey)
	Handles rpc timeouts internal in base classes
void	internalSendRouteRpc (BaseRpcMessage *message, const OverlayKey &destKey, const std::vector< TransportAddress > &sourceRoute, RoutingType routingType)
CompType	getThisCompType ()
	Return the component type of this module.
Protected Attributes inherited from BaseOverlay
int	numAppDataForwarded
	number of forwarded app data packets
int	bytesAppDataForwarded
	number of forwarded app data bytes at out-gate
int	numAppLookupForwarded
	number of forwarded app lookup packets
int	bytesAppLookupForwarded
	number of forwarded app lookup bytes at out-gate
int	numMaintenanceForwarded
	number of forwarded maintenance packets
int	bytesMaintenanceForwarded
	number of forwarded maintenance bytes at out-gate
int	numFindNodeSent
int	bytesFindNodeSent
int	numFindNodeResponseSent
int	bytesFindNodeResponseSent
int	numFailedNodeSent
int	bytesFailedNodeSent
int	numFailedNodeResponseSent
int	bytesFailedNodeResponseSent
std::vector< HopDelayRecord * >	singleHopDelays
simtime_t	creationTime
	simtime when the node has been created
GlobalNodeList *	globalNodeList
	pointer to GlobalNodeList in this node
NotificationBoard *	notificationBoard
	pointer to NotificationBoard in this node
UnderlayConfigurator *	underlayConfigurator
	pointer to UnderlayConfigurator in this node
BootstrapList *	bootstrapList
	pointer to the BootstrapList module
GlobalParameters *	globalParameters
	pointer to the GlobalParameters module
uint32_t	overlayId
	identifies the overlay this node belongs to (used for multiple overlays)
bool	debugOutput
	debug output ?
RoutingType	defaultRoutingType
bool	useCommonAPIforward
	forward messages to applications?
bool	collectPerHopDelay
	collect delay for single hops
bool	routeMsgAcks
	send ACK when receiving route message
uint32_t	recNumRedundantNodes
	numRedundantNodes for recursive routing
bool	recordRoute
	record visited hops on route
bool	drawOverlayTopology
bool	rejoinOnFailure
bool	sendRpcResponseToLastHop
	needed by KBR protocols for NAT support
bool	dropFindNodeAttack
	if node is malicious, it tries a findNode attack
bool	isSiblingAttack
	if node is malicious, it tries a isSibling attack
bool	invalidNodesAttack
	if node is malicious, it tries a invalidNode attack
bool	dropRouteMessageAttack
	if node is malicious, it drops all received BaseRouteMessages
int	localPort
	used UDP-port
int	hopCountMax
	maximum hop count
bool	measureAuthBlock
	if true, measure the overhead of signatures in rpc messages
bool	restoreContext
	if true, a node rejoins with its old nodeId and malicious state
int	numDropped
	number of dropped packets
int	bytesDropped
	number of dropped bytes
cOutVector	delayVector
	statistical output vector for packet-delays
cOutVector	hopCountVector
	statistical output vector for hop-counts
States	state
IterativeLookupConfiguration	iterativeLookupConfig
RecursiveLookupConfiguration	recursiveLookupConfig
LookupSet	lookups
bool	kbr
	set this to true, if the overlay provides KBR services

Detailed Description

QuON: An overlay network based on quadtrees.

Author

Helge Backhaus, Stephan Krause

Definition at line 42 of file Quon.h.

Constructor & Destructor Documentation

Quon::~Quon

(

)

Definition at line 1173 of file Quon.cc.

{
    // destroy self timer messages
    cancelAndDelete(join_timer);
    cancelAndDelete(sec_timer);
    cancelAndDelete(alive_timer);
    cancelAndDelete(backup_timer);
    delete thisSite;
    QuonSiteMap::iterator itSites = Sites.begin();
    while(itSites != Sites.end()) {
        delete itSites->second;
        ++itSites;
    }
}

Member Function Documentation

void Quon::adaptAoI ( )

private

Definition at line 498 of file Quon.cc.

Referenced by handleMove().

{
    // adjust AOIWidth
    double oldAOI = AOIWidth;
    if( linearAdaption ) {
        AOIWidth -= (maxAOI - minAOI) * ((double) Sites.size() - (double) connectionLimit) * adaptionSensitivity / (double) connectionLimit;
    } else if( Sites.size() > 0 ){
        AOIWidth *= (1-adaptionSensitivity) + (double) connectionLimit * adaptionSensitivity / (double) Sites.size();
    }
    if( gossipSensitivity > 0  && Sites.size() > 0 ) {
        double avgNeighborAOI = 0;
        for( QuonSiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites ){
            avgNeighborAOI += itSites->second->AOIwidth;
        }
        avgNeighborAOI /= Sites.size();
        AOIWidth = AOIWidth*(1-gossipSensitivity) + avgNeighborAOI*gossipSensitivity;
    }
    if(AOIWidth > maxAOI) {
        AOIWidth = maxAOI;
    }
    else if(AOIWidth < minAOI) {
        AOIWidth = minAOI;
    }

    if( oldAOI != AOIWidth ){
        GameAPIResizeAOIMessage* gameMsg = new GameAPIResizeAOIMessage("RESIZE_AOI");
        gameMsg->setCommand(RESIZE_AOI);
        gameMsg->setAOIsize(AOIWidth);
        sendToApp(gameMsg);
    }
}

bool Quon::addSite ( Vector2D  p, NodeHandle  node, double  AOI, bool  isSoft = false, QUpdateType  update = QFOREIGN  )

private

Definition at line 315 of file Quon.cc.

Referenced by handleJoinAcknowledge(), handleNewNeighbors(), handleNodeLeave(), and handleNodeMove().

{
    aloneInOverlay = false;
    QuonSiteMap::iterator itSites = Sites.find(node.getKey());
    QDeleteMap::iterator delIt = deletedSites.find(node.getKey());
    // add node if he is not in the delete list OR has changed position since
    // put in the delete list. don't add node if he has signled his leave himself
    // (i.e. his position in the delete list is 0,0)
    if(node.getKey() != thisSite->address.getKey() &&
            (delIt == deletedSites.end() || (delIt->second != Vector2D(0,0) && delIt->second != p) )){
        if(itSites == Sites.end()) {
            if(debugOutput) {
                EV << "[Quon::addSite() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    Site " << node.getIp() << " at " << p << " has been added to the list."
                   << endl;
            }
            QuonSite* temp = new QuonSite();
            temp->position = p;
            temp->address = node;
            if(update == QDIRECT) {
                temp->dirty = true;
            }
            temp->alive = true;
            temp->type = QUNDEFINED;
            temp->softNeighbor = isSoft;
            temp->AOIwidth = AOI;

            Sites.insert(std::make_pair(temp->address.getKey(), temp));
        }
        else if(update == QDIRECT || !itSites->second->alive) {
            if(debugOutput) {
                EV << "[Quon::addSite() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    Site " << node.getIp() << " at " << p << " has been updated in the list."
                   << endl;
            }
            itSites->second->position = p;
            itSites->second->dirty = true;
            itSites->second->alive = true;
            itSites->second->softNeighbor = isSoft;
            itSites->second->type = QUNDEFINED;
            itSites->second->AOIwidth = AOI;
        }
        return true;
    }
    return false;
}

void Quon::changeState ( QState  qstate )

private

Definition at line 121 of file Quon.cc.

Referenced by classifySites(), finishOverlay(), handleJoin(), handleJoinAcknowledge(), handleNodeGracefulLeaveNotification(), and initializeOverlay().

{
    this->qstate = qstate;
    switch(qstate) {
        case QUNINITIALIZED:
            globalNodeList->removePeer(thisSite->address);
            cancelEvent(join_timer);
            cancelEvent(sec_timer);
            cancelEvent(alive_timer);
            cancelEvent(backup_timer);
            break;
        case QJOINING:
            if( joinTime == 0 ) joinTime = simTime();
            scheduleAt(simTime(), join_timer);
            scheduleAt(simTime() + 1.0, sec_timer);
            break;
        case QREADY:
            cancelEvent(join_timer);
            RECORD_STATS(
                globalStatistics->addStdDev(
                    "QuON: JoinTime",
                    SIMTIME_DBL(simTime()) - SIMTIME_DBL(joinTime) + par("addJoinDelay").doubleValue()
                    );
            );
            joinTime = 0;
            globalNodeList->registerPeer(thisSite->address);
            if( loginCache ) loginCache->registerPos( thisSite->address, thisSite->position );
            // tell the application we are ready unless we are rejoining the overlay
            //if(rejoinCount == 0) {
            CompReadyMessage* readyMsg = new CompReadyMessage("OVERLAY_READY");
            readyMsg->setReady(true);
            readyMsg->setComp(getThisCompType());
            // TODO/FIXME: use overlay->sendMessageToAllComp(msg, getThisCompType())?
            sendToApp(readyMsg);
            //}
            // set initial AOI size
            AOIWidth = maxAOI;
            GameAPIResizeAOIMessage* gameMsg = new GameAPIResizeAOIMessage("RESIZE_AOI");
            gameMsg->setCommand(RESIZE_AOI);
            gameMsg->setAOIsize(AOIWidth);
            sendToApp(gameMsg);
            if(aliveTimeout > 0.0) {
                scheduleAt(simTime() + aliveTimeout, alive_timer);
            }
            if(backupIntervall > 0.0) {
                scheduleAt(simTime() + backupIntervall, backup_timer);
            }
            break;
    }
    setBootstrapedIcon();
    // debug output
    if(debugOutput) {
        EV << "[Quon::changeState() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    Node " << thisSite->address.getIp() << " entered ";
        switch(qstate) {
            case QUNINITIALIZED:
                EV << "UNINITIALIZED";
                break;
            case QJOINING:
                EV << "JOINING";
                break;
            case QREADY:
                EV << "READY";
                break;
        }
        EV << " state." << endl;
    }
}

void Quon::classifySites ( )

private

Definition at line 375 of file Quon.cc.

Referenced by handleJoinAcknowledge(), handleMove(), handleNewNeighbors(), handleNodeLeave(), handleNodeMove(), and processAliveTimer().

{
    if(Sites.size() > 0) {
        QuonAOI AOI(thisSite->position, AOIWidth, useSquareMetric);
        QuonSite* (*bindingCandidates)[4] = new QuonSite*[numBackups+1][4];
        for( int i = 0; i <= numBackups; ++i ){
            for( int ii = 0; ii < 4; ++ii ){
                bindingCandidates[i][ii] = 0;
            }
        }
        double (*bindingDistance)[4] = new double[numBackups+1][4];
        for( int i = 0; i <= numBackups; ++i ){
            for( int ii = 0; ii < 4; ++ii ){
                bindingDistance[i][ii] = std::numeric_limits<double>::infinity();
            }
        }

        for(QuonSiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
            QuonAOI NeighborAOI(itSites->second->position, itSites->second->AOIwidth, useSquareMetric);
            if(AOI.collide(itSites->second->position) || NeighborAOI.collide(thisSite->position)) {
                if(itSites->second->type != QNEIGHBOR) {
                    itSites->second->type = QNEIGHBOR;
                    itSites->second->dirty = true;
                }
            }
            else if(itSites->second->type != QUNDEFINED) {
                itSites->second->type = QUNDEFINED;
                itSites->second->dirty = true;
            }
            int quad = thisSite->position.getQuadrant( itSites->second->position );
            double dist;
            if( useSquareMetric ) {
                dist = thisSite->position.xyMaxDistance(itSites->second->position);
            } else {
                dist = thisSite->position.distanceSqr(itSites->second->position);
            }

            // if dist is smaller than the most far binding candidate
            if( dist < bindingDistance[numBackups][quad] ){
            // Go through list of binding candidates until distance to current candidate
            // is greater than distance to new candidate (i.e. look where in the binding
            // candidate list the node belongs)
                int backupPos = numBackups-1;
                while( backupPos >= 0 && dist < bindingDistance[backupPos][quad] ){
                    // move old candidate one position back in the queue to make
                    // room for new candidate
                    bindingCandidates[backupPos+1][quad] = bindingCandidates[backupPos][quad];
                    bindingDistance[backupPos+1][quad] = bindingDistance[backupPos][quad];
                    --backupPos;
                }
                // place new candidate at appropriate position in candidate list
                bindingCandidates[backupPos+1][quad] = itSites->second;
                bindingDistance[backupPos+1][quad] = dist;
            }

        }
        for( int i = 0; i < 4; ++i ){
            if( bindingCandidates[0][i] ){
                bindingCandidates[0][i]->type = QBINDING;
                bindingCandidates[0][i]->dirty = true;
                for( int ii = 1; ii <= numBackups; ++ii ){
                    if( bindingCandidates[ii][i] ){
                        bindingBackup[ii-1][i] = bindingCandidates[ii][i]->address;
                    }
                }
            }
        }

        delete[] bindingCandidates;
        delete[] bindingDistance;
    }
    else {
        if( !aloneInOverlay) {
            ++rejoinCount;

            changeState(QUNINITIALIZED);
            changeState(QJOINING);
        }
    }
}

void Quon::deleteAppNeighbor ( NodeHandle  node )

private

Definition at line 1024 of file Quon.cc.

Referenced by handleNodeLeave(), and processAliveTimer().

{
    GameAPIListMessage* gameMsg = new GameAPIListMessage("NEIGHBOR_UPDATE");
    gameMsg->setCommand(NEIGHBOR_UPDATE);
    gameMsg->setRemoveNeighborArraySize(1);
    gameMsg->setAddNeighborArraySize(0);
    gameMsg->setNeighborPositionArraySize(0);
    gameMsg->setRemoveNeighbor(0, node);
    sendToApp(gameMsg);
}

bool Quon::deleteSite ( NodeHandle  node )

private

Definition at line 456 of file Quon.cc.

Referenced by handleNodeLeave(), and processAliveTimer().

{
    QuonSiteMap::iterator itSites = Sites.find(node.getKey());
    if(itSites != Sites.end()) {
        if(debugOutput) {
            EV << "[Quon::deleteSite() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    Site " << node.getIp() << " at " << itSites->second->position << " has been removed from the list."
               << endl;
        }
        delete itSites->second;
        Sites.erase(itSites);
        return true;
    }
    return false;
}

void Quon::finishOverlay ( )

virtual

collects statistical data in derived class

Reimplemented from BaseOverlay.

Definition at line 1103 of file Quon.cc.

{
    double overallBytesSend = joinRequestBytesSend
                            + joinAcknowledgeBytesSend
                            + nodeMoveBytesSend
                            + newNeighborsBytesSend
                            + nodeLeaveBytesSend;
    if(overallBytesSend != 0.0) {
        // collect statistics in percent
        globalStatistics->addStdDev("Quon: fraction of JOIN_REQUEST bytes sent ", joinRequestBytesSend / overallBytesSend);
        globalStatistics->addStdDev("Quon: fraction of JOIN_ACKNOWLEDGE bytes sent", joinAcknowledgeBytesSend / overallBytesSend);
        globalStatistics->addStdDev("Quon: fraction of NODE_MOVE bytes sent", nodeMoveBytesSend / overallBytesSend);
        globalStatistics->addStdDev("Quon: fraction of NEW_NEIGHBORS bytes sent", newNeighborsBytesSend / overallBytesSend);
        globalStatistics->addStdDev("Quon: fraction of NODE_LEAVE bytes sent", nodeLeaveBytesSend / overallBytesSend);
    }
    globalStatistics->addStdDev("Quon: max bytes/second sent", maxBytesPerSecondSend);

//    We use our own time count to avoid rounding errors
//    simtime_t time = globalStatistics->calcMeasuredLifetime(creationTime);
//    if(time != 0.0) {
    if(secTimerCount != 0) {
        globalStatistics->addStdDev("Quon: average bytes/second sent", averageBytesPerSecondSend / (double) secTimerCount);
        globalStatistics->addStdDev("Quon: average direct-neighbor count", directNeighborCount / (double) secTimerCount);
        globalStatistics->addStdDev("Quon: average binding-neighbor count", bindingNeighborCount / (double) secTimerCount);
        globalStatistics->addStdDev("Quon: average soft-neighbor count", softNeighborCount / (double) secTimerCount);
        //globalStatistics->addStdDev("Quon: average rejoin count", rejoinCount);
        globalStatistics->addStdDev("Quon: average AOI width", avgAOI / (double) secTimerCount);
    }

    changeState(QUNINITIALIZED);
}

double Quon::getAOI

(

)

Definition at line 1141 of file Quon.cc.

{
    Enter_Method_Silent();
    return AOIWidth - (double)par("AOIBuffer");
}

double Quon::getAreaDimension

(

)

Definition at line 1153 of file Quon.cc.

{
    Enter_Method_Silent();
    return areaDimension;
}

OverlayKey Quon::getKey

(

)

Definition at line 1159 of file Quon.cc.

Referenced by ConnectivityProbeQuon::extractTopology().

{
    Enter_Method_Silent();
    return thisSite->address.getKey();
}

Vector2D Quon::getPosition

(

)

Definition at line 1147 of file Quon.cc.

{
    Enter_Method_Silent();
    return thisSite->position;
}

long Quon::getSoftNeighborCount

(

)

Definition at line 1165 of file Quon.cc.

{
    Enter_Method_Silent();
    long temp = softConnections;
    softConnections = 0;
    return temp;
}

QState Quon::getState

(

)

Reimplemented from BaseOverlay.

Definition at line 1135 of file Quon.cc.

Referenced by ConnectivityProbeQuon::extractTopology().

{
    Enter_Method_Silent();
    return qstate;
}

void Quon::handleAppMessage ( cMessage *  msg )

virtual

Processes "timer" self-messages.

Parameters

msg	A self-message Processes non-commonAPI messages
msg	non-commonAPIMessage

Reimplemented from BaseOverlay.

Definition at line 229 of file Quon.cc.

{
    GameAPIMessage* gameAPIMsg = dynamic_cast<GameAPIMessage*>(msg);
    if(gameAPIMsg != NULL) {
        // debug output
        if(debugOutput) {
            EV << "[Quon::handleAppMessage() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    Node " << thisSite->address.getIp() << " received " << gameAPIMsg->getName() << " from application."
               << endl;
        }
        switch(gameAPIMsg->getCommand()) {
            case MOVEMENT_INDICATION: {
                GameAPIPositionMessage* gameAPIPositionMsg = dynamic_cast<GameAPIPositionMessage*>(msg);
                if(qstate == QJOINING) {
                    handleJoin(gameAPIPositionMsg);
                }
                else if(qstate == QREADY) {
                    handleMove(gameAPIPositionMsg);
                }
            } break;
            case GAMEEVENT_CHAT:
            case GAMEEVENT_SNOW:
            case GAMEEVENT_FROZEN: {
                handleEvent(gameAPIMsg);
            } break;
        }
    }
    delete msg;
}

void Quon::handleEvent ( GameAPIMessage *  msg )

private

Definition at line 763 of file Quon.cc.

Referenced by handleAppMessage().

{
    // send event to neighbors
    for(QuonSiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
        QuonEventMessage *quonMsg = new QuonEventMessage("EVENT");
        quonMsg->setCommand(QUON_EVENT);
        quonMsg->encapsulate((cPacket*)msg->dup());
        // FIXME: Message length!
        sendMessage(quonMsg, itSites->second->address);
    }
}

void Quon::handleInvalidNode ( QuonListMessage *  quonListMsg )

private

Definition at line 961 of file Quon.cc.

Referenced by handleNewNeighbors(), handleNodeLeave(), and handleNodeMove().

{
    return;
    for(unsigned int i=0; i<quonListMsg->getNeighborHandleArraySize(); i++) {
        if(deletedSites.find(quonListMsg->getNeighborHandle(i).getKey()) != deletedSites.end()) {
            QuonListMessage* quonLeaveMsg = new QuonListMessage("NODE_LEAVE");
            quonLeaveMsg->setCommand(NODE_LEAVE);
            quonLeaveMsg->setSender(quonListMsg->getNeighborHandle(i));
            quonLeaveMsg->setPosition(quonListMsg->getNeighborPosition(i));
            quonLeaveMsg->setAOIsize(AOIWidth);
            quonLeaveMsg->setNeighborHandleArraySize(Sites.size());
            quonLeaveMsg->setNeighborPositionArraySize(Sites.size());
            int i = 0;
            for(QuonSiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
                if(itSites->second->type == QBINDING) {
                    quonLeaveMsg->setNeighborHandle(i, itSites->second->address);
                    quonLeaveMsg->setNeighborPosition(i, itSites->second->position);
                    ++i;
                }
            }
            quonLeaveMsg->setNeighborHandleArraySize(i);
            quonLeaveMsg->setNeighborPositionArraySize(i);
            quonLeaveMsg->setBitLength(QUONLIST_L(quonLeaveMsg));
            sendMessage(quonLeaveMsg, quonListMsg->getSender());
        }
    }
}

void Quon::handleJoin ( GameAPIPositionMessage *  gameMsg )

private

Definition at line 673 of file Quon.cc.

Referenced by handleAppMessage().

{
    TransportAddress joinNode;
    if( loginCache ) {
        joinNode = loginCache->getLoginNode( gameMsg->getPosition() );
    } else {
        joinNode = bootstrapList->getBootstrapNode();
    }
    thisSite->position = gameMsg->getPosition();
    // check if this is the only node in the overlay
    if(joinNode.isUnspecified()) {
        changeState(QREADY);
        aloneInOverlay = true;
    }
    else {
        QuonMessage* quonMsg = new QuonMessage("JOIN_REQUEST");
        quonMsg->setCommand(JOIN_REQUEST);
        quonMsg->setSender(thisSite->address);
        quonMsg->setPosition(thisSite->position);
        quonMsg->setAOIsize(AOIWidth);
        quonMsg->setBitLength(QUON_L(quonMsg));
        sendMessage(quonMsg, joinNode);
    }
}

void Quon::handleJoinAcknowledge ( QuonListMessage *  quonListMsg )

private

Definition at line 820 of file Quon.cc.

Referenced by handleUDPMessage().

{
    // add acceptor node
    changeState(QREADY);
    addSite(quonListMsg->getPosition(), quonListMsg->getSender(), quonListMsg->getAOIsize(), false, QDIRECT);
    // add new neighbors
    for(unsigned int i=0; i<quonListMsg->getNeighborHandleArraySize(); i++) {
        addSite(quonListMsg->getNeighborPosition(i), quonListMsg->getNeighborHandle(i), quonListMsg->getAOIsize());
    }
    classifySites();
    // update simple client
    synchronizeAppNeighbors();
    purgeSites();
    // contact new neighbors
    for(QuonSiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
        QuonMoveMessage* quonMoveMsg = new QuonMoveMessage("NODE_MOVE");
        quonMoveMsg->setCommand(NODE_MOVE);
        quonMoveMsg->setSender(thisSite->address);
        quonMoveMsg->setPosition(quonListMsg->getPosition());
        quonMoveMsg->setAOIsize(AOIWidth);
        quonMoveMsg->setNewPosition(thisSite->position);
        if(itSites->second->type == QBINDING) {
            quonMoveMsg->setIsBinding(true);
        }
        quonMoveMsg->setBitLength(QUONMOVE_L(quonMoveMsg));
        sendMessage(quonMoveMsg, itSites->second->address);
    }
    bytesPerSecond = 0.0;
}

void Quon::handleJoinRequest ( QuonMessage *  quonMsg )

private

Definition at line 775 of file Quon.cc.

Referenced by handleUDPMessage().

{
    Vector2D joinPosition = quonMsg->getPosition();
    // start with this node
    double min_dist = thisSite->position.distanceSqr(joinPosition);
    QuonSite* forwardSite = thisSite;
    // iterate through all neighbors
    for(QuonSiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
        if(itSites->second->position.distanceSqr(joinPosition) < min_dist) { //FIXME: use xy metric if desired?
            min_dist = itSites->second->position.distanceSqr(joinPosition);
            forwardSite = itSites->second;
        }
    }

    // do nothing and let node retry with new position if current position is illegal
    if(min_dist == 0.0) {
        delete quonMsg;
    }
    else if(forwardSite->type == QTHIS) {
        QuonListMessage* quonListMsg = new QuonListMessage("JOIN_ACKNOWLEDGE");
        quonListMsg->setCommand(JOIN_ACKNOWLEDGE);
        quonListMsg->setSender(thisSite->address);
        quonListMsg->setPosition(thisSite->position);
        quonListMsg->setAOIsize(AOIWidth);
        // fill neighbors list
        quonListMsg->setNeighborHandleArraySize(Sites.size());
        quonListMsg->setNeighborPositionArraySize(Sites.size());
        int i = 0;
        for(QuonSiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
            quonListMsg->setNeighborHandle(i, itSites->second->address);
            quonListMsg->setNeighborPosition(i, itSites->second->position);
            ++i;
        }
        quonListMsg->setNeighborHandleArraySize(i);
        quonListMsg->setNeighborPositionArraySize(i);

        quonListMsg->setBitLength(QUONLIST_L(quonListMsg));
        sendMessage(quonListMsg, quonMsg->getSender());
        delete quonMsg;
    }
    else {
        sendMessage(quonMsg, forwardSite->address);
    }
}

void Quon::handleMove ( GameAPIPositionMessage *  gameMsg )

private

Definition at line 698 of file Quon.cc.

Referenced by handleAppMessage().

{
    // adapt aoi
    if(useDynamicAOI) {
        adaptAoI();
        classifySites();
    }

    Vector2D position = gameMsg->getPosition();
    // send position update to neighbors
    QuonMoveMessage* quonMoveMsg = new QuonMoveMessage("NODE_MOVE");
    quonMoveMsg->setCommand(NODE_MOVE);
    quonMoveMsg->setSender(thisSite->address);
    quonMoveMsg->setPosition(thisSite->position);
    quonMoveMsg->setAOIsize(AOIWidth);
    quonMoveMsg->setNewPosition(position);
    quonMoveMsg->setBitLength(QUONMOVE_L(quonMoveMsg));

    QuonMoveMessage* quonMoveBindingMsg = new QuonMoveMessage(*quonMoveMsg);
    quonMoveBindingMsg->setNeighborHandleArraySize(Sites.size());
    quonMoveBindingMsg->setNeighborPositionArraySize(Sites.size());
    int i = 0;
    for(QuonSiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
      if(itSites->second->type == QBINDING || itSites->second->softNeighbor ) {
        quonMoveBindingMsg->setNeighborHandle(i, itSites->second->address);
        quonMoveBindingMsg->setNeighborPosition(i, itSites->second->position);
        ++i;
      }
    }
    quonMoveBindingMsg->setNeighborHandleArraySize(i);
    quonMoveBindingMsg->setNeighborPositionArraySize(i);
    if(i > 0) {
      // speedhack:
      // instead of building individual MoveMessages for every binding and softstate neighbor,
      // we just send all binding/soft to every other binding/soft neighbor and pretend we did not send  neighbors their own neighborslistentry
      quonMoveBindingMsg->setBitLength(QUONMOVE_L(quonMoveBindingMsg) - QUONENTRY_L);
    }

    for(QuonSiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
      QuonMoveMessage* copyMsg;
      if(itSites->second->type == QBINDING || itSites->second->softNeighbor ) {
        copyMsg = new QuonMoveMessage(*quonMoveBindingMsg);
        if(itSites->second->type == QBINDING) {
          copyMsg->setIsBinding(true);
        }
        else {
          ++softConnections;
        }
      }
      else {
        copyMsg = new QuonMoveMessage(*quonMoveMsg);
      }
      sendMessage(copyMsg, itSites->second->address);
    }
    delete quonMoveMsg;
    delete quonMoveBindingMsg;

    // update position
    updateThisSite(position);
    classifySites();
    // update simple client
    synchronizeAppNeighbors(QPURGESOFT);
    purgeSites(QPURGESOFT);
}

void Quon::handleNewNeighbors ( QuonListMessage *  quonListMsg )

private

Definition at line 922 of file Quon.cc.

Referenced by handleUDPMessage().

{
    addSite(quonListMsg->getPosition(), quonListMsg->getSender(), quonListMsg->getAOIsize(), false, QDIRECT);

    // add new neighbors
    handleInvalidNode(quonListMsg);
    for(unsigned int i=0; i<quonListMsg->getNeighborHandleArraySize(); i++) {
        addSite(quonListMsg->getNeighborPosition(i), quonListMsg->getNeighborHandle(i), quonListMsg->getAOIsize());
    }
    classifySites();
    // update simple client
    synchronizeAppNeighbors();
    purgeSites();
}

void Quon::handleNodeGracefulLeaveNotification ( )

virtual

This method gets call **.gracefulLeaveDelay seconds before it is killed if this node is among the gracefulLeaveProbability nodes.

Reimplemented from BaseOverlay.

Definition at line 530 of file Quon.cc.

{
    if(qstate == QREADY) {
        CompReadyMessage* readyMsg = new CompReadyMessage("OVERLAY_FINISHED");
        readyMsg->setReady(false);
        readyMsg->setComp(getThisCompType());
        // TODO/FIXME: use overlay->sendMessageToAllComp(msg, getThisCompType())?
        sendToApp(readyMsg);
        if(Sites.size() > 0) {
            // generate node leave messages
            QuonListMessage* quonListMsg = new QuonListMessage("NODE_LEAVE");
            quonListMsg->setCommand(NODE_LEAVE);
            quonListMsg->setSender(thisSite->address);
            quonListMsg->setPosition(thisSite->position);
            quonListMsg->setAOIsize(AOIWidth);
            // fill neighbors list
            quonListMsg->setNeighborHandleArraySize(Sites.size());
            quonListMsg->setNeighborPositionArraySize(Sites.size());
            int i = 0;
            for(QuonSiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
                quonListMsg->setNeighborHandle(i, itSites->second->address);
                quonListMsg->setNeighborPosition(i, itSites->second->position);
                ++i;
            }
            quonListMsg->setBitLength(QUONLIST_L(quonListMsg));

            for(QuonSiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
                QuonListMessage* quonCopyMsg = new QuonListMessage(*quonListMsg);
                sendMessage(quonCopyMsg, itSites->second->address);
            }
            delete quonListMsg;
        }
        changeState(QUNINITIALIZED);
    }
}

void Quon::handleNodeLeave ( QuonListMessage *  quonListMsg )

private

Definition at line 937 of file Quon.cc.

Referenced by handleUDPMessage().

{
    deleteSite(quonListMsg->getSender());
    // update simple client
    deleteAppNeighbor(quonListMsg->getSender());

    // insert into delete list
    QuonSelfMessage* msg = new QuonSelfMessage("delete_timer");
    msg->setKey(quonListMsg->getSender().getKey());
    scheduleAt(simTime() + deleteTimeout, msg);
    deletedSites.insert(std::make_pair(quonListMsg->getSender().getKey(), Vector2D(0,0)));

    // add possible new neighbors
    handleInvalidNode(quonListMsg);
    for(unsigned int i=0; i<quonListMsg->getNeighborHandleArraySize(); i++) {
        addSite(quonListMsg->getNeighborPosition(i), quonListMsg->getNeighborHandle(i), quonListMsg->getAOIsize(), true);
    }
    classifySites();
    // update simple client
    synchronizeAppNeighbors();
    purgeSites();
}

void Quon::handleNodeMove ( QuonMoveMessage *  quonMoveMsg )

private

Definition at line 850 of file Quon.cc.

Referenced by handleUDPMessage().

{
    RECORD_STATS(
            globalStatistics->addStdDev(
                "QuON: MoveDelay",
                SIMTIME_DBL(simTime()) - SIMTIME_DBL(quonMoveMsg->getCreationTime())
                );
            );

    // IF node was marked for deletetion, remove it from the delete list
    QDeleteMap::iterator delIt = deletedSites.find(quonMoveMsg->getSender().getKey());
    if( delIt != deletedSites.end() ){
        deletedSites.erase( delIt );
    }

    // Compute old and new AOI of moving node
    QuonAOI oldAOI(quonMoveMsg->getPosition(), quonMoveMsg->getAOIsize(), useSquareMetric);
    QuonAOI newAOI(quonMoveMsg->getNewPosition(), quonMoveMsg->getAOIsize(), useSquareMetric);
    if(useDynamicAOI) {
        QuonSiteMap::iterator itSites = Sites.find(quonMoveMsg->getSender().getKey());
        if(itSites != Sites.end() && itSites->second->AOIwidth < quonMoveMsg->getAOIsize()) {
            oldAOI.resize(itSites->second->AOIwidth);
        }
    }

    addSite(quonMoveMsg->getNewPosition(), quonMoveMsg->getSender(), quonMoveMsg->getAOIsize(), quonMoveMsg->getIsBinding(), QDIRECT);
    // add new neighbors
    handleInvalidNode(quonMoveMsg);
    for(unsigned int i=0; i<quonMoveMsg->getNeighborHandleArraySize(); i++) {
        addSite(quonMoveMsg->getNeighborPosition(i), quonMoveMsg->getNeighborHandle(i), quonMoveMsg->getAOIsize());
    }
    classifySites();
    // update simple client
    synchronizeAppNeighbors();
    purgeSites();

    // send new neighbors
    if( nnOnlyBinding && !quonMoveMsg->getIsBinding() ) return; //{
        //QuonSiteMap::iterator itSites = Sites.find(quonMoveMsg->getSender().getKey());
        //if (itSites->second->type != QBINDING && ! itSites->second->softNeighbor ) return;
    //}
    QuonListMessage* quonListMsg = new QuonListMessage("NEW_NEIGHBORS");
    quonListMsg->setCommand(NEW_NEIGHBORS);
    quonListMsg->setSender(thisSite->address);
    quonListMsg->setPosition(thisSite->position);
    quonListMsg->setAOIsize(AOIWidth);

    quonListMsg->setNeighborHandleArraySize(Sites.size());
    quonListMsg->setNeighborPositionArraySize(Sites.size());

    int i = 0;
    for(QuonSiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
        if(quonMoveMsg->getSender() != itSites->second->address &&
           !oldAOI.collide(itSites->second->position) &&
           newAOI.collide(itSites->second->position)) {
            quonListMsg->setNeighborHandle(i, itSites->second->address);
            quonListMsg->setNeighborPosition(i, itSites->second->position);
            ++i;
        }
    }

    if(i > 0) {
        quonListMsg->setNeighborHandleArraySize(i);
        quonListMsg->setNeighborPositionArraySize(i);
        quonListMsg->setBitLength(QUONLIST_L(quonListMsg));
        sendMessage(quonListMsg, quonMoveMsg->getSender());
    }
    else {
        delete quonListMsg;
    }
}

void Quon::handleTimerEvent ( cMessage *  msg )

virtual

Reimplemented from BaseRpc.

Definition at line 191 of file Quon.cc.

{
    if(msg->isName("join_timer")) {
        //reset timer
        cancelEvent(join_timer);
        if(qstate != QREADY) {
            scheduleAt(simTime() + joinTimeout, msg);
            // handle event
            processJoinTimer();
        }
    }
    else if(msg->isName("sec_timer")) {
        //reset timer
        cancelEvent(sec_timer);
        scheduleAt(simTime() + 1, msg);
        // handle event
        processSecTimer();
    }
    else if(msg->isName("delete_timer")) {
        // handle event
        processDeleteTimer(msg);
    }
    else if(msg->isName("alive_timer")) {
        //reset timer
        cancelEvent(alive_timer);
        scheduleAt(simTime() + aliveTimeout, msg);
        // handle event
        processAliveTimer();
    }
    else if(msg->isName("backup_timer")) {
        //reset timer
        cancelEvent(backup_timer);
        scheduleAt(simTime() + backupIntervall, msg);
        // handle event
        processBackupTimer();
    }
}

void Quon::handleUDPMessage ( BaseOverlayMessage *  msg )

virtual

Processes messages from underlay.

Parameters

msg	Message from UDP

Reimplemented from BaseOverlay.

Definition at line 260 of file Quon.cc.

{
    if(qstate == QUNINITIALIZED) {
        delete msg;
        return;
    }
    QuonMessage* quonMsg = dynamic_cast<QuonMessage*>(msg);
    if(quonMsg != NULL) {
        // debug output
        if(debugOutput) {
            EV << "[Quon::handleUDPMessage() @ " << thisNode.getIp()
               << " (" << thisNode.getKey().toString(16) << ")]\n"
               << "    Node " << thisSite->address.getIp() << " received " << quonMsg->getName() << " from " << quonMsg->getSender().getIp() << "."
               << endl;
        }
        if(qstate == QREADY) {
            switch(quonMsg->getCommand()) {
                case JOIN_REQUEST: {
                    handleJoinRequest(quonMsg);
                } break;
                case NODE_MOVE: {
                    QuonMoveMessage* quonMoveMsg = dynamic_cast<QuonMoveMessage*>(msg);
                    handleNodeMove(quonMoveMsg);
                    delete msg;
                } break;
                case NEW_NEIGHBORS: {
                    QuonListMessage* quonListMsg = dynamic_cast<QuonListMessage*>(msg);
                    handleNewNeighbors(quonListMsg);
                    delete msg;
                } break;
                case NODE_LEAVE: {
                    QuonListMessage* quonListMsg = dynamic_cast<QuonListMessage*>(msg);
                    handleNodeLeave(quonListMsg);
                    delete msg;
                } break;
                case QUON_EVENT: {
                    sendToApp(quonMsg->decapsulate());
                    delete quonMsg;
                } break;
            }
        }
        else if(qstate == QJOINING && quonMsg->getCommand() == JOIN_ACKNOWLEDGE) {
            QuonListMessage* quonListMsg = dynamic_cast<QuonListMessage*>(msg);
            handleJoinAcknowledge(quonListMsg);
            delete msg;
        }
        else {
            delete msg;
        }
    }
    else {
        delete msg;
    }
}

void Quon::initializeOverlay ( int  stage )

virtual

Initializes derived-class-attributes.

Initializes derived-class-attributes, called by BaseOverlay::initialize(). By default this method is called once. If more stages are needed one can overload numInitStages() and add more stages.

Parameters

stage

the init stage

Reimplemented from BaseOverlay.

Definition at line 31 of file Quon.cc.

{
    // because of IPAddressResolver, we need to wait until interfaces are registered,
    // address auto-assignment takes place etc.
    if(stage != MIN_STAGE_OVERLAY) {
        return;
    }

    // fetch parameters
    minAOI = (double)par("minAOIWidth") + (double)par("AOIBuffer"); // FIXME: use buffer only where required
    maxAOI = (double)par("AOIWidth") + (double)par("AOIBuffer"); // FIXME: use buffer only where required
    AOIWidth = maxAOI;
    connectionLimit = par("connectionLimit");
    areaDimension = par("areaDimension");
    joinTimeout = par("joinTimeout");
    deleteTimeout = par("deleteTimeout");
    aliveTimeout = (double)par("aliveTimeout") / 2.0;
    backupIntervall = par("contactBackupIntervall");
    numBackups = par("numBackups");
    linearAdaption = par("AOIAdaptLinear");
    adaptionSensitivity = par("AOIAdaptionSensitivity");
    gossipSensitivity = par("AOIGossipSensitivity");
    useSquareMetric = par("useSquareMetric");
    nnOnlyBinding = par("newNeighborsOnlyBinding");

    bindingBackup = new NodeHandle[numBackups][4];

    loginCache = dynamic_cast<LoginCache*>(simulation.getModuleByPath("globalObserver.globalFunctions[0].function.loginCache"));
    cacheInterval = par("cacheInterval");
    timeSinceCache = 0;

    // determine wether we want dynamic AOI or not
    useDynamicAOI = connectionLimit > 0 && minAOI < maxAOI;

    // set node key and thisSite pointer
    thisNode.setKey(OverlayKey::random());
    thisSite = new QuonSite();
    thisSite->address = thisNode;
    thisSite->type = QTHIS;

    // initialize self-messages
    join_timer = new cMessage("join_timer");
    sec_timer = new cMessage("sec_timer");
    alive_timer = new cMessage("alive_timer");
    backup_timer = new cMessage("backup_timer");

    // statistics
    joinRequestBytesSend = 0.0;
    joinAcknowledgeBytesSend = 0.0;
    nodeMoveBytesSend = 0.0;
    newNeighborsBytesSend = 0.0;
    nodeLeaveBytesSend = 0.0;
    maxBytesPerSecondSend = 0.0;
    averageBytesPerSecondSend = 0.0;
    bytesPerSecond = 0.0;
    softConnections = 0;
    softNeighborCount = 0;
    bindingNeighborCount = 0;
    directNeighborCount = 0;
    secTimerCount = 0;
    //rejoinCount = 0;
    avgAOI= 0 ;
    joinTime = 0;

    // watch some variables
    WATCH(thisSite->address);
    WATCH(thisSite->position);
    WATCH(AOIWidth);
    //WATCH_POINTER_MAP(Sites);
    //WATCH_POINTER_MAP(deletedSites);
    //WATCH_SET(Positions);
    WATCH(joinRequestBytesSend);
    WATCH(joinAcknowledgeBytesSend);
    WATCH(nodeMoveBytesSend);
    WATCH(newNeighborsBytesSend);
    WATCH(nodeLeaveBytesSend);
    WATCH(maxBytesPerSecondSend);
    WATCH(bytesPerSecond);
    WATCH(softConnections);
    WATCH(softNeighborCount);
    WATCH(bindingNeighborCount);
    WATCH(directNeighborCount);
    //WATCH(rejoinCount);

    // set initial state
    aloneInOverlay = false;
    changeState(QUNINITIALIZED);
    changeState(QJOINING);
}

void Quon::processAliveTimer ( )

private

Definition at line 620 of file Quon.cc.

Referenced by handleTimerEvent().

{
    bool rebuild = false;
    QuonSiteMap::iterator itSites = Sites.begin();
    while(itSites != Sites.end()) {
        if(itSites->second->alive) {
            itSites->second->alive = false;
            ++itSites;
        }
        else {
            NodeHandle node = itSites->second->address;
            QuonSelfMessage* msg = new QuonSelfMessage("delete_timer");
            msg->setKey(node.getKey());
            scheduleAt(simTime() + deleteTimeout, msg);
            deletedSites.insert(std::make_pair(node.getKey(), itSites->second->position));
            ++itSites;
            deleteSite(node);
            // update simple client
            deleteAppNeighbor(node);
            if(!rebuild) {
                rebuild = true;
            }
        }
    }
    if(rebuild) {
        classifySites();
        // update simple client
        synchronizeAppNeighbors();
        purgeSites();
    }
}

void Quon::processBackupTimer ( )

private

Definition at line 652 of file Quon.cc.

Referenced by handleTimerEvent().

{
    QuonMoveMessage* quonMoveMsg = new QuonMoveMessage("NODE_MOVE");
    quonMoveMsg->setCommand(NODE_MOVE);
    quonMoveMsg->setSender(thisSite->address);
    quonMoveMsg->setPosition(thisSite->position);
    quonMoveMsg->setAOIsize(AOIWidth);
    quonMoveMsg->setNewPosition(thisSite->position);
    quonMoveMsg->setIsBinding(true);
    for(unsigned int i=0; i<4; i++) {
        for( int ii = 0; ii < numBackups; ++ii ){
            if(!bindingBackup[ii][i].isUnspecified()) {
                QuonMoveMessage* copyMsg = new QuonMoveMessage(*quonMoveMsg);
                copyMsg->setBitLength(QUONMOVE_L(copyMsg));
                sendMessage(copyMsg, bindingBackup[ii][i]);
            }
        }
    }
    delete quonMoveMsg;
}

void Quon::processDeleteTimer ( cMessage *  msg )

private

Definition at line 610 of file Quon.cc.

Referenced by handleTimerEvent().

{
    QuonSelfMessage* quonMsg = dynamic_cast<QuonSelfMessage*>(msg);
    QDeleteMap::iterator itSite = deletedSites.find(quonMsg->getKey());
    if(itSite != deletedSites.end()) {
        deletedSites.erase(itSite);
    }
    cancelAndDelete(quonMsg);
}

void Quon::processJoinTimer ( )

private

Definition at line 566 of file Quon.cc.

Referenced by handleTimerEvent().

{
    GameAPIMessage* gameMsg = new GameAPIMessage("MOVEMENT_REQUEST");
    gameMsg->setCommand(MOVEMENT_REQUEST);
    sendToApp(gameMsg);
}

void Quon::processSecTimer ( )

private

Definition at line 573 of file Quon.cc.

Referenced by handleTimerEvent().

{
    RECORD_STATS(
        if(bytesPerSecond > maxBytesPerSecondSend) {
            maxBytesPerSecondSend = bytesPerSecond;
        }
        avgAOI += AOIWidth;
        averageBytesPerSecondSend += bytesPerSecond;
        for(QuonSiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
            switch(itSites->second->type) {
                case QNEIGHBOR:
                    directNeighborCount++;
                    break;
                case QBINDING:
                    bindingNeighborCount++;
                    break;
                case QUNDEFINED:
                    if( itSites->second->softNeighbor ){
                        softNeighborCount++;
                    }
                    break;
                case QTHIS:
                    break;
            }
        }
        ++secTimerCount;
    );
    if( loginCache ) {
        ++timeSinceCache;
        if( qstate == QREADY && timeSinceCache >= cacheInterval ){
            loginCache->registerPos( thisSite->address, thisSite->position );
            timeSinceCache = 0;
        }
    }
    bytesPerSecond = 0.0;
}

int Quon::purgeSites ( QPurgeType  purgeSoftSites = QKEEPSOFT )

private

Definition at line 473 of file Quon.cc.

Referenced by handleJoinAcknowledge(), handleMove(), handleNewNeighbors(), handleNodeLeave(), handleNodeMove(), and processAliveTimer().

{
    int purged = 0;
    QuonSiteMap::iterator itSites = Sites.begin();
    while(itSites != Sites.end()) {
        // Purge softNeighbors only if QPURGESOFT is set
        if(itSites->second->type == QUNDEFINED && ( purgeSoftSites == QPURGESOFT || !itSites->second->softNeighbor) ) {
            if(debugOutput) {
                EV << "[Quon::purgeSites() @ " << thisNode.getIp()
                   << " (" << thisNode.getKey().toString(16) << ")]\n"
                   << "    Site " << itSites->second->address.getIp() << " at " << itSites->second->position << " has been removed from the list.\n"
                   << "    Status: " << ((itSites->second->type == QUNDEFINED) ? "QUNDEFINED" : "QSOFT")
                   << endl;
            }
            delete itSites->second;
            Sites.erase(itSites++);
            ++purged;
        }
        else {
            ++itSites;
        }
    }
    return purged;
}

void Quon::sendMessage ( QuonMessage *  quonMsg, NodeHandle  destination  )

private

Definition at line 1047 of file Quon.cc.

Referenced by handleEvent(), handleInvalidNode(), handleJoin(), handleJoinAcknowledge(), handleJoinRequest(), handleMove(), handleNodeGracefulLeaveNotification(), handleNodeMove(), and processBackupTimer().

{
    // collect statistics
    RECORD_STATS(
        switch(quonMsg->getCommand()) {
            case JOIN_REQUEST:
                joinRequestBytesSend += quonMsg->getByteLength();
            break;
            case JOIN_ACKNOWLEDGE:
                joinAcknowledgeBytesSend += quonMsg->getByteLength();
            break;
            case NODE_MOVE:
                nodeMoveBytesSend += quonMsg->getByteLength();
            break;
            case NEW_NEIGHBORS:
                newNeighborsBytesSend += quonMsg->getByteLength();
            break;
            case NODE_LEAVE:
                nodeLeaveBytesSend += quonMsg->getByteLength();
            break;
        }
        if(qstate == QREADY) {
            bytesPerSecond += quonMsg->getByteLength();
        }
    );

    // debug output
    if(debugOutput) {
        EV << "[Quon::sendMessage() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    Node " << thisSite->address.getIp() << " sending " << quonMsg->getName() << " to " << destination.getIp() << "."
           << endl;
    }
    sendMessageToUDP(destination, quonMsg);
}

void Quon::sendToApp ( cMessage *  msg )

private

Definition at line 1035 of file Quon.cc.

Referenced by adaptAoI(), changeState(), deleteAppNeighbor(), handleNodeGracefulLeaveNotification(), handleUDPMessage(), processJoinTimer(), and synchronizeAppNeighbors().

{
    // debug output
    if(debugOutput) {
        EV << "[Quon::sendToApp() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    Node " << thisSite->address.getIp() << " sending " << msg->getName() << " to application."
           << endl;
    }
    send(msg, "appOut");
}

void Quon::setBootstrapedIcon ( )

private

Definition at line 1083 of file Quon.cc.

Referenced by changeState().

{
    if(ev.isGUI()) {
        switch(qstate) {
            case QUNINITIALIZED:
                getParentModule()->getParentModule()->getDisplayString().setTagArg("i2", 1, "red");
                getDisplayString().setTagArg("i", 1, "red");
                break;
            case QJOINING:
                getParentModule()->getParentModule()->getDisplayString().setTagArg("i2", 1, "yellow");
                getDisplayString().setTagArg("i", 1, "yellow");
                break;
            case QREADY:
                getParentModule()->getParentModule()->getDisplayString().setTagArg("i2", 1, "green");
                getDisplayString().setTagArg("i", 1, "green");
                break;
        }
    }
}

void Quon::synchronizeAppNeighbors ( QPurgeType  purgeSoftSites = QKEEPSOFT )

private

Definition at line 989 of file Quon.cc.

Referenced by handleJoinAcknowledge(), handleMove(), handleNewNeighbors(), handleNodeLeave(), handleNodeMove(), and processAliveTimer().

{
    GameAPIListMessage* gameMsg = new GameAPIListMessage("NEIGHBOR_UPDATE");
    gameMsg->setCommand(NEIGHBOR_UPDATE);

    gameMsg->setRemoveNeighborArraySize(Sites.size());
    gameMsg->setAddNeighborArraySize(Sites.size());
    gameMsg->setNeighborPositionArraySize(Sites.size());

    int remSize, addSize;
    remSize = addSize = 0;
    for(QuonSiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
        if(itSites->second->type == QUNDEFINED && (purgeSoftSites == QPURGESOFT || !itSites->second->softNeighbor) && itSites->second->dirty) {
            gameMsg->setRemoveNeighbor(remSize, itSites->second->address);
            ++remSize;
        }
        else if(itSites->second->dirty) {
            gameMsg->setAddNeighbor(addSize, itSites->second->address);
            gameMsg->setNeighborPosition(addSize, itSites->second->position);
            itSites->second->dirty = false;
            ++addSize;
        }
    }

    if(remSize > 0 || addSize > 0) {
        gameMsg->setRemoveNeighborArraySize(remSize);
        gameMsg->setAddNeighborArraySize(addSize);
        gameMsg->setNeighborPositionArraySize(addSize);
        sendToApp(gameMsg);
    }
    else {
        delete gameMsg;
    }
}

void Quon::updateThisSite ( Vector2D  p )

private

Definition at line 364 of file Quon.cc.

Referenced by handleMove().

{
    if(debugOutput) {
        EV << "[Quon::updateThisSite() @ " << thisNode.getIp()
           << " (" << thisNode.getKey().toString(16) << ")]\n"
           << "    This Site position has been updated to " << p << "."
           << endl;
    }
    thisSite->position = p;
}

Member Data Documentation

double Quon::adaptionSensitivity

private

Definition at line 78 of file Quon.h.

Referenced by adaptAoI(), and initializeOverlay().

cMessage* Quon::alive_timer

private

Definition at line 85 of file Quon.h.

Referenced by changeState(), handleTimerEvent(), initializeOverlay(), and ~Quon().

simtime_t Quon::aliveTimeout

private

Definition at line 67 of file Quon.h.

Referenced by changeState(), handleTimerEvent(), and initializeOverlay().

bool Quon::aloneInOverlay

private

Definition at line 151 of file Quon.h.

Referenced by addSite(), classifySites(), handleJoin(), and initializeOverlay().

double Quon::AOIWidth

private

Definition at line 68 of file Quon.h.

Referenced by adaptAoI(), changeState(), classifySites(), getAOI(), handleInvalidNode(), handleJoin(), handleJoinAcknowledge(), handleJoinRequest(), handleMove(), handleNodeGracefulLeaveNotification(), handleNodeMove(), initializeOverlay(), processBackupTimer(), and processSecTimer().

double Quon::areaDimension

private

Definition at line 72 of file Quon.h.

Referenced by getAreaDimension(), and initializeOverlay().

double Quon::averageBytesPerSecondSend

private

Definition at line 124 of file Quon.h.

Referenced by finishOverlay(), initializeOverlay(), and processSecTimer().

unsigned long Quon::avgAOI

private

Definition at line 132 of file Quon.h.

Referenced by finishOverlay(), initializeOverlay(), and processSecTimer().

cMessage* Quon::backup_timer

private

Definition at line 86 of file Quon.h.

Referenced by changeState(), handleTimerEvent(), initializeOverlay(), and ~Quon().

simtime_t Quon::backupIntervall

private

Definition at line 73 of file Quon.h.

Referenced by changeState(), handleTimerEvent(), and initializeOverlay().

NodeHandle(* Quon::bindingBackup)[4]

private

Definition at line 146 of file Quon.h.

Referenced by classifySites(), initializeOverlay(), and processBackupTimer().

long Quon::bindingNeighborCount

private

Definition at line 128 of file Quon.h.

Referenced by finishOverlay(), initializeOverlay(), and processSecTimer().

double Quon::bytesPerSecond

private

Definition at line 125 of file Quon.h.

Referenced by handleJoinAcknowledge(), initializeOverlay(), processSecTimer(), and sendMessage().

int Quon::cacheInterval

private

Definition at line 155 of file Quon.h.

Referenced by initializeOverlay(), and processSecTimer().

unsigned int Quon::connectionLimit

private

Definition at line 71 of file Quon.h.

Referenced by adaptAoI(), and initializeOverlay().

QDeleteMap Quon::deletedSites

private

Definition at line 145 of file Quon.h.

Referenced by addSite(), handleInvalidNode(), handleNodeLeave(), handleNodeMove(), processAliveTimer(), and processDeleteTimer().

simtime_t Quon::deleteTimeout

private

Definition at line 66 of file Quon.h.

Referenced by handleNodeLeave(), initializeOverlay(), and processAliveTimer().

long Quon::directNeighborCount

private

Definition at line 129 of file Quon.h.

Referenced by finishOverlay(), initializeOverlay(), and processSecTimer().

double Quon::gossipSensitivity

private

Definition at line 79 of file Quon.h.

Referenced by adaptAoI(), and initializeOverlay().

cMessage* Quon::join_timer

private

Definition at line 83 of file Quon.h.

Referenced by changeState(), handleTimerEvent(), initializeOverlay(), and ~Quon().

double Quon::joinAcknowledgeBytesSend

private

Definition at line 119 of file Quon.h.

Referenced by finishOverlay(), initializeOverlay(), and sendMessage().

double Quon::joinRequestBytesSend

private

Definition at line 118 of file Quon.h.

Referenced by finishOverlay(), initializeOverlay(), and sendMessage().

simtime_t Quon::joinTime

private

Definition at line 133 of file Quon.h.

Referenced by changeState(), and initializeOverlay().

simtime_t Quon::joinTimeout

private

Definition at line 65 of file Quon.h.

Referenced by handleTimerEvent(), and initializeOverlay().

bool Quon::linearAdaption

private

Definition at line 77 of file Quon.h.

Referenced by adaptAoI(), and initializeOverlay().

LoginCache* Quon::loginCache

private

Definition at line 154 of file Quon.h.

Referenced by changeState(), handleJoin(), initializeOverlay(), and processSecTimer().

double Quon::maxAOI

private

Definition at line 70 of file Quon.h.

Referenced by adaptAoI(), changeState(), and initializeOverlay().

double Quon::maxBytesPerSecondSend

private

Definition at line 123 of file Quon.h.

Referenced by finishOverlay(), initializeOverlay(), and processSecTimer().

double Quon::minAOI

private

Definition at line 69 of file Quon.h.

Referenced by adaptAoI(), and initializeOverlay().

double Quon::newNeighborsBytesSend

private

Definition at line 121 of file Quon.h.

Referenced by finishOverlay(), initializeOverlay(), and sendMessage().

bool Quon::nnOnlyBinding

private

Definition at line 80 of file Quon.h.

Referenced by handleNodeMove(), and initializeOverlay().

double Quon::nodeLeaveBytesSend

private

Definition at line 122 of file Quon.h.

Referenced by finishOverlay(), initializeOverlay(), and sendMessage().

double Quon::nodeMoveBytesSend

private

Definition at line 120 of file Quon.h.

Referenced by finishOverlay(), initializeOverlay(), and sendMessage().

int Quon::numBackups

private

Definition at line 147 of file Quon.h.

Referenced by classifySites(), initializeOverlay(), and processBackupTimer().

QState Quon::qstate

private

Definition at line 150 of file Quon.h.

Referenced by changeState(), getState(), handleAppMessage(), handleNodeGracefulLeaveNotification(), handleTimerEvent(), handleUDPMessage(), processSecTimer(), sendMessage(), and setBootstrapedIcon().

long Quon::rejoinCount

private

Definition at line 131 of file Quon.h.

Referenced by classifySites().

cMessage* Quon::sec_timer

private

Definition at line 84 of file Quon.h.

Referenced by changeState(), handleTimerEvent(), initializeOverlay(), and ~Quon().

unsigned int Quon::secTimerCount

private

Definition at line 130 of file Quon.h.

Referenced by finishOverlay(), initializeOverlay(), and processSecTimer().

QuonSiteMap Quon::Sites

Definition at line 61 of file Quon.h.

Referenced by adaptAoI(), addSite(), classifySites(), deleteSite(), ConnectivityProbeQuon::getComponentSize(), handleEvent(), handleInvalidNode(), handleJoinAcknowledge(), handleJoinRequest(), handleMove(), handleNodeGracefulLeaveNotification(), handleNodeMove(), processAliveTimer(), processSecTimer(), purgeSites(), synchronizeAppNeighbors(), and ~Quon().

long Quon::softConnections

private

Definition at line 126 of file Quon.h.

Referenced by getSoftNeighborCount(), handleMove(), and initializeOverlay().

long Quon::softNeighborCount

private

Definition at line 127 of file Quon.h.

Referenced by finishOverlay(), initializeOverlay(), and processSecTimer().

QuonSite* Quon::thisSite

private

Definition at line 144 of file Quon.h.

Referenced by addSite(), changeState(), classifySites(), getKey(), getPosition(), handleAppMessage(), handleJoin(), handleJoinAcknowledge(), handleJoinRequest(), handleMove(), handleNodeGracefulLeaveNotification(), handleNodeMove(), handleUDPMessage(), initializeOverlay(), processBackupTimer(), processSecTimer(), sendMessage(), sendToApp(), updateThisSite(), and ~Quon().

int Quon::timeSinceCache

private

Definition at line 156 of file Quon.h.

Referenced by initializeOverlay(), and processSecTimer().

bool Quon::useDynamicAOI

private

Definition at line 74 of file Quon.h.

Referenced by handleMove(), handleNodeMove(), and initializeOverlay().

bool Quon::useSquareMetric

private

Definition at line 75 of file Quon.h.

Referenced by classifySites(), handleNodeMove(), and initializeOverlay().

---

The documentation for this class was generated from the following files:

• Quon.h
• Quon.cc
