Voronoi class. More...

#include <Vast.h>

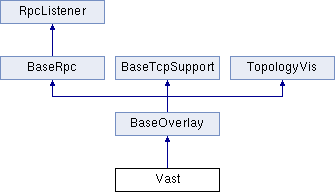

Inheritance diagram for Vast:

Public Member Functions
	~Vast ()
void	initializeOverlay (int stage)
	Initializes derived-class-attributes.
void	finishOverlay ()
	collects statistical data in derived class
void	handleUDPMessage (BaseOverlayMessage *msg)
	Processes messages from underlay.
void	handleTimerEvent (cMessage *msg)
void	handleAppMessage (cMessage *msg)
	Processes "timer" self-messages.
void	handleNodeLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed.
void	handleNodeGracefulLeaveNotification ()
	This method gets call **.gracefulLeaveDelay seconds before it is killed if this node is among the gracefulLeaveProbability nodes.
double	getAOI ()
Vector2D	getPosition ()
NodeHandle	getHandle ()
double	getAreaDimension ()
Public Member Functions inherited from BaseOverlay
	BaseOverlay ()
virtual	~BaseOverlay ()
	Virtual destructor.
States	getState ()
bool	isMalicious ()
	Returns true, if node is malicious.
bool	isInSimpleMultiOverlayHost ()
	Returns true if overlay is one in an array, inside a SimpleMultiOverlayHost.
const simtime_t &	getCreationTime ()
void	join (const OverlayKey &nodeID=OverlayKey::UNSPECIFIED_KEY)
	Join the overlay with a given nodeID.
virtual NodeVector *	local_lookup (const OverlayKey &key, int num, bool safe)
	finds nodes closest to the given OverlayKey
virtual NodeVector *	neighborSet (int num)
virtual bool	isSiblingFor (const NodeHandle &node, const OverlayKey &key, int numSiblings, bool *err)
	Query if a node is among the siblings for a given key.
virtual int	getMaxNumSiblings ()
	Query the maximum number of siblings (nodes close to a key) that are maintained by this overlay protocol.
virtual int	getMaxNumRedundantNodes ()
	Query the maximum number of redundant next hop nodes that are returned by findNode().
void	sendMessageToUDP (const TransportAddress &dest, cPacket *msg, simtime_t delay=SIMTIME_ZERO)
	Sends message to underlay.
void	sendToKey (const OverlayKey &key, BaseOverlayMessage *message, int numSiblings=1, const std::vector< TransportAddress > &sourceRoute=TransportAddress::UNSPECIFIED_NODES, RoutingType routingType=DEFAULT_ROUTING)
	Sends a message to an overlay node, with the generic routing algorithm.
virtual OverlayKey	distance (const OverlayKey &x, const OverlayKey &y, bool useAlternative=false) const
	This method should implement the distance between two keys.
void	registerComp (CompType compType, cModule *module)
cModule *	getCompModule (CompType compType)
cGate *	getCompRpcGate (CompType compType)
void	sendMessageToAllComp (cMessage *msg, CompType srcComp)
bool	providesKbr ()
virtual uint8_t	getBitsPerDigit ()
bool	getMeasureAuthBlock ()
BootstrapList &	getBootstrapList () const
virtual OverlayKey	estimateMeanDistance ()
	returns mean distance between OverlayKeys in the network
virtual uint32_t	estimateOverlaySize ()
	estimates the current number of nodes online
Public Member Functions inherited from BaseRpc
	BaseRpc ()
const NodeHandle &	getThisNode ()
	Returns the NodeHandle of this node.
simtime_t	getUdpTimeout ()
Public Member Functions inherited from RpcListener
virtual	~RpcListener ()
	destructor
Public Member Functions inherited from BaseTcpSupport
virtual void	socketDataArrived (int connId, void yourPtr, cPacket msg, bool urgent)
virtual void	socketEstablished (int connId, void *yourPtr)
virtual void	socketPeerClosed (int connId, void *yourPtr)
virtual void	socketFailure (int connId, void *yourPtr, int code)
virtual void	socketStatusArrived (int connId, void yourPtr, TCPStatusInfo status)
Public Member Functions inherited from TopologyVis
	TopologyVis ()
void	showOverlayNeighborArrow (const NodeHandle &neighbor, bool flush=true, const char *displayString=NULL)
	Draws an arrow from this node to neighbor.
void	deleteOverlayNeighborArrow (const NodeHandle &neighbor)
	Removes an arrow from this node to neighbor.

Public Attributes
SiteMap	Sites
Site	thisSite

Protected Member Functions
void	addNode (Vector2D p, NodeHandle node, int NeighborCount=0)
void	addNodeToStock (NodeHandle node)
void	removeNode (NodeHandle node)
void	buildVoronoi ()
void	buildVoronoi (Vector2D old_pos, Vector2D new_pos, NodeHandle enclosingCheck=NodeHandle::UNSPECIFIED_NODE)
void	removeNeighbors ()
void	sendToApp (cMessage *msg)
void	sendMessage (VastMessage *vastMsg, NodeHandle destAddr)
void	setBootstrapedIcon ()
void	changeState (int state)
void	processJoinTimer ()
void	processPingTimer ()
void	processSecTimer ()
void	processCheckCriticalTimer ()
void	processDiscoveryTimer ()
void	handleJoin (GameAPIPositionMessage *sgcMsg)
void	handleMove (GameAPIPositionMessage *sgcMsg)
void	handleEvent (GameAPIMessage *msg)
void	handleJoinRequest (VastMessage *vastMsg)
void	handleJoinAcknowledge (VastListMessage *vastListMsg)
void	handleNodeMove (VastMoveMessage *vastMoveMsg)
void	handleNewNeighbors (VastListMessage *vastListMsg)
void	handleNodeLeave (VastListMessage *vastListMsg)
void	handleEnclosingNeighborsRequest (VastMessage *vastMsg)
void	handleBackupNeighbors (VastListMessage *vastListMsg)
void	handlePing (VastMessage *vastMsg)
void	handlePong (VastMessage *vastMsg)
void	handleDiscardNode (VastDiscardMessage *vastMsg)
void	sendDiscardNode (VastMessage *vastMsg)
void	synchronizeApp (VastMoveMessage *vastMoveMsg=NULL)
Protected Member Functions inherited from BaseOverlay
int	numInitStages () const
	Sets init stage.
void	bindToPort (int port)
	Tells UDP we want to get all packets arriving on the given port.
virtual void	route (const OverlayKey &key, CompType destComp, CompType srcComp, cPacket *msg, const std::vector< TransportAddress > &sourceRoute=TransportAddress::UNSPECIFIED_NODES, RoutingType routingType=DEFAULT_ROUTING)
	Routes message through overlay.
void	callDeliver (BaseOverlayMessage *msg, const OverlayKey &destKey)
	Calls deliver function in application.
void	callForward (const OverlayKey &key, BaseRouteMessage *msg, const NodeHandle &nextHopNode)
	Calls forward function in application.
void	callUpdate (const NodeHandle &node, bool joined)
	Informs application about state changes of nodes or newly joined nodes.
void	handleMessage (cMessage *msg)
	Checks for message type and calls corresponding method.
void	handleBaseOverlayMessage (BaseOverlayMessage *msg, const OverlayKey &destKey=OverlayKey::UNSPECIFIED_KEY)
	Handles a BaseOverlayMessage
virtual void	receiveChangeNotification (int category, const cPolymorphic *details)
	callback-method for events at the NotificationBoard
virtual void	handleTransportAddressChangedNotification ()
	This method gets call if the node has a new TransportAddress (IP address) because he changed his access network.
virtual void	recordOverlaySentStats (BaseOverlayMessage *msg)
	Collect overlay specific sent messages statistics.
void	setOverlayReady (bool ready)
	Sets the overlay ready icon and register/deregisters the node at the GlobalNodeList.
virtual AbstractLookup *	createLookup (RoutingType routingType=DEFAULT_ROUTING, const BaseOverlayMessage msg=NULL, const cPacket findNodeExt=NULL, bool appLookup=false)
	Creates an abstract iterative lookup instance.
virtual void	removeLookup (AbstractLookup *lookup)
	Removes the abstract lookup instance.
virtual NodeVector *	findNode (const OverlayKey &key, int numRedundantNodes, int numSiblings, BaseOverlayMessage *msg=NULL)
	Implements the find node call.
virtual void	joinOverlay ()
	Join the overlay with a given nodeID in thisNode.key.
virtual void	joinForeignPartition (const NodeHandle &node)
	Join another overlay partition with the given node as bootstrap node.
virtual bool	handleFailedNode (const TransportAddress &failed)
	Handles a failed node.
virtual void	lookupRpc (LookupCall *call)
virtual void	nextHopRpc (NextHopCall *call)
void	countFindNodeCall (const FindNodeCall *call)
void	countFailedNodeCall (const FailedNodeCall *call)
bool	internalHandleRpcCall (BaseCallMessage *msg)
	Handles internal rpc requests.
void	internalHandleRpcResponse (BaseResponseMessage msg, cPolymorphic context, int rpcId, simtime_t rtt)
	Handles rpc responses internal in base classes
void	internalHandleRpcTimeout (BaseCallMessage msg, const TransportAddress &dest, cPolymorphic context, int rpcId, const OverlayKey &destKey)
	Handles rpc timeouts internal in base classes
void	internalSendRouteRpc (BaseRpcMessage *message, const OverlayKey &destKey, const std::vector< TransportAddress > &sourceRoute, RoutingType routingType)
CompType	getThisCompType ()
	Return the component type of this module.
Protected Member Functions inherited from BaseRpc
void	initRpcs ()
	Initializes Remote-Procedure state.
void	finishRpcs ()
	Deinitializes Remote-Procedure state.
virtual void	internalHandleRpcMessage (BaseRpcMessage *msg)
	Handles incoming rpc messages and delegates them to the corresponding listeners or handlers.
uint32_t	sendRouteRpcCall (CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Routes a Remote-Procedure-Call message to an OverlayKey.
uint32_t	sendRouteRpcCall (CompType destComp, const OverlayKey &destKey, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Routes a Remote-Procedure-Call message to an OverlayKey.
uint32_t	sendRouteRpcCall (CompType destComp, const TransportAddress &dest, BaseCallMessage msg, cPolymorphic context=NULL, RoutingType routingType=DEFAULT_ROUTING, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends a Remote-Procedure-Call message using the overlay's UDP port This replaces ROUTE_DIRECT calls!
uint32_t	sendUdpRpcCall (const TransportAddress &dest, BaseCallMessage msg, cPolymorphic context=NULL, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends a Remote-Procedure-Call message to the underlay
uint32_t	sendInternalRpcCall (CompType destComp, BaseCallMessage msg, cPolymorphic context=NULL, simtime_t timeout=-1, int retries=0, int rpcId=-1, RpcListener *rpcListener=NULL)
	Sends an internal Remote-Procedure-Call between two tiers
void	cancelRpcMessage (uint32_t nonce)
	Cancels a Remote-Procedure-Call.
void	cancelAllRpcs ()
	Cancels all RPCs.
void	sendRpcResponse (TransportType transportType, CompType destComp, const TransportAddress &dest, const OverlayKey &destKey, BaseCallMessage call, BaseResponseMessage response)
	Send Remote-Procedure response message and deletes call message.
void	sendRpcResponse (BaseCallMessage call, BaseResponseMessage response)
	Send Remote-Procedure response message to UDP and deletes call message.
int	pingNode (const TransportAddress &dest, simtime_t timeout=-1, int retries=0, cPolymorphic context=NULL, const char caption="PING", RpcListener *rpcListener=NULL, int rpcId=-1, TransportType transportType=INVALID_TRANSPORT)
	ping a node by its TransportAddress
virtual bool	handleRpcCall (BaseCallMessage *msg)
	Processes Remote-Procedure-Call invocation messages.
virtual void	pingResponse (PingResponse pingResponse, cPolymorphic context, int rpcId, simtime_t rtt)
virtual void	pingTimeout (PingCall pingCall, const TransportAddress &dest, cPolymorphic context, int rpcId)
bool	internalHandleMessage (cMessage *msg)
Protected Member Functions inherited from RpcListener
virtual void	handleRpcResponse (BaseResponseMessage msg, cPolymorphic context, int rpcId, simtime_t rtt)
	This method is called if an RPC response has been received.
virtual void	handleRpcResponse (BaseResponseMessage *msg, const RpcState &rpcState, simtime_t rtt)
	This method is called if an RPC response has been received.
virtual void	handleRpcTimeout (BaseCallMessage msg, const TransportAddress &dest, cPolymorphic context, int rpcId, const OverlayKey &destKey)
	This method is called if an RPC timeout has been reached.
virtual void	handleRpcTimeout (const RpcState &rpcState)
	This method is called if an RPC timeout has been reached.
Protected Member Functions inherited from BaseTcpSupport
void	handleTCPMessage (cMessage *msg)
	Member function to handle incoming TCP messages.
void	bindAndListenTcp (int port)
	Member function to bind service to the specified port and listen afterwards.
bool	isAlreadyConnected (TransportAddress address)
	Member function to check if the service is already connected.
void	establishTcpConnection (TransportAddress address)
	Member function to establish a connection to the specified node.
void	sendTcpData (cPacket *msg, TransportAddress address)
	Member function to send TCP data to the specified node.
virtual void	handleConnectionEvent (EvCode code, TransportAddress address)
	Member function to handle passive connection events.
virtual void	handleDataReceived (TransportAddress address, cPacket *msg, bool urgent)
	Member function to handle incoming data.
virtual void	handleIncomingConnection (TransportAddress address)
	Member function to handle newly opened connections.
void	closeTcpConnection (TransportAddress address)
	Member function to close an established connection.
void	setTcpOut (cGate *gate)
	Member function to set local gate towards the TCP module during init phase.
cGate *	getTcpOut ()
	Member function to get local gate towards the TCP module.
Protected Member Functions inherited from TopologyVis
void	initVis (cModule *terminal)

Protected Attributes
double	AOI_size
double	areaDimension
PositionSet	Positions
StockList	Stock
long	joinRequestBytesSent
long	joinAcknowledgeBytesSent
long	nodeMoveBytesSent
long	newNeighborsBytesSent
long	nodeLeaveBytesSent
long	enclosingNeighborsRequestBytesSent
long	pingBytesSent
long	pongBytesSent
long	discardNodeBytesSent
long	backupBytesSent
long	maxBytesPerSecondSent
long	averageBytesPerSecondSent
long	bytesPerSecond
unsigned int	secTimerCount
bool	debugVoronoiOutput
simtime_t	joinTimeout
simtime_t	pingTimeout
simtime_t	discoveryIntervall
simtime_t	checkCriticalIntervall
double	criticalThreshold
unsigned long	stockListSize
Geometry	geom
EdgeList	edgelist
HeapPQ	heap
cMessage *	join_timer
cMessage *	ping_timer
cMessage *	discovery_timer
cMessage *	checkcritical_timer
cMessage *	sec_timer
Protected Attributes inherited from BaseOverlay
int	numAppDataForwarded
	number of forwarded app data packets
int	bytesAppDataForwarded
	number of forwarded app data bytes at out-gate
int	numAppLookupForwarded
	number of forwarded app lookup packets
int	bytesAppLookupForwarded
	number of forwarded app lookup bytes at out-gate
int	numMaintenanceForwarded
	number of forwarded maintenance packets
int	bytesMaintenanceForwarded
	number of forwarded maintenance bytes at out-gate
int	numFindNodeSent
int	bytesFindNodeSent
int	numFindNodeResponseSent
int	bytesFindNodeResponseSent
int	numFailedNodeSent
int	bytesFailedNodeSent
int	numFailedNodeResponseSent
int	bytesFailedNodeResponseSent
std::vector< HopDelayRecord * >	singleHopDelays
simtime_t	creationTime
	simtime when the node has been created
GlobalNodeList *	globalNodeList
	pointer to GlobalNodeList in this node
NotificationBoard *	notificationBoard
	pointer to NotificationBoard in this node
UnderlayConfigurator *	underlayConfigurator
	pointer to UnderlayConfigurator in this node
BootstrapList *	bootstrapList
	pointer to the BootstrapList module
GlobalParameters *	globalParameters
	pointer to the GlobalParameters module
uint32_t	overlayId
	identifies the overlay this node belongs to (used for multiple overlays)
bool	debugOutput
	debug output ?
RoutingType	defaultRoutingType
bool	useCommonAPIforward
	forward messages to applications?
bool	collectPerHopDelay
	collect delay for single hops
bool	routeMsgAcks
	send ACK when receiving route message
uint32_t	recNumRedundantNodes
	numRedundantNodes for recursive routing
bool	recordRoute
	record visited hops on route
bool	drawOverlayTopology
bool	rejoinOnFailure
bool	sendRpcResponseToLastHop
	needed by KBR protocols for NAT support
bool	dropFindNodeAttack
	if node is malicious, it tries a findNode attack
bool	isSiblingAttack
	if node is malicious, it tries a isSibling attack
bool	invalidNodesAttack
	if node is malicious, it tries a invalidNode attack
bool	dropRouteMessageAttack
	if node is malicious, it drops all received BaseRouteMessages
int	localPort
	used UDP-port
int	hopCountMax
	maximum hop count
bool	measureAuthBlock
	if true, measure the overhead of signatures in rpc messages
bool	restoreContext
	if true, a node rejoins with its old nodeId and malicious state
int	numDropped
	number of dropped packets
int	bytesDropped
	number of dropped bytes
cOutVector	delayVector
	statistical output vector for packet-delays
cOutVector	hopCountVector
	statistical output vector for hop-counts
States	state
IterativeLookupConfiguration	iterativeLookupConfig
RecursiveLookupConfiguration	recursiveLookupConfig
LookupSet	lookups
bool	kbr
	set this to true, if the overlay provides KBR services
Protected Attributes inherited from BaseRpc
NodeHandle	thisNode
	NodeHandle to this node.
BaseOverlay *	overlay
bool	debugOutput
	debug output ?
GlobalStatistics *	globalStatistics
	pointer to GlobalStatistics module in this node
CompType	thisCompType
NeighborCache *	neighborCache
	pointer to the neighbor cache
CryptoModule *	cryptoModule
	pointer to CryptoModule
int	numPingSent
int	bytesPingSent
int	numPingResponseSent
int	bytesPingResponseSent
Protected Attributes inherited from TopologyVis
cModule *	thisTerminal
GlobalNodeList *	globalNodeList
	pointer to corresponding node

Additional Inherited Members
Public Types inherited from BaseOverlay
enum	States { INIT = 0, BOOTSTRAP = 1, DISCOVERY = 2, PREJOIN = 3, JOIN = 4, POSTJOIN = 5, READY = 6, REFRESH = 7, SHUTDOWN = 8, FAILED = 9, RSET = JOIN, BSET = POSTJOIN }
Protected Types inherited from BaseOverlay
typedef UNORDERED_SET < AbstractLookup *, lookupHashFcn, lookupHashFcn >	LookupSet

Detailed Description

Voronoi class.

An overlay network based on voronoi diagrams.

Definition at line 41 of file Vast.h.

Constructor & Destructor Documentation

Vast::~Vast ( )

Definition at line 1205 of file Vast.cc.

{
    if(Sites.size()) {
        for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
            delete itSites->second;
        }
        Sites.clear();
        Positions.clear();
    }
    // destroy self timer messages
    cancelAndDelete(join_timer);
    cancelAndDelete(ping_timer);
    cancelAndDelete(sec_timer);
    cancelAndDelete(discovery_timer);
    cancelAndDelete(checkcritical_timer);
}

Member Function Documentation

void Vast::addNode	(	Vector2D	p,
		NodeHandle	node,
		int	NeighborCount = `0`
	)

protected

Definition at line 314 of file Vast.cc.

Referenced by handleJoinAcknowledge(), handleJoinRequest(), handleNewNeighbors(), handleNodeLeave(), handleNodeMove(), and handlePong().

{
    if(node != thisSite.addr) {
        if(Sites.find(node) == Sites.end()) {
            Site* temp_site = new Site();
            temp_site->coord = p;
            temp_site->addr = node;
            temp_site->neighborCount = NeighborCount;
            Sites.insert(std::make_pair(temp_site->addr, temp_site));
            Positions.insert(temp_site->coord);
        }
        else {
            SiteMap::iterator itSites = Sites.find(node);
            Positions.erase(itSites->second->coord);
            itSites->second->coord = p;
            Positions.insert(itSites->second->coord);
            if(NeighborCount != 0) {
                itSites->second->neighborCount = NeighborCount;
            }
        }
    }
}

void Vast::addNodeToStock ( NodeHandle node )

protected

Definition at line 338 of file Vast.cc.

Referenced by handleBackupNeighbors().

{
    if(node != thisSite.addr) {
        for(StockList::iterator itTemp = Stock.begin(); itTemp != Stock.end(); ++itTemp) {
            if(*itTemp == node) {
                return;
            }
        }
        Stock.push_front(node);
        if(Stock.size() > stockListSize) {
            Stock.pop_back();
        }
    }
}

void Vast::buildVoronoi ( )

protected

Definition at line 545 of file Vast.cc.

Referenced by handleJoinAcknowledge(), handleJoinRequest(), handleMove(), and handleNodeMove().

{
    buildVoronoi(thisSite.coord, thisSite.coord);
}

void Vast::buildVoronoi	(	Vector2D	old_pos,
		Vector2D	new_pos,
		NodeHandle	enclosingCheck = `NodeHandle::UNSPECIFIED_NODE`
	)

protected

Definition at line 363 of file Vast.cc.

{
    int sqrt_nsites = 1;
    double xmin, xmax, ymin, ymax;
    double deltax, deltay;
    // check wether there are any neighbors
    if(Sites.size() == 0) return;
    xmin = xmax = thisSite.coord.x;
    ymin = ymax = thisSite.coord.y;
    std::map<Vector2D, Site*> sortedSites;
    sortedSites.insert(std::make_pair(thisSite.coord, &thisSite));
    for(SiteMap::iterator itTemp = Sites.begin(); itTemp != Sites.end(); ++itTemp) {
        // determine min/max site coordinates
        if(itTemp->second->coord.x < xmin) xmin = itTemp->second->coord.x;
        if(itTemp->second->coord.x > xmax) xmax = itTemp->second->coord.x;
        if(itTemp->second->coord.y < ymin) ymin = itTemp->second->coord.y;
        if(itTemp->second->coord.y > ymax) ymax = itTemp->second->coord.y;
        // reset all sites to UNDEF
        itTemp->second->type = UNDEF;
        // reset enclosing neighbors set
        itTemp->second->enclosingSet.clear();
        // fill sorted List
        sortedSites.insert(std::make_pair(itTemp->second->coord, itTemp->second));
        sqrt_nsites++;
    }
    // needed to determine appropriate hashtable size
    deltax = xmax - xmin;
    deltay = ymax - ymin;
    sqrt_nsites = (int)sqrt((double)(sqrt_nsites+4));
    // start to calculate the voronoi
    Site *newsite, *bot, *top, *temp, *p, *v, *bottomsite;
    Vector2D newintstar;
    int pm;
    Halfedge *lbnd, *rbnd, *llbnd, *rrbnd, *bisector;
    Edge *e;
    newintstar.x = newintstar.y = 0.0;
    std::map<Vector2D, Site*>::iterator itSortedSites = sortedSites.begin();
    geom.initialize(deltax, deltay, thisSite.coord, old_pos, new_pos, AOI_size);
    heap.PQinitialize(sqrt_nsites, ymin, deltay);
    bottomsite = itSortedSites->second;
    ++itSortedSites;
    edgelist.initialize(sqrt_nsites, xmin, deltax, bottomsite);
    newsite = itSortedSites->second;
    ++itSortedSites;
    while(true) {
        if(!heap.PQempty()) newintstar = heap.PQ_min();
        if(newsite != NULL && (heap.PQempty() ||
           newsite->coord.y < newintstar.y ||
           (newsite->coord.y == newintstar.y && newsite->coord.x < newintstar.x))) {
            lbnd = edgelist.ELleftbnd(&(newsite->coord));
            rbnd = edgelist.ELright(lbnd);
            bot = edgelist.rightreg(lbnd);
            e = geom.bisect(bot, newsite);
            bisector = edgelist.HEcreate(e, le);
            edgelist.ELinsert(lbnd, bisector);
            if ((p = geom.intersect(lbnd, bisector)) != NULL) {
                heap.PQdelete(lbnd);
                heap.PQinsert(lbnd, p, geom.dist(p, newsite));
            }
            lbnd = bisector;
            bisector = edgelist.HEcreate(e, re);
            edgelist.ELinsert(lbnd, bisector);
            if ((p = geom.intersect(bisector, rbnd)) != NULL) heap.PQinsert(bisector, p, geom.dist(p, newsite));
            if(itSortedSites != sortedSites.end()) {
                newsite = itSortedSites->second;
                ++itSortedSites;
            }
            else newsite = NULL;
        }
        else if (!heap.PQempty()) {
            lbnd = heap.PQextractmin();
            llbnd = edgelist.ELleft(lbnd);
            rbnd = edgelist.ELright(lbnd);
            rrbnd = edgelist.ELright(rbnd);
            bot = edgelist.leftreg(lbnd);
            top = edgelist.rightreg(rbnd);
            v = lbnd->vertex;
            geom.endpoint(lbnd->ELedge, lbnd->ELpm, v);
            geom.endpoint(rbnd->ELedge, rbnd->ELpm, v);
            edgelist.ELdelete(lbnd);
            heap.PQdelete(rbnd);
            edgelist.ELdelete(rbnd);
            pm = le;
            if (bot->coord.y > top->coord.y) {
                temp = bot;
                bot = top;
                top = temp;
                pm = re;
            }
            e = geom.bisect(bot, top);
            bisector = edgelist.HEcreate(e, pm);
            edgelist.ELinsert(llbnd, bisector);
            geom.endpoint(e, re-pm, v);
            if((p = geom.intersect(llbnd, bisector)) != NULL) {
                heap.PQdelete(llbnd);
                heap.PQinsert(llbnd, p, geom.dist(p, bot));
            }
            if ((p = geom.intersect(bisector, rrbnd)) != NULL) heap.PQinsert(bisector, p, geom.dist(p, bot));
        }
        else break;
    }
    // process the generated edgelist
    for(lbnd = edgelist.ELright(edgelist.ELleftend); lbnd != edgelist.ELrightend; lbnd = edgelist.ELright(lbnd)) {
        e = lbnd -> ELedge;
        geom.processEdge(e);
    }
    // process sites in order to determine our neighbors
    for(SiteMap::iterator itTemp = Sites.begin(); itTemp != Sites.end(); ++itTemp) {
        if(itTemp->second->innerEdge[0]) {
            if(itTemp->second->outerEdge) {
                itTemp->second->type |= BOUNDARY;
                // Debug output
                if(debugOutput)
                    EV << "[NeighborsList::buildVoronoi()]\n"
                       << "    Site at [" << itTemp->second->coord.x << ", "
                       << itTemp->second->coord.y << "] is a boundary neighbor."
                       << endl;
            }
            else {
                itTemp->second->type |= NEIGHBOR;
                // Debug output
                if(debugOutput)
                    EV << "[NeighborsList::buildVoronoi()]\n"
                       << "    Site at [" << itTemp->second->coord.x << ", "
                       << itTemp->second->coord.y << "] is a neighbor."
                       << endl;
            }
        }
        // Treat enclosing neighbors whose voronoi region is outside our AOI as boundary neighbors
        if((!itTemp->second->type & NEIGHBOR) && (itTemp->second->type & ENCLOSING)) {
            itTemp->second->type |= BOUNDARY;
            // Debug output
            if(debugOutput)
                EV << "[NeighborsList::buildVoronoi()]\n"
                << "    Site at [" << itTemp->second->coord.x << ", "
                << itTemp->second->coord.y << "] is a boundary neighbor."
                << endl;
        }
        if(!itTemp->second->innerEdge[1] && itTemp->second->innerEdge[2]) {
            itTemp->second->type |= NEW;
            // Debug output
            if(debugOutput)
                EV << "[NeighborsList::buildVoronoi()]\n"
                   << "    Site at [" << itTemp->second->coord.x << ", "
                   << itTemp->second->coord.y << "] is a new neighbor for site at " << new_pos.x << ":" << new_pos.y << "."
                   << endl;
        }
        // enhanced enclosing check
        if(!enclosingCheck.isUnspecified() && (Sites.find(enclosingCheck) != Sites.end())) {
            Site* tempSite = Sites.find(enclosingCheck)->second;
            for(EnclosingSet::iterator itSet = tempSite->enclosingSet.begin(); itSet != tempSite->enclosingSet.end(); ++itSet) {
                if(tempSite->oldEnclosingSet.find(*itSet) == tempSite->oldEnclosingSet.end()
                    && Sites.find(*itSet) != Sites.end()) {
                    Sites.find(*itSet)->second->type |= NEW;
                }
            }
            tempSite->enclosingSet.swap(tempSite->oldEnclosingSet);
        }
        // reset inner- and outeredge indicator
        itTemp->second->innerEdge[0] = false;
        itTemp->second->innerEdge[1] = false;
        itTemp->second->innerEdge[2] = false;
        itTemp->second->outerEdge = false;
    }
    // clean up
    edgelist.reset();
    heap.PQreset();
    geom.reset();
}

void Vast::changeState ( int state )

protected

Definition at line 106 of file Vast.cc.

Referenced by handleJoin(), handleJoinAcknowledge(), handleNodeGracefulLeaveNotification(), and initializeOverlay().

{
    switch(state) {
        case INIT: {
            this->state = INIT;
            globalNodeList->removePeer(thisSite.addr);
            cancelEvent(join_timer);
            cancelEvent(ping_timer);
            cancelEvent(sec_timer);
            cancelEvent(discovery_timer);
            cancelEvent(checkcritical_timer);
        } break;
        case JOIN: {
            this->state = JOIN;
            scheduleAt(simTime(), join_timer);
            scheduleAt(simTime() + 1.0, sec_timer);
        } break;
        case READY: {
            this->state = READY;
            cancelEvent(join_timer);
            globalNodeList->registerPeer(thisSite.addr);
            scheduleAt(simTime() + pingTimeout, ping_timer);
            if(checkCriticalIntervall > 0.0 && discoveryIntervall > 0.0) {
                scheduleAt(simTime() + checkCriticalIntervall, checkcritical_timer);
                scheduleAt(simTime() + discoveryIntervall, discovery_timer);
            }
            // tell the application we are ready
            CompReadyMessage* readyMsg = new CompReadyMessage("OVERLAY_READY");
            readyMsg->setReady(true);
            readyMsg->setComp(getThisCompType());
            sendToApp(readyMsg);
            GameAPIResizeAOIMessage* gameMsg = new GameAPIResizeAOIMessage("RESIZE_AOI");
            gameMsg->setCommand(RESIZE_AOI);
            gameMsg->setAOIsize(AOI_size);
            sendToApp(gameMsg);
        } break;
    }
    setBootstrapedIcon();
    // debug output
    if(debugOutput) {
        EV << "[Vast::changeState() @ " << thisSite.addr.getIp()
           << " (" << thisSite.addr.getKey().toString(16) << ")]\n"
           << "VAST: Node " << thisSite.addr.getIp() << " entered ";
        switch(state) {
            case INIT: ev << "INIT"; break;
            case JOIN: ev << "JOIN"; break;
            case READY: ev << "READY"; break;
        }
        ev << " state." << endl;
    }
}

void Vast::finishOverlay ( )

virtual

collects statistical data in derived class

Reimplemented from BaseOverlay.

Definition at line 1157 of file Vast.cc.

{
    globalNodeList->removePeer(thisSite.addr);
//    We use our own time count to avoid rounding errors
//    simtime_t time = globalStatistics->calcMeasuredLifetime(creationTime);
//    if(time == 0) return;
    if(secTimerCount == 0) return;
    // collect statistics
    globalStatistics->addStdDev("Vast: JOIN_REQUEST bytes sent/s", joinRequestBytesSent/(double) secTimerCount);
    globalStatistics->addStdDev("Vast: JOIN_ACKNOWLEDGE bytes sent/s", joinAcknowledgeBytesSent/(double) secTimerCount);
    globalStatistics->addStdDev("Vast: NODE_MOVE bytes sent/s", nodeMoveBytesSent/(double) secTimerCount);
    globalStatistics->addStdDev("Vast: NEW_NEIGHBORS bytes sent/s", newNeighborsBytesSent/(double) secTimerCount);
    globalStatistics->addStdDev("Vast: NODE_LEAVE bytes sent/s", nodeLeaveBytesSent/(double) secTimerCount);
    globalStatistics->addStdDev("Vast: ENCLOSING_NEIGHBORS_REQUEST bytes sent/s", enclosingNeighborsRequestBytesSent/(double) secTimerCount);
    globalStatistics->addStdDev("Vast: PING bytes sent/s", pingBytesSent/(double) secTimerCount);
    globalStatistics->addStdDev("Vast: PONG bytes sent/s", pongBytesSent/(double) secTimerCount);
    globalStatistics->addStdDev("Vast: DISCARD_NODE bytes sent/s", discardNodeBytesSent/(double) secTimerCount);
    globalStatistics->addStdDev("Vast: BACKUP bytes sent/s", backupBytesSent/(double) secTimerCount);
    globalStatistics->addStdDev("Vast: max bytes/second sent", maxBytesPerSecondSent);
    globalStatistics->addStdDev("Vast: average bytes/second sent", averageBytesPerSecondSent / (double) secTimerCount);
}

double Vast::getAOI ( )

Definition at line 1181 of file Vast.cc.

{
    Enter_Method_Silent();
    return AOI_size;
}

double Vast::getAreaDimension ( )

Definition at line 1199 of file Vast.cc.

{
    Enter_Method_Silent();
    return areaDimension;
}

NodeHandle Vast::getHandle ( )

Definition at line 1193 of file Vast.cc.

Referenced by ConnectivityProbe::extractTopology().

{
    Enter_Method_Silent();
    return thisSite.addr;
}

Vector2D Vast::getPosition ( )

Definition at line 1187 of file Vast.cc.

{
    Enter_Method_Silent();
    return thisSite.coord;
}

void Vast::handleAppMessage ( cMessage * msg )

virtual

Processes "timer" self-messages.

Parameters

msg	A self-message Processes non-commonAPI messages
msg	non-commonAPIMessage

Reimplemented from BaseOverlay.

Definition at line 197 of file Vast.cc.

{
    if(dynamic_cast<GameAPIMessage*>(msg)) {
        GameAPIMessage* gameAPIMsg = check_and_cast<GameAPIMessage*>(msg);
        // debug output
        if(debugOutput) EV << "[Vast::handleAppMessage() @ " << thisSite.addr.getIp()
                           << " (" << thisSite.addr.getKey().toString(16) << ")]\n"
                           << "    Node " << thisSite.addr.getIp() << " received " << gameAPIMsg->getName() << " from application."
                           << endl;
        switch(gameAPIMsg->getCommand()) {
            case MOVEMENT_INDICATION: {
                GameAPIPositionMessage* gameAPIPosMsg = check_and_cast<GameAPIPositionMessage*>(msg);
                if(state == JOIN) {
                    handleJoin(gameAPIPosMsg);
                    delete msg;
                }
                else if(state == READY) {
                    handleMove(gameAPIPosMsg);
                    delete msg;
                }
            } break;
            case GAMEEVENT_CHAT:
            case GAMEEVENT_SNOW:
            case GAMEEVENT_FROZEN:
                handleEvent( gameAPIMsg );
                delete msg;
                break;
            default: {
                delete msg;
            }
        }
    }
    else delete msg;
}

void Vast::handleBackupNeighbors ( VastListMessage * vastListMsg )

protected

Definition at line 975 of file Vast.cc.

Referenced by handleUDPMessage().

{
    // add new neighbors to stock list
    for(unsigned int i=0; i<vastListMsg->getNeighborNodeArraySize(); i++) {
        if(Sites.find(vastListMsg->getNeighborNode(i)) == Sites.end()) {
            addNodeToStock(vastListMsg->getNeighborNode(i));
        }
    }
}

void Vast::handleDiscardNode ( VastDiscardMessage * vastMsg )

protected

Definition at line 1003 of file Vast.cc.

Referenced by handleUDPMessage().

{
    // discard outdated entry
    removeNode(vastMsg->getDiscardNode());
    // update voronoi
    //buildVoronoi();
    //synchronizeApp();
    // removeNeighbors();
}

void Vast::handleEnclosingNeighborsRequest ( VastMessage * vastMsg )

protected

Definition at line 946 of file Vast.cc.

Referenced by handleUDPMessage().

{
    // send new neighbors
    VastListMessage *vastListMsg = new VastListMessage("NEW_NEIGHBORS");
    vastListMsg->setCommand(NEW_NEIGHBORS);
    vastListMsg->setNeighborNodeArraySize(Sites.size());
    vastListMsg->setNeighborPosArraySize(Sites.size());
    int i = 0;
    for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
        if((itSites->second->type & ENCLOSING) && itSites->second->addr != vastMsg->getSourceNode()) {
            vastListMsg->setNeighborNode(i, itSites->second->addr);
            vastListMsg->setNeighborPos(i, itSites->second->coord);
            ++i;
        }
    }
    vastListMsg->setNeighborNodeArraySize(i);
    vastListMsg->setNeighborPosArraySize(i);
    vastListMsg->setBitLength(VASTLIST_L(vastListMsg));
    if(vastListMsg->getNeighborNodeArraySize() > 0) {
        sendMessage(vastListMsg, vastMsg->getSourceNode());
    }
    else {
        delete vastListMsg;
    }
}

void Vast::handleEvent ( GameAPIMessage * msg )

protected

Definition at line 771 of file Vast.cc.

Referenced by handleAppMessage().

{
    // send event to neighbors
    for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
        VastEventMessage *vastMsg = new VastEventMessage("EVENT");
        vastMsg->setCommand(VAST_EVENT);
        vastMsg->encapsulate((cPacket*)msg->dup());
        // FIXME: Message length!
        sendMessage(vastMsg, itSites->second->addr);
    }
}

void Vast::handleJoin ( GameAPIPositionMessage * sgcMsg )

protected

Definition at line 728 of file Vast.cc.

Referenced by handleAppMessage().

{
    TransportAddress joinNode = bootstrapList->getBootstrapNode();
    thisSite.coord = sgcMsg->getPosition();
    // check if this is the only node in the overlay
    if(joinNode.isUnspecified()) {
        changeState(READY);
    }
    else {
        VastMessage *vastMsg = new VastMessage("JOIN_REQUEST");
        vastMsg->setCommand(JOIN_REQUEST);
        vastMsg->setBitLength(VAST_L(vastMsg));
        sendMessage(vastMsg, joinNode);
    }
}

void Vast::handleJoinAcknowledge ( VastListMessage * vastListMsg )

protected

Definition at line 834 of file Vast.cc.

Referenced by handleUDPMessage().

{
    // add acceptor node
    changeState(READY);
    addNode(vastListMsg->getPos(), vastListMsg->getSourceNode(), vastListMsg->getNeighborCount());
    // add new neighbors
    for(unsigned int i=0; i<vastListMsg->getNeighborNodeArraySize(); i++) {
        addNode(vastListMsg->getNeighborPos(i), vastListMsg->getNeighborNode(i));
    }
    // update voronoi with new neighbors
    buildVoronoi();
    synchronizeApp();
    // removeNeighbors();
    // contact new neighbors
    for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
        VastMoveMessage *vastMoveMsg = new VastMoveMessage("NODE_MOVE");
        vastMoveMsg->setCommand(NODE_MOVE);
        vastMoveMsg->setNewPos(thisSite.coord);
        vastMoveMsg->setIs_boundary(itSites->second->type & BOUNDARY);
        vastMoveMsg->setRequest_list(true);
        vastMoveMsg->setBitLength(VASTMOVE_L(vastMoveMsg));
        sendMessage(vastMoveMsg, itSites->second->addr);
    }
}

void Vast::handleJoinRequest ( VastMessage * vastMsg )

protected

Definition at line 783 of file Vast.cc.

Referenced by handleUDPMessage().

{
    Site *forwardSite = NULL;
    // start with this node
    double min_dist = thisSite.coord.distanceSqr(vastMsg->getPos());
    forwardSite = &thisSite;
    // iterate through all neighbors
    for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
        // dont forward to nodes which are still joining
        if(itSites->second->coord.distanceSqr(vastMsg->getPos()) < min_dist && itSites->second->neighborCount >= 0) {
            min_dist = itSites->second->coord.distanceSqr(vastMsg->getPos());
            forwardSite = itSites->second;
        }
    }
    // do nothing and let node retry with new position if current position is illegal
    if(min_dist == 0.0) {
        delete vastMsg;
    }
    else {
        // send an acknowledge or forward request if any of our neighbors is closer to joining node
        if(forwardSite->type & THIS) {
            VastListMessage *vastListMsg = new VastListMessage("JOIN_ACKNOWLEDGE");
            vastListMsg->setCommand(JOIN_ACKNOWLEDGE);
            // fill neighbors list
            vastListMsg->setNeighborNodeArraySize(Sites.size());
            vastListMsg->setNeighborPosArraySize(Sites.size());
            int i = 0;
            for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
                vastListMsg->setNeighborNode(i, itSites->second->addr);
                vastListMsg->setNeighborPos(i, itSites->second->coord);
                ++i;
            }
            vastListMsg->setBitLength(VASTLIST_L(vastListMsg));
            sendMessage(vastListMsg, vastMsg->getSourceNode());
            // add node to list to propagte its position early
            // nieghborCount is set to -1 to indicate node is still joining
            addNode(vastMsg->getPos(), vastMsg->getSourceNode(), -1);
            // update voronoi with new neighbors
            buildVoronoi();
            synchronizeApp();
            // removeNeighbors();
            delete vastMsg;
        }
        else {
            sendMessage(vastMsg, forwardSite->addr);
        }
    }
}

void Vast::handleMove ( GameAPIPositionMessage * sgcMsg )

protected

Definition at line 744 of file Vast.cc.

Referenced by handleAppMessage().

{
    Vector2D pos = sgcMsg->getPosition();
    // test if new position is legal
    if(Positions.find(pos) != Positions.end()) {
        GameAPIMessage *gameMsg = new GameAPIMessage("MOVEMENT_REQUEST");
        gameMsg->setCommand(MOVEMENT_REQUEST);
        sendToApp(gameMsg);
        return;
    }
    // set new position
    thisSite.coord = pos;
    // update voronoi
    buildVoronoi();
    synchronizeApp();
    removeNeighbors();
    // send position update to neighbors
    for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
        VastMoveMessage *vastMoveMsg = new VastMoveMessage("NODE_MOVE");
        vastMoveMsg->setCommand(NODE_MOVE);
        vastMoveMsg->setNewPos(pos);
        vastMoveMsg->setIs_boundary(itSites->second->type & BOUNDARY);
        vastMoveMsg->setBitLength(VASTMOVE_L(vastMoveMsg));
        sendMessage(vastMoveMsg, itSites->second->addr);
    }
}

void Vast::handleNewNeighbors ( VastListMessage * vastListMsg )

protected

Definition at line 914 of file Vast.cc.

Referenced by handleUDPMessage().

{
    // add new neighbors
    for(unsigned int i=0; i<vastListMsg->getNeighborNodeArraySize(); i++) {
        addNode(vastListMsg->getNeighborPos(i), vastListMsg->getNeighborNode(i));
        if(vastListMsg->getRequestEnclosingNeighbors()) {
            VastMessage *vastMsg = new VastMessage("ENCLOSING_NEIGHBORS_REQUEST");
            vastMsg->setCommand(ENCLOSING_NEIGHBORS_REQUEST);
            vastMsg->setBitLength(VAST_L(vastMsg));
            sendMessage(vastMsg, vastListMsg->getNeighborNode(i));
        }
    }
    // update voronoi with new neighbors
//    buildVoronoi();
//    synchronizeApp();
    // removeNeighbors();
}

void Vast::handleNodeGracefulLeaveNotification ( )

virtual

This method gets call **.gracefulLeaveDelay seconds before it is killed if this node is among the gracefulLeaveProbability nodes.

Reimplemented from BaseOverlay.

Definition at line 586 of file Vast.cc.

{
     if(state == READY) {
        // generate node leave messages
        VastListMessage *vastListMsg = new VastListMessage("NODE_LEAVE");
        vastListMsg->setCommand(NODE_LEAVE);
        // fill neighbors list
        vastListMsg->setNeighborNodeArraySize(Sites.size());
        vastListMsg->setNeighborPosArraySize(Sites.size());
        int i = 0;
        for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
            if(itSites->second->type & ENCLOSING) {
                vastListMsg->setNeighborNode(i, itSites->second->addr);
                vastListMsg->setNeighborPos(i, itSites->second->coord);
                ++i;
            }
        }
        vastListMsg->setNeighborNodeArraySize(i);
        vastListMsg->setNeighborPosArraySize(i);
        vastListMsg->setBitLength(VASTLIST_L(vastListMsg));
        if(vastListMsg->getNeighborNodeArraySize() > 0) {
            for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
                VastListMessage *vastCopyMsg = new VastListMessage(*vastListMsg);
               sendMessage(vastCopyMsg, itSites->second->addr);
            }
        }
        delete vastListMsg;
        changeState(INIT);
    }
}

void Vast::handleNodeLeave ( VastListMessage * vastListMsg )

protected

Definition at line 933 of file Vast.cc.

Referenced by handleUDPMessage().

{
    removeNode(vastListMsg->getSourceNode());
    // add possible new neighbors
    for(unsigned int i=0; i<vastListMsg->getNeighborNodeArraySize(); i++) {
        addNode(vastListMsg->getNeighborPos(i), vastListMsg->getNeighborNode(i));
    }
    // update voronoi with new neighbors
    // buildVoronoi();
    // synchronizeApp();
    // removeNeighbors();
}

void Vast::handleNodeLeaveNotification ( )

virtual

This method gets call **.gracefulLeaveDelay seconds before it is killed.

Reimplemented from BaseOverlay.

Definition at line 568 of file Vast.cc.

{
    if(state == READY) {
        // debug output
        if(debugOutput) {
            EV << "[Vast::receiveChangeNotification() @ " << thisSite.addr.getIp()
               << " (" << thisSite.addr.getKey().toString(16) << ")]\n"
               << "    Node " << thisSite.addr.getIp() << " is leaving the overlay."
               << endl;
        }
        CompReadyMessage* readyMsg = new CompReadyMessage("OVERLAY_FINISHED");
        readyMsg->setReady(false);
        readyMsg->setComp(getThisCompType());
        sendToApp(readyMsg);
    }
}

void Vast::handleNodeMove ( VastMoveMessage * vastMoveMsg )

protected

Definition at line 859 of file Vast.cc.

Referenced by handleUDPMessage().

{
    RECORD_STATS(
            globalStatistics->addStdDev(
                "Vast: MoveDelay",
                SIMTIME_DBL(simTime()) - SIMTIME_DBL(vastMoveMsg->getCreationTime())
                );
            );
    Vector2D old_p, new_p;
    old_p = vastMoveMsg->getPos();
    new_p = vastMoveMsg->getNewPos();
    addNode(new_p, vastMoveMsg->getSourceNode(), vastMoveMsg->getNeighborCount());
    // update voronoi with new neighbor detection or without
    if(vastMoveMsg->getIs_boundary() || vastMoveMsg->getRequest_list()) {
        buildVoronoi(old_p, new_p, vastMoveMsg->getSourceNode()); // enhanced enclosing check
        synchronizeApp(vastMoveMsg);
        // removeNeighbors();
        // send new neighbors
        VastListMessage *vastListMsg = new VastListMessage("NEW_NEIGHBORS");
        vastListMsg->setCommand(NEW_NEIGHBORS);
        vastListMsg->setNeighborNodeArraySize(Sites.size());
        vastListMsg->setNeighborPosArraySize(Sites.size());
        int i = 0;
        for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
            if(itSites->second->type & NEW || vastMoveMsg->getRequest_list()) {
                vastListMsg->setNeighborNode(i, itSites->second->addr);
                vastListMsg->setNeighborPos(i, itSites->second->coord);
                ++i;
            }
        }
        vastListMsg->setNeighborNodeArraySize(i);
        vastListMsg->setNeighborPosArraySize(i);
        vastListMsg->setRequestEnclosingNeighbors(true);
        vastListMsg->setBitLength(VASTLIST_L(vastListMsg));
        if(vastListMsg->getNeighborNodeArraySize() > 0) {
            RECORD_STATS(
                if( vastMoveMsg->getRequest_list() ) backupBytesSent += vastListMsg->getByteLength();
            );
            sendMessage(vastListMsg, vastMoveMsg->getSourceNode());
        }
        else {
            delete vastListMsg;
        }
    }
    else {
        // buildVoronoi();
        synchronizeApp(vastMoveMsg);
        // removeNeighbors();
    }
}

void Vast::handlePing ( VastMessage * vastMsg )

protected

Definition at line 985 of file Vast.cc.

Referenced by handleUDPMessage().

{
    VastMessage *vastPongMsg = new VastMessage("PONG");
    vastPongMsg->setCommand(PONG);
    vastPongMsg->setBitLength(VAST_L(vastPongMsg));
    sendMessage(vastPongMsg, vastMsg->getSourceNode());
}

void Vast::handlePong ( VastMessage * vastMsg )

protected

Definition at line 993 of file Vast.cc.

Referenced by handleUDPMessage().

{
    // replace entry cause it was probably outdated
    addNode(vastMsg->getPos(), vastMsg->getSourceNode(), vastMsg->getNeighborCount());
    // update voronoi
    //buildVoronoi();
    //synchronizeApp();
    // removeNeighbors();
}

void Vast::handleTimerEvent ( cMessage * msg )

virtual

Reimplemented from BaseRpc.

Definition at line 158 of file Vast.cc.

{
    if(msg->isName("join_timer")) {
        //reset timer
        cancelEvent(join_timer);
        scheduleAt(simTime() + joinTimeout, msg);
        // handle event
        processJoinTimer();
    }
    else if(msg->isName("ping_timer")) {
        //reset timer
        cancelEvent(ping_timer);
        scheduleAt(simTime() + pingTimeout, msg);
        // handle event
        processPingTimer();
    }
    else if(msg->isName("sec_timer")) {
        //reset timer
        cancelEvent(sec_timer);
        scheduleAt(simTime() + 1, msg);
        // handle event
        processSecTimer();
    }
    else if(msg->isName("checkcritical_timer")) {
        //reset timer
        cancelEvent(checkcritical_timer);
        scheduleAt(simTime() + checkCriticalIntervall, msg);
        // handle event
        processCheckCriticalTimer();
    }
    else if(msg->isName("discovery_timer")) {
        //reset timer
        cancelEvent(discovery_timer);
        scheduleAt(simTime() + discoveryIntervall, msg);
        // handle event
        processDiscoveryTimer();
    }
}

void Vast::handleUDPMessage ( BaseOverlayMessage * msg )

virtual

Processes messages from underlay.

Parameters

msg	Message from UDP

Reimplemented from BaseOverlay.

Definition at line 232 of file Vast.cc.

{
    if(state == INIT) {
        delete msg;
        return;
    }
    if(dynamic_cast<VastMessage*>(msg)) {
        VastMessage* vastMsg = check_and_cast<VastMessage*>(msg);
        if(vastMsg->getDestKey().isUnspecified() ||
           thisSite.addr.getKey().isUnspecified() ||
           vastMsg->getDestKey() == thisSite.addr.getKey()) {
            // debug output
            if(debugOutput) EV << "[Vast::handleUDPMessage() @ " << thisSite.addr.getIp()
                               << " (" << thisSite.addr.getKey().toString(16) << ")]\n"
                               << "    Node " << thisSite.addr.getIp() << " received " << vastMsg->getName() << " from " << vastMsg->getSourceNode().getIp()
                               << endl;
            bool doUpdate = true;
            if(state == READY) {
                switch(vastMsg->getCommand()) {
                    case JOIN_REQUEST: {
                        handleJoinRequest(vastMsg);
                        doUpdate = false;
                    } break;
                    case NODE_MOVE: {
                        VastMoveMessage* vastMoveMsg = check_and_cast<VastMoveMessage*>(msg);
                        handleNodeMove(vastMoveMsg);
                    } break;
                    case NEW_NEIGHBORS: {
                        VastListMessage* vastListMsg = check_and_cast<VastListMessage*>(msg);
                        handleNewNeighbors(vastListMsg);
                    } break;
                    case NODE_LEAVE: {
                        VastListMessage* vastListMsg = check_and_cast<VastListMessage*>(msg);
                        handleNodeLeave(vastListMsg);
                    } break;
                    case ENCLOSING_NEIGHBORS_REQUEST: {
                        handleEnclosingNeighborsRequest(vastMsg);
                    } break;
                    case BACKUP_NEIGHBORS: {
                        VastListMessage* vastListMsg = check_and_cast<VastListMessage*>(msg);
                        handleBackupNeighbors(vastListMsg);
                    } break;
                    case PING: {
                        handlePing(vastMsg);
                    } break;
                    case PONG: {
                        handlePong(vastMsg);
                    } break;
                    case DISCARD_NODE: {
                        VastDiscardMessage* vastDiscardMsg = check_and_cast<VastDiscardMessage*>(msg);
                        handleDiscardNode(vastDiscardMsg);
                    } break;
                    case VAST_EVENT: {
                        sendToApp(vastMsg->decapsulate());
                        doUpdate = false;
                        delete vastMsg;
                    } break;
                }
                // update timestamp
                if(doUpdate) {
                    SiteMap::iterator itSites = Sites.find(vastMsg->getSourceNode());
                    if(itSites != Sites.end()) {
                        itSites->second->tstamp = simTime();
                    }
                    delete msg;
                }
            }
            else if(state == JOIN && vastMsg->getCommand() == JOIN_ACKNOWLEDGE) {
                VastListMessage* vastListMsg = check_and_cast<VastListMessage*>(msg);
                handleJoinAcknowledge(vastListMsg);
                delete msg;
            }
            else delete msg;
        }
        else {
            sendDiscardNode(vastMsg);
            delete msg;
        }
    }
    else delete msg;
}

void Vast::initializeOverlay ( int stage )

virtual

Initializes derived-class-attributes.

Initializes derived-class-attributes, called by BaseOverlay::initialize(). By default this method is called once. If more stages are needed one can overload numInitStages() and add more stages.

Parameters

stage the init stage

Reimplemented from BaseOverlay.

Definition at line 34 of file Vast.cc.

{
    // because of IPAddressResolver, we need to wait until interfaces are registered,
    // address auto-assignment takes place etc.
    if(stage != MIN_STAGE_OVERLAY) return;
    // fetch parameters
    debugVoronoiOutput = par("debugVastOutput");
    areaDimension = par("areaDimension");
    AOI_size = par("AOIWidth");
    joinTimeout = par("joinTimeout");
    pingTimeout = par("pingTimeout");
    discoveryIntervall = par("discoveryIntervall");
    checkCriticalIntervall = par("criticalCheckIntervall");
    criticalThreshold = par("criticalThreshold");
    stockListSize = par("stockListSize");
    // set node key
    thisNode.setKey(OverlayKey::random());
    thisSite.type = THIS;
    thisSite.addr = thisNode;
    geom.setDebug(debugOutput);
    // self-messages
    join_timer = new cMessage("join_timer");
    ping_timer = new cMessage("ping_timer");
    sec_timer = new cMessage("sec_timer");
    discovery_timer = new cMessage("discovery_timer");
    checkcritical_timer = new cMessage("checkcritical_timer");
    // statistics
    joinRequestBytesSent = 0;
    joinAcknowledgeBytesSent = 0;
    nodeMoveBytesSent = 0;
    newNeighborsBytesSent = 0;
    nodeLeaveBytesSent = 0;
    enclosingNeighborsRequestBytesSent = 0;
    pingBytesSent = 0;
    pongBytesSent = 0;
    discardNodeBytesSent = 0;
    backupBytesSent = 0;
    maxBytesPerSecondSent = 0;
    averageBytesPerSecondSent = 0;
    bytesPerSecond = 0;
    secTimerCount = 0;
    // watch some variables
    WATCH(AOI_size);
    WATCH(thisSite);
    WATCH_MAP(Sites);
    WATCH_SET(Positions);
    WATCH(joinRequestBytesSent);
    WATCH(joinAcknowledgeBytesSent);
    WATCH(nodeMoveBytesSent);
    WATCH(newNeighborsBytesSent);
    WATCH(nodeLeaveBytesSent);
    WATCH(enclosingNeighborsRequestBytesSent);
    WATCH(pingBytesSent);
    WATCH(pongBytesSent);
    WATCH(discardNodeBytesSent);
    WATCH(maxBytesPerSecondSent);
    WATCH(bytesPerSecond);
    // set initial state
    changeState(INIT);
    changeState(JOIN);
}

void Vast::processCheckCriticalTimer ( )

protected

Definition at line 678 of file Vast.cc.

Referenced by handleTimerEvent().

{
    double NeighborLevel;
    int NeighborSum = 0;
    for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
        if(itSites->second->neighborCount > 0) {
            NeighborSum += itSites->second->neighborCount;
        }
    }
    NeighborLevel = (double)(Sites.size() * Sites.size()) / (double)NeighborSum;
    if(NeighborLevel < criticalThreshold) {
        VastListMessage *vastListMsg = new VastListMessage("BACKUP_NEIGHBORS");
        vastListMsg->setCommand(BACKUP_NEIGHBORS);
        // fill neighbors list
        vastListMsg->setNeighborNodeArraySize(Sites.size());
        vastListMsg->setNeighborPosArraySize(Sites.size());
        int i = 0;
        for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
            vastListMsg->setNeighborNode(i, itSites->second->addr);
            vastListMsg->setNeighborPos(i, itSites->second->coord);
            ++i;
        }
        vastListMsg->setBitLength(VASTLIST_L(vastListMsg));
        for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
            VastListMessage *vastCopyMsg = new VastListMessage(*vastListMsg);
            RECORD_STATS(
                backupBytesSent += vastCopyMsg->getByteLength();
            );
            sendMessage(vastCopyMsg, itSites->second->addr);
        }
        delete vastListMsg;
    }
}

void Vast::processDiscoveryTimer ( )

protected

Definition at line 713 of file Vast.cc.

Referenced by handleTimerEvent().

{
    for(StockList::iterator itStock = Stock.begin(); itStock != Stock.end(); ++itStock) {
        VastMoveMessage *vastMoveMsg = new VastMoveMessage("NODE_MOVE");
        vastMoveMsg->setCommand(NODE_MOVE);
        vastMoveMsg->setNewPos(thisSite.coord);
        vastMoveMsg->setRequest_list(true);
        vastMoveMsg->setBitLength(VASTMOVE_L(vastMoveMsg));
        RECORD_STATS(
            backupBytesSent += vastMoveMsg->getByteLength();
        );
        sendMessage(vastMoveMsg, *itStock);
    }
}

void Vast::processJoinTimer ( )

protected

Definition at line 618 of file Vast.cc.

Referenced by handleTimerEvent().

{
    GameAPIMessage *sgcMsg = new GameAPIMessage("MOVEMENT_REQUEST");
    sgcMsg->setCommand(MOVEMENT_REQUEST);
    sendToApp(sgcMsg);
}

void Vast::processPingTimer ( )

protected

Definition at line 625 of file Vast.cc.

Referenced by handleTimerEvent().

{
    bool abnormalLeave = false;
    bool boundaryLeave = false;
    std::set<NodeHandle> removeSet;
    for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
        if(itSites->second->tstamp < 0.0) { // node is dropped cause no pong has been received see below
            abnormalLeave = true;
            if(!(itSites->second->type & NEIGHBOR)) boundaryLeave = true;
            itSites->second->type = UNDEF;
            removeSet.insert( itSites->first );
        }
        else if(itSites->second->tstamp < simTime() - pingTimeout) { // node showed no activity for some time request pong and mark it to be dropped next time
            VastMessage *vastMsg = new VastMessage("PING");
            vastMsg->setCommand(PING);
            vastMsg->setBitLength(VAST_L(vastMsg));
            sendMessage(vastMsg, itSites->second->addr);
            itSites->second->tstamp = -1.0;
        }
    }
    if(abnormalLeave) {
        synchronizeApp();
        for( std::set<NodeHandle>::iterator it = removeSet.begin(); it != removeSet.end(); ++it) {
            removeNode( *it );
        }
        // removeNeighbors();
        if(boundaryLeave) {
            for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
                if(itSites->second->type & BOUNDARY) {
                    VastMessage *vastMsg = new VastMessage("ENCLOSING_NEIGHBORS_REQUEST");
                    vastMsg->setCommand(ENCLOSING_NEIGHBORS_REQUEST);
                    vastMsg->setBitLength(VAST_L(vastMsg));
                    sendMessage(vastMsg, itSites->second->addr);
                }
            }
        }
        //buildVoronoi();
        //removeNeighbors(); should be superfluous
    }
}

void Vast::processSecTimer ( )

protected

Definition at line 666 of file Vast.cc.

Referenced by handleTimerEvent().

{
    RECORD_STATS(
        if(bytesPerSecond > maxBytesPerSecondSent) {
            maxBytesPerSecondSent = bytesPerSecond;
        }
        averageBytesPerSecondSent += bytesPerSecond;
        ++secTimerCount;
    );
    bytesPerSecond = 0;
}

void Vast::removeNeighbors ( )

protected

Definition at line 550 of file Vast.cc.

Referenced by handleMove().

{
    for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end();) {
        // if current site is no neighbor remove it else go on to next site
        if(itSites->second->type == UNDEF) {
            // Debug output
            if(debugOutput)  EV << "[NeighborsList::removeNeighbors()]\n"
                                << "    Site at [" << itSites->second->coord.x << ", " << itSites->second->coord.y
                                << "] has been removed from list."
                                << endl;
            Positions.erase(itSites->second->coord);
            delete itSites->second;
            Sites.erase(itSites++);
        }
        else ++itSites;
    }
}

void Vast::removeNode ( NodeHandle node )

protected

Definition at line 353 of file Vast.cc.

Referenced by handleDiscardNode(), handleNodeLeave(), and processPingTimer().

{
    SiteMap::iterator itSites = Sites.find(node);
    if(itSites != Sites.end()) {
        Positions.erase(itSites->second->coord);
        delete itSites->second;
        Sites.erase(itSites);
    }
}

void Vast::sendDiscardNode ( VastMessage * vastMsg )

protected

Definition at line 1013 of file Vast.cc.

Referenced by handleUDPMessage().

{
    NodeHandle discardNode;
    discardNode.setIp(thisSite.addr.getIp());
    discardNode.setKey(vastMsg->getDestKey());
    // send message
    VastDiscardMessage *vastDiscardMsg = new VastDiscardMessage("DISCARD_NODE");
    vastDiscardMsg->setCommand(DISCARD_NODE);
    vastDiscardMsg->setDiscardNode(discardNode);
    // debug output
    if(debugOutput) EV << "[Vast::sendDiscardNode() @ " << thisSite.addr.getIp()
                       << " (" << thisSite.addr.getKey().toString(16) << ")]\n"
                       << "    Node " << thisSite.addr.getIp() << " is leaving the overlay."
                       << endl;
    vastDiscardMsg->setBitLength(VASTDISCARD_L(vastDiscardMsg));
    sendMessage(vastDiscardMsg, vastMsg->getSourceNode());
}

void Vast::sendMessage	(	VastMessage *	vastMsg,
		NodeHandle	destAddr
	)

protected

Definition at line 1085 of file Vast.cc.

Referenced by handleEnclosingNeighborsRequest(), handleEvent(), handleJoin(), handleJoinAcknowledge(), handleJoinRequest(), handleMove(), handleNewNeighbors(), handleNodeGracefulLeaveNotification(), handleNodeMove(), handlePing(), processCheckCriticalTimer(), processDiscoveryTimer(), processPingTimer(), and sendDiscardNode().

{
    // collect statistics
    RECORD_STATS(
        switch(vastMsg->getCommand()) {
            case JOIN_REQUEST: {
                joinRequestBytesSent += vastMsg->getByteLength();
            } break;
            case JOIN_ACKNOWLEDGE: {
                joinAcknowledgeBytesSent += vastMsg->getByteLength();
            } break;
            case NODE_MOVE: {
                nodeMoveBytesSent += vastMsg->getByteLength();
            } break;
            case NEW_NEIGHBORS: {
                newNeighborsBytesSent += vastMsg->getByteLength();
            } break;
            case NODE_LEAVE: {
                nodeLeaveBytesSent += vastMsg->getByteLength();
            } break;
            case ENCLOSING_NEIGHBORS_REQUEST: {
                enclosingNeighborsRequestBytesSent += vastMsg->getByteLength();
            } break;
            case PING: {
                pingBytesSent += vastMsg->getByteLength();
            } break;
            case PONG: {
                pongBytesSent += vastMsg->getByteLength();
            } break;
            case DISCARD_NODE: {
                discardNodeBytesSent += vastMsg->getByteLength();
            } break;
        }
        bytesPerSecond += vastMsg->getByteLength();
    );
    // debug output
    if(debugOutput) EV << "[Vast::sendMessage() @ " << thisSite.addr.getIp()
                       << " (" << thisSite.addr.getKey().toString(16) << ")]\n"
                       << "    Node " << thisSite.addr.getIp() << " sending " << vastMsg->getName() << " to " << destAddr.getIp() << "."
                       << endl;
    // set vastbase message stuff
    vastMsg->setDestKey(destAddr.getKey());
    // fill in sender information only if we are not forwarding a message from another node
    // e.g. a joining node
    if(vastMsg->getSourceNode().isUnspecified()) {
        vastMsg->setSourceNode(thisSite.addr);
        vastMsg->setPos(thisSite.coord);
        vastMsg->setNeighborCount(Sites.size());
    }
    sendMessageToUDP(destAddr, vastMsg);
}

void Vast::sendToApp ( cMessage * msg )

protected

Definition at line 1075 of file Vast.cc.

Referenced by changeState(), handleMove(), handleNodeLeaveNotification(), handleUDPMessage(), processJoinTimer(), and synchronizeApp().

{
    // debug output
    if(debugOutput) EV << "[Vast::sendToApp() @ " << thisSite.addr.getIp()
                       << " (" << thisSite.addr.getKey().toString(16) << ")]\n"
                       << "    Node " << thisSite.addr.getIp() << " sending " << msg->getName() << " to application."
                       << endl;
    send(msg, "appOut");
}

void Vast::setBootstrapedIcon ( )

protected

Definition at line 1139 of file Vast.cc.

Referenced by changeState().

{
    if(ev.isGUI()) {
        if(state == READY) {
            getParentModule()->getParentModule()->getDisplayString().setTagArg("i2", 1, "green");
            getDisplayString().setTagArg("i", 1, "green");
        }
        else if(state == JOIN) {
            getParentModule()->getParentModule()->getDisplayString().setTagArg("i2", 1, "yellow");
            getDisplayString().setTagArg("i", 1, "yellow");
        }
        else {
            getParentModule()->getParentModule()->getDisplayString().setTagArg("i2", 1, "red");
            getDisplayString().setTagArg("i", 1, "red");
        }
    }
}

void Vast::synchronizeApp ( VastMoveMessage * vastMoveMsg = NULL )

protected

Definition at line 1031 of file Vast.cc.

Referenced by handleJoinAcknowledge(), handleJoinRequest(), handleMove(), handleNodeMove(), and processPingTimer().

{
    GameAPIListMessage *sgcMsg = new GameAPIListMessage("NEIGHBOR_UPDATE");
    sgcMsg->setCommand(NEIGHBOR_UPDATE);
    sgcMsg->setRemoveNeighborArraySize(Sites.size());
    sgcMsg->setAddNeighborArraySize(Sites.size() + 1);
    sgcMsg->setNeighborPositionArraySize(Sites.size() + 1);
    int remSize, addSize;
    remSize = addSize = 0;
    for(SiteMap::iterator itSites = Sites.begin(); itSites != Sites.end(); ++itSites) {
        if(itSites->second->type == UNDEF) {
            sgcMsg->setRemoveNeighbor(remSize, itSites->second->addr);
            ++remSize;
        }
        else if(!itSites->second->isAdded) {
            sgcMsg->setAddNeighbor(addSize, itSites->second->addr);
            sgcMsg->setNeighborPosition(addSize, itSites->second->coord);
            itSites->second->isAdded = true;
            ++addSize;
        }
    }
    if(vastMoveMsg &&
       Sites.find(vastMoveMsg->getSourceNode()) != Sites.end() &&
       Sites.find(vastMoveMsg->getSourceNode())->second->isAdded) {
        sgcMsg->setAddNeighbor(addSize, vastMoveMsg->getSourceNode());
        sgcMsg->setNeighborPosition(addSize, vastMoveMsg->getNewPos());
        ++addSize;
    }
    sgcMsg->setRemoveNeighborArraySize(remSize);
    sgcMsg->setAddNeighborArraySize(addSize);
    sgcMsg->setNeighborPositionArraySize(addSize);
    if(sgcMsg->getAddNeighborArraySize() || sgcMsg->getRemoveNeighborArraySize()) {
        sendToApp(sgcMsg);
    }
    else {
        delete sgcMsg;
    }
}
